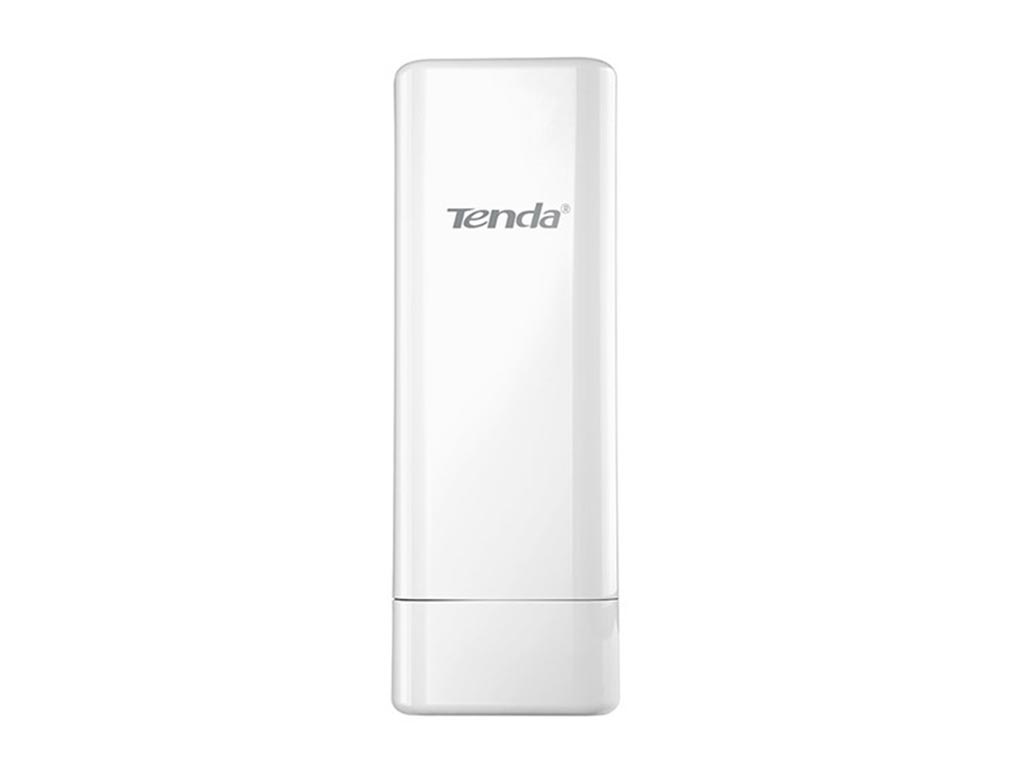

O3
5km Point to Point Outdoor CPE
O3 2.4GHz Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. Adopt of auto-bridging technology,two CPE can connect to each other automatically to make it easy to setup.
- 2.4GHz 11n 150Mbps
- 12dbi directional antenna
- IP64 waterproof enclosure
- 6000V Lightning Protection
- AP, Station, WISP operating mode supported
- Up to 60 meters of flexible deployment with included PoE Injector

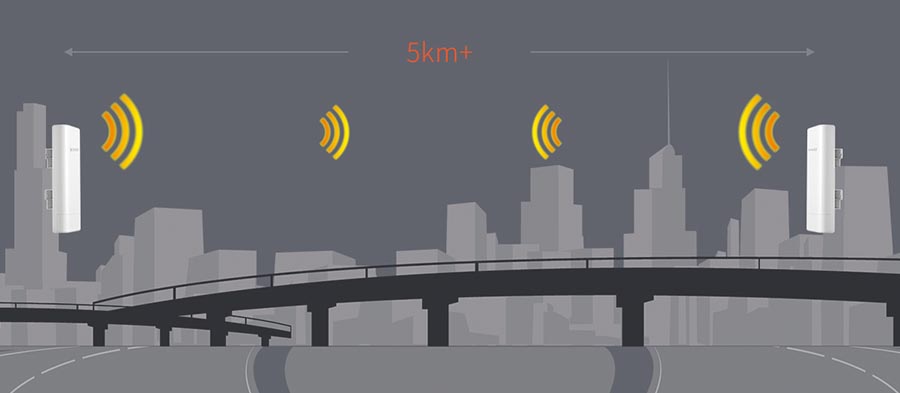

5km+ transmission Range
O3 adopts of independent power amplifier and 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 5km.
Auto-bridge For Two Device
O3 adopts of auto-bridge technology,two cpe can connect to each other when you power on them face to face. It is very easy to setup for CCTV surveillance and data.
.jpg)

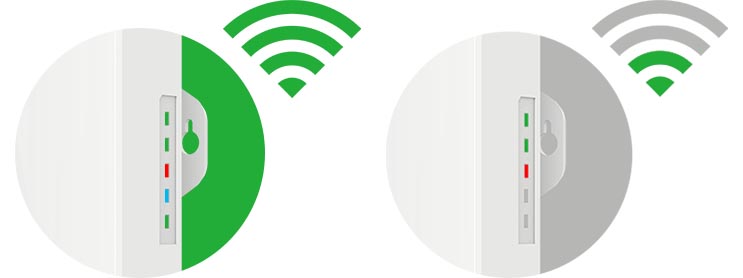

Smart Signal Indicator LED
3 signal LED Lights represent the currently signal strength that O3 receives from peer device.It is helpful to find the right location to deploy the device and achieve a better performance.

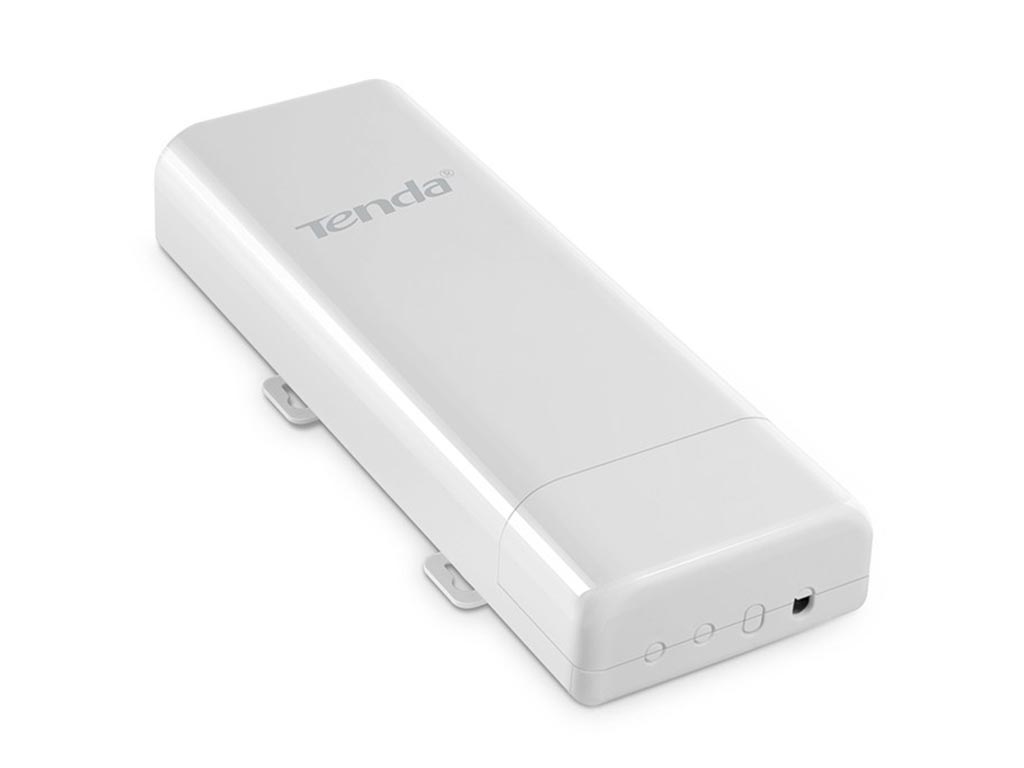

Professional Outdoor Design
Equipped with IP64 waterproof enclouse and high quality hardware design, O3 can work in various weather conditions, such as sunshine, rainfall or extremely low/high temperature environment
.jpg)
Multiple Application Scenarios

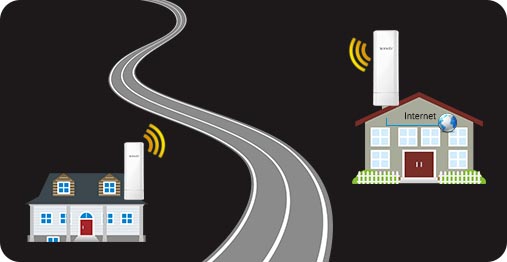

Long-Distance Wireless Connection
One work as AP mode and another work as Station mode to create a long distance wrieless connecton for video surveillance and data transmission.

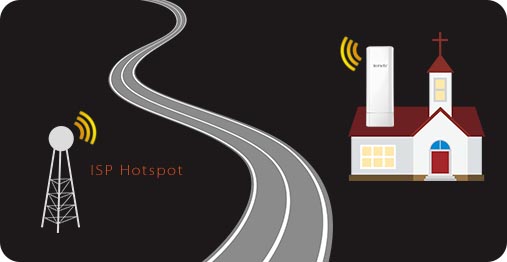

WISP (Client + Router) Mode
Wirelessly connect to WISP station/hotspot to share Internet to local wireless and wired network.

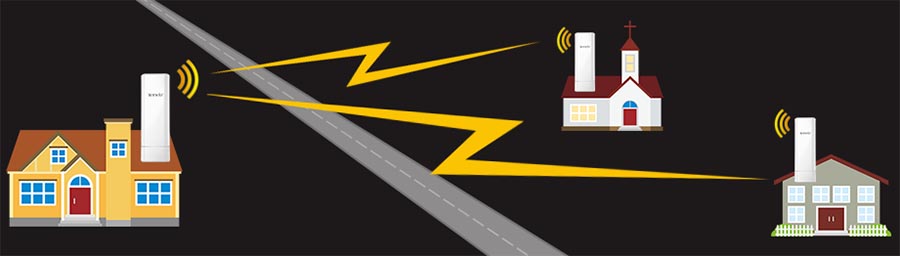

P2MP Link
Link multi AP in a network, all the associated client can communicate with each other.

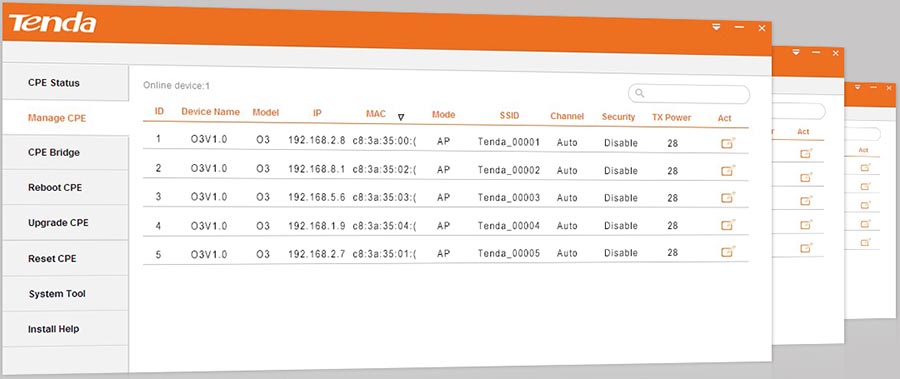

Easy to Setup and Manage
O3 comes with a centralized management software that helps users easily to manage all the devices in the network from a single PC-CPE Assistant.
.jpg)

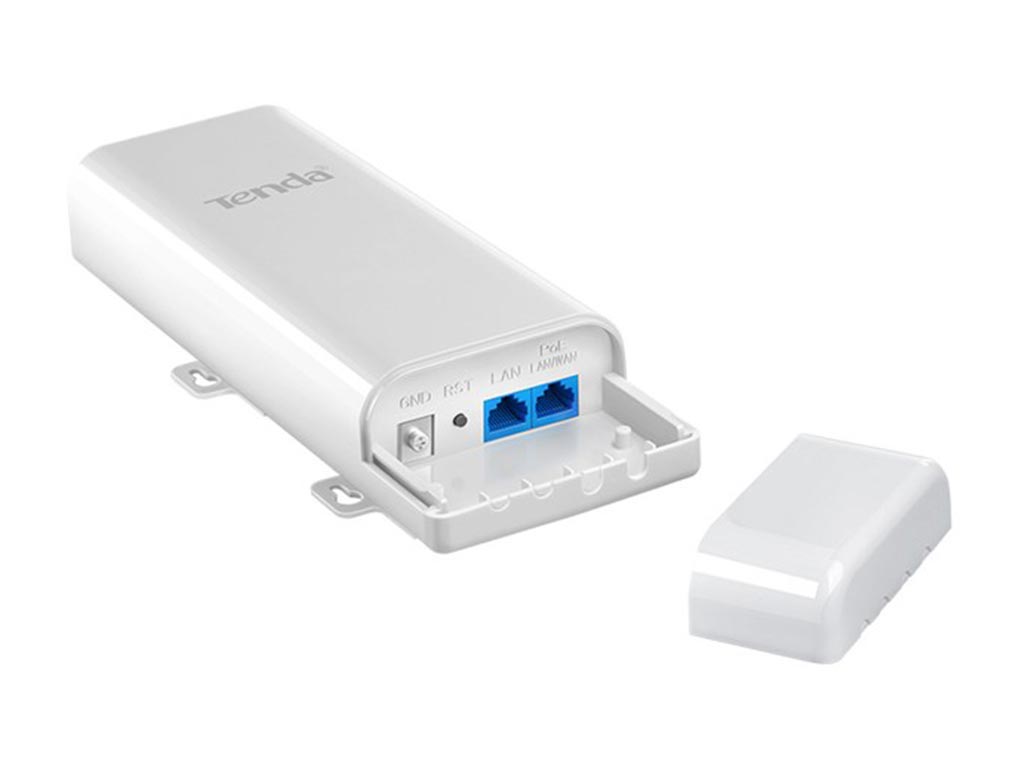

| Hardware Features | |
| Frequency Range | 2.4GHz |
| Maximum Wireless Rate | 150Mbps |
| Interfaces | 2* 10/100Mbps Ethernet Port |
| Antennas Gain | 12 dbi |
| Antenna Beamwidth | Horizontal: 60° Vertical: 30° |
| Reset Button | 1 |
| GND | 1 |
| Power Consumption | 4.3W |
| Waterproof Level | IP64 |
| LED indicator | PoE/ LAN, LED1, LED2, LED3 |
| Power Method | 12V1A Passive PoE |
| Lightning Protection | 6000V |
| Passive PoE | Passive power over ethenet via PoE/LAN (+4,5pins; -7,8pins) Voltage range: 11-13.8V DC |
| Receiver sensitivity | MCS0: -96dbm MCS7: -72dbm |
| Software Features | |
| Operating mode | AP/ Station/ WISP/ P2MP/ WDS Repeater/ Router |
| Compliant Standards | IEEE 802.11b/g/n |
| Enable/Disable Wireless Radio | Support |
| SSID Hidden | Support |
| Wireless Client isolation | Support |
| SSID Isolation | Support |
| Client Limitation For SSID | Support |
| Wireless Access Control | Support |
| Weak Signal Client Limitation | Support |
| Transmission Power | Support |
| WMM Capable | Support |
| APSD Capable | Support |
| Wireless Security | 64/128 WEP, WPA-PSK, WPA2-PSK, WPA & WPA2-PSK, WPA, WPA2 |
| Transparent Bridge | Support |
| VLAN Tagging for SSID | Support |
| DHCP Server | Support |
| VPN Pass - Through | PPTP, L2TP |
| Remote Web access | Support |
| Schedule Reboot | Support |
| Page Timeout | Support |
| Ping Watchdog | Support |
| Dyndns | noip, dyndns.org |
| Network Diagnoses | Ping, Traceroute, Signal Scan |
| Time & Date Setting | Support |
| Firmware upgrade | Support |
| Backup/ Restore Configuration | Support |
| Username Managerment | Support |
| System Log | Support |
| Managed By Controller | PC Software - CPE Assistant |
| Others | |
| Dimensions | 270 * 94.86 * 67.5mm |
| Deployment | Pole Mount |
| Application Scenarios | WISP CPE, Data transmission and Long range video surveillance |
| Package Contents | 1* 5km Point to Point Outdoor CPE 1* Power Adapter 1* PoE Injector 2* Plastic Staps 1* Quick Installation Guide |
| Operating Temperature | -30℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 10%~90% non-condensing |
| Default login IP | 192.168.2.1 |
| Certifications | FCC/ CE/ RoHS |
| Κατασκευαστής | Tenda |
| Μοντέλο | O3 2.4Ghz 150Mbps Wireless CPE v2.0 |
| Κατηγορία | Access Points |
| Ταχύτητα WiFi | N150 |
| Θύρες Ethernet | 2x 10/100 Mbps |
| Υποστήριξη PoE | Υποστήριξη Passive PoE |
| Εγγύηση | 3 Έτη |
