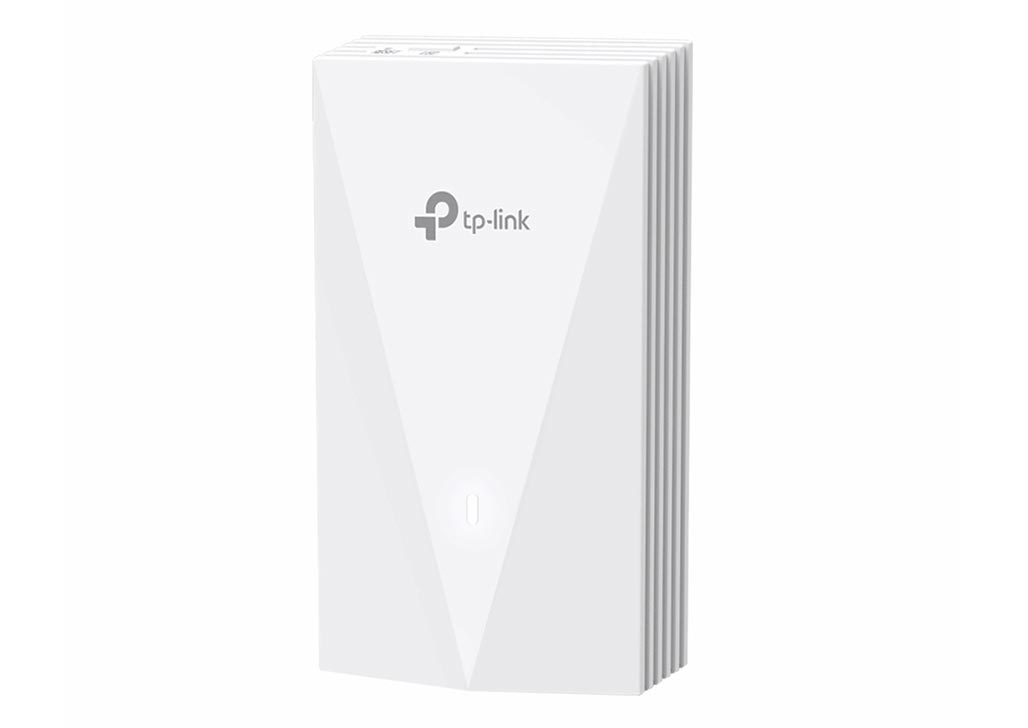

Tp-Link EAP655-WALL AX3000 WiFi 6 Dual-Band Access Point V1.0
Χωρίς ΦΠΑ: 80,56 €
Πληροφορίες
Περισσότερες λεπτομέρειες δείτε στην επίσημη σελίδα του κατασκευαστή στο link. Γραμμή τεχνικής υποστήριξης 210.614.8834, Email: support.gr@tp-link.com
Δόσεις
- Blazing-Fast AX3000 WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
- Higher Network Efficiency: Deliver data to more devices at the same time with less lag.
- Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.
- Multiple Gigabit Ports: Connect multiple devices with three downlink gigabit ports, one with PoE pass-through.
- Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
- Secure Guest Network: Implement multiple authentication options (SMS/Voucher) packed with high-quality wireless security technologies.
- Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.

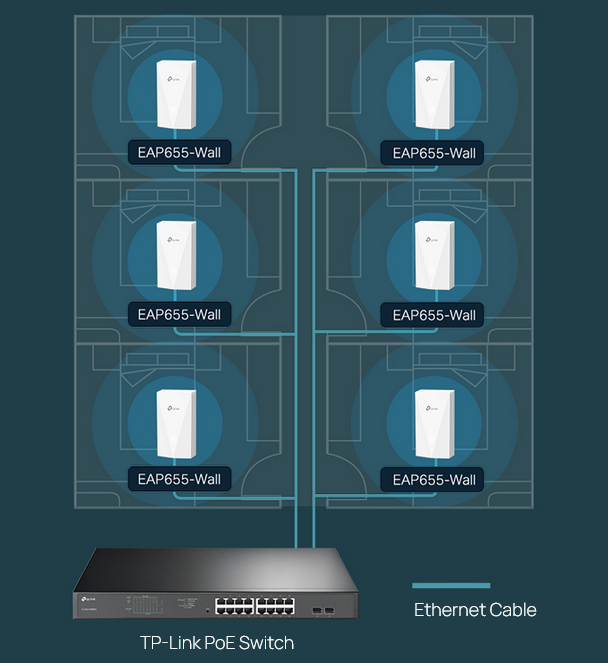

Dedicated Complete, Private WiFi Network in Each Room
.png)

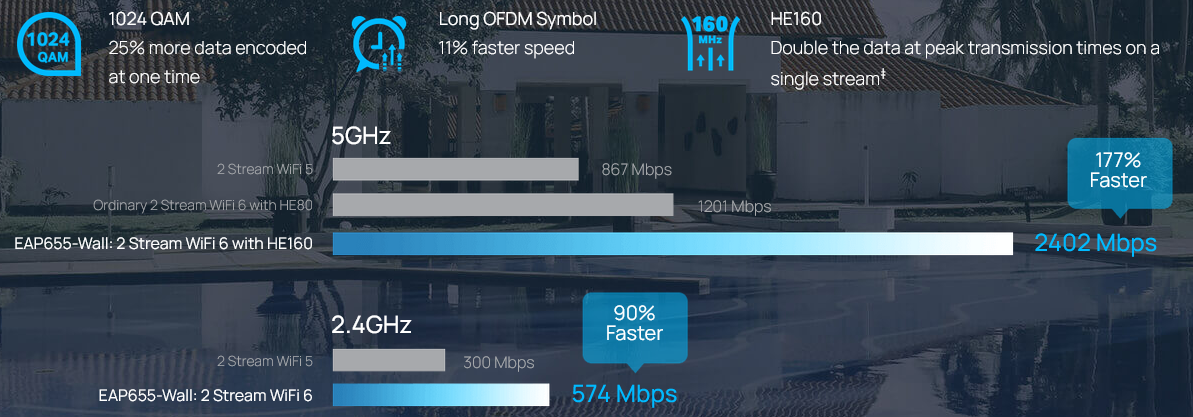

Lightning-Fast AX3000 WiFi 6 Speeds
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity. Enjoy more than twice the speed of WiFi 5 with new-era business WiFi 6 with speeds up to 2976 Mbps.
.png)

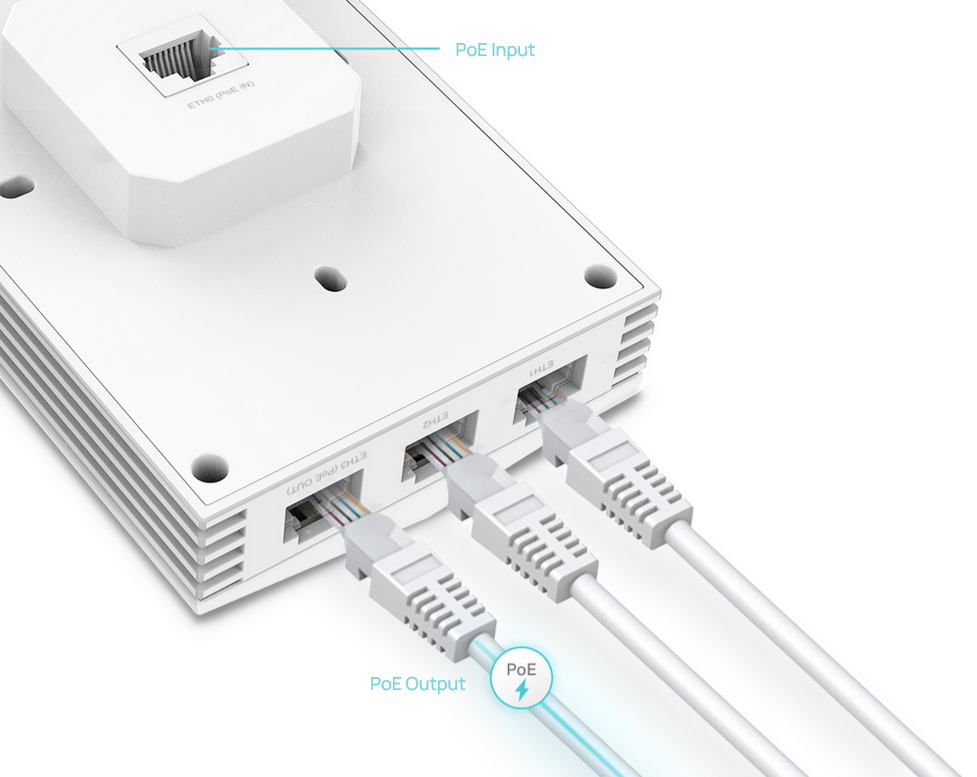

Full Gigabit Ports to Bridge Network
Wired devices like VoIP phones can be powered with no need for extra electrical cables. The four data ports (1 uplink + 3 downlinks) transfer data at multiple gigabits, allowing you to connect several devices to your gigabits network. One of the downlink ports offers PoE pass-through to eliminate the need for that extra power port.
.png)
Effortless Deployment with PoE Powered
With 802.3af/802.3at PoE support, there’s no need for more wiring. Plug it into the existing Ethernet cables, and you’re ready.
.png)

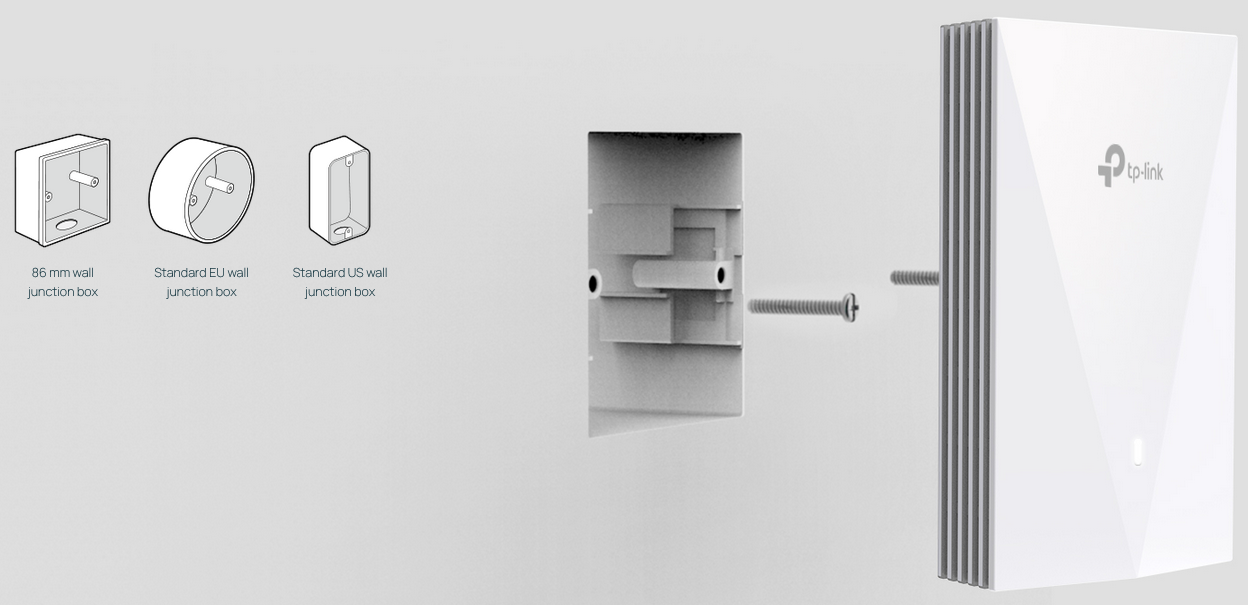

Quick, Simplified Installation
With an easy-to-install design, there is no need to bring someone in to install our EAP.
.png)

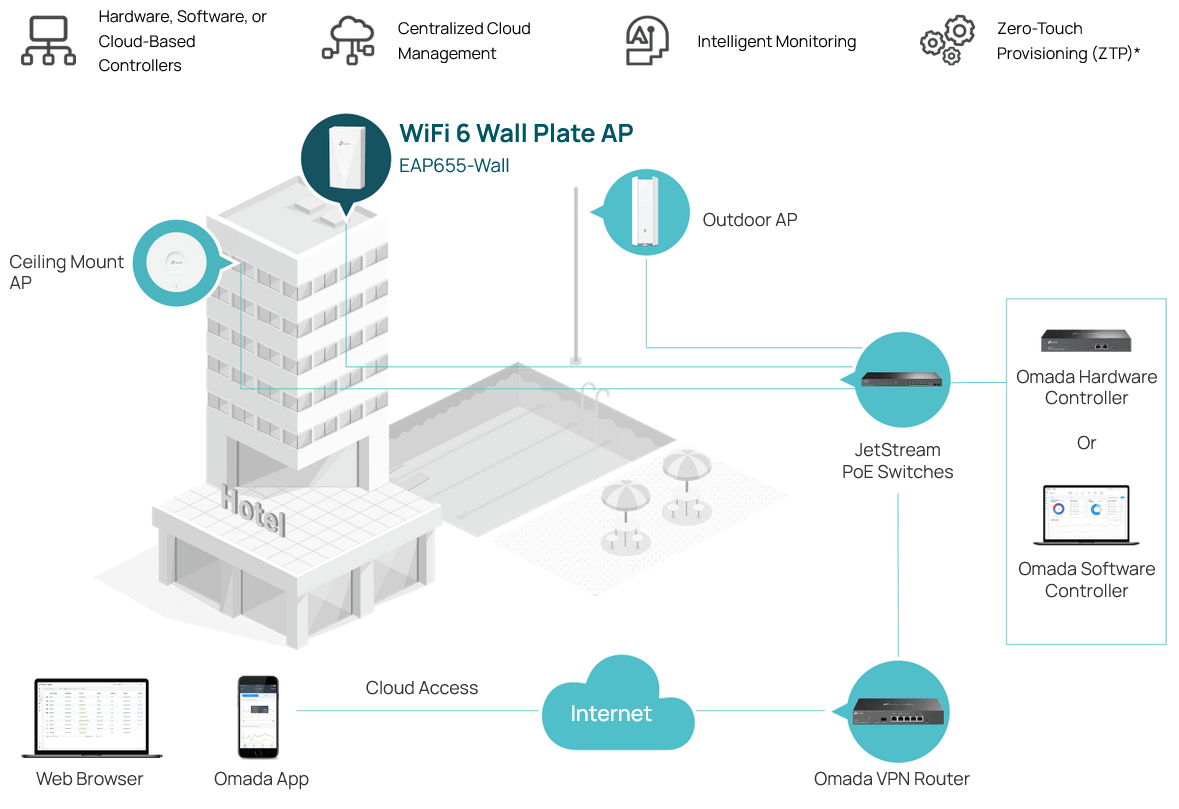

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network-all controlled from a single interface.
.png)
|
HARDWARE FEATURES |
|
|---|---|
| Interface | Uplink: 1x Gigabit Ethernet Port Downlink: 3x Gigabit Ethernet Ports (One port supports PoE out. The PoE out feature requires 802.3at PoE+ input. The maximum power output for POE pass-through is 10.5 W (EU version) or 10 W (US version), based on laboratory testing.) |
| Physical Security Lock | No |
| Button | Reset, LED |
| Power Supply | 802.3af/at PoE |
| Max. Power Consumption | EU: 12W (802.3at PoE, PoE Out off) US: 12.6W (802.3at PoE, PoE Out off) |
| Dimensions ( W x D x H ) | 143 x 86 x 42.6 mm (5.6 x 3.4 x 1.7 in) |
| Antenna | 2 Dual-Band Antennas 2.4 GHz: 2x 3 dBi 5 GHz: 2x 5 dBi |
| Mounting | Wall Plate Mounting (Kits included) |
|
WIRELESS FEATURES |
|
| Coverage | 50㎡(600 ft²) |
| Concurrent Clients | 120+ |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 5 GHz: Up to 2402 Mbps 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | 16 SSIDs (Up to 8 SSIDs on each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Seamless Roaming(802.11k/v/r) Beamforming Rate Limit Load Balance Airtime Fairness Band Steering Reboot Schedule Wireless Schedule RADIUS Accounting MAC Authentication Wireless Statistics Static IP/Dynamic IP |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients VLAN Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | CE: <20 dBm (2.4GHz, EIRP) <23 dBm (5GHz, band 1 & band 2, EIRP) <26 dBm (5GHz, band 3, EIRP) FCC: < 21 dBm (2.4 GHz) < 21 dBm (5 GHz, band 1 & band 2 & band 3 & band 4) |
|
Management Features |
|
| Omada App | Yes |
| Centralized Management | Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
|
OTHERS |
|
| Certification | FCC, RoHS |
| Package Content | AX3000 Wall Plate WiFi 6 Access Point EAP655-Wall Installation Guide Mounting Kits |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
| Κατασκευαστής | Tp-Link |
| Μοντέλο | EAP655-WALL AX3000 WiFi 6 Dual-Band Access Point V1.0 |
| Part Number | EAP655-WALL |
| Κατηγορία | Access Points |
| Τύπος | Access Point |
| Πρωτόκολλο | WiFi 6 (802.11ax) |
| Ταχύτητα WiFi | AX3000 (WiFi 6) |
| Θύρες Ethernet | 4x 1 Gbps (1x Uplink, 3x Downlink) |
| Υποστήριξη PoE | Με PoE |
| Βάση οροφής (Ceiling Mount) | Χωρίς βάση οροφής |
| Υποστήριξη Mesh | Όχι |
| Εγγύηση | Limited Lifetime, Περισσότερες λεπτομέρειες δείτε στην επίσημη σελίδα του κατασκευαστή στο link. Γραμμή τεχνικής υποστήριξης 210.614.8834, Email: support.gr@tp-link.com |
