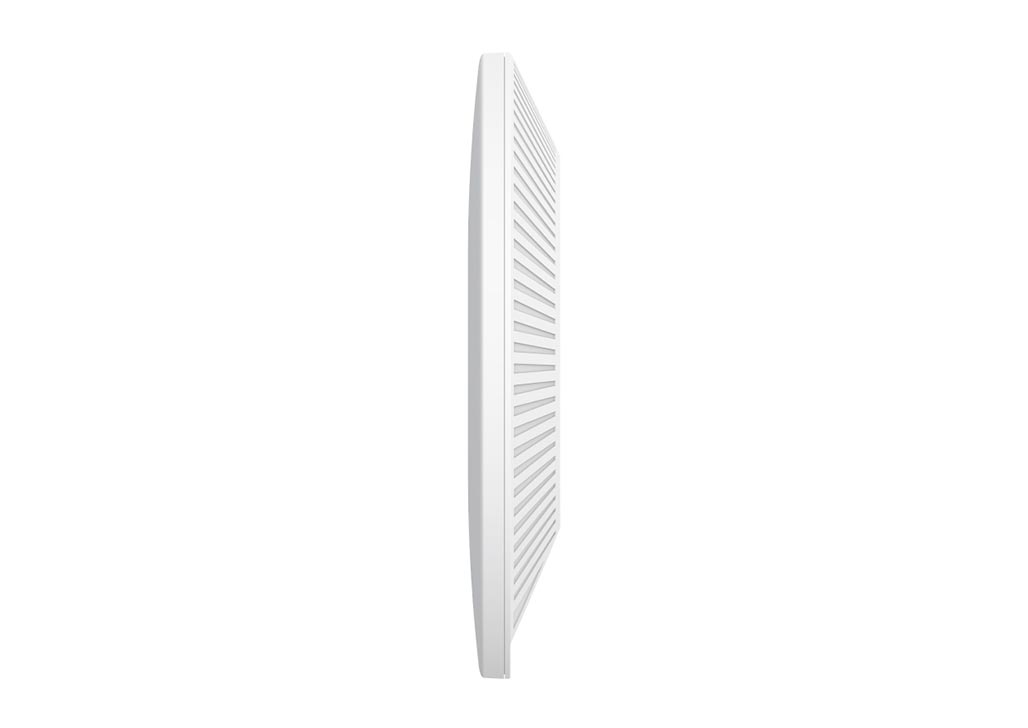

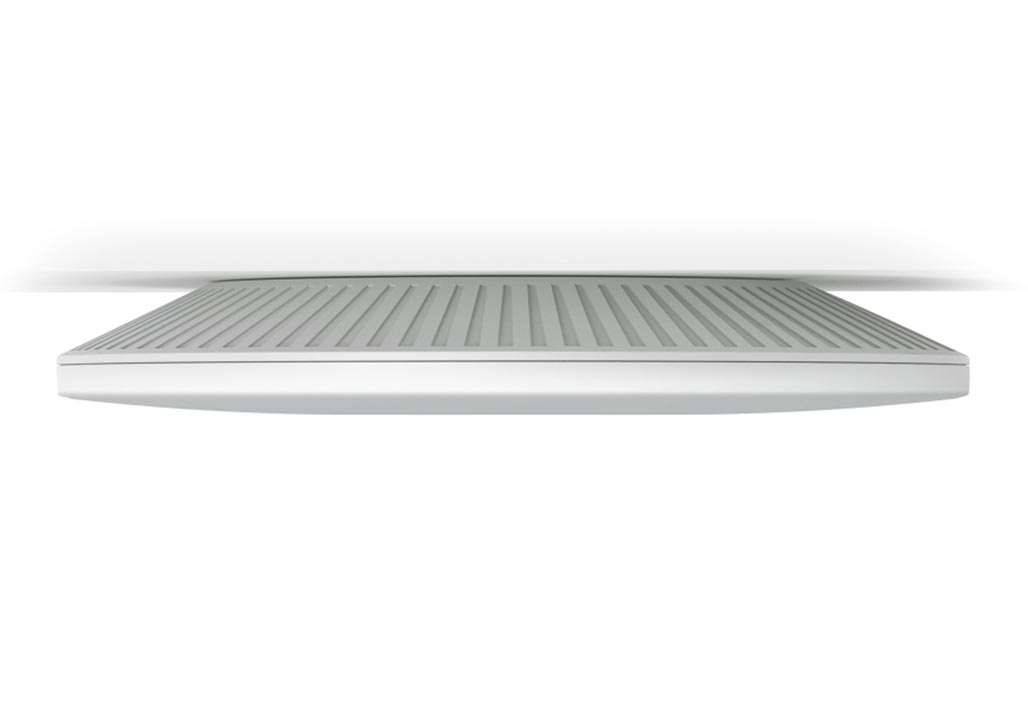

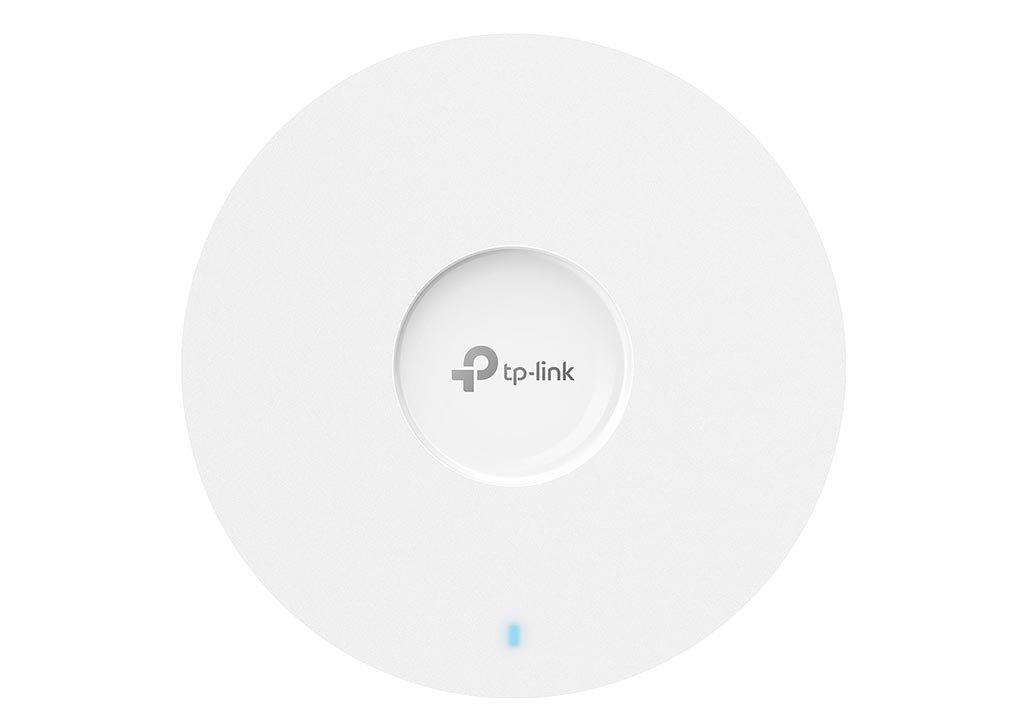

Tp-Link EAP673 AX5400 WiFi 6 Dual-Band Access Point V1.0
Χωρίς ΦΠΑ: 120,16 €
Πληροφορίες
Περισσότερες λεπτομέρειες δείτε στην επίσημη σελίδα του κατασκευαστή στο link. Γραμμή τεχνικής υποστήριξης 210.614.8834, Email: support.gr@tp-link.com
Δόσεις
- Blazing-Fast WiFi 6 Speeds (574 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz).
- Integrated into Omada SDN, supporting centralized cloud Management, ZTP, and more.
- 160 MHz Channel double the data at peak transmission times on a single stream.
- Advanced features: Supports seamless roaming, Omada Mesh, and more.
- Supports both 802.3at PoE and DC (adapter not included) power supply for flexible installations.
Designed for Business Environments
Requiring High-Performance WiFi
.png)

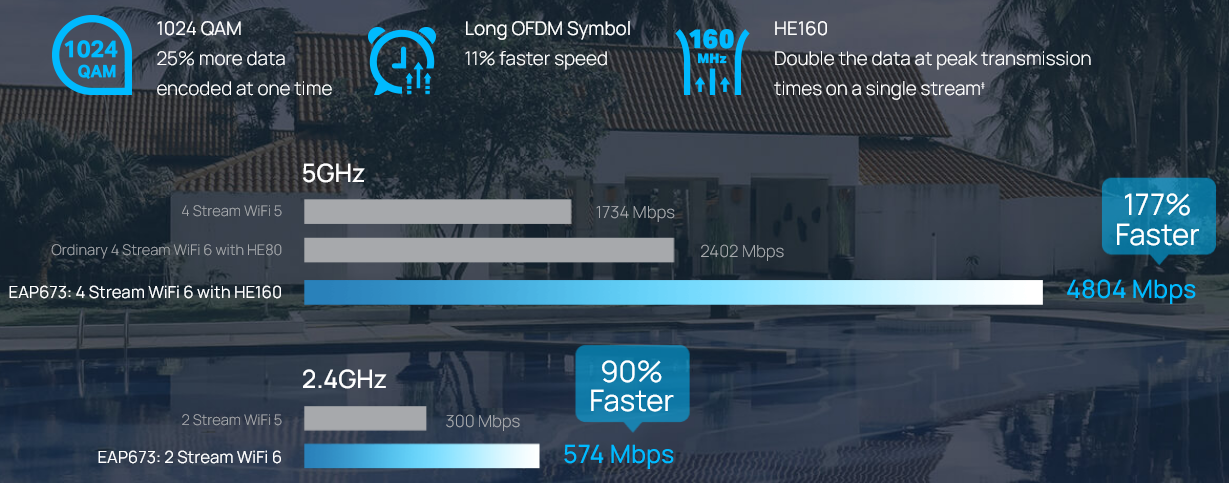

Blazing-Fast AX5400 Wi-Fi 6 Speeds
High-end business WiFi 6 with speeds up to 5378 Mbps brings 2.6-time speeds than WiFi 5.
.png)

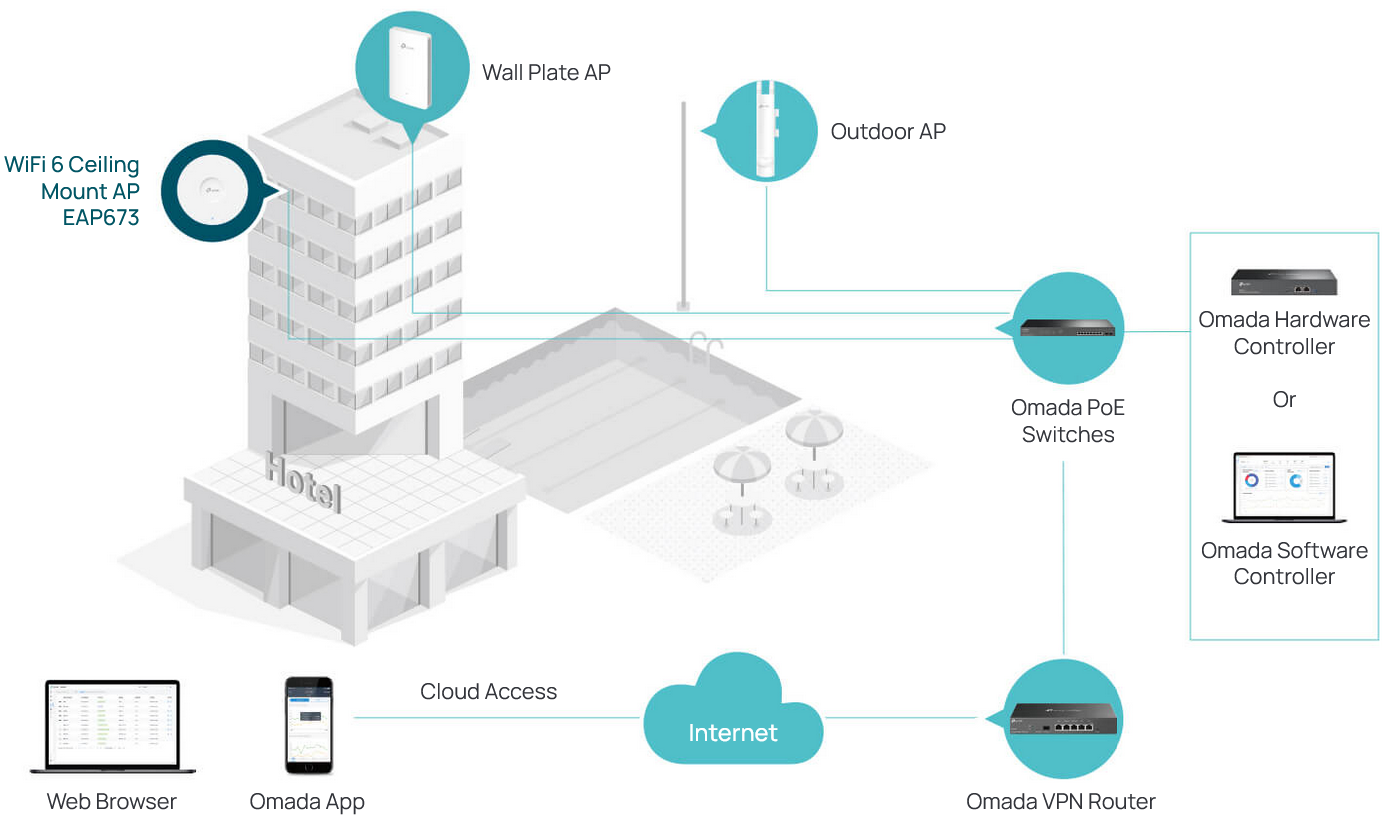

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.
.png)

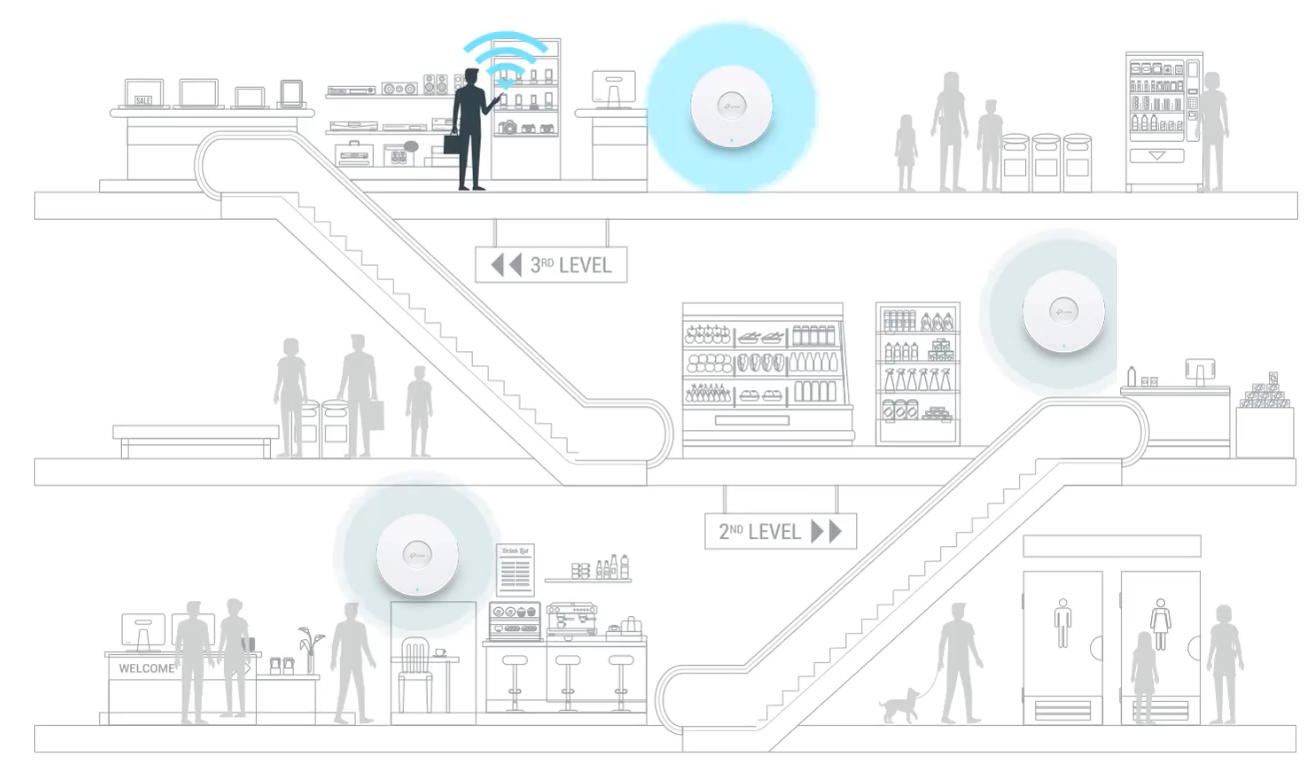

Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
.png)

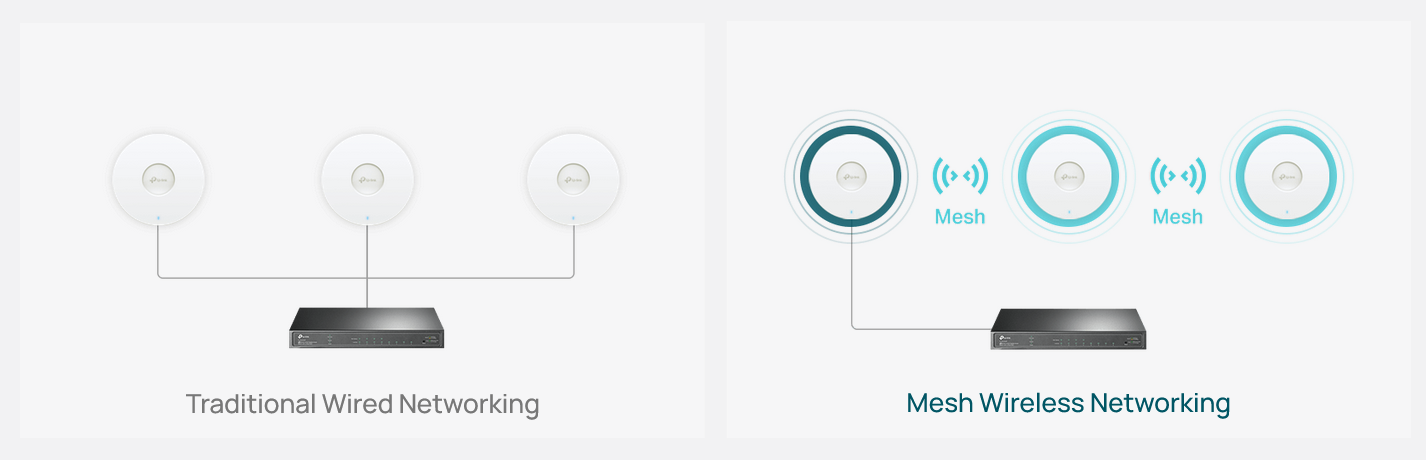

Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
.png)

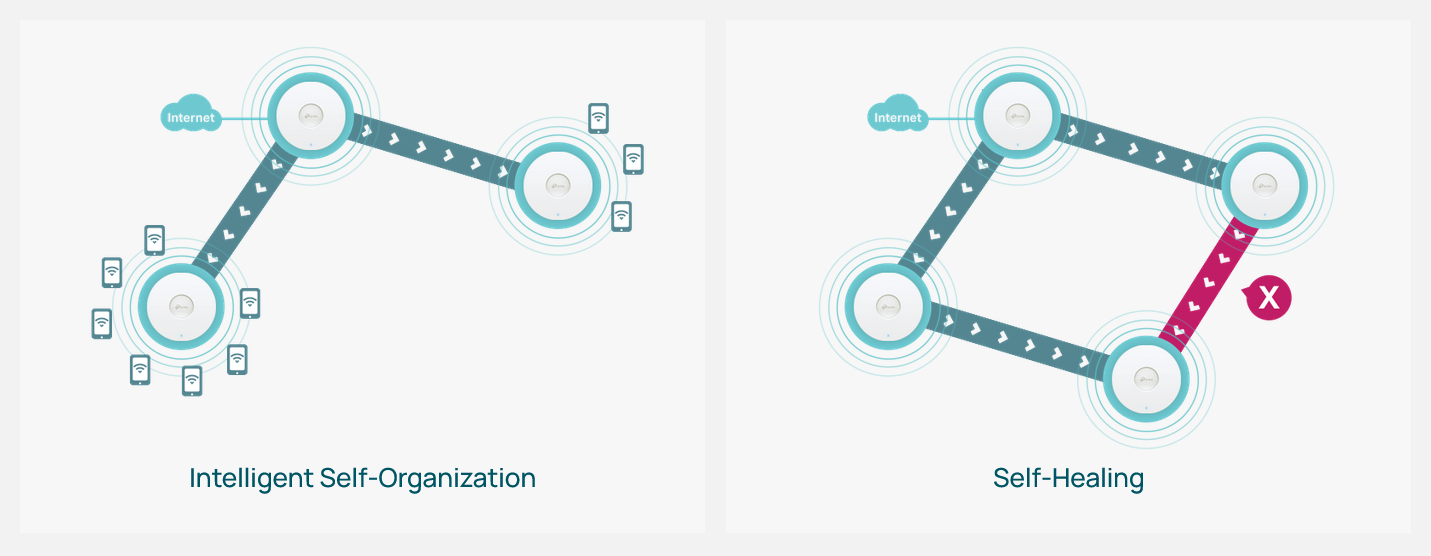

Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.
.png)
|
HARDWARE FEATURES |
|
|---|---|

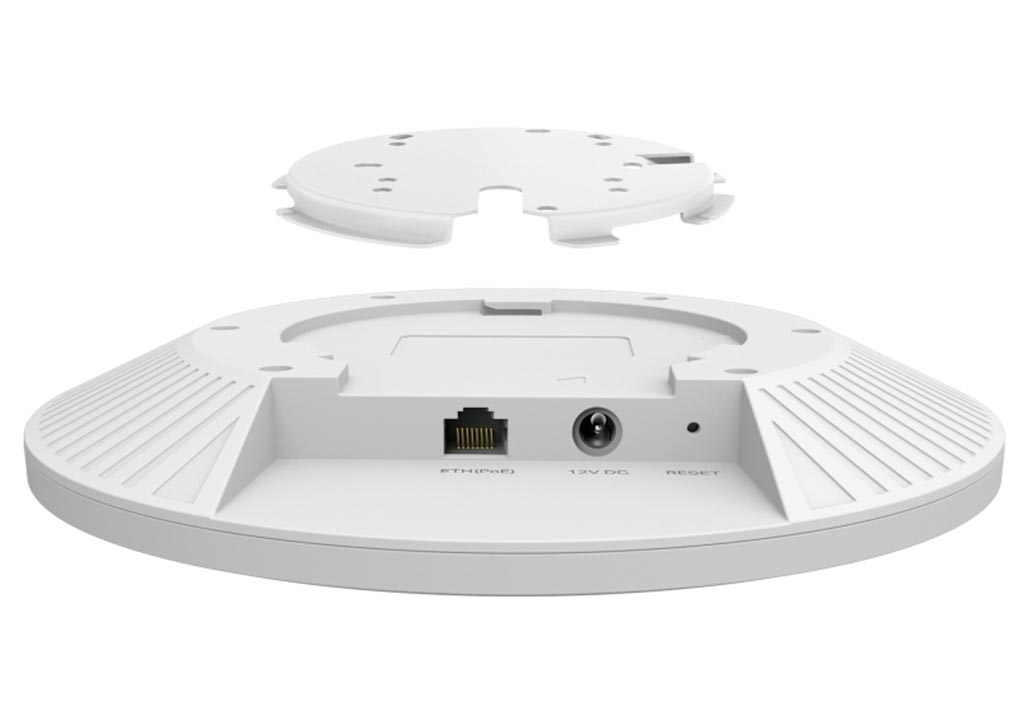

| Interface | 1x 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
| Button | Reset |
| Power Supply | 802.3at PoE 12 V / 2 A DC (Power adapter not included) |
| Max. Power Consumption | EU: 20.8 W US: 22.3 W |
| Dimensions ( W x D x H ) | 8.7 x 8.7 x 1.3 in (220 x 220 x 32.5 mm) |
| Antenna | Internal Omni 2.4 GHz: 2x 4 dBi 5 GHz: 4x 5 dBi |
| Bluetooth | V5.2 |
| Mounting | Ceiling / Wall / Junction Box Mounting (Kits Included) |
|
WIRELESS FEATURES |
|
| Coverage | 140㎡(1500 ft²) |
| Concurrent Clients | 250+ |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 5 GHz: Up to 4804 Mbps 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | 1024-QAM 4x Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO (5G: 4x4 DL/UL MU-MIMO) HE160 (160 MHz Bandwidth) Seamless Roaming(802.11k/v/r) Omada Mesh Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 & band2, EIRP) <30 dBm(5 GHz, band3, EIRP) FCC: <25 dBm (2.4 GHz) <28 dBm (5 GHz) |
|
Management Features |
|
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
|
OTHERS |
|
| Certification | CE, FCC, RoHS |
| Package Content | EAP673 Ceiling/Wal/Junctionl Mounting Kits Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
| Κατασκευαστής | Tp-Link |
| Μοντέλο | EAP673 AX5400 WiFi 6 Dual-Band Access Point V1.0 |
| Part Number | EAP673 |
| Κατηγορία | Access Points |
| Τύπος | Access Point |
| Πρωτόκολλο | WiFi 6 (802.11ax) |
| Ταχύτητα WiFi | AX5400 (WiFi 6) |
| Θύρες Ethernet | 1x 2.5 Gbps |
| Υποστήριξη PoE | Με PoE |
| Βάση οροφής (Ceiling Mount) | Με βάση οροφής |
| Υποστήριξη Mesh | Ναι |
| Εγγύηση | Limited Lifetime, Περισσότερες λεπτομέρειες δείτε στην επίσημη σελίδα του κατασκευαστή στο link. Γραμμή τεχνικής υποστήριξης 210.614.8834, Email: support.gr@tp-link.com |
