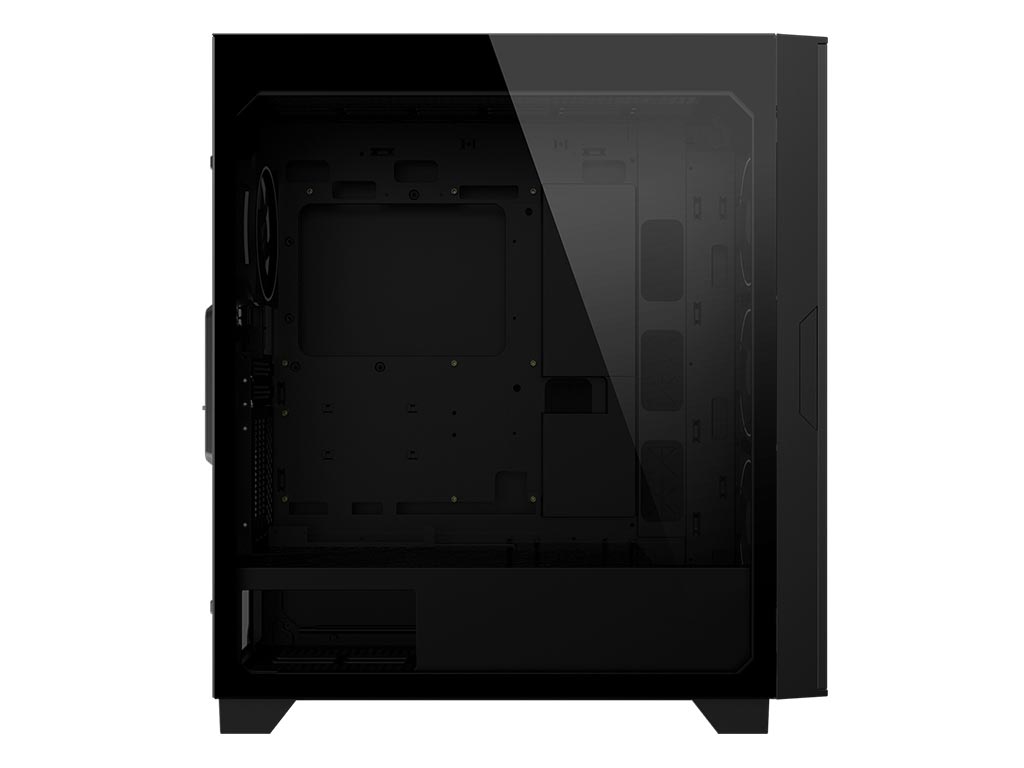

Gigabyte AORUS C500 RGB Windowed Mid-Tower Case Tempered Glass
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
Άτοκες Δόσεις
Case Form Factor | Mid Tower |
Motherboard type | Mini ITX / Micro ATX / ATX / E-ATX |
Color | Black |
Materials | Steel, Plastic, Glass |
Dimension | H=548 W=250 D=482 mm (Within ± 1% error) |
Expansion Slots | 8 + 3 (Requires PCIE Riser Cable) |
5.25" Driver Bays | None |
3.5“/2.5” Driver Bays | 2 |
2.5" Driver Bays | 2 |
I/O Panel | USB 3.1 Gen2 Type-C x1 / USB 3.0 x2 / Audio In & Out (supports AC97 /HD Audio) |
Fan Support | Front : 120mm x3 / 140mm x3 Top : 120mm x3 / 140mm x2 Rear : 120mm x1 / 140mm x1 (Pre-installed: Rear 120mm (ARGB & PWM) x 1, Front 120mm (ARGB & PWM) x3) |
Radiator Support | Front : Max 420mm Top : Max 360mm Rear : 140mm |
Power Supply Type | Standard ATX (Not included) |

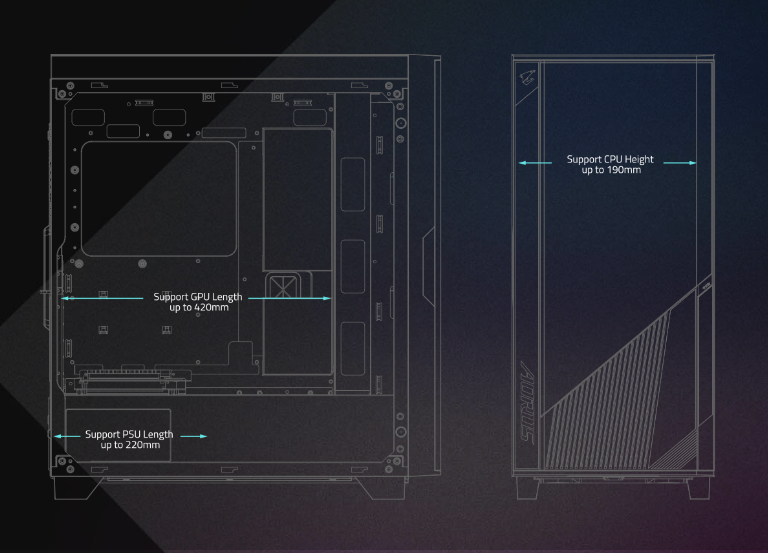

Maximum Compatibility | CPU Height : 190mm GPU Length : 420mm PSU Length : 220mm |

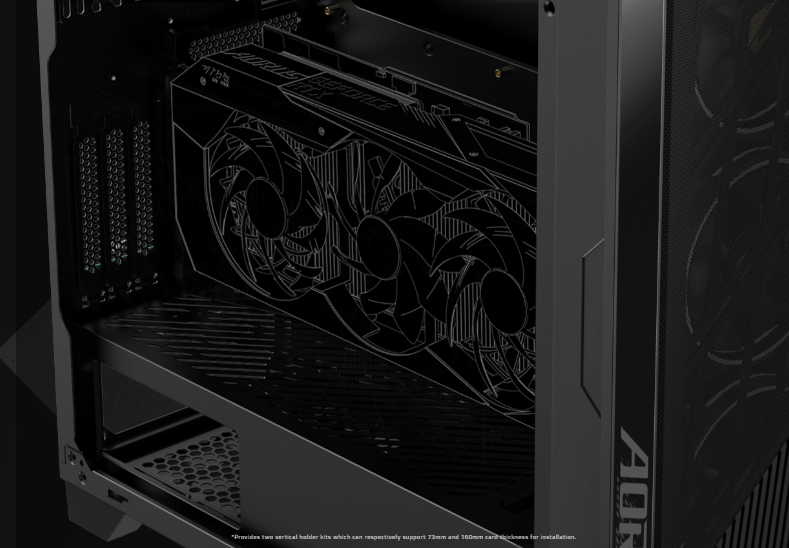

Vertical GPU Mount | Yes (Default: 73mm total clearance / VGA holder bracket: 160mm total clearance) |
Dust Filters | Top, Front, Bottom |
RGB Lighting | Yes (Support RGB Fusion 2.0) |
Accessories | 1. Manual 2. Accessories kit |
OPTIMIZED AIRFLOW DESIGN
The AORUS C500 GLASS comes with the large mesh front and the vented top panel, delivering generous airflow with premium aesthetics.
MAX COMPATIABILITY

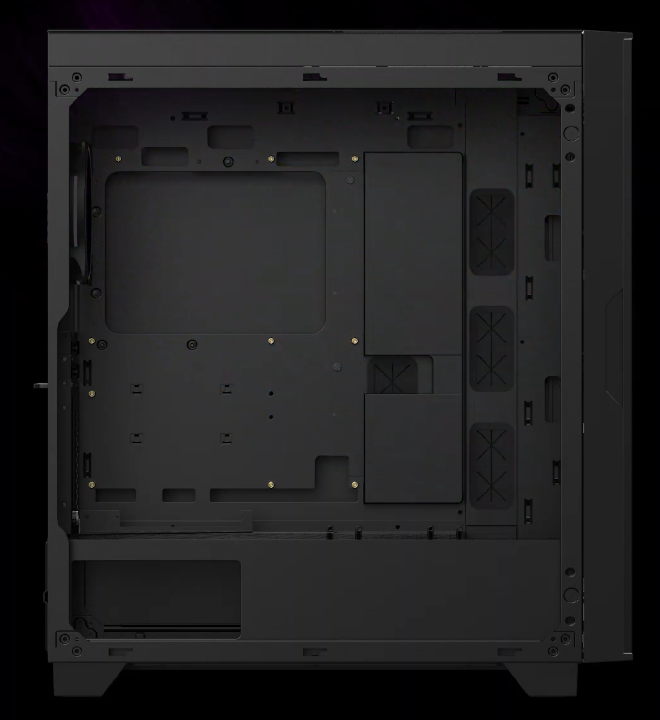

The AORUS C500 GLASS is compatible with every single AORUS component and has room to hold up to E-ATX motherboards and radiators up to 420mm, providing users with the upmost flexibility.
Dimensions
Fan system

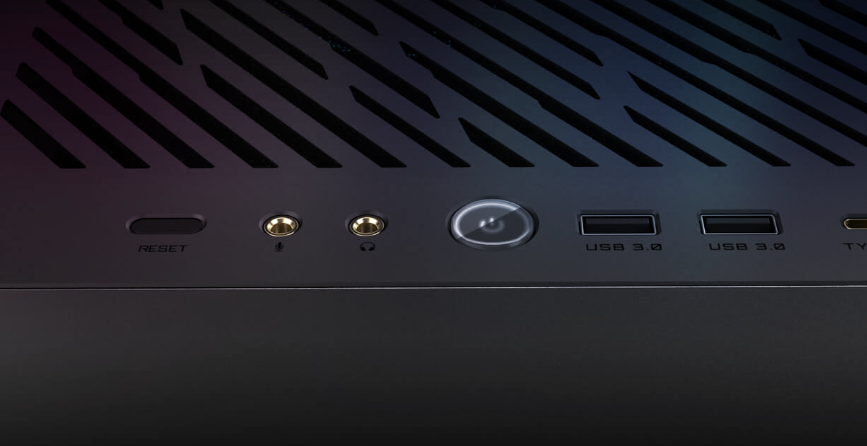

VERSATILE FRONT I/O.
REAL 11 CORE CABLE.
The 2 USB 3.0 ports use the 11-core USB cables to ensure stable signal integrity. The front I/O also offers versatile connectivity, including a USB 3.1 Gen-2 Type-C port and an audio port.
EASY TO INSTALL.
EASY TO USE

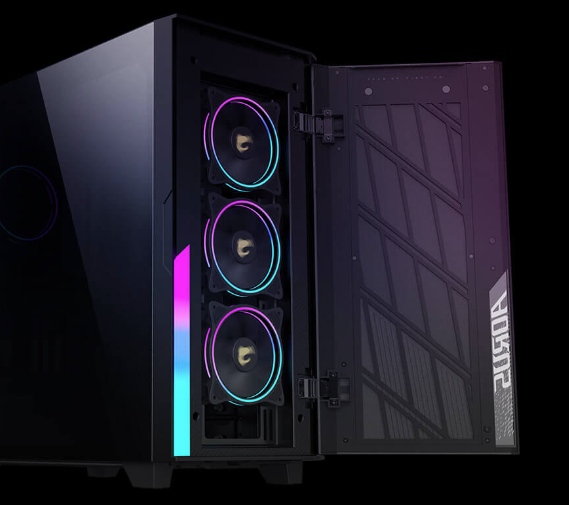

EASY-ACCESS SWING DOOR FRONT PANEL
The swing door design allows easy front access without having to remove the entire panel, which avoids the risk of detaching any cables by accident.

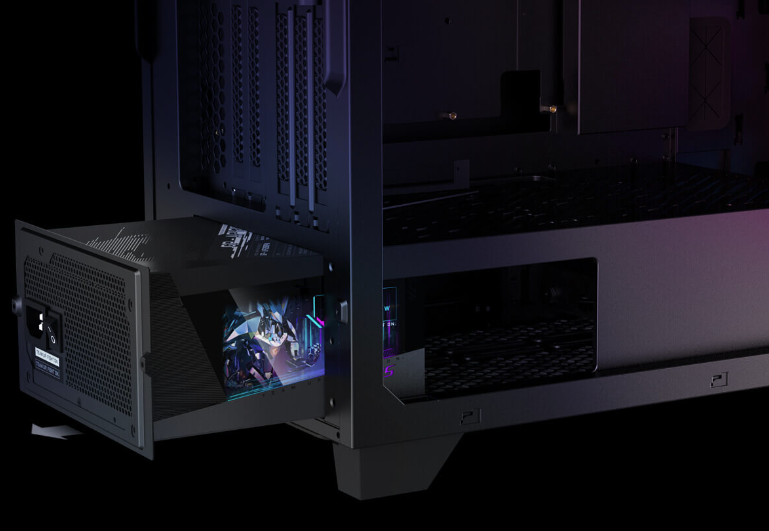

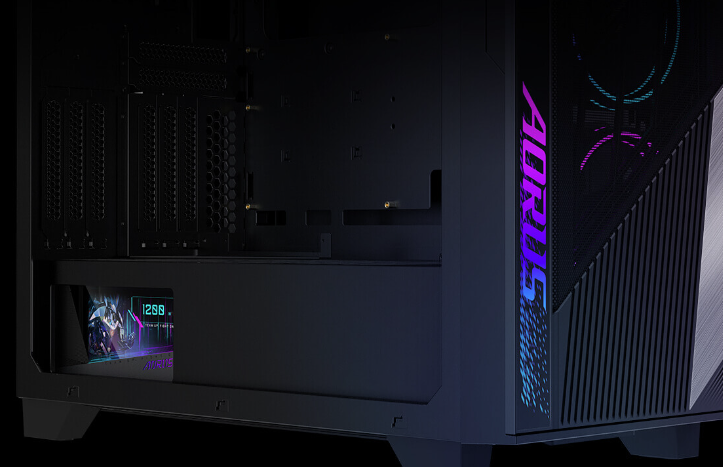

PSU INSTALLATION MADE EASY
The PSU can be mounted on the mounting plate without removing any screw, making it convenient for users to assemble. This design is also more flexible to install and remove components when upgrading equipment.
HIDDEN POWER. SUCCINCT BEAUTY.
The PSU shroud is designed to shield messy and intertwined power cables while isolating the heat generated from the PSU.

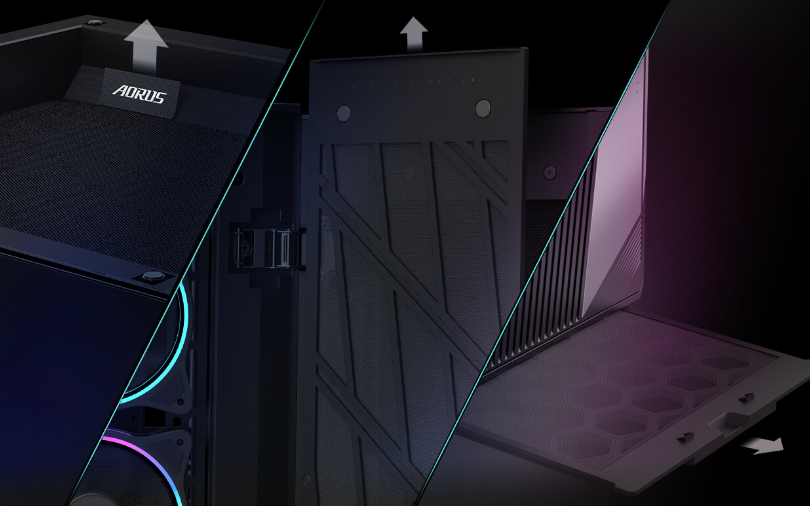

EASY MAINTENANCE
The filters keep your PC from accumulating dust, while maintaining optimal cooling performance. The top and front magnetic filters, along with the removable filter at the bottom, make maintenance easy.
Κατασκευαστής | Gigabyte |
Μοντέλο | AORUS C500 RGB Windowed Mid-Tower Case Tempered Glass |
Part Number | GB-AC500G ST |
Κατηγορία | Κουτιά |
Μέγεθος μητρικής | Mini-ITX Micro ATX ATX E-ATX |
Μέγεθος | Midi Tower |
Tροφοδοτικό | Χωρίς Τροφοδοτικό |
Εσωτερικές Θέσεις | 2x 2.5" 2x 2.5"/3.5" combo |
Front Panel I/Os | 2x USB 3.0 1x USB 3.1 Type-C Gen 2 Combo Jack |
Χρώμα | Black |
Εγγύηση | 2 Έτη |
