Περιγραφή

Lian Li B4-mATX

Build Like never B4

Co-developed with DAN Cases, the B4-mATX’s modular design unlocks versatile build possibilities. With multiple color, panel, and layout options, plus an optional accessory, it adapts to a wide range of styles.

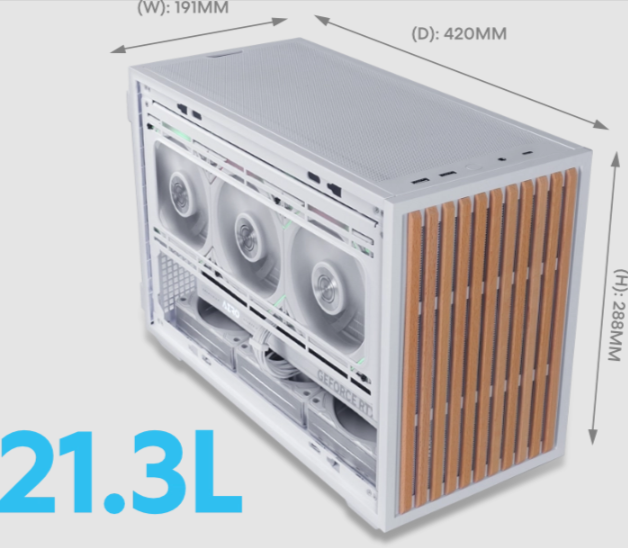

COMPACT DESIGN, BROAD COMPATIBILITY

With a compact 21.3L volume, the B4-mATX delivers impressive hardware compatibility, supporting M-ATX motherboards, 360mm AIOs, 140mm ATX PSUs, and up to 358mm 4-slot GPUs.

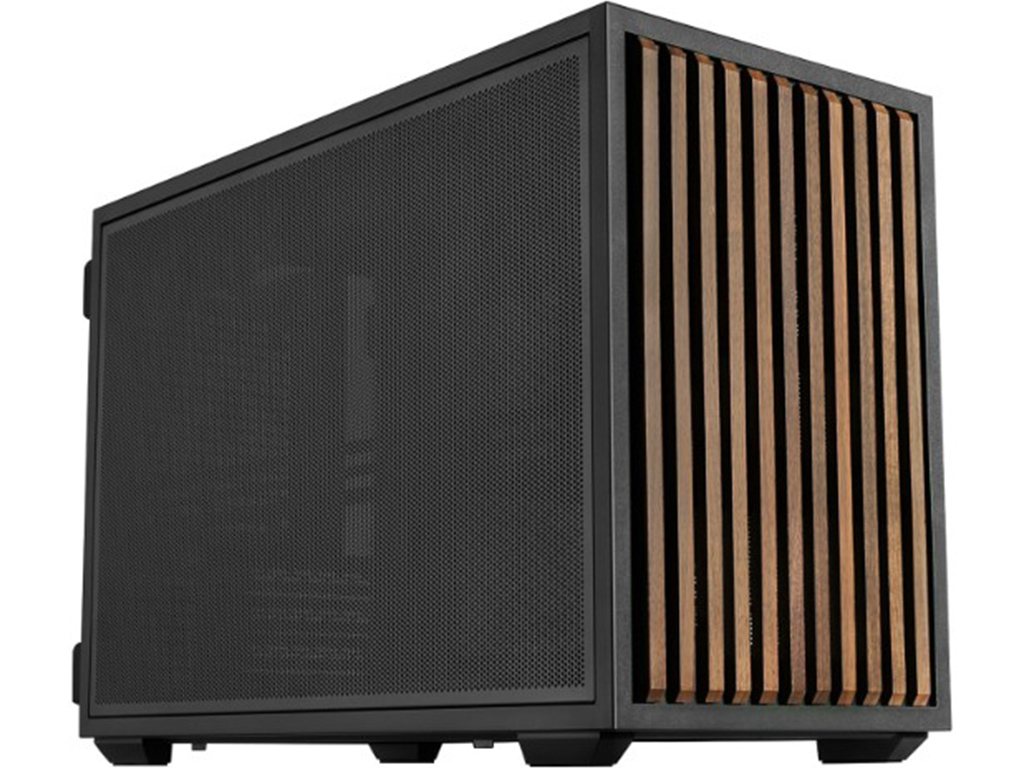

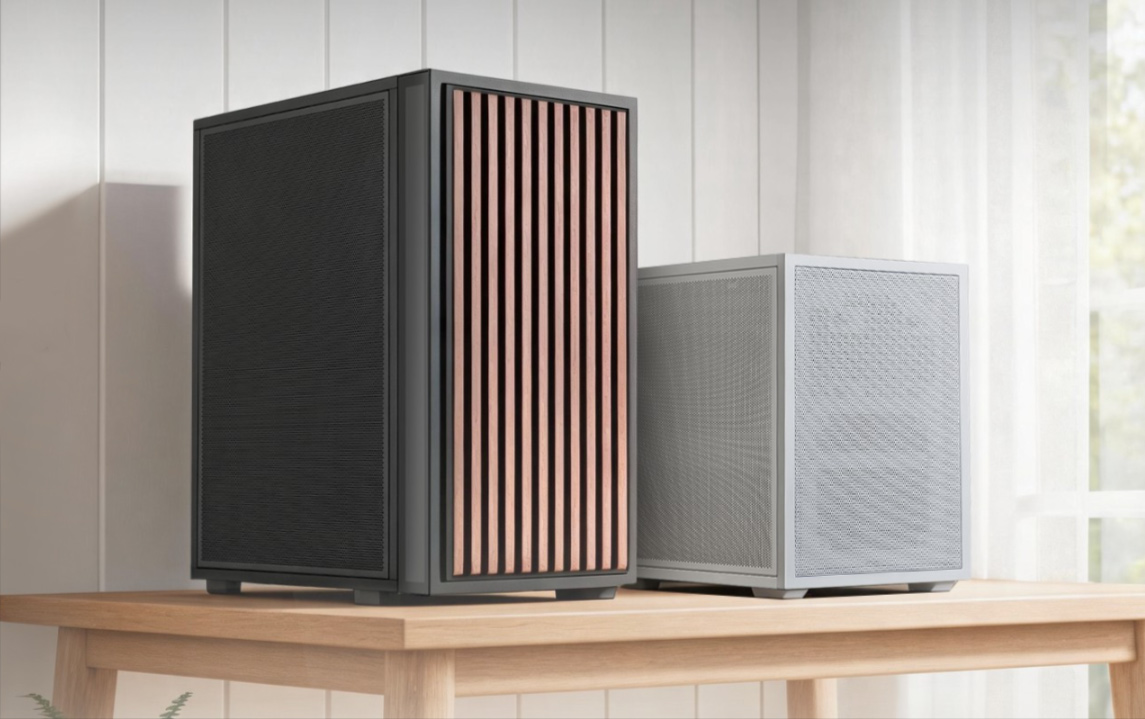

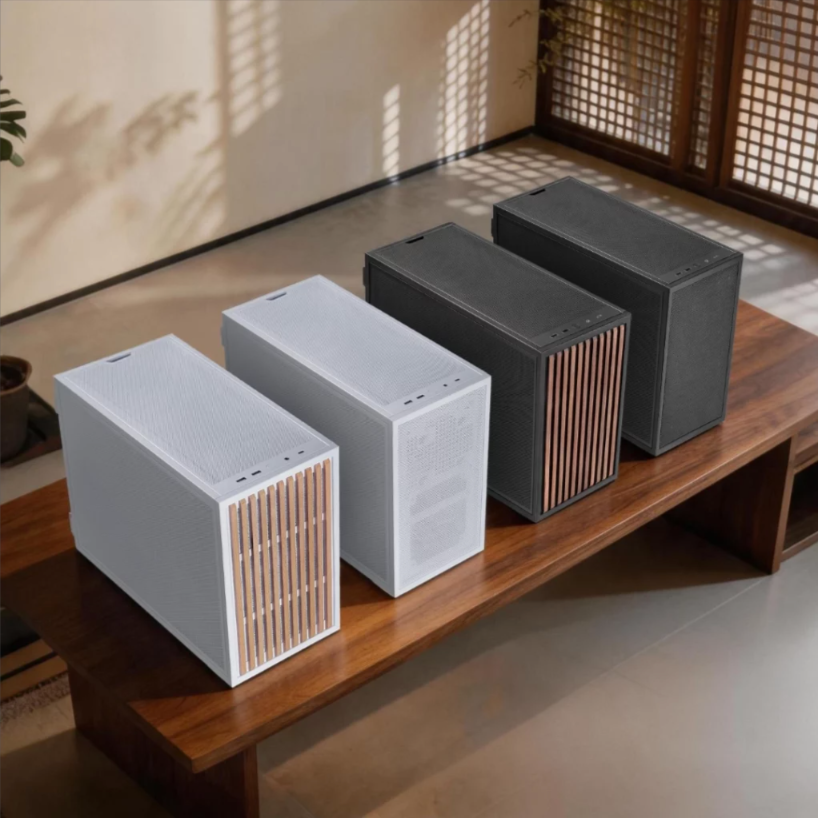

MINIMAL DESIGN,MULTIPLE STYLES

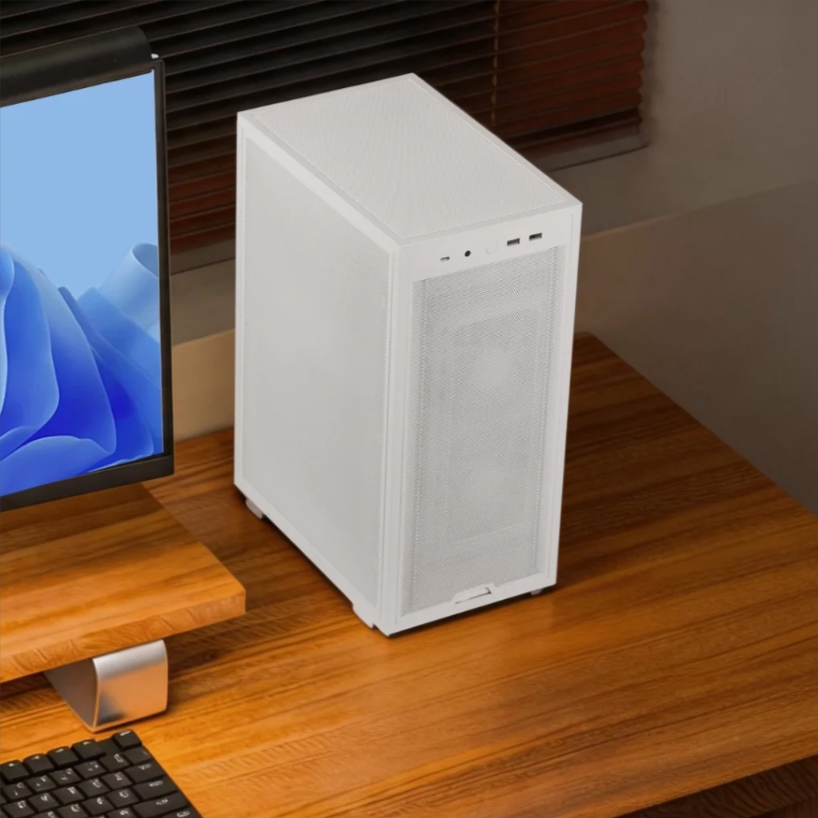

The B4-mATX offers a clean mesh panel for an airflow-focused look or a real wood panel for a warmer, refined setup. Both support front-to-back airflow, balancing cooling performance with a streamlined exterior.

VERTICAL MODE,MAXIMIZED DESK SPACE

The vertical layout improves desk space efficiency by up to 30%. Integrated rear feet allow quick and easy switching between different usage modes.

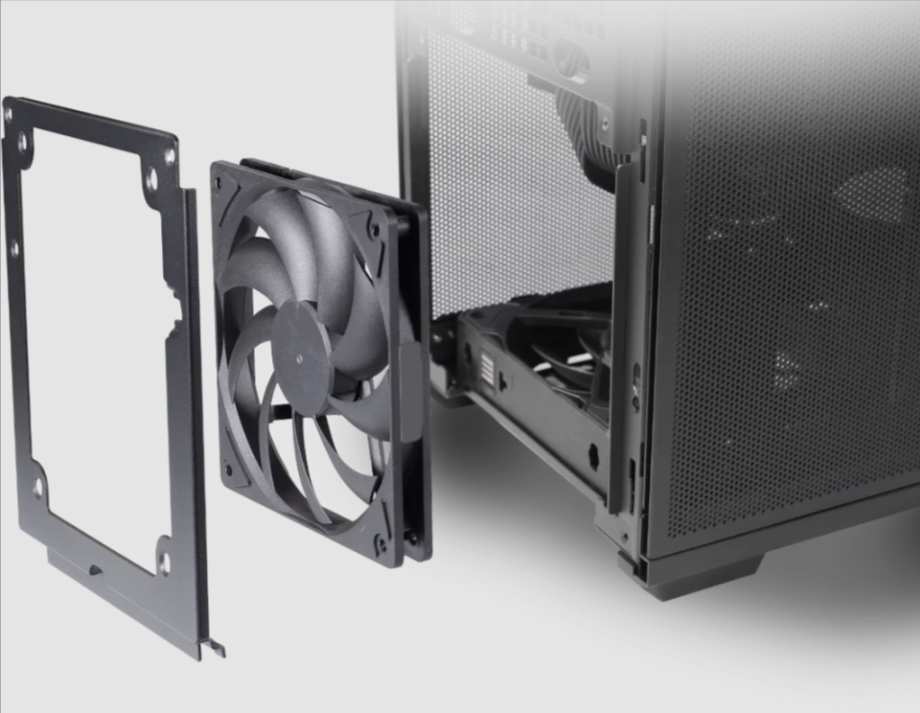

EXTRA INTAKE, BETTER COOLING

Supports a 120 × 120 × 15mm slim front fan with an SFX PSU and GPU under 343mm long, helping improve intake airflow.

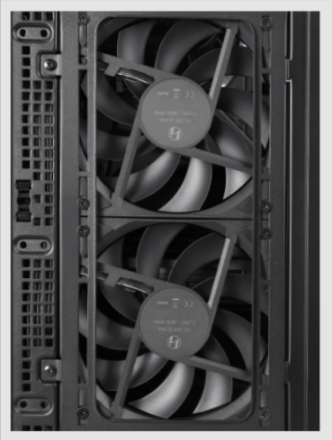

FLEXIBLE AIRFLOW DESIGN

Two pre-installed 120 × 120 × 15mm slim fans on the top provide enhanced cooling performance. Operating up to 1800 RPM, they are daisy-chained to reduce cable clutter.

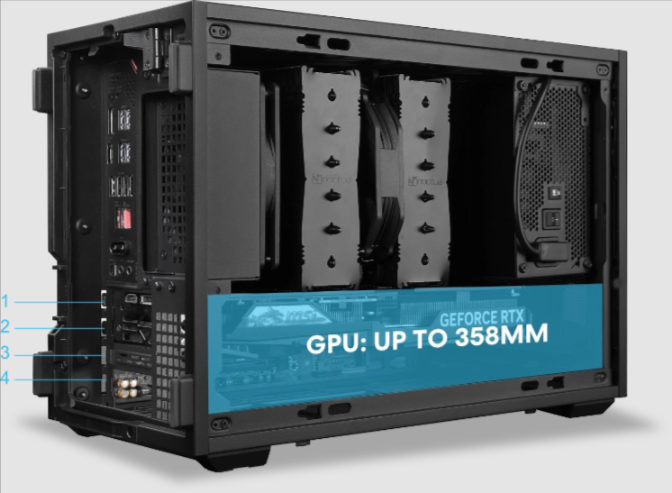

FLEXIBLE GPU & FAN SUPPORT

Supports up to 358mm long 4-slot graphics cards. Bottom fan support varies by GPU thickness: 2.5-slot GPUs support 25mm fans, 3-slot GPUs support 15mm slim fans, and 3.5-slot or thicker GPUs do not support bottom fans.

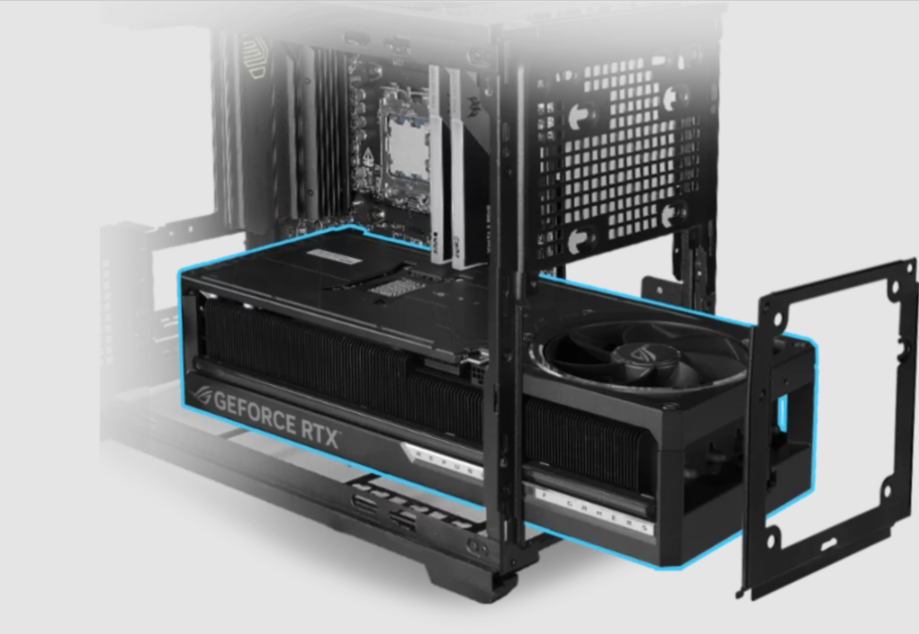

EASY GPU INSTALLATION

The removable front fan bracket lets large graphics cards slide in from the front side of the chassis for a smoother installation process.

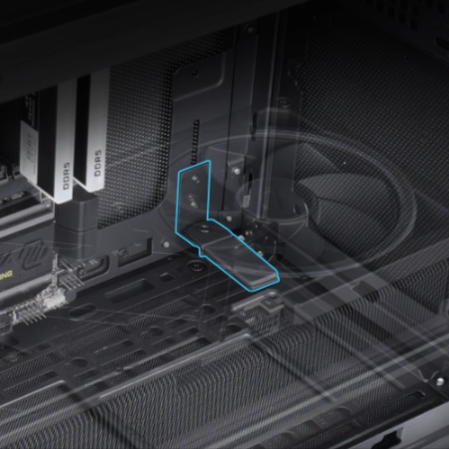

PRE-INSTALLED GPU ANTI-SAG BRACKET

Built to handle GPUs up to 4 slots thick and 358mm long, the case comes equipped with a dedicated anti-sag bracket to ensure stability and prevent sagging..

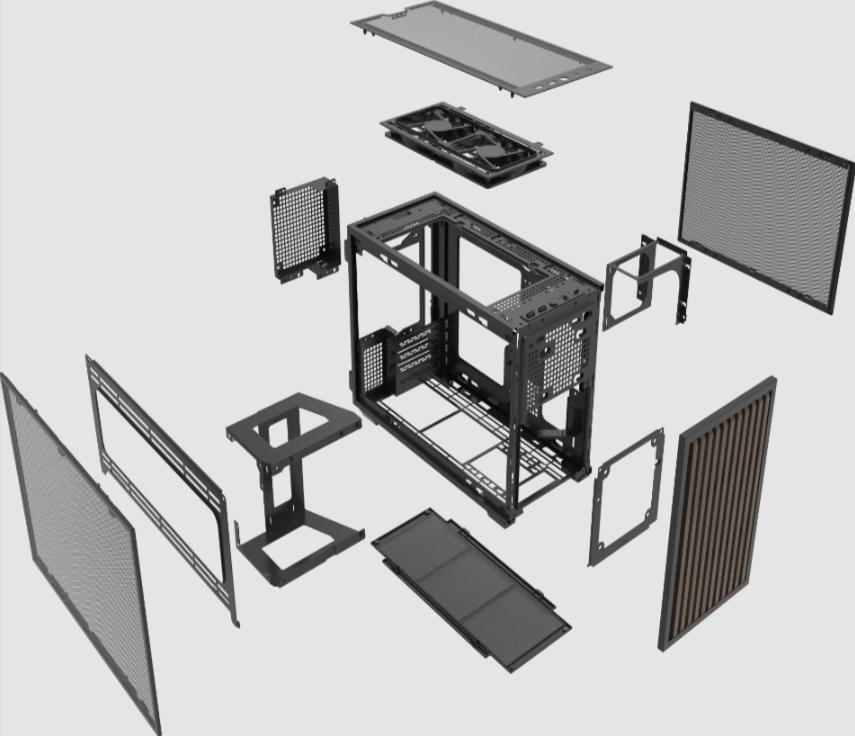

MODULAR DESIGN, EASIER INSTALLATION

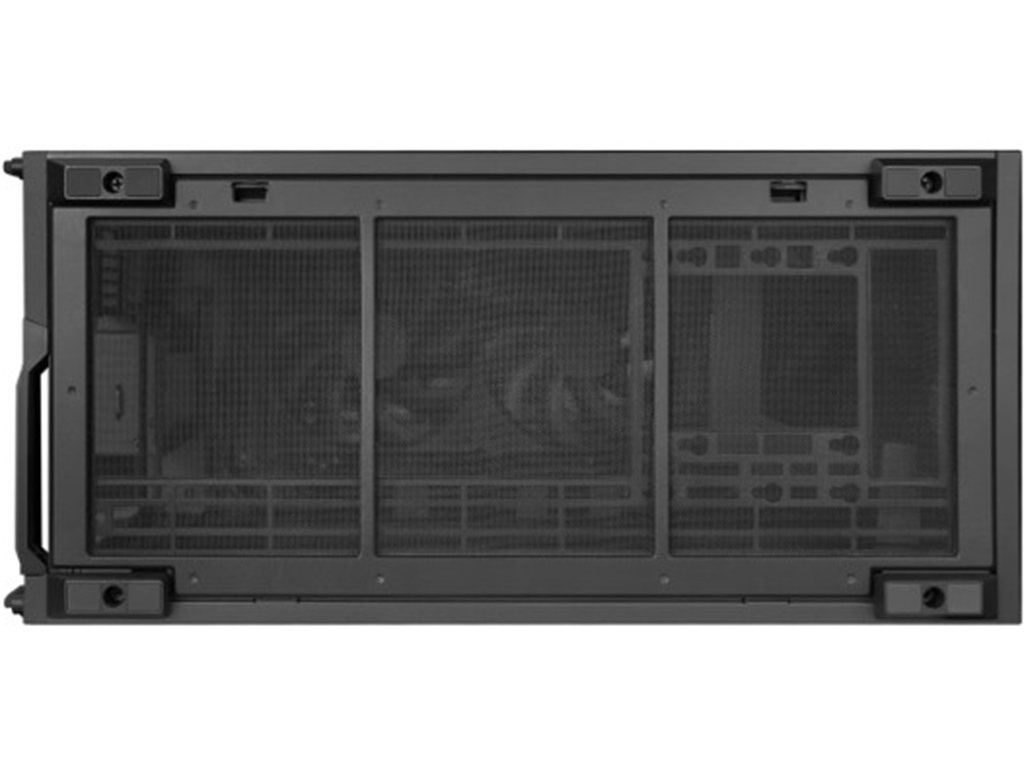

Tool-less removable panels offer quick and easy access for installation and cable routing, while a removable bottom dust filter helps maintain a clean system.

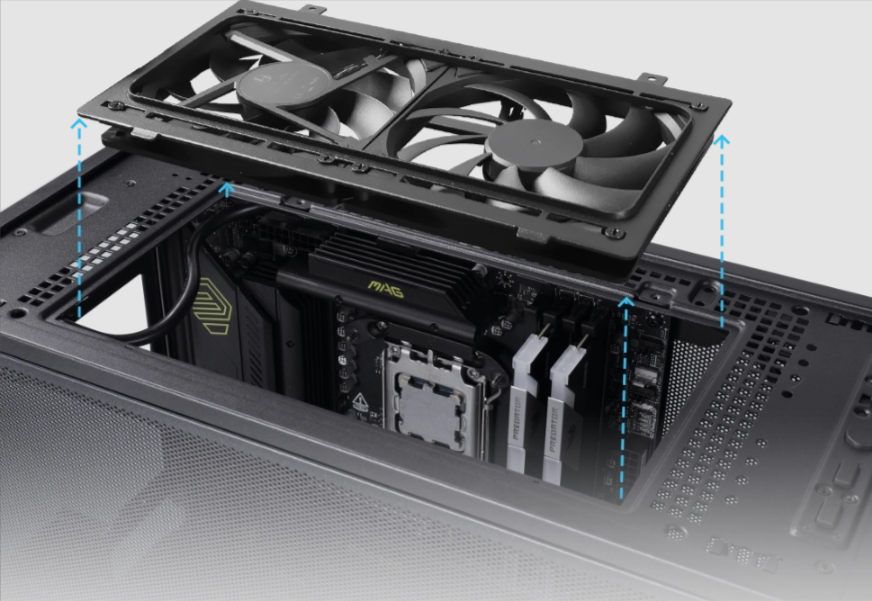

REMOVABLE TOP FAN BRACKET

The removable top fan bracket provides easier access for routing and managing CPU 8-pin cables, while also making it simpler to configure the front-top fan as intake for air-cooler setups.

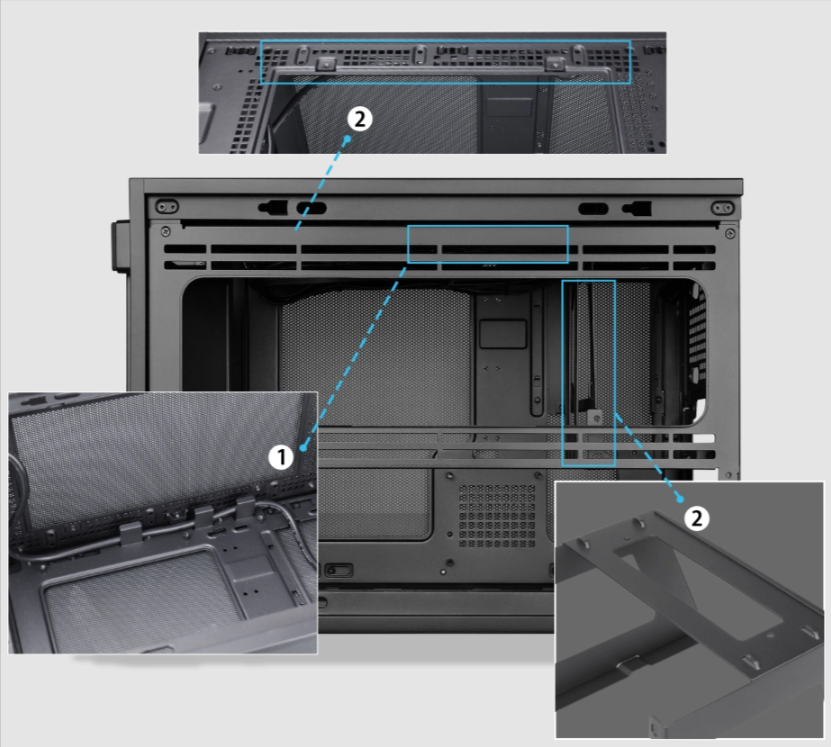

EASIER CABLE MANAGEMENT

Cable tie points around the PSU and top brackets help secure CPU 8-pin and PSU cables for a cleaner, more organized build.

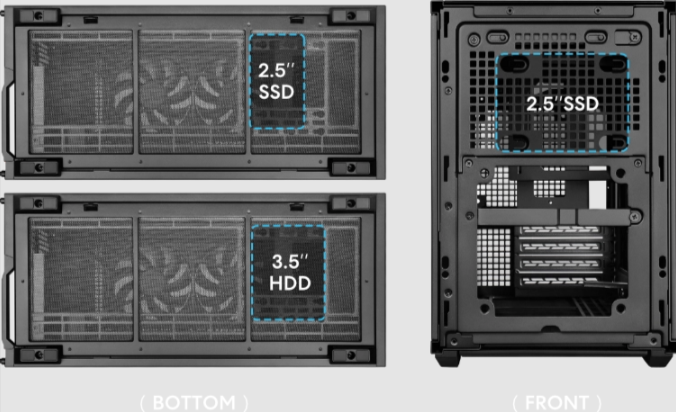

FLEXIBLE STORAGE SUPPORT

upports 1 x 2.5” SSD at the front, with space at the bottom for either 1 x 2.5” SSD or 1 x 3.5” HDD.

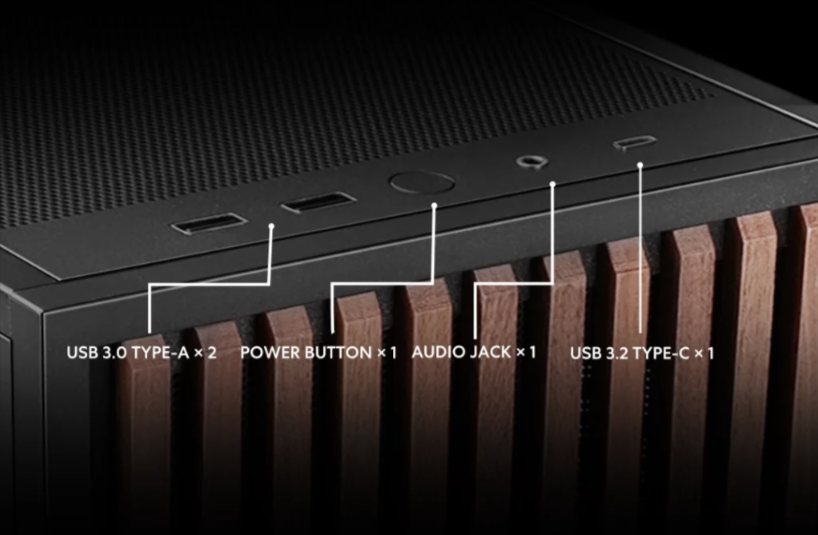

ACCESSIBLE CONNECTIVITY

The I/O layout keeps essential ports easy to reach in both traditional and vertical layouts, with a high-speed USB Type-C port supporting up to 20Gbps transfer speeds.

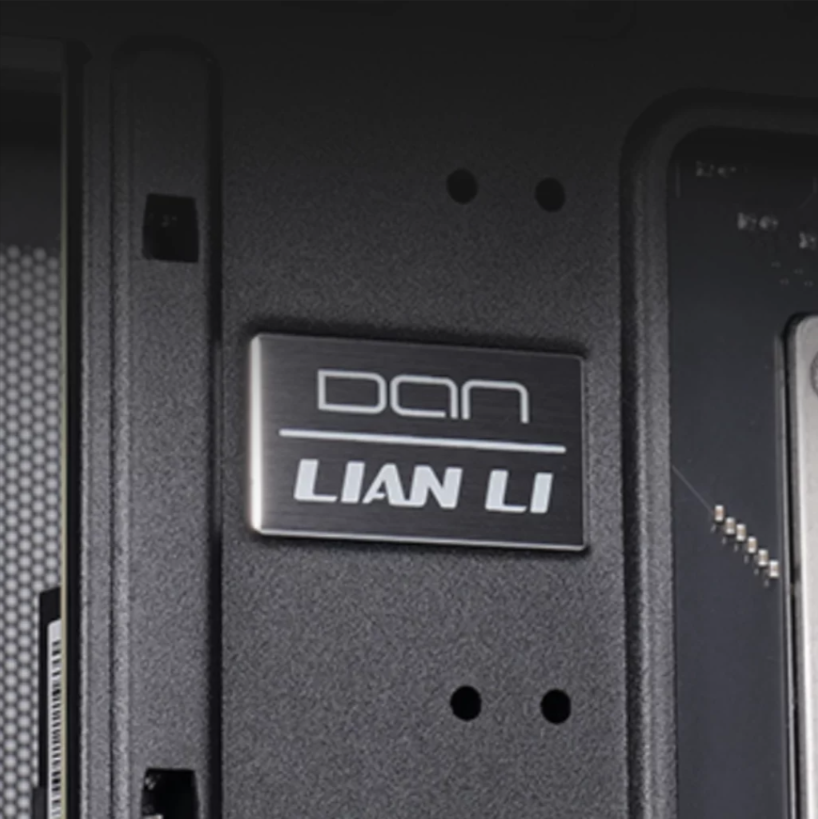

IN COLLABORATION WITH DAN CASES

Co-developed with Daniel Hansen of DAN Cases, the B4-mATX combines flexible modularity with LIAN LI’s precision craftsmanship in a compact form.

Τεχνικά Χαρακτηριστικά

Κατασκευαστής	Lian Li
Μοντέλο	DAN B4-mATX Wood Edition Mesh TG Steel-Fabric Case - Black
Part Number	B4X-WD
Κατηγορία	Κουτιά
Μέγεθος μητρικής	Mini-ITX Micro ATX
Μέγεθος	Mini Tower
Tροφοδοτικό	Χωρίς Τροφοδοτικό
Εσωτερικές Θέσεις	1x 2.5" 1x 2.5"/3.5" combo
Front Panel I/Os	2x USB 3.0 1x USB 3.2 Type-C Combo Jack
Χρώμα	Walnut Wood
Λοιπά στοιχεία	Dimensions (D x W x H): 420 x 191 x 288mm Dust Filter: Bottom Expansion Slots: 4 horizontal Capacity: 21.3L Case Material: Steel, Wood (Walnut / Beech) Included Fans 2x 120mm Included Fan Compatibility Top: 120mm x 2 (Pre-installed) Side: (With SFX PSU): 120mm x 3 / 140mm x 2 Side: (With ATX PSU): 120mm x 2 Front (With SFX PSU ONLY): 120mm slim fan x 1 Bottom: 120 mm x 3 / 140mm x 2 Rear: 120mm x 1 Radiator Compatibility Side (With SFX PSU) 360mm / 280mm /240mm Side (With ATX PSU): 240mm Clearance Maximum PSU Length: 140mm (ATX) / SFX Maximum CPU Cooler Height: 159mm (165mm without side fan bracket) Maximum GPU Length: 358mm
Εγγύηση	2 Έτη
