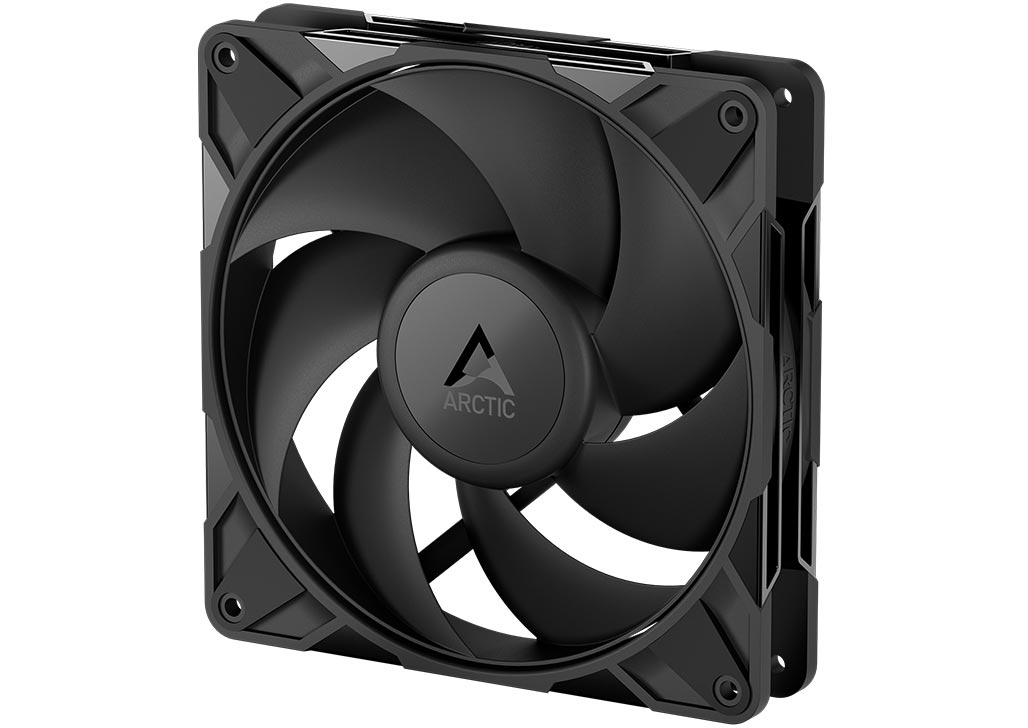

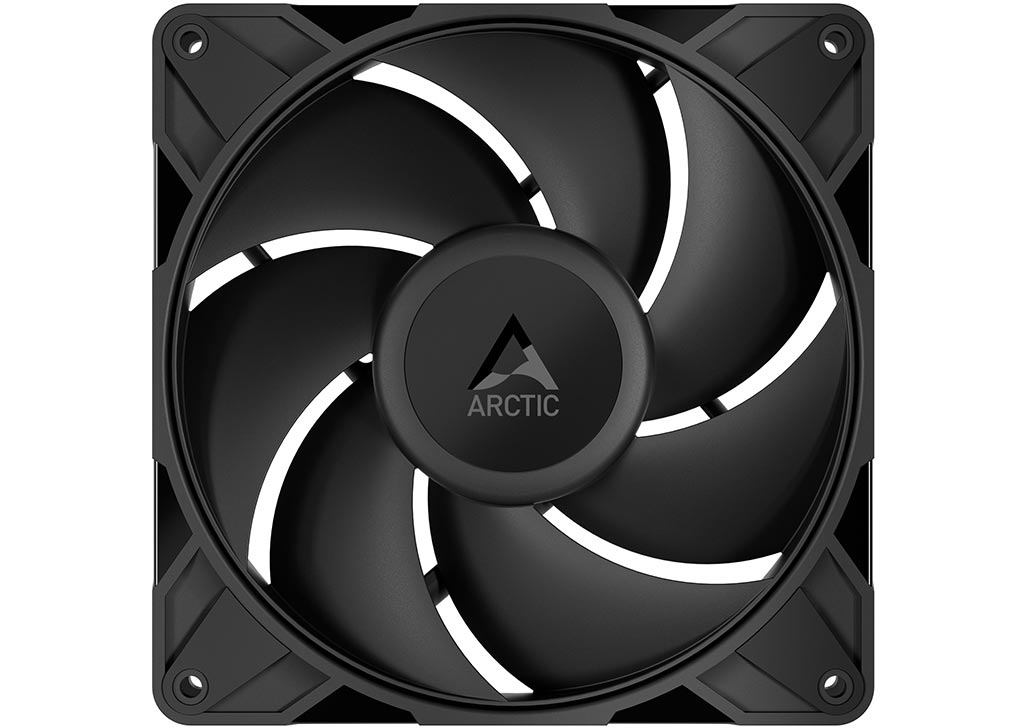

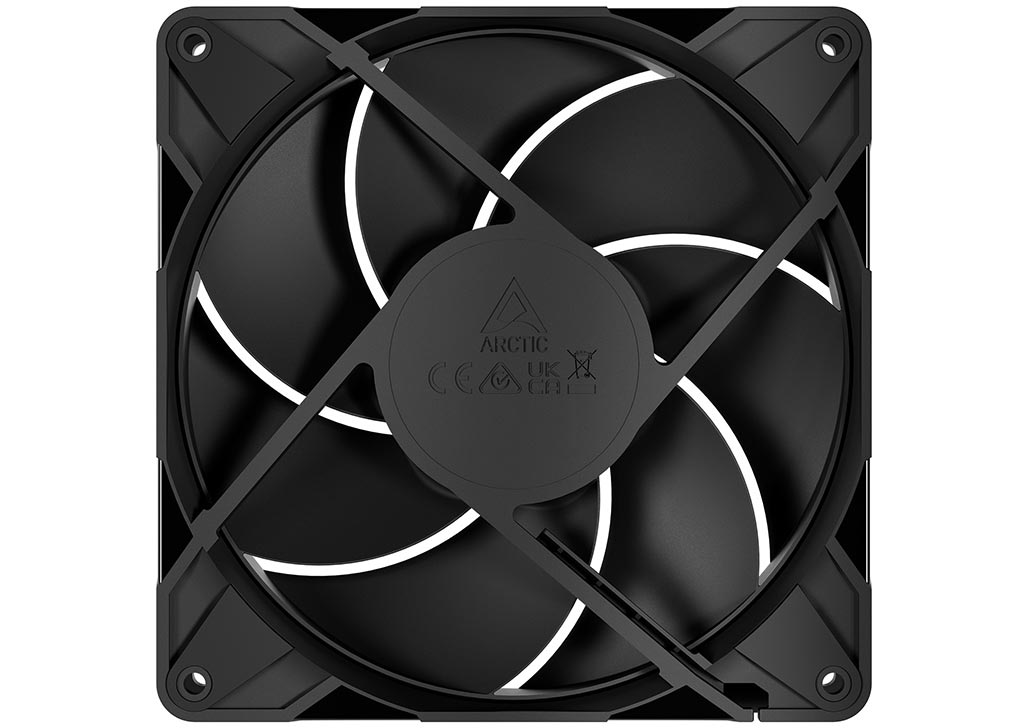

Arctic Cooling High Static Pressure Fan P14 Pro PWM PST for Continuous Operation - Black
![Arctic Cooling High Static Pressure Fan P14 Pro PWM PST for Continuous Operation - Black [ACFAN00316A] Εικόνα 1](https://static.msystems.gr/photos/big_photos/53293.jpg)
![Arctic Cooling High Static Pressure Fan P14 Pro PWM PST for Continuous Operation - Black [ACFAN00316A] Εικόνα 2](https://static.msystems.gr/photos/big_photos/53293.1.jpg)
![Arctic Cooling High Static Pressure Fan P14 Pro PWM PST for Continuous Operation - Black [ACFAN00316A] Εικόνα 3](https://static.msystems.gr/photos/big_photos/53293.2.jpg)
![Arctic Cooling High Static Pressure Fan P14 Pro PWM PST for Continuous Operation - Black [ACFAN00316A] Εικόνα 4](https://static.msystems.gr/photos/big_photos/53293.3.jpg)
Χωρίς ΦΠΑ: 7,98 €
Πληροφορίες
Δόσεις
Arctic Cooling P14 Pro PWM PST CO Fan
140 mm PWM Fan with Cable Splitter for Continuous Operation

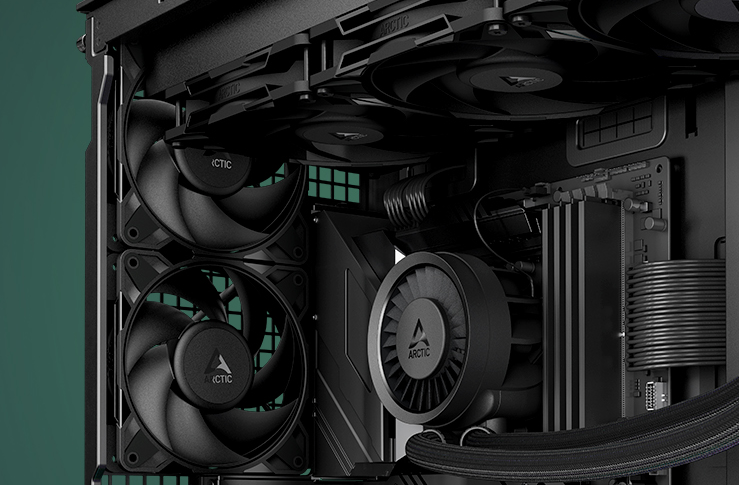

Efficient Performance at High Air Resistance
Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.
.png)

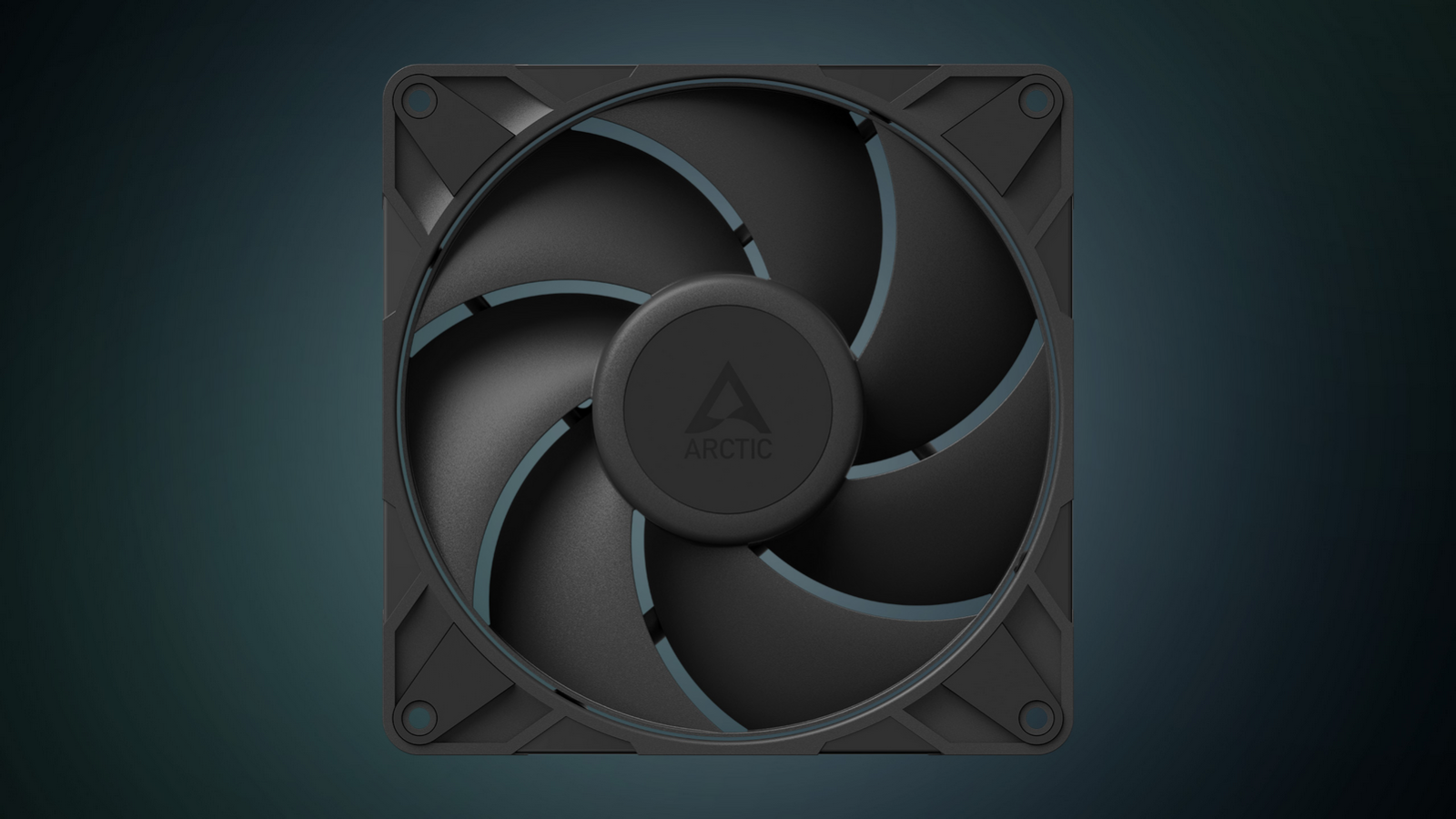

Maximum Performance, Redefined
Revised fan blade design for an optimal balance of performance and smooth operation.
.png)

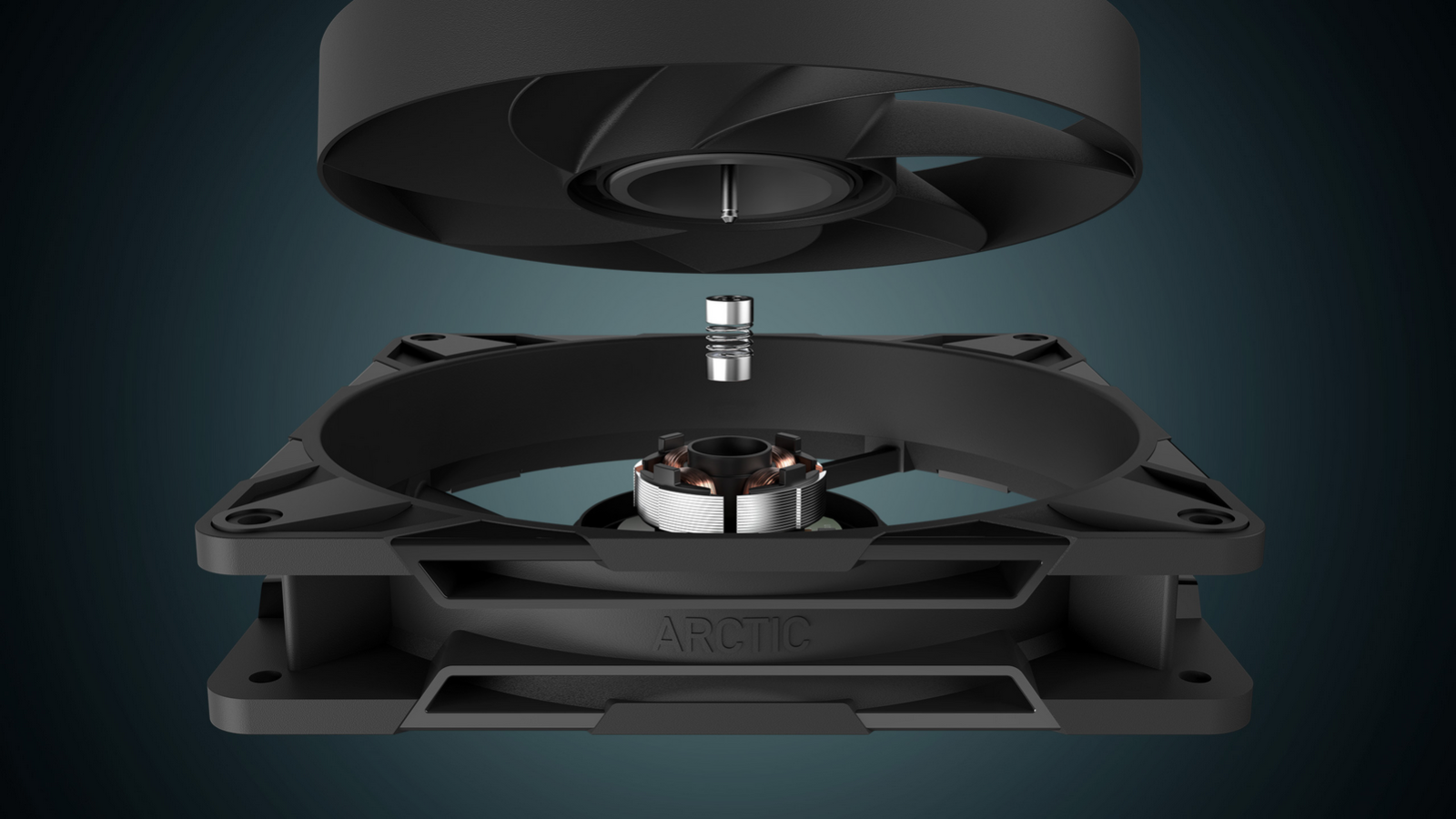

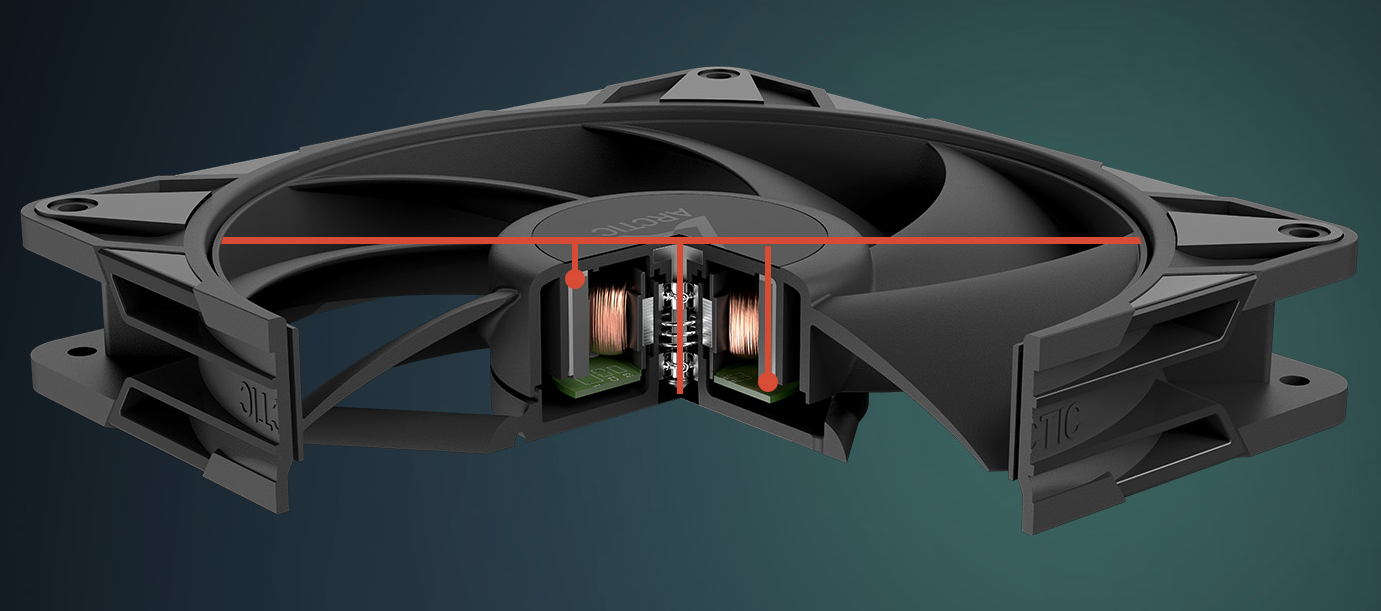

Optimized Bearing-Shaft Design (DBB)
A dual ball bearing with an extended rotor shaft ensures high durability and maximum lifespan at high rotational speeds.
.png)
Automated Two-Plane Balancing
An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.
.png)

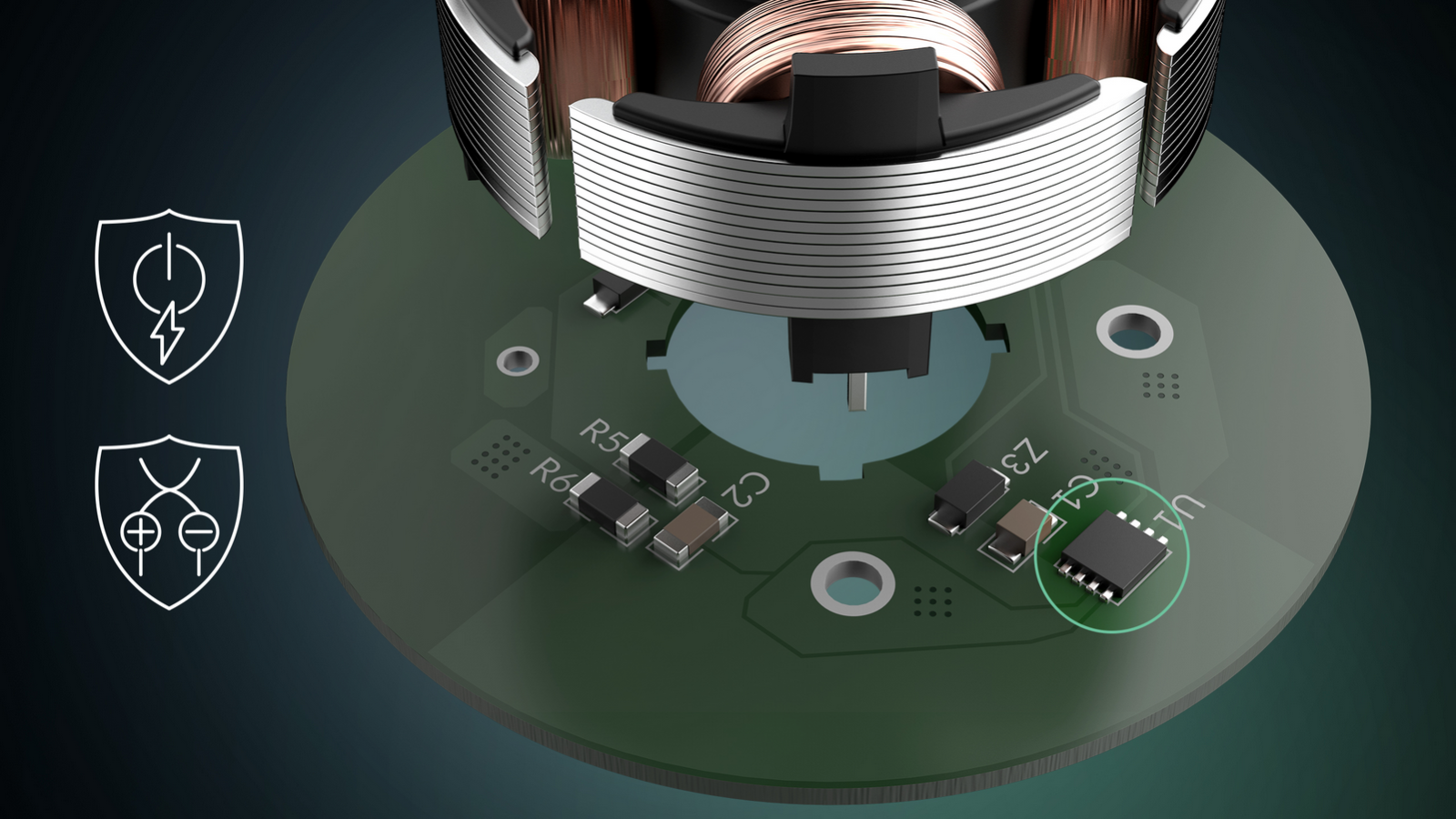

SOTA Microcontroller
Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.
.png)

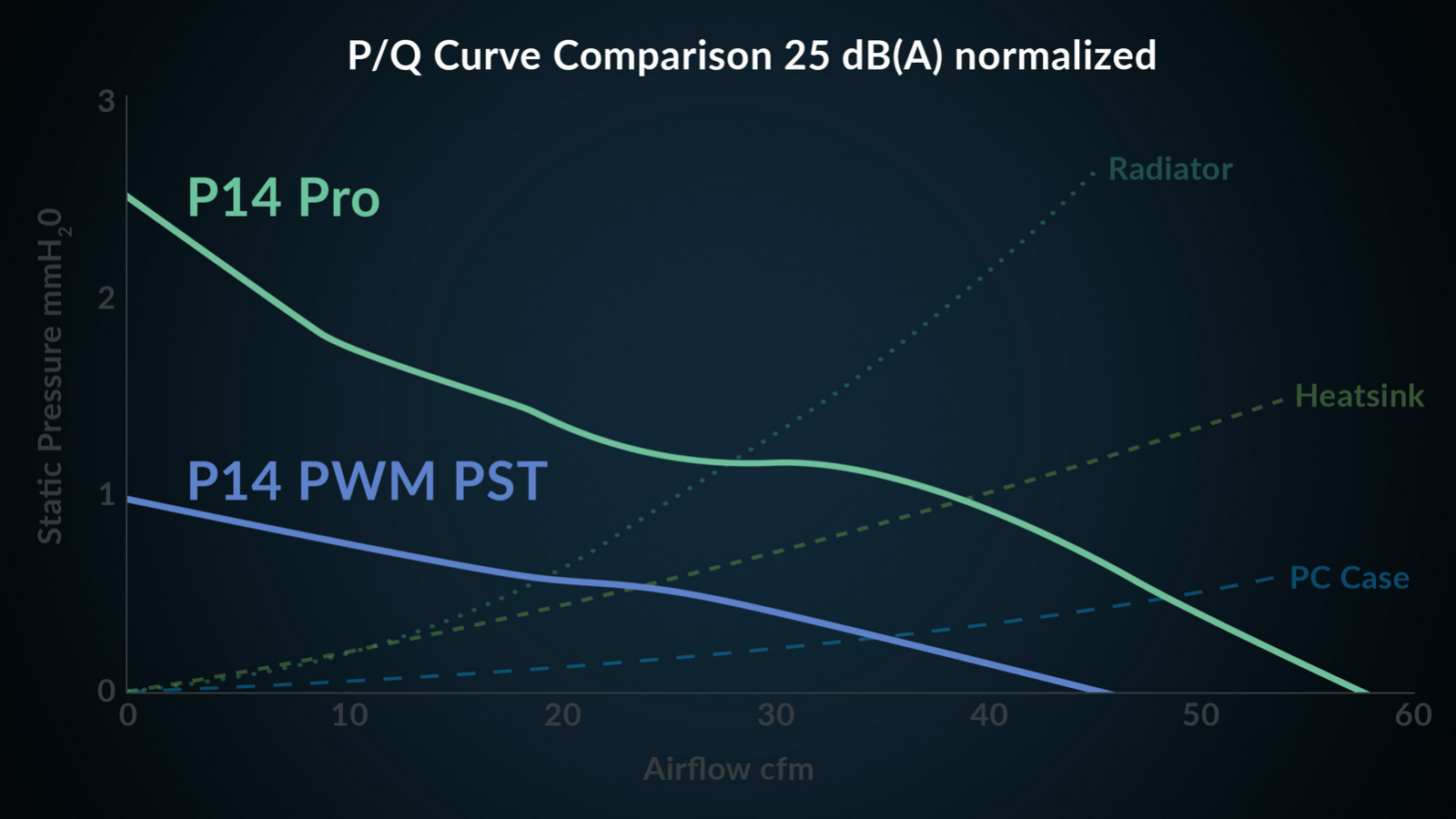

More Power - Less Noise
The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) - ideal for quiet, powerful cooling.
.png)

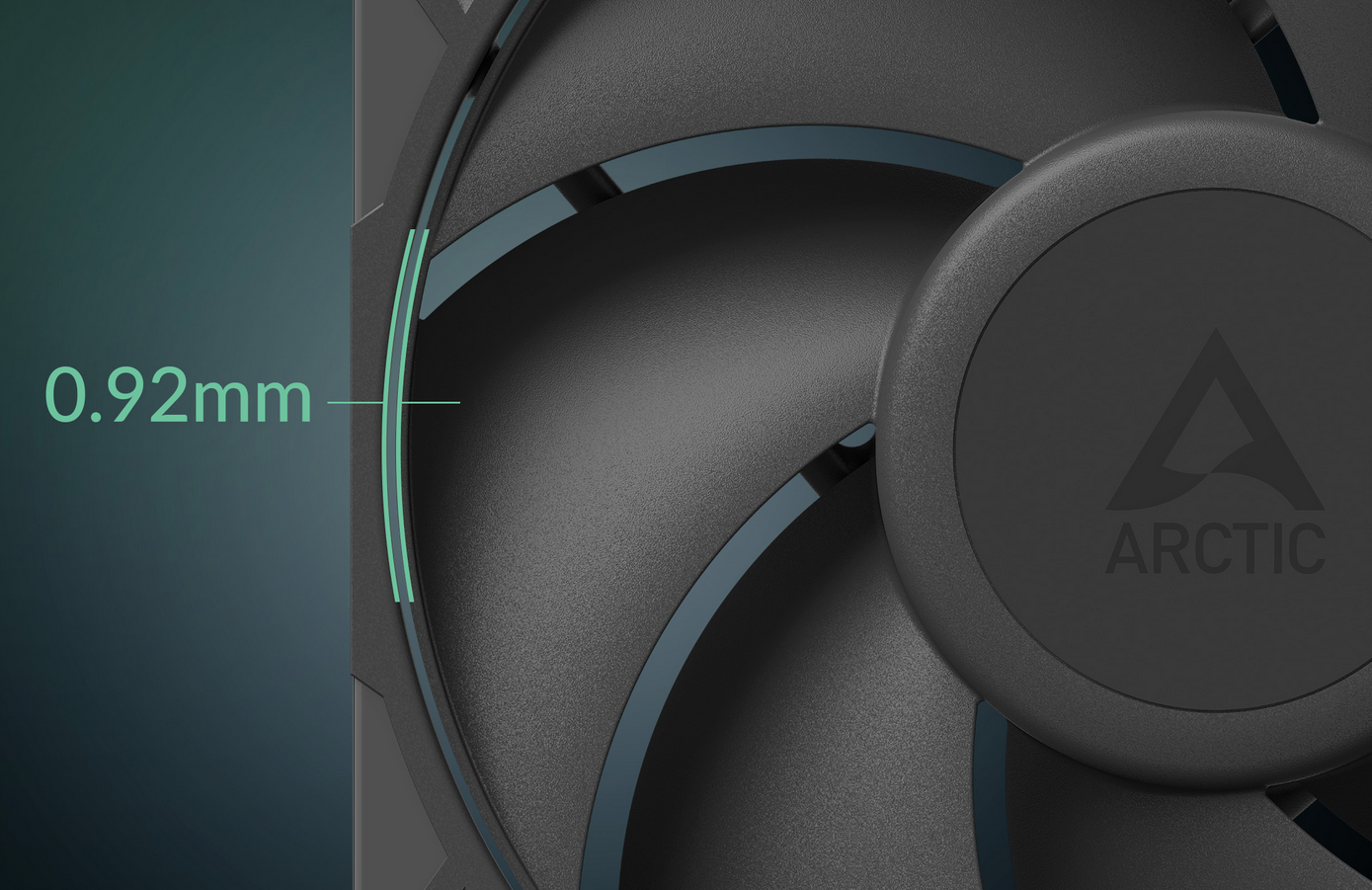

Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency.
.png)

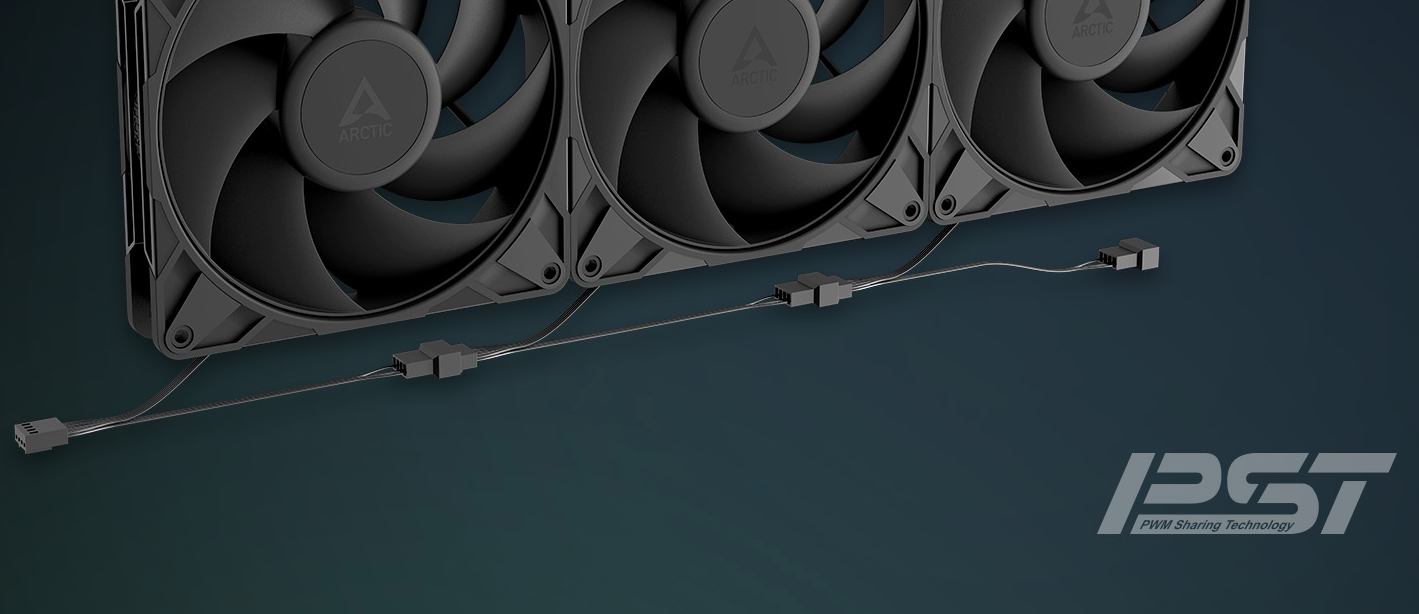

PST - PWM-Based Synchronized Fan Control
An additional PWM connector allows multiple fans to be synchronized in series using a single header.
.png)
| Κατασκευαστής | Arctic Cooling |
| Μοντέλο | High Static Pressure Fan P14 Pro PWM PST for Continuous Operation - Black |
| Part Number | ACFAN00316A |
| Κατηγορία | Ανεμιστήρες Κουτιών |
| Διαστάσεις Ανεμιστήρα | 140mm x 140mm x 27mm |
| Τύπος Ανεμιστήρα | Μεταβλητών Στροφών (4-Pin, PWM) |
| Φωτισμός LED | Χωρίς LED |
| Αριθμός Ανεμιστήρων | Single |
| Λοιπά στοιχεία | Dimensions (L x W x H): 140 x 140 x 27 mm Weight: 242g Performance Fan Speed: 400-2500 rpm (PWM controlled), 0 rpm below 5% PWM Airflow: 110 cfm | 186 m³/h Static Pressure: 5.2 mmH2O Fan Bearing: Dual Ball Bearing Electric Characteristics Typical Voltage: 12 V DC Start Up Voltage: 5 V DC Current: 0.35 A Connector: 4-Pin Fan Plug + 4-Pin Socket Cable Length: 400 mm + 80 mm Daisy-Chain Cable |
| Εγγύηση | 6 Έτη |
