Arctic Cooling Pressure Optimised Fan P12 PWM PST - White

1-2 εργάσιμες
7,00 €
Χωρίς ΦΠΑ: 5,65 €
Πληροφορίες
Κωδικός Msystems: 001-67820
Part Number: ACFAN00170A
Εγγύηση: 6 Έτη

Παρακαλώ συμπληρώστε τον ΤΚ σας
Παρακαλώ επιλέξτε νομό
Παρακαλώ επιλέξτε πόλη

Με πιστωτική κάρτα Visa, Mastercard, American Express, Diners
Παρακάτω βλέπετε τις επιλογές για τις έντοκες δόσεις. για άτοκες δόσεις πρέπει το συνολικό ποσό της παραγγελίας σας να ξεπερνά τα 200€
3,62 € / δόση = 7,24
2,42 € / δόση = 7,27
1,83 € / δόση = 7,30
1,47 € / δόση = 7,33
1,23 € / δόση = 7,37
1,06 € / δόση = 7,40
0,93 € / δόση = 7,43
0,83 € / δόση = 7,47
0,75 € / δόση = 7,50
0,68 € / δόση = 7,53
0,63 € / δόση = 7,57
0,58 € / δόση = 7,60
0,55 € / δόση = 7,63
0,51 € / δόση = 7,67
0,48 € / δόση = 7,70
0,46 € / δόση = 7,74
0,43 € / δόση = 7,77
0,41 € / δόση = 7,80
0,39 € / δόση = 7,84
0,37 € / δόση = 7,87
0,36 € / δόση = 7,91
0,35 € / δόση = 7,94
0,33 € / δόση = 7,98
0,32 € / δόση = 8,01
0,31 € / δόση = 8,05
0,30 € / δόση = 8,09
0,29 € / δόση = 8,12
0,28 € / δόση = 8,16
0,27 € / δόση = 8,19
0,27 € / δόση = 8,23
0,26 € / δόση = 8,27
0,25 € / δόση = 8,30
0,25 € / δόση = 8,34
0,24 € / δόση = 8,38
0,23 € / δόση = 8,41
Facebook Twitter Email
Facebook Twitter Email
Περιγραφή

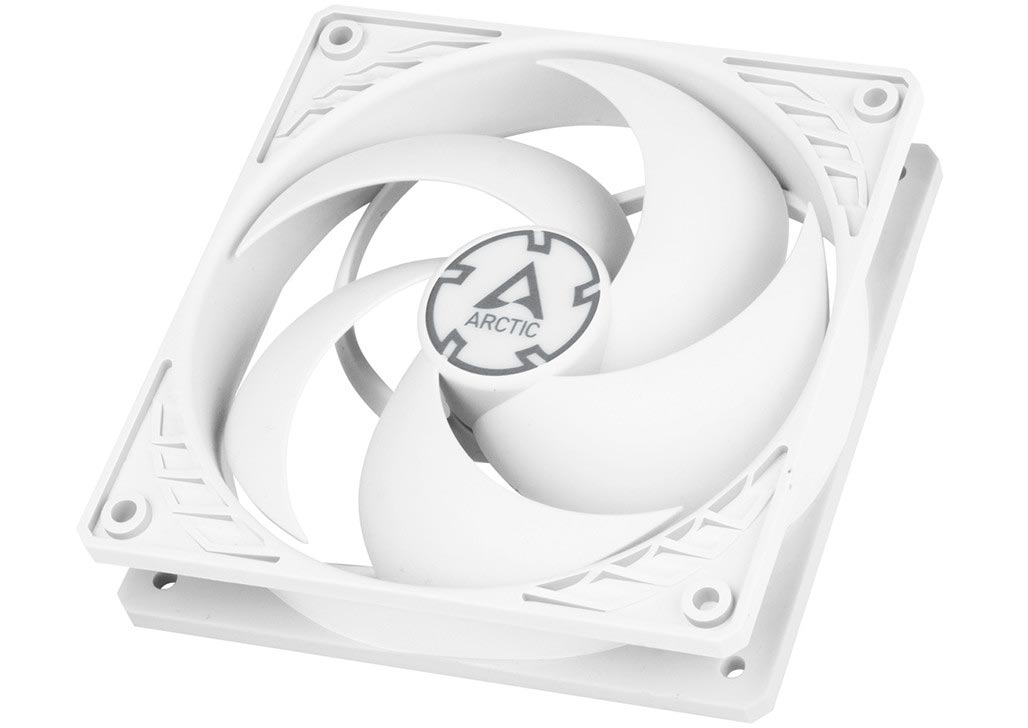

Arctic Cooling P12 PWM PST Fan

120 mm PWM Fan with Cable Splitter

Optimised for Static Pressure

During the development of the new P12 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST is particularly suitable for use on heatsinks and radiators.

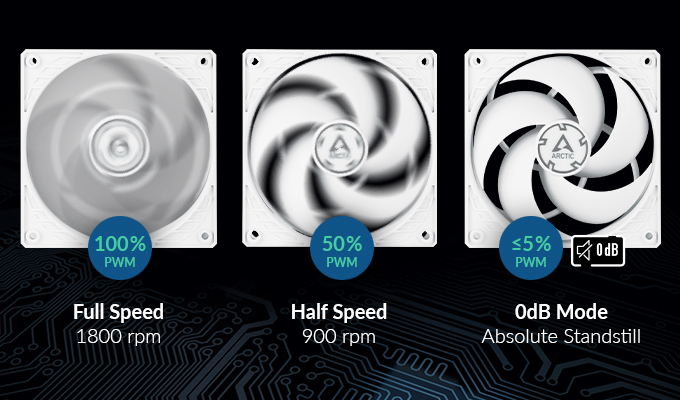

0 dB Mode - Zero rpm

The speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required.

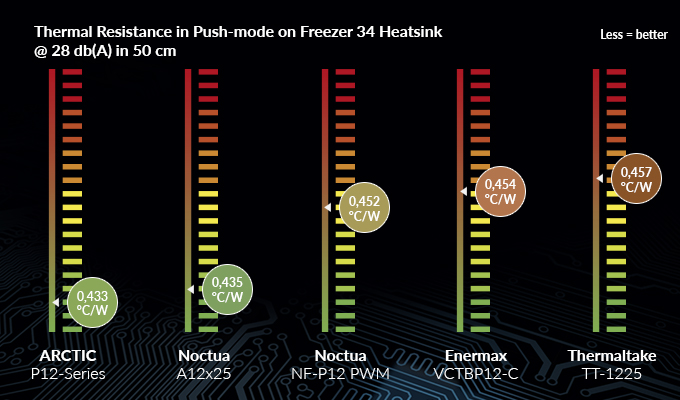

Strong Cooling Performance

Numerous improvements, such as updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB(A), the new P-fans left many competitors behind. More information can be found in our FAQ.

More Efficient Technology

The motor is powered by a PWM IC of the newest generation, which allows the new P12 PWM PST to run much more efficiently than its predecessors. This saves energy without compromising the performance.

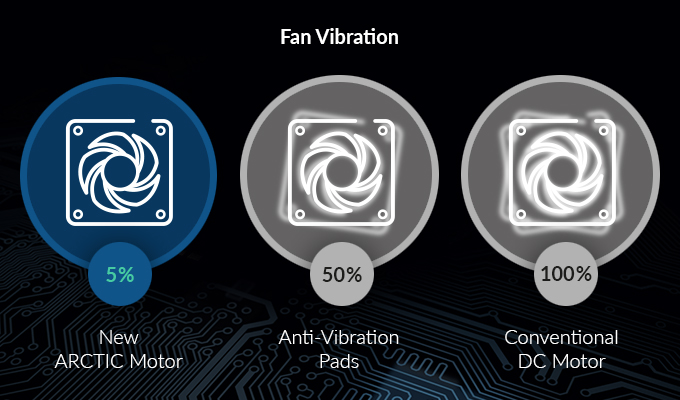

Maximum Quietness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from the commutation of a regular DC motor without a filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

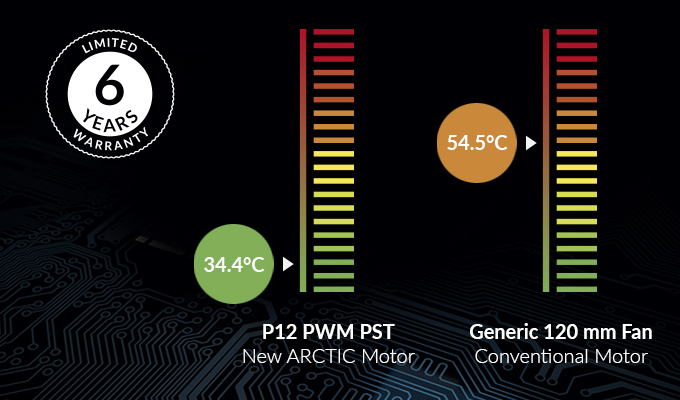

Extended Life Span

A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we give a manufacturer warranty of 6 years.

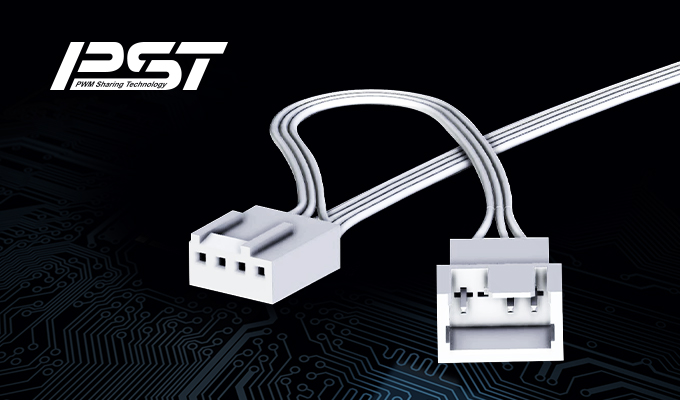

200 to 1800 rpm Regulated via PWM PST

Thanks to the 4-Pin Connector, the rpm can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.

High-Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

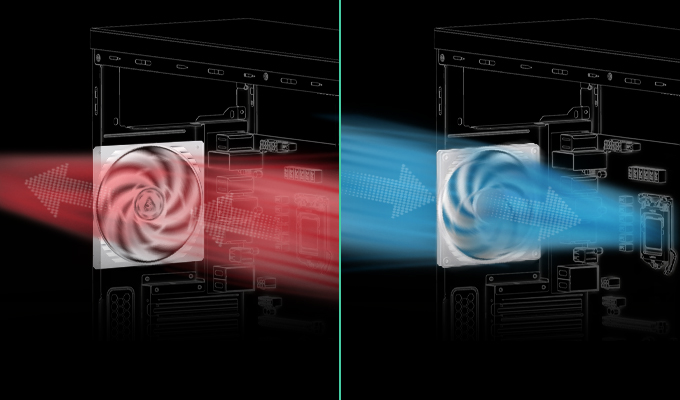

Two Way Installation

Push warm air out of the case
Pull cool air into your case

Τεχνικά Χαρακτηριστικά
ΚατασκευαστήςArctic Cooling
ΜοντέλοPressure Optimised Fan P12 PWM PST - White
Part NumberACFAN00170A
ΚατηγορίαΑνεμιστήρες Κουτιών
Διαστάσεις Ανεμιστήρα120mm
Τύπος ΑνεμιστήραΜεταβλητών Στροφών (4-Pin, PWM)
Φωτισμός LEDΧωρίς LED
Λοιπά στοιχείαDimensions (L x W x H): 120 x 120 x 25 mm
Weight: 145g

Performance
Fan Speed: 200-1800 rpm PWM Controlled (0 rpm below 5 % PWM)
Airflow: 56.30 cfm | 95.70 m³/h
Static Pressure: 2.20 mmH2O
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0-40 °C

Fan
Fan Frame: Standard
Control Type: PWM PST
Connector: 4-Pin Connector + 4-Pin Socket
Fan Bearing: Fluid Dynamic Bearing

Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 3.9 V
Current | Voltage: 0.1 A | 12 V DC
Cable Length: 400 mm
Εγγύηση6 Έτη
