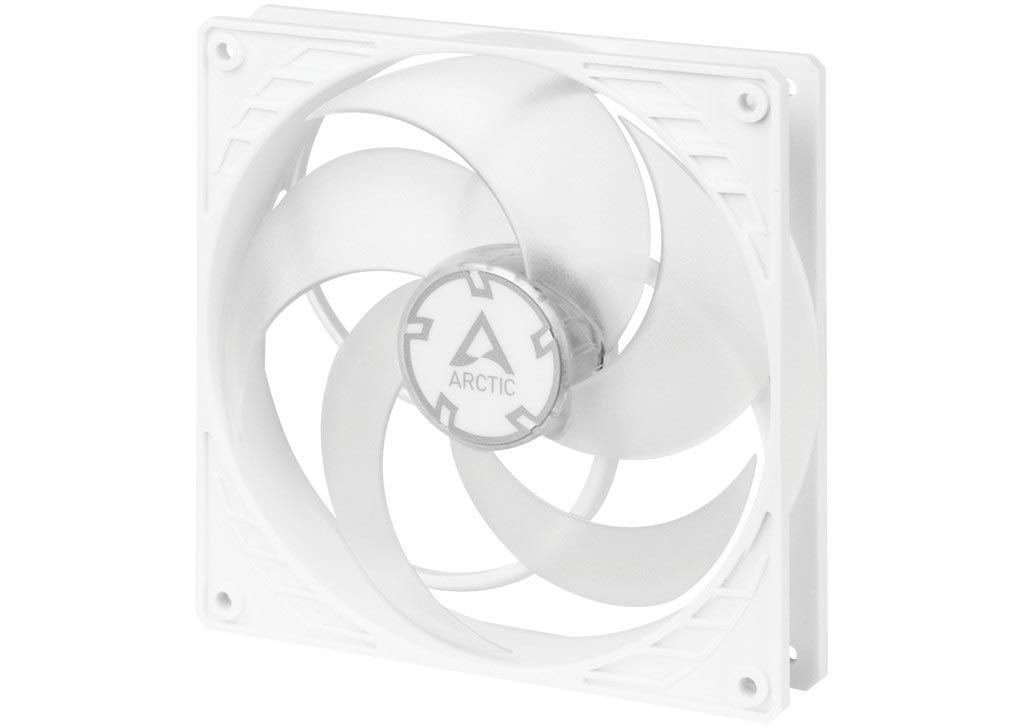

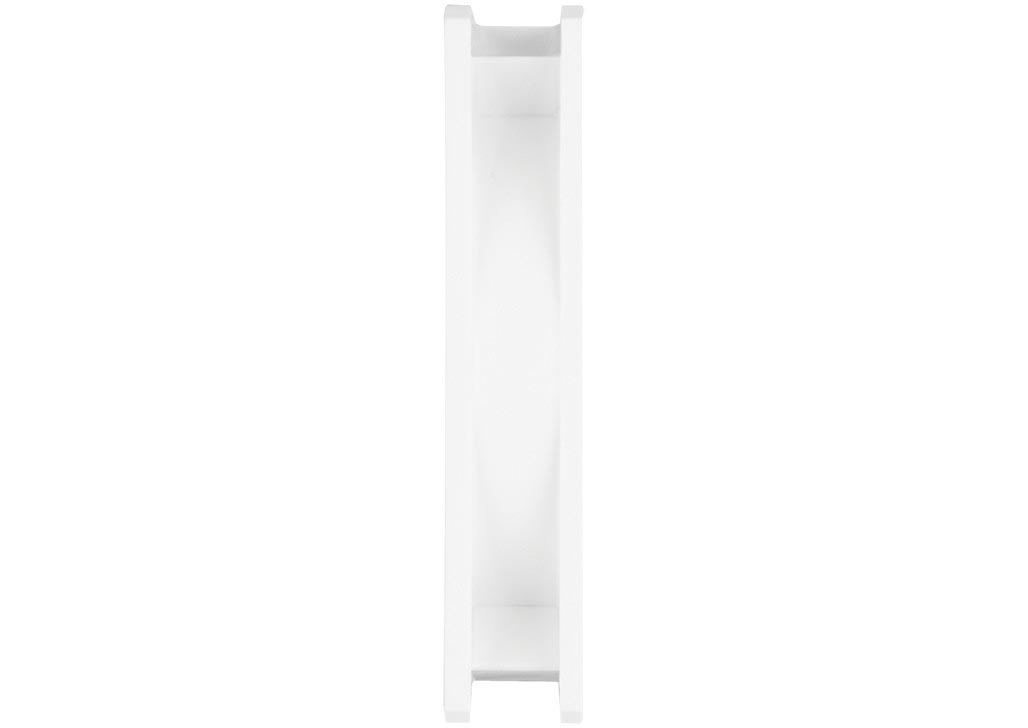

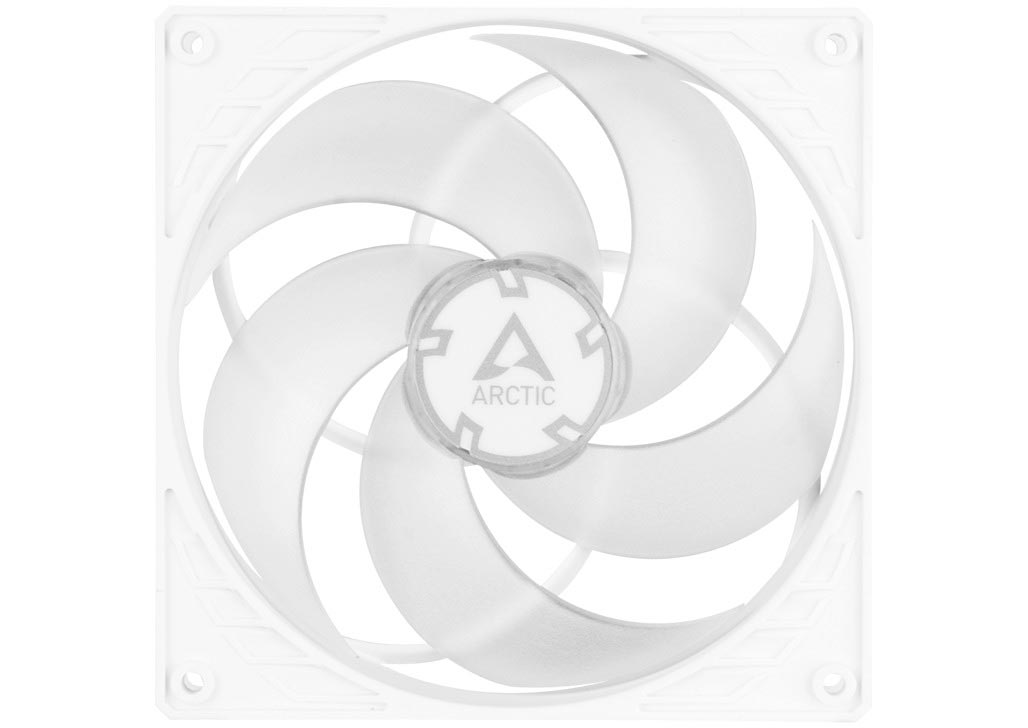

Arctic Cooling Pressure Optimised Fan P14 PWM - White/ Transparent
![Arctic Cooling Pressure Optimised Fan P14 PWM - White/ Transparent [ACFAN00223A] Εικόνα 1](https://static.msystems.gr/photos/big_photos/51348.jpg)
![Arctic Cooling Pressure Optimised Fan P14 PWM - White/ Transparent [ACFAN00223A] Εικόνα 2](https://static.msystems.gr/photos/big_photos/51348.1.jpg)
![Arctic Cooling Pressure Optimised Fan P14 PWM - White/ Transparent [ACFAN00223A] Εικόνα 3](https://static.msystems.gr/photos/big_photos/51348.2.jpg)
Χωρίς ΦΠΑ: 8,06 €
Πληροφορίες
Δόσεις
Arctic Cooling P14 PWM Fan
140 mm PWM Fan

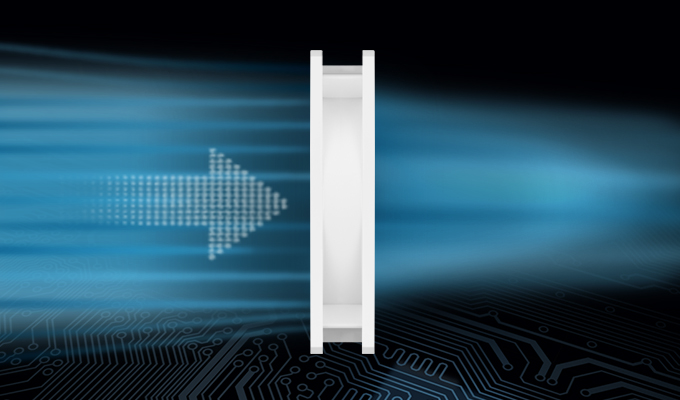

Optimised for Static Pressure
During the development of the new P14 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM is particularly suitable for use on heatsinks and radiators.
.png)
More Efficient Technology
The motor is powered by a PWM IC of the newest generation, which allows the new P14 PWM to run much more efficiently than its predecessors. This saves energy without compromising performance.
.png)

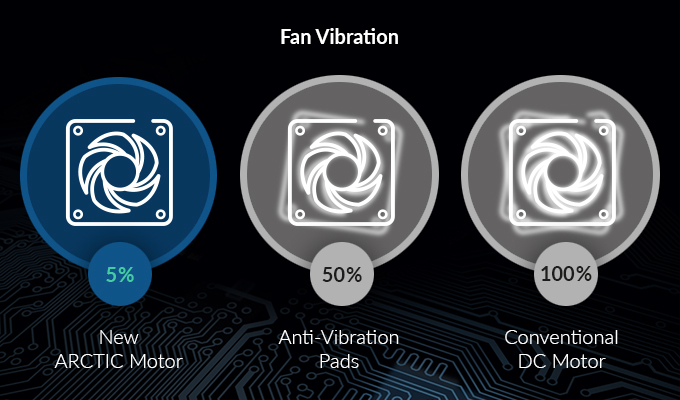

Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC motor without a filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
.png)

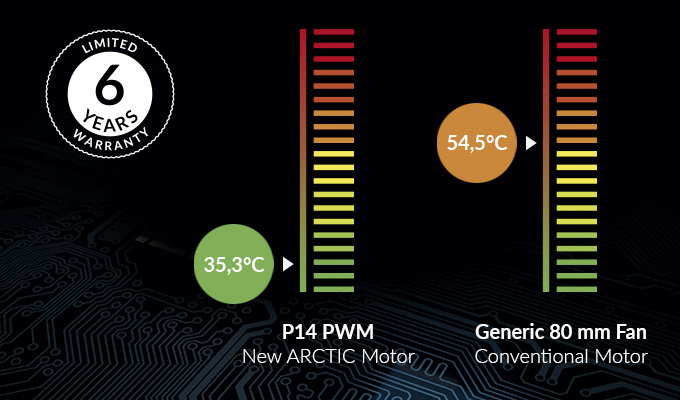

Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we give a manufacturer warranty of 6 years.
.png)

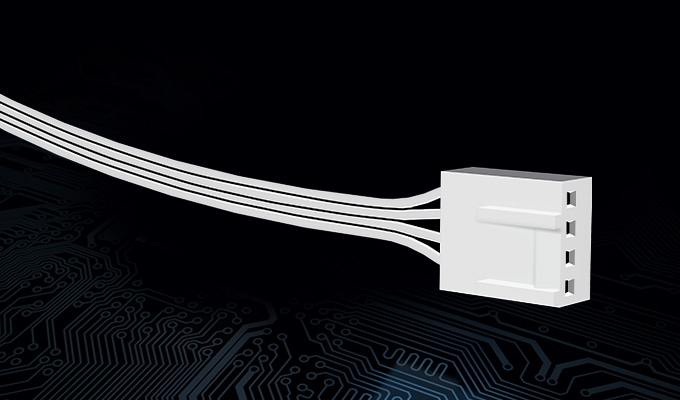

200 to 1700 rpm Regulated via PWM
Thanks to the 4-Pin Connector, the rpm can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.
.png)

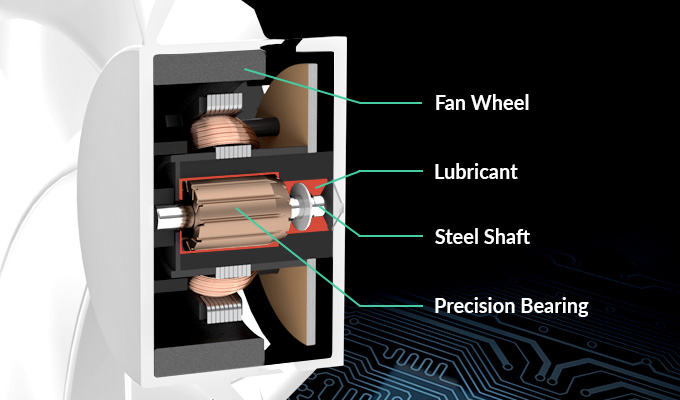

High-Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
.png)

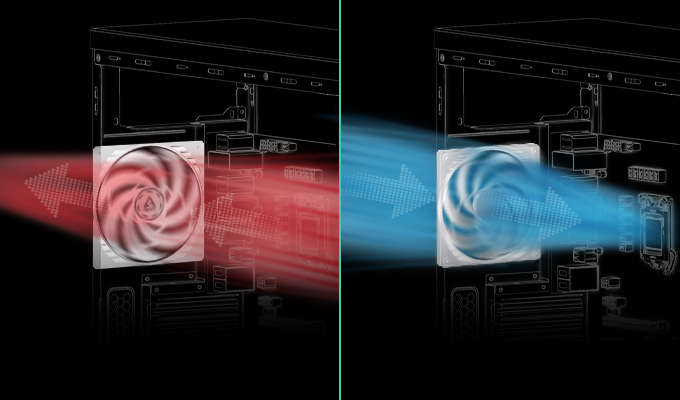

Two Way Installation
Push warm air out of the case
Pull cool air into your case
.png)
| Κατασκευαστής | Arctic Cooling |
| Μοντέλο | Pressure Optimised Fan P14 PWM - White/ Transparent |
| Part Number | ACFAN00223A |
| Κατηγορία | Ανεμιστήρες Κουτιών |
| Διαστάσεις Ανεμιστήρα | 140mm |
| Τύπος Ανεμιστήρα | Μεταβλητών Στροφών (4-Pin, PWM) |
| Φωτισμός LED | Χωρίς LED |
| Λοιπά στοιχεία | Dimensions (L x W x H): 140 x 140 x 27 mm Weight: 194g Performance Fan Speed: 200—1700 rpm PWM Controlled Airflow: 72.80 cfm | 123.76 m³/h Static Pressure: 2.40 mmH2O Noise Level: 0.3 Sone Operating Ambient Temperature: 0-40 °C Fan Fan Frame: Standard Control Type: PWM Connector: 4-Pin Connector Fan Bearing: Fluid Dynamic Bearing Electric Characteristics Typical Voltage: 12 V DC Starting Voltage: 3.9 V Current | Voltage: 0.12 A | 12 V DC Cable Length: 400 mm |
| Εγγύηση | 6 Έτη |
