Noctua Fan NF-A12x25 G2 PWM Sx2-PP 120x120x25mm Νέο

Next-generation performance

Building upon the success of the original NF-A12x25, the G2 version introduces a refined blade geometry and a novel motor design. These advancements lead to a significant boost in performance-to-noise efficiency, allowing the NF-A12x25 G2 to achieve superior results across various applications, including water cooling radiators, heatsinks, and case fan setups.

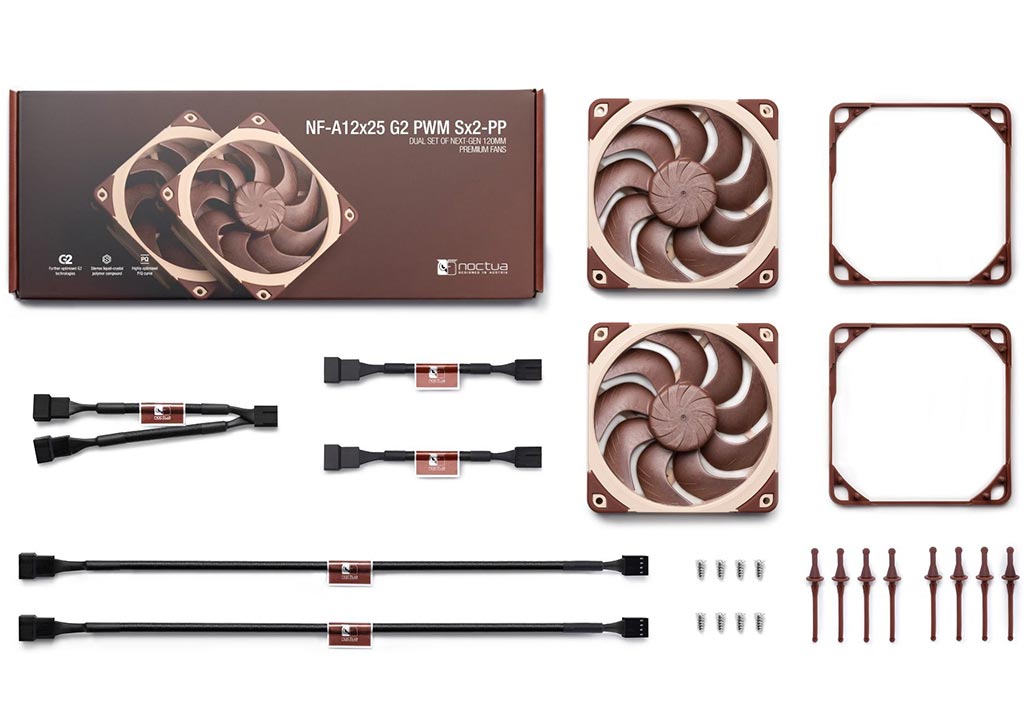

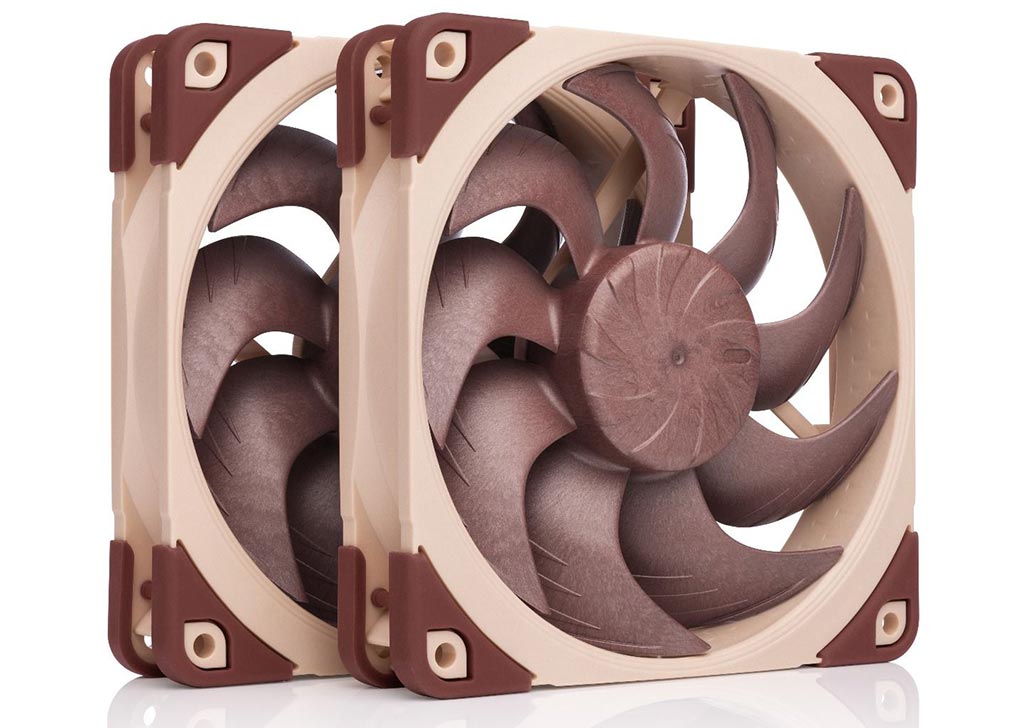

Dual fan set for push-pull and side-by-side usage

Bundling two NF-A12x25 G2 PWM fans that are speed-offset by +/- ~50rpm in order to avoid undesired acoustic interaction phenomena, the Sx2-PP set is the ideal choice for push-pull configurations as well as situations where two or more fans are operating side by side such as on 240 and 360mm radiators or in typical case cooling applications.

Speed-offsetting three or more fans

If more than two fans are running side by side, Sx2-PP sets can be combined to avoid situations where two neighbouring fans run at the same speed level. If the total number of fans is uneven such as when equipping a 360mm radiator, customers can add a single regular NF-A12x25 G2 PWM fan to the Sx2-PP set(s) and reduce its running speed to the level of the PPA fan (~1750rpm) through PWM control.

Highly optimised P/Q curve for all applications

The NF-A12x25 G2’s sophisticated aerodynamic design allows for a pressure to airflow (P/Q) curve that is extremely strong in the critical mid-section. This means that the NF-A12x25 G2 is a true jack-of-all-trades with excellent performance in both static pressure demanding and airflow demanding applications.

Excellent on-application acoustics

While many fans produce unpleasant, high-pitched noises when installed in typical applications such as on heatsinks or radiators, the NF-A12x25 G2 has been carefully fine-tuned for optimal on-application acoustics. It produces a smooth, pleasant frequency profile and surprisingly low sound pressure levels (SPL) when working against back pressure.

Progressive-Bend impeller

The NF-A12x25 G2 features a unique Progressive-Bend impeller with Flow Acceleration Channels and winglets. Its nine blades are swept backwards close to the hub and progressively bent forward further out. Working in tandem with the Centrifugal Turbulator hub, this design not only helps to push more air towards the outer blade areas where efficiency is higher but also assures maximum lift and near uniform loading across the entire blade span.

Centrifugal Turbulator hub

Acting as a turbulator, the new Centrifugal Turbulator hub design improves flow attachment in the hub region. At the same time, it’s centrifugal driving motion pushes air outwards from the hub area where efficiency is low due to the slow rotational speed towards the outer, high-efficiency zones of the blades, thereby increasing overall efficiency by optimising fluid distribution across the impeller area.

Sterrox® liquid-crystal polymer compound

The NF-A12x25 G2’s impeller is made from Noctua’s novel Sterrox® liquid-crystal polymer (LCP) compound that features extreme tensile strength, an exceptionally low thermal expansion coefficient and damping characteristics that are ideal for reducing resonance and vibration phenomena in advanced fan-blade designs.

AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.

Integrated anti-vibration pads

Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and most other mounting mechanisms.

SSO2 bearing

The NF-A12x25 G2 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
