Noctua Fan NF-A14x25 G2 PWM Sx2-PP 140x140x25mm Νέο
Χωρίς ΦΠΑ: 62,82 €
Πληροφορίες
Δόσεις
4 άτοκες δόσεις με tbi bank
Πλήρωσε την πρώτη δόση τώρα, με τη χρεωστική σου κάρτα, και το υπόλοιπο ποσό σε 3 ακόμη άτοκες δόσεις κάθε 30 ημέρες, εύκολα και χωρίς άγχος!
NF-A14x25 G2 PWM Sx2-PP
Next-gen 140mm dual fan set

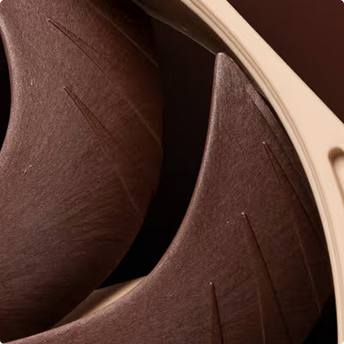

Progressive Bend impeller
The NF-A14x25 G2 features a unique Progressive-Bend impeller with Flow Acceleration Channels and winglets. Its nine blades are swept backwards close to the hub and progressively bent forward further out. Working in tandem with the Centrifugal Turbulator hub, this design not only helps to push more air towards the outer blade areas where efficiency is higher but also assures maximum lift and near uniform loading across the entire blade span.
.png)

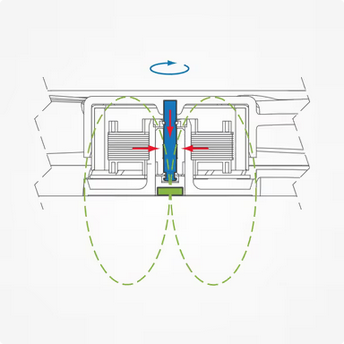

SSO2 bearing
The NF-A14x25 G2 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
.png)
Ultra-tight tip clearance
The NF-A14x25 G2 has a record tight tip clearance (distance between the blade tips and the inside of the frame) of only 0.7mm. This highly ambitious design sets a new benchmark for 140mm fans and helps the NF-A14x25 G2 to work more efficiently against back pressure, such as on heatsinks or radiators, by reducing leak flows through the gap between impeller and frame.
.png)

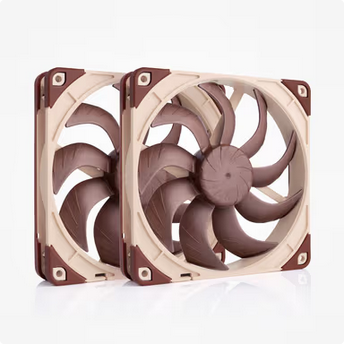

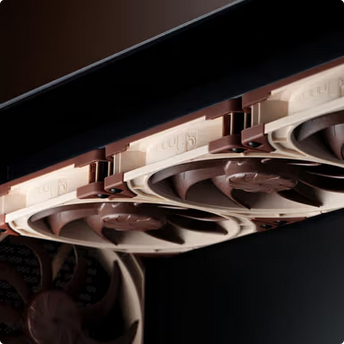

Dual fan set for push-pull and side-by-side usage
Bundling two NF-A14x25 G2 PWM fans that are speed-offset by +/- ~25rpm in order to avoid undesired acoustic interaction phenomena, the Sx2-PP set is the ideal choice for push-pull configurations as well as situations where two fans or more are operating side by side such as on 280mm radiators or in typical case cooling applications.
.png)
| Κατασκευαστής | Noctua |
| Μοντέλο | Fan NF-A14x25 G2 PWM Sx2-PP 140x140x25mm |
| Part Number | NF-A14x25 G2 PWM Sx2-PP |
| Κατηγορία | Ανεμιστήρες Κουτιών |
| Διαστάσεις Ανεμιστήρα | 140mm |
| Τύπος Ανεμιστήρα | Μεταβλητών Στροφών (4-Pin, PWM) |
| Φωτισμός LED | Χωρίς LED |
| Αριθμός Ανεμιστήρων | Kit of 2 |

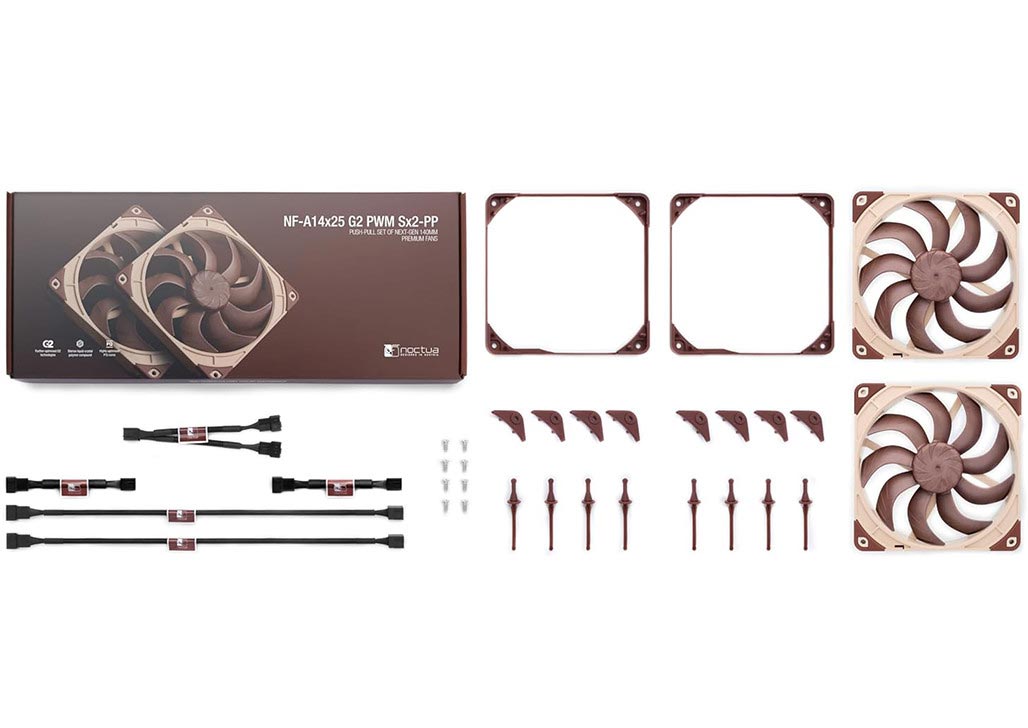

| Λοιπά στοιχεία | Bearing: SSO2 Rotational direction: Counter-clockwise Speed range: 0 - 1500 rpm Airflow (max.): 155.6 m³/h (91.58 CFM) Acoustical noise (max.): 24.8 dB(A) Static pressure (max.): 2.56 mm H₂O Rated voltage: 12 V Colour: Brown Frame shape: Square Dimensions without anti-vibration pads: 140 x 140 x 25 mm Dimensions with anti-vibration pads: 140 x 140 x 27 mm Mounting hole spacing(s): 124.5 x 124.5 mm Weight: 225 g Scope of delivery NF-A14x25 G2 PWM PPA NF-A14x25 G2 PWM PPB 2x NA-RC16 Low-Noise Adaptor (L.N.A.) NA-YC1 4-pin PWM splitter cable 2x NA-EC1 30cm extension cable 8x NA-AV2 anti-vibration mounts 2x NA-AVG2-LR anti-vibration gasket for water cooling radiators 8x NA-AVP1-LR load-relief anti-vibration pads Fan screws |
| Εγγύηση | 6 Έτη |
