Gigabyte AORUS GeForce RTX 3080 Xtreme WaterForce 10GB

KEY FEATURE

NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3080
Integrated with 10GB GDDR6X 320-bit memory interface

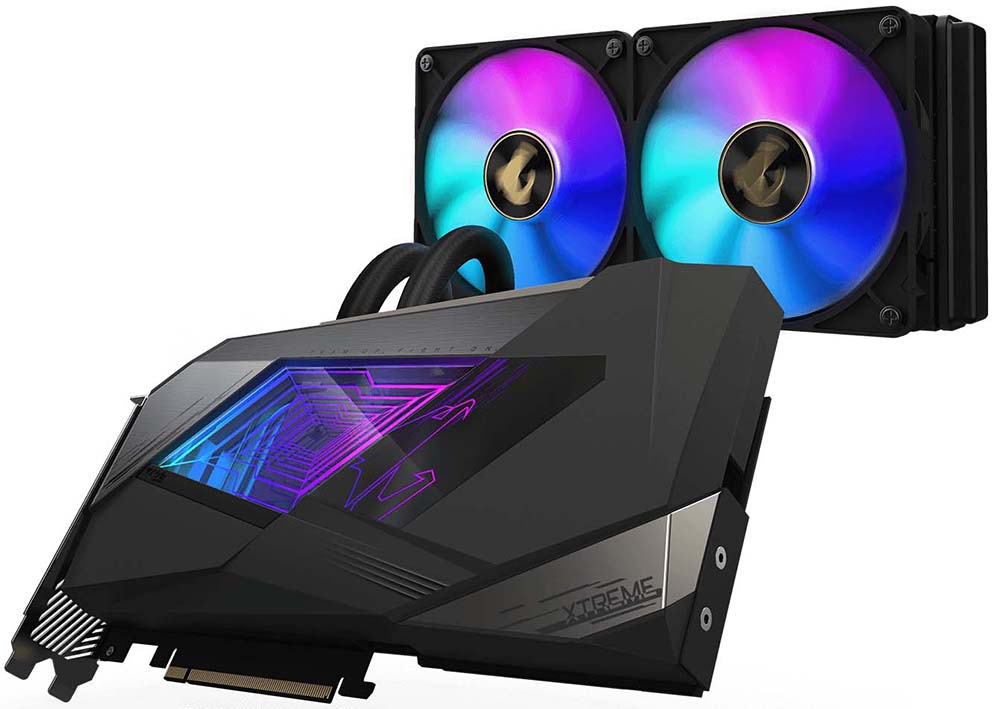

WATERFORCE all-in-one cooling system
240mm radiator with 2x 120mm ARGB fans
RGB Fusion 2.0
6 Outputs
Protection metal back plate

CORE CLOCK

1845 MHz (Reference Card: 1710 MHz)

WATERFORCE COOLING SYSTEM

The ideal way for PC enthusiasts to enter the world of water cooling without having to deal with complicated installations. AORUS provides an all-round cooling solution as critical parts like GPU, VRAM and MOSFET are actively cooled to ensure system stability under high overclocks.

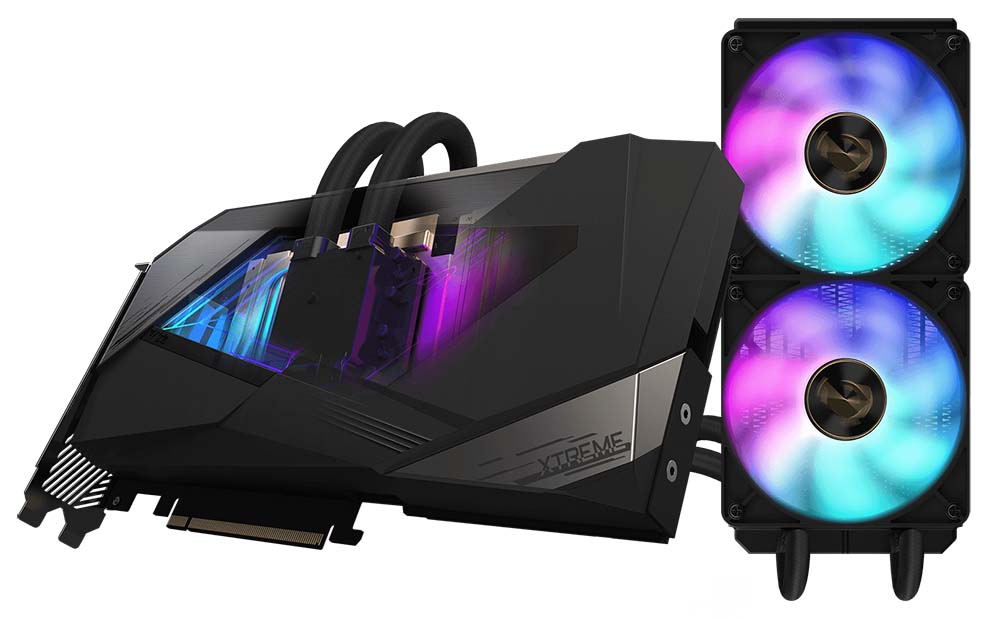

• EASY INSTALLATION

  With the pre-assembled water pipe and pump, users can easily install the graphics card without leakage concerns.

• Optimized 240mm ALUMINUM RADIATOR

  The double-sized radiators and fins increase the surface area and volume for thermal, making the graphics card more stable and cool under high overclocks.

• 2X 120MM ARGB FANS

  The dual fans can generate more airflow to better heat dissipation, delivering a powerful cooling and quiet gaming experience. The ARGB fans lights also can synchronize with the graphics card for various light effects via RGB FUSION 2.0.

• DOUBLE BALL BEARING

  The double ball bearing structure has better heat endurance and efficiency than sleeve structure.

• LARGE COPPER BASE PLATE

  The copper base plate directly touches the GPU, VRAM and other critical parts. Coupled with heat pipes, the heat can be transferred to the liquid cooling zone for achieving enhanced heat dissipation.

• BRAIDED FEP TUBES

  With nearly no moisture absorption, high thermal stability and high pressure tolerance, the sturdy FEP tubes greatly enhance product life and durability.

RGB FUSION 2.0

With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

PERFORMANCE

GeForce RTX™ 3080 with 10G memory and 760 GB/s memory bandwidth has 8704 CUDA® Cores, 2nd gen ray tracing cores and 3rd gen tensor cores operating in parallel. It is the most suitable solution for those who are gaming, rendering, and developing A.I. technology.

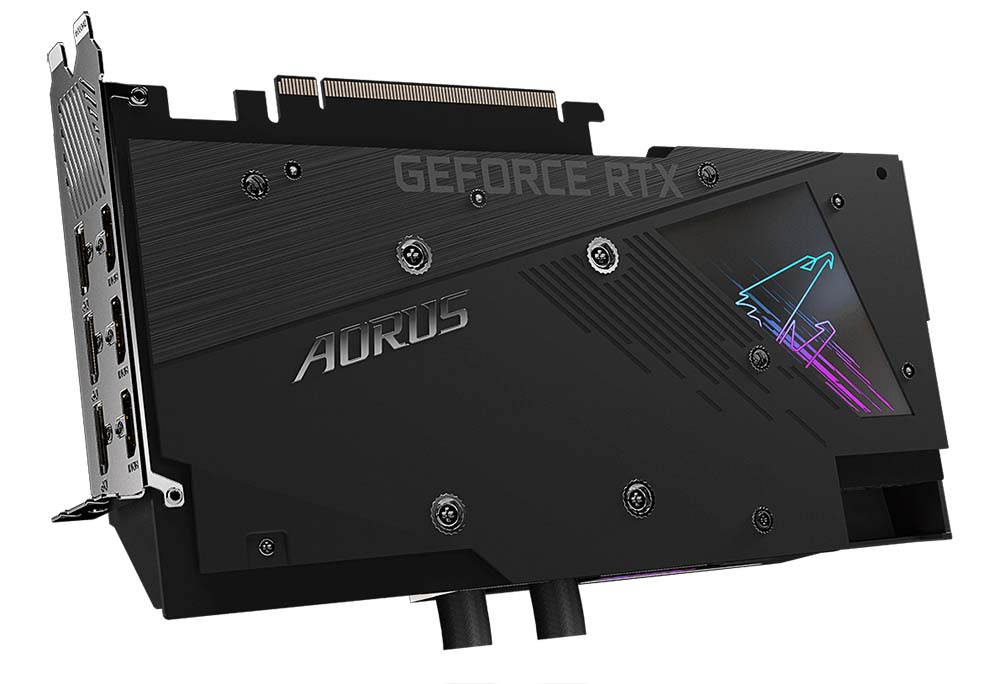

• METAL BACK PLATE

  The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

• 6 OUTPUTS

  You can choose 3xHDMI or 3xDP for your monitors without any adaptors. (Option 4 views)

• POWER INDICATORS

  When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

EXCELLENCE

Excellent circuit design with the top-grade materials, not only maximizes the excellence of the GPU, but also maintains stable and long-life operation.

• EXTREME OVERCLOCKING

  The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET.

• ULTRA DURABILITY

  The Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

• PCB COATING

  Dust resistant - shields from dust, insects, dropped screws, drill shavings, and abrasion.
  Moisture resistant - prevents unwanted conduction paths and board damage.
  Corrosion resistant - protects from salt spray, humidity, and corrosion.

• PCB COATING

  Dust resistant - shields from dust, insects, dropped screws, drill shavings, and abrasion.
  Moisture resistant - prevents unwanted conduction paths and board damage.
  Corrosion resistant - protects from salt spray, humidity, and corrosion.

• INTUITIVE AORUS ENGINE

  Clock speeds, voltage, fan excellence, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface.
