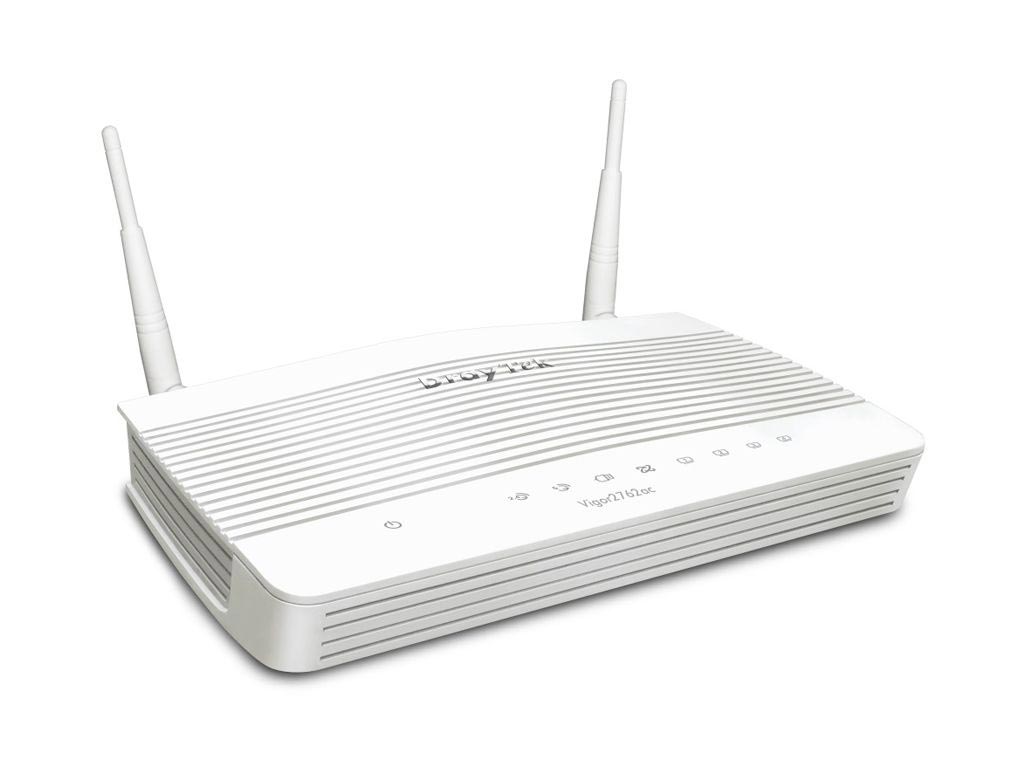

DrayTek Vigor 2762ac VDSL2/ADSL2+ (Annex A)

Interface

• 1 x RJ-11 WAN port
• 4 x GbE RJ-45 LAN port (Port 4 can be configured as WAN 2)
• 2 x USB 2.0 port
• Factory Reset Button
• Power On/Off Switch

Power

• DC 12V @2A
• Max. Power Consumption: 24 watts

Temperature

• Operating: 0°C ~ 45°C
• Storage: -25°C ~ 70°C

Humidity

• Operating: 10% ~ 90%
  (non-condensing)

Dimension (mm)

• 207 (L) x 131 (W) x 42 (H)
  (8.1" x 5.2" x 1.7")

WAN

VDSL

• G.993.1 (VDSL)
• G.993.2 (VDSL2)
• G997.1
• DSL Forum: TR-114
• Band Plan: G.997
• VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a
• OLR, UPBO, DBPO, US0
• Vectoring
• Loop diagnostic mode

ADSL

• ANSI T1.413
• G.992.1 G.dmt
• G.992.2 G.lite
• G.992.3 (ADSL2)
• G.992.3 Annex M/J (ADSL2)
• G.992.5 (ADSL2+)
• G.992.5 Annex M/J (ADSL2+)

Network Access

• PPP Client
• DHCP Client
• Static IP
• PPTP/L2TP

Ethernet Connection (IPv6)

• PPP
• DHCPv6 Client
• Static IPv6
• TSPC
• AICCU (AYIYA/Heartbeat)
• 6rd
• 6in4 Static Tunnel

Failover

• WAN 2 Backup
• 3G/4G Backup

Connectivity Detection

• ARP
• Ping Probe

LAN Managment

VLAN

• Up to 8 VLAN
• 802.1Q Tag-based VLAN
• Port-based VLAN

DHCP Server

• Up to 2 IP Subnet
• Bind-IP-to-MAC
• Custom DHCP Option

DNS Control

• Local Name Server
• Conditional DNS Forwarding

Hotspot Portal

• Authentication by Click-Through, Social Login, and SMS PIN
• Custom Portal Page
• URL Redirection
• Walled-Garden

Routing

Static Route

• 20 IPv4 Static Routing Rules
• 40 IPv6 Static Routing Rules
• Inter-VLAN Routing

Dynamic Routing

• RIP v1/v2

Policy Routing

• 50 Route Policy
• Criteria: Protocol, Source IP, Destination IP, Destination Port
• Failover options

VPN

Performance

• Up to 2 concurrent tunnels
• Max. concurrent SSL VPN up to 2

Protocols

• PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2
• LAN-to-LAN VPN
• Teleworker-to-LAN VPN

Encryption

• MPPE 40/128 bit
• Hardware-based AES/DES/3DES

Authentication

• PAP, CHAP, MS-CHAP, MS-CHAPv2
• MD5, SHA-1
• Pre-Shared Key, Digital Signature (X.509)
• mOTP

Advanced

• Hub-and-Spoke Topology support
• NAT-Traversal (NAT-T)
• Dead Peer Detection (DPD)
• DHCP over IPsec
• Single-Armed VPN

Firewall

NAT

• One-to-One Port Redirection
• Range-to-Range Port Redirection
• Open Ports
• Port Triggering
• DMZ Host
• ALG: SIP, RTSP, FTP, TFTP, H.323
• VPN Pass-Through: PPTP, L2TP, IPsec
• UPnP

Firewall Filter

• IP-based Firewall Policy
• User-based Firewall Policy
• Object-based Configuration
• Schedule Enable/Disable

Content Filtering

• URL Keyword Filtering
• Category Filtering (subscription required)
• DNS Keyword Filtering
• Web Features Filtering

Attack Protection

• DoS Defense

Bandwidth Management

Bandwidth Policy

• Session Limit
• Bandwidth Limit
• IP-Based Policy
• Scheduled Enable/Disable

Quality of Service

• Layer 3 QoS (TOS/DSCP)
• Layer 2 QoS (802.1p)
• 4-Level Priority with user-defined classification
• Bandwidth Borrowing
• APP QoS

Network Features

• Dynamic DNS
• DNS Security
• RADIUS Client
• Bonjour
• IGMP Proxy
• IGMP Snooping
• SMB File Sharing

Wireless LAN

Standards

• 802.11b/g/n (2.4G)
• 802.11 a/n/ac (5G)

SSID

• Up to 4 SSID per radio
• SSID-based 802.1Q VLAN

Radio Management

• Auto Channel Selection
• Auto Channel Width (2.4G)
• Wi-Fi Scheduling

Security

• WEP, WEP-802.1x, WPA-PSK, WPA-802.1x, WPA2-PSK, WPA2-802.1x
• Hidden SSID
• Client Isolation
• Access Control per SSID
• WPS

Advanced

• AirTime Fairness
• Band Steering
  (ac/Vac model)
• WMM

WDS

• Bridge
• Repeater

Management

Configuration

• Web Interface: HTTP, HTTPS
• Command-Line Interface: Telnet, SSH
• TR-069 via VigorACS
• Config File Export & Import
• Compliant with the config file exported from Vigor2760

F/W Upgrade

•  TFTP, HTTP, TR-069

Admin Access Control

• 2-level Administration Privilege
• Access from the Internet
• Access List

Monitoring

• Dashboard
• Syslog
• SMS/E-mail Alert
• TR-069 via VigorACS
• SNMP v2, v2c, v3

Central Management

• Wireless Controller for up to 2 VigorAP
