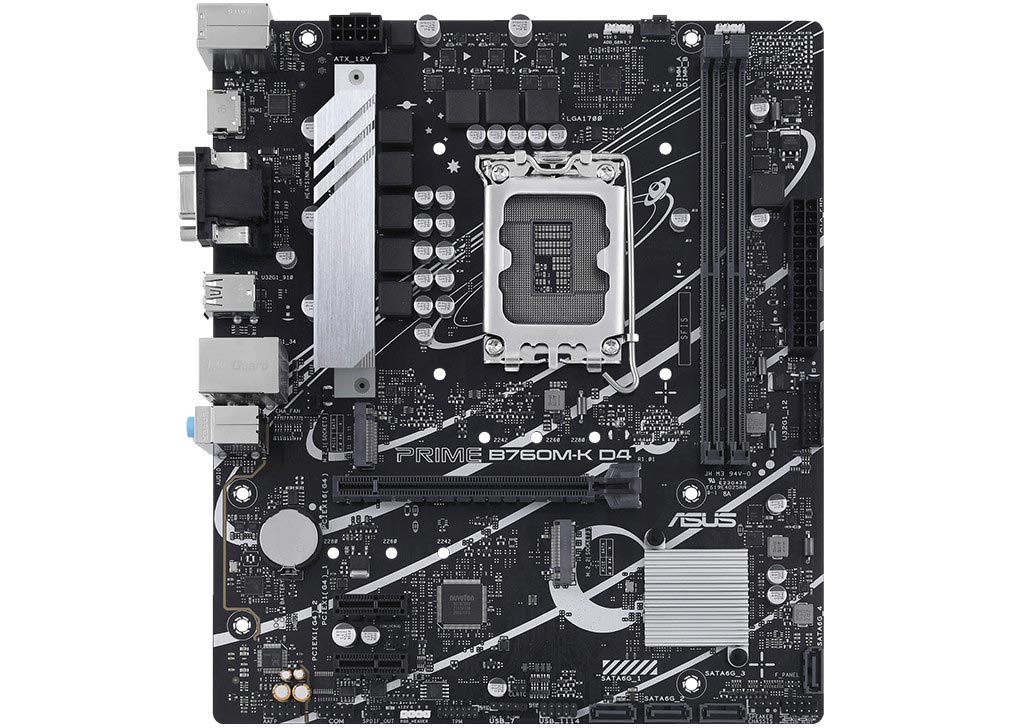

Asus Prime B760M-K D4
![Asus Prime B760M-K D4 [90MB1DS0-M1EAY0] Εικόνα 1](https://static.msystems.gr/photos/big_photos/50419.jpg)
![Asus Prime B760M-K D4 [90MB1DS0-M1EAY0] Εικόνα 2](https://static.msystems.gr/photos/big_photos/50419.1.jpg)
![Asus Prime B760M-K D4 [90MB1DS0-M1EAY0] Εικόνα 3](https://static.msystems.gr/photos/big_photos/50419.2.jpg)
![Asus Prime B760M-K D4 [90MB1DS0-M1EAY0] Εικόνα 4](https://static.msystems.gr/photos/big_photos/50419.3.jpg)
Χωρίς ΦΠΑ: 82,18 €
Πληροφορίες
Δόσεις
Buy Now - Pay Later
Asus Prime B760M-K D4
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-K D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
.png)

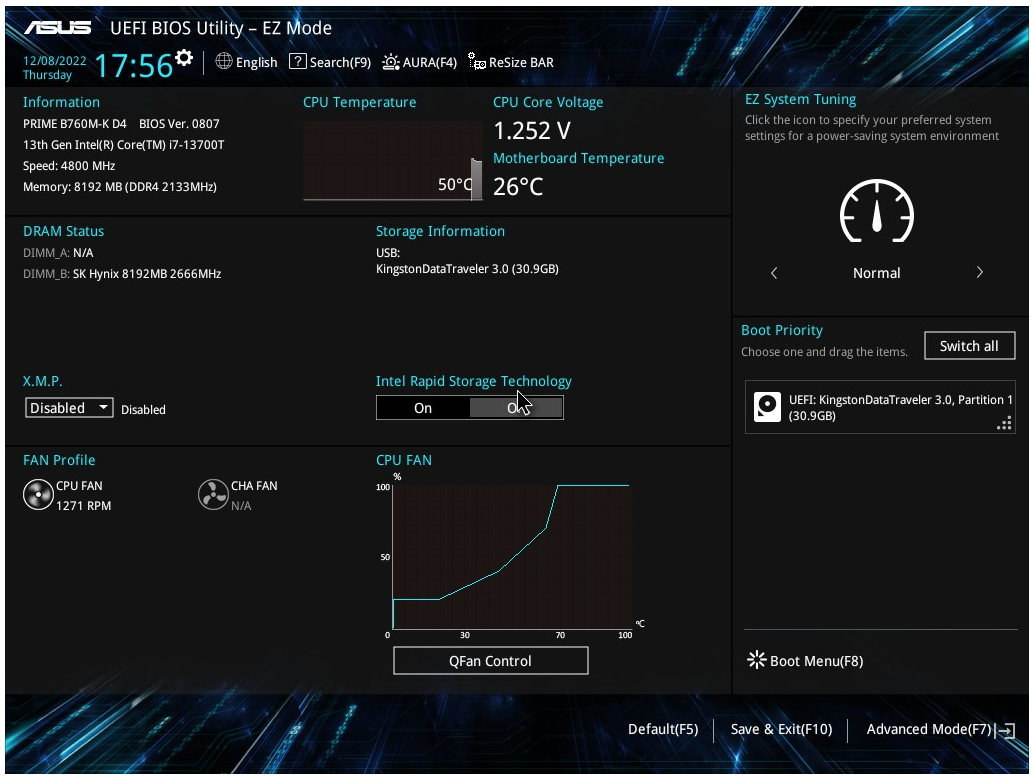

UEFI BIOS - Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings - all to help you get your rig up and running in no time.
.png)

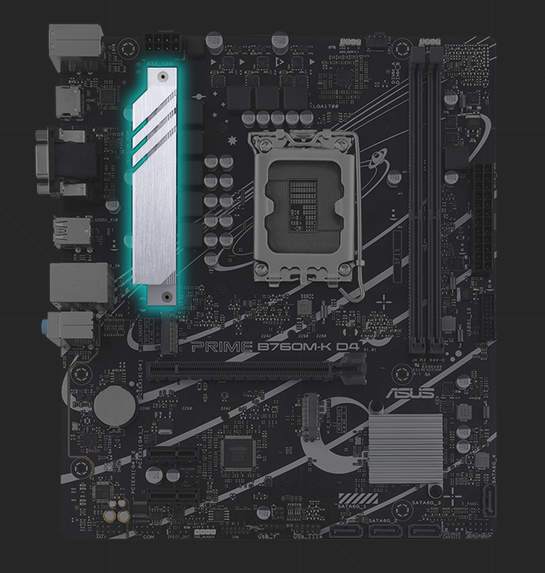

VRM Heatsink and Thermal Pad
VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chocks for better cooling performance.
.png)

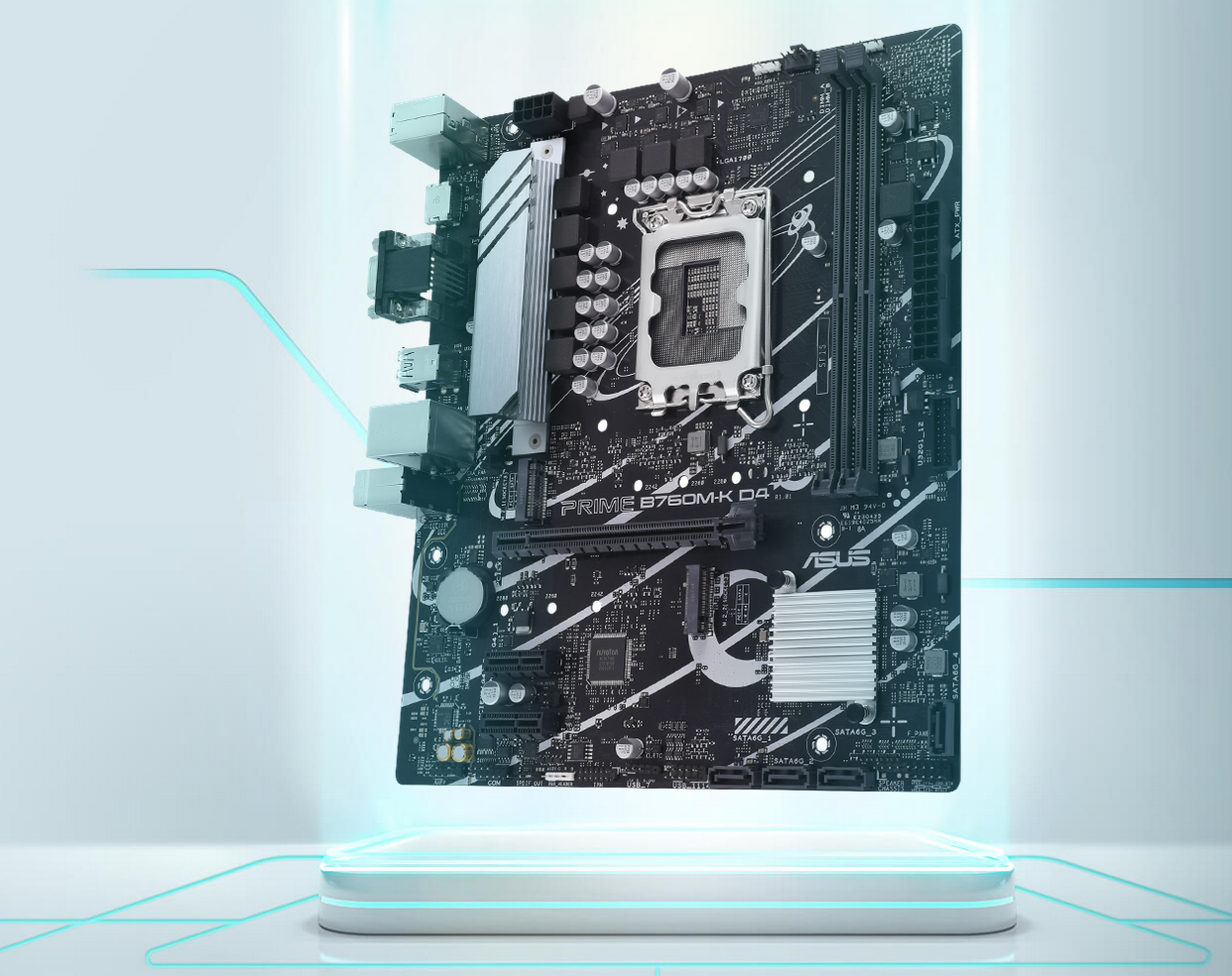

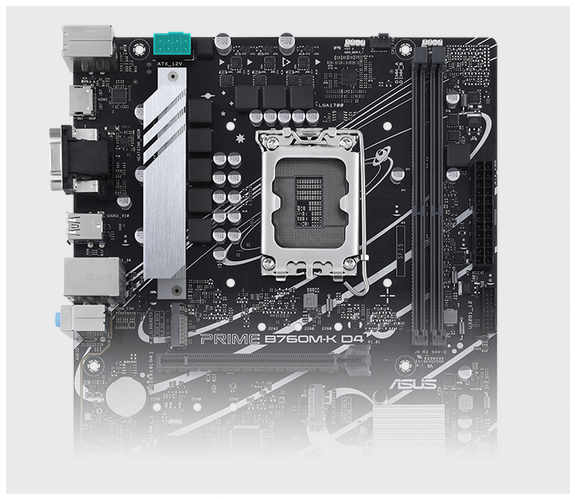

Robust Power Design
Stable power is essential to extract every last bit of performance out of Intel® processors. The PRIME B760M-K D4 is geared to cater to the demands of these high-core-count CPUs.
.png)

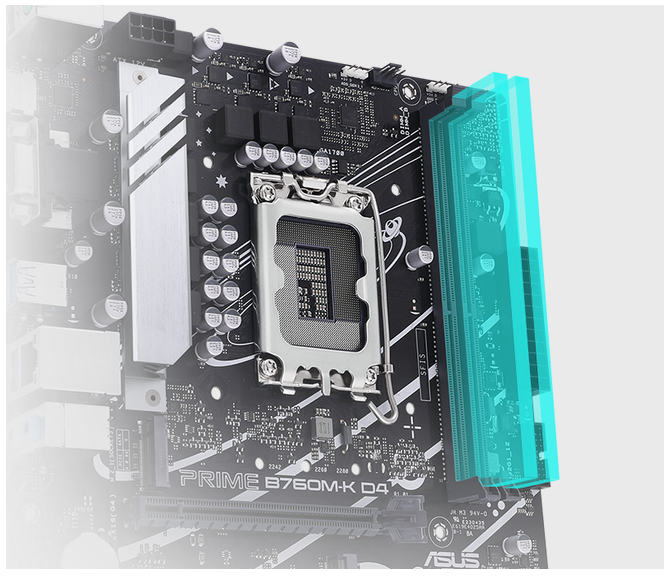

DDR4 Support
Improvements to trace routing design provide the latest Intel® processors with enhanced access to memory bandwidth. ASUS technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.
.png)

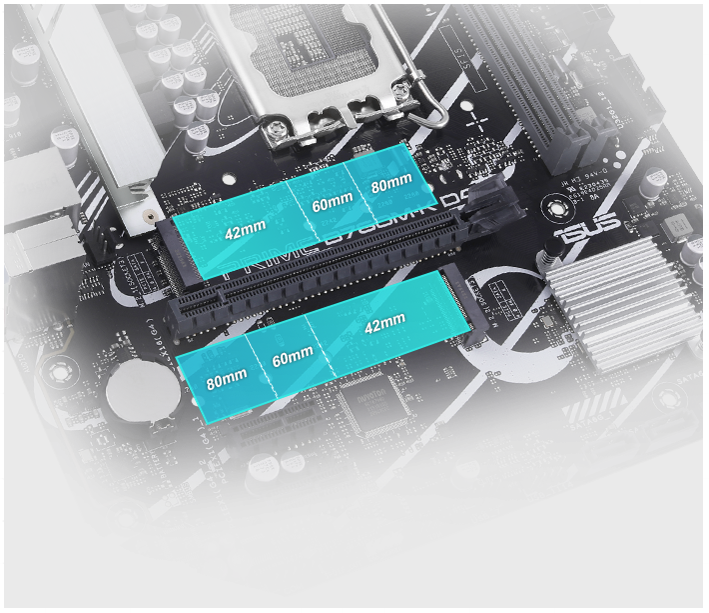

Two M.2 Slots (up to 64 Gbps)
The PRIME B760 motherboard offers a total of two M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.
.png)

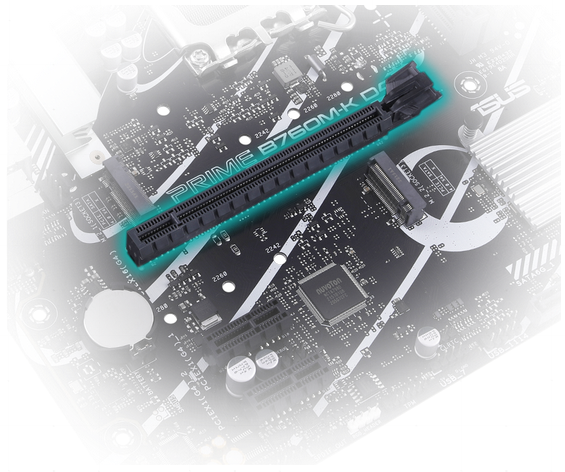

PCIe 4.0 Slot
The PRIME B760 motherboard is designed specifically for 14th, 13th and 12th Gen Intel® CPUs and offer PCIe 4.0 connectivity for the latest GPUs.
.png)

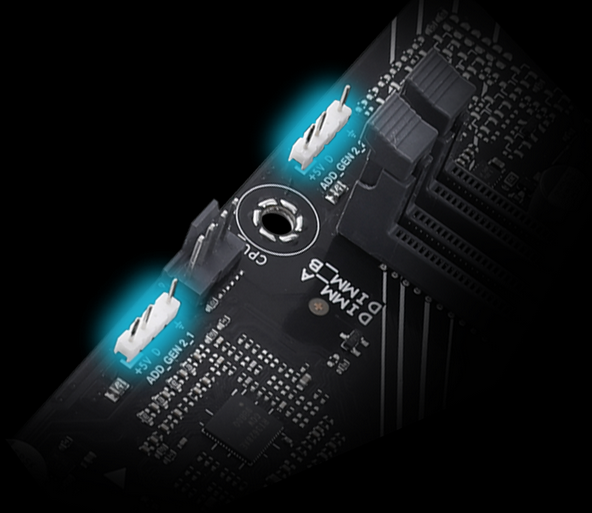

Addressable Gen 2 Headers
Two Addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
.png)

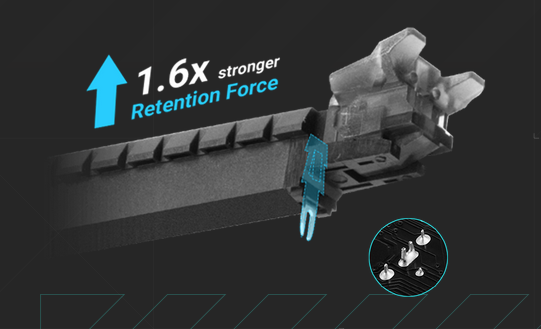

SafeSlot Core
SafeSlot Core is the ASUS-exclusive PCIe® slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6X-stronger retention and 1.3X-greater shearing resistance than standard expansion slots.
.png)
| CPU | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® B760 Chipset |
| Memory | 2 x DIMM, Max. 64GB, DDR4 5333(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. |
| Graphics | 1 x VGA port 1 x HDMI® port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI® 2.1. |
| Expansion Slots | Intel® Core™ Processors (14th &13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel® B760 Chipset 2 x PCIe 4.0 x1 slots Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Processors (14th &13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB | Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A） Front USB (Total 5 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

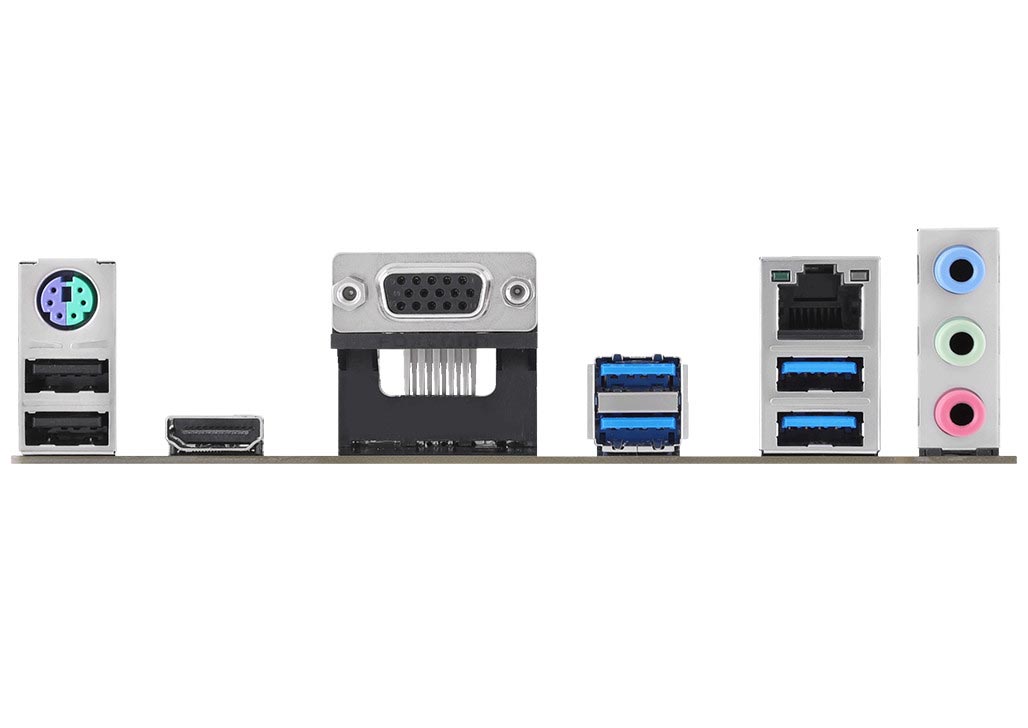

| Back Panel I/O Ports | 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - VRM heatsink design Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| Software Features | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 anchors Documentation 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm) |
| Κατασκευαστής | Asus |
| Μοντέλο | Prime B760M-K D4 |
| Part Number | 90MB1DS0-M1EAY0 |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | 1700 |
| Chipset | Intel B760 |
| Μέγεθος μητρικής | Micro ATX - (24.4 x 21.1 cm) |
| Τύπος Μνήμης | DDR4 |
| Αριθμός Dimm | 2 |
| Expansion Slots | 1x PCIe x16 - (PCIe 4.0 x16) 2x PCIe x1 - (PCIe 4.0 x1) |
| Αποθήκευση | 4x SATA 2x M.2 |
| Έξοδοι Γραφικών | 1x HDMI (v 2.1) 1x VGA |
| Πρόσθετα Χαρακτηριστικά | LED Control LAN - 1x Realtek 2.5Gb Ethernet M.2 Slot |
| Εγγύηση | 3 Έτη |
