Asus Pro H810M-C-CSM

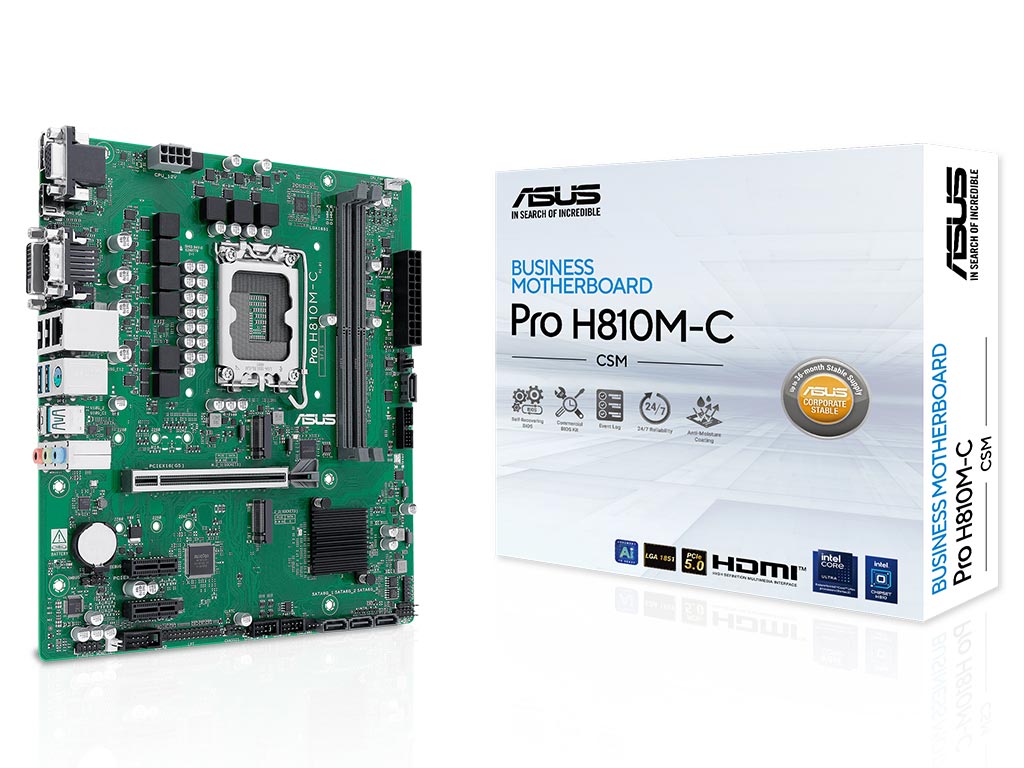

![Asus Pro H810M-C-CSM [90MB1KHP-M0EAYC] Εικόνα 1](https://static.msystems.gr/photos/big_photos/50367.jpg)

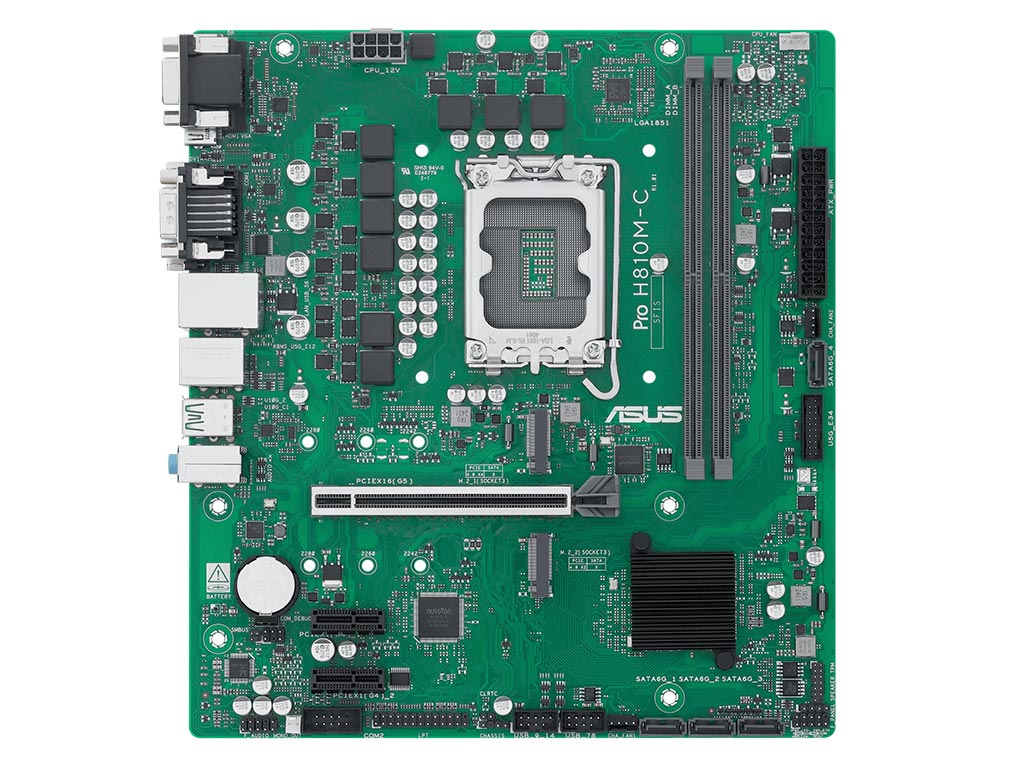

![Asus Pro H810M-C-CSM [90MB1KHP-M0EAYC] Εικόνα 2](https://static.msystems.gr/photos/big_photos/50367.1.jpg)

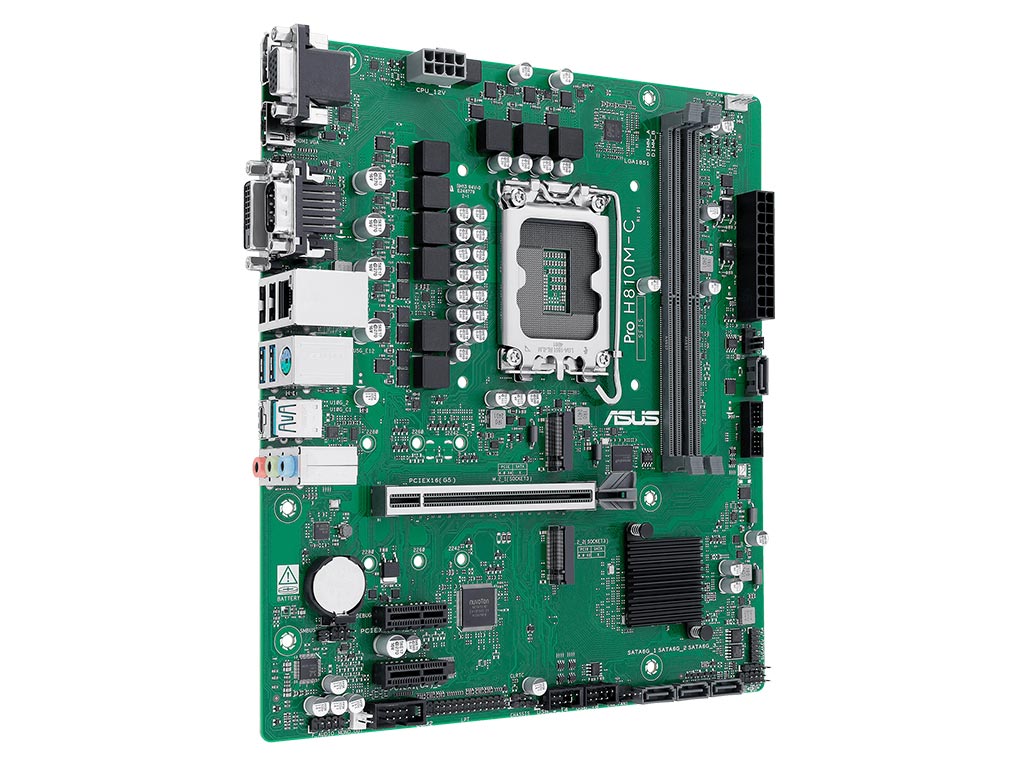

![Asus Pro H810M-C-CSM [90MB1KHP-M0EAYC] Εικόνα 3](https://static.msystems.gr/photos/big_photos/50367.2.jpg)
![Asus Pro H810M-C-CSM [90MB1KHP-M0EAYC] Εικόνα 4](https://static.msystems.gr/photos/big_photos/50367.3.jpg)
1-2 εργάσιμες
143,90 €
Χωρίς ΦΠΑ: 116,05 €
Χωρίς ΦΠΑ: 116,05 €
Πληροφορίες
Κωδικός Msystems: 001-69123
Part Number: 90MB1KHP-M0EAYC
Εγγύηση: 3 Έτη
Δόσεις
Με πιστωτική κάρτα Visa, Mastercard, American Express, Diners
Παρακάτω βλέπετε τις επιλογές για τις έντοκες δόσεις.
για άτοκες δόσεις πρέπει το συνολικό ποσό της παραγγελίας σας να ξεπερνά τα 200€
74,39 € / δόση = 148,78 €
49,82 € / δόση = 149,45 €
37,53 € / δόση = 150,12 €
30,16 € / δόση = 150,78 €
25,24 € / δόση = 151,45 €
21,73 € / δόση = 152,13 €
19,10 € / δόση = 152,81 €
17,05 € / δόση = 153,48 €
15,42 € / δόση = 154,16 €
14,08 € / δόση = 154,85 €
12,96 € / δόση = 155,54 €
12,02 € / δόση = 156,23 €
11,21 € / δόση = 156,92 €
10,51 € / δόση = 157,61 €
9,89 € / δόση = 158,32 €
9,35 € / δόση = 159,02 €
8,87 € / δόση = 159,73 €
8,44 € / δόση = 160,43 €
8,06 € / δόση = 161,15 €
7,71 € / δόση = 161,86 €
7,39 € / δόση = 162,58 €
7,10 € / δόση = 163,30 €
6,83 € / δόση = 164,02 €
6,59 € / δόση = 164,75 €
6,36 € / δόση = 165,47 €
6,16 € / δόση = 166,20 €
5,96 € / δόση = 166,94 €
5,78 € / δόση = 167,69 €
5,61 € / δόση = 168,42 €
5,46 € / δόση = 169,17 €
5,31 € / δόση = 169,92 €
5,17 € / δόση = 170,67 €
5,04 € / δόση = 171,41 €
4,92 € / δόση = 172,18 €
4,80 € / δόση = 172,94 €
Buy Now - Pay Later
Buy Now - Pay Later μέσω tbi bank
Πραγματοποιήστε τις αγορές σας, για ποσά από 20€ έως 400€, σε 4 μηνιαίες δόσεις με την χρήση μόνο της χρεωστικής σας κάρτας
Pro H810M-C-CSM
Micro-ATX H810 business motherboard with enhanced security, reliability, manageability and serviceability
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
- ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced System Security: Self-recovering BIOS to safeguard PCs
- Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance
- Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
- Ultrafast Connectivity: PCIe 5.0 slot, two PCIe 4.0 M.2 slots, DDR5, rear USB 10Gbps Type-A and Type-C®
- DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers
Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely
Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility
Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices
ASUS Control Center Express
ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization.

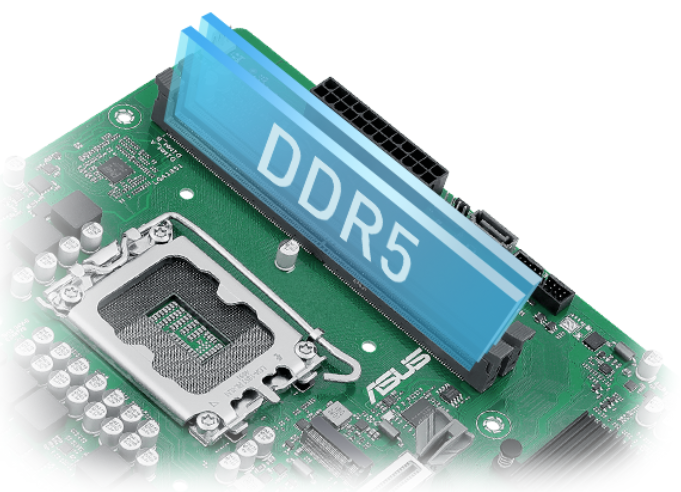

DDR5 Support
This business motherboard is a DDR5-compatible motherboard that optimizes memory module speeds and stability, while providing an advanced voltage delivery architecture for greater energy efficiency.
.png)

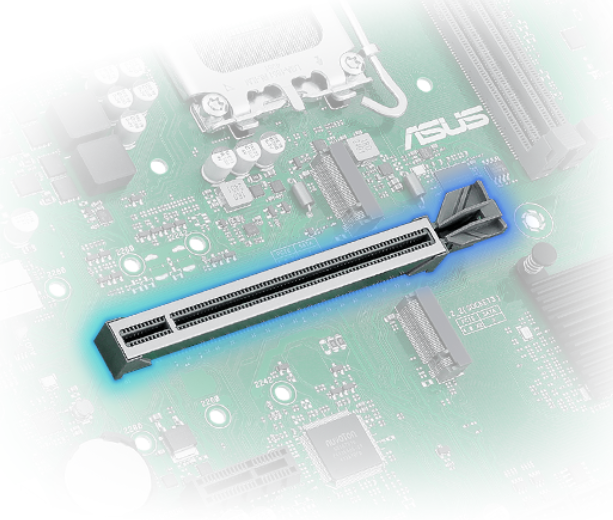

PCIe 5.0 SafeSlot
PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with previous versions of PCI Express. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed.
.png)

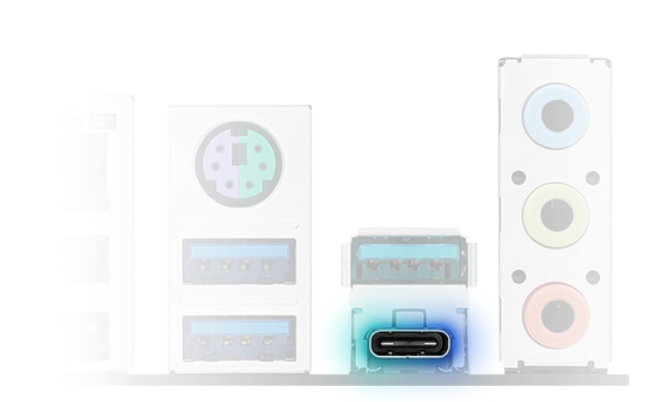

USB 10Gbps Type-C®
A batch of USB ports support high-end rigs loaded with peripherals, including a rear USB Type-C® port with ultrafast USB 10Gbps for transmission speeds of up to 10Gbps.
.png)

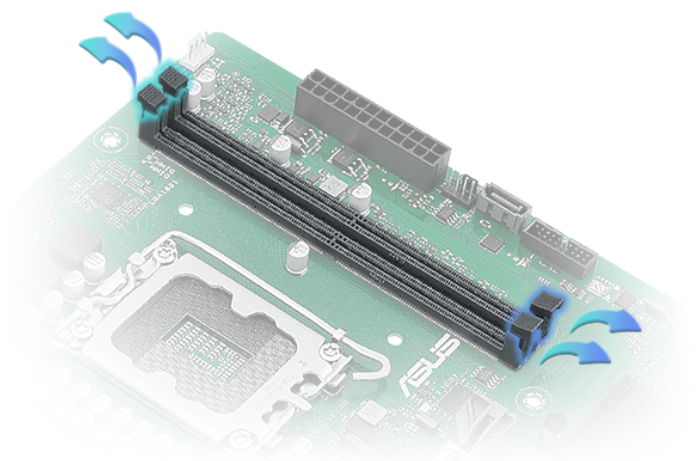

Dual DlMM clips
Dual memory clips could provide double clamping force and prevent the memories jumping during transportation.
.png)

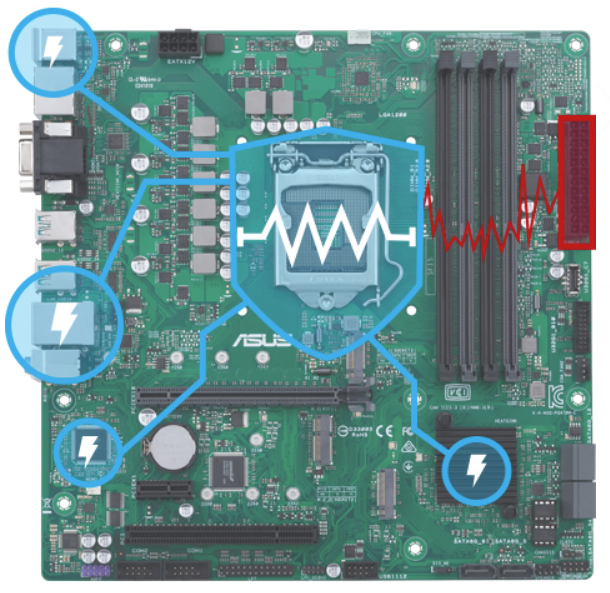

Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
.png)
| Model | Pro H810M-C-CSM |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2), LGA1851* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® H810 Chipset |
| Memory | 2 x DIMM slots, max. 128GB, DDR5 Supports up to 6400MT/s, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 x DisplayPort** 1 x VGA port 1 x DVI-D port 1 x HDMI™ port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** Supports up to 3 displays simultaneously. |
| Expansion Slots | Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot Intel® H810 Chipset 2 x PCIe 4.0 x1 slots - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H810 Chipset M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Intel® 1Gb Ethernet port* ASUS LANGuard * With Intel® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3. |
| USB | Rear USB (Total 6 ports) 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

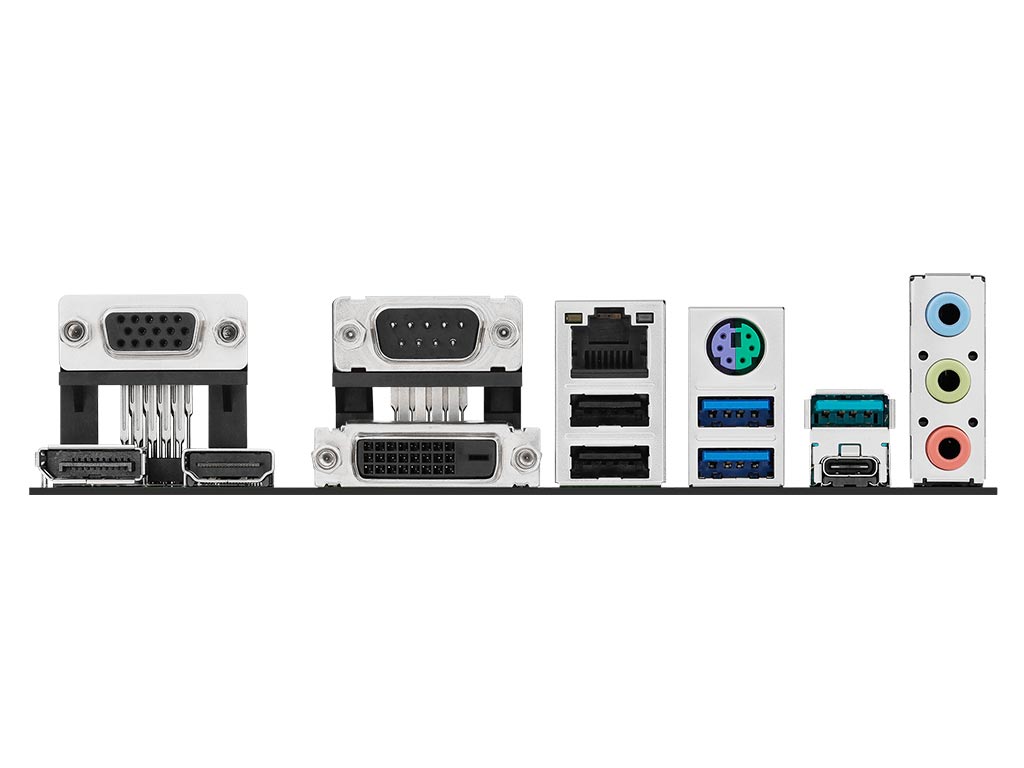

| Back Panel I/O Ports | 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x DVI-D port 1 x HDMI™ port 1 x Intel® 1Gb Ethernet port 3 x Audio jacks 1 x COM port 1 x PS/2 keyboard/mouse combo port |
| Internal I/O Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x COM Debug header 1 x LPT header 1 x Mono-Out Audio header (with Amp IC) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header |
| Special Features | ASUS Q-Design - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Box headers - Dual DIMM clips - SafeSlot Bespoke Motherboard Design & Business Focused Features - ASUS Self-Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS Kit* - Anti-moisture coating - 24/7 reliability - Overcurrent protection * Please contact local FAE for Commercial BIOS kit. |
| Software Features | ASUS Exclusive Software ASUS DriverHub UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS MyHotkey |
| Remote Management Features | IT Management software supported - ASUS Control Center Express (ACCE) Ready for ASUS DASH LAN Card* 1 x SMBUS header * ASUS DASH LAN Card is sold separately. |
| BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O shield 1 x M.2 anchor package Documentation 1 x ACC Express activation key card 1 x Quick start guide |
| Operating System | Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later) |
| Form Factor | micro-ATX Form Factor 9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm ) |
| Κατασκευαστής | Asus |
| Μοντέλο | Pro H810M-C-CSM |
| Part Number | 90MB1KHP-M0EAYC |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | 1851 |
| Chipset | Intel H810 |
| Μέγεθος μητρικής | Micro ATX (24.4 cm x 22.2 cm) |
| Τύπος Μνήμης | DDR5 |
| Αριθμός Dimm | 2 |
| Expansion Slots | 1x PCIe x16 (PCIe 5.0 x16) 2x PCIe x1 (PCIe 4.0 x1) |
| Αποθήκευση | 4x SATA 2x M.2 |
| Έξοδοι Γραφικών | 1x HDMI v2.1 1x DisplayPort v1.4 1x DVI -D 1x VGA |
| Πρόσθετα Χαρακτηριστικά | USB (2x USB 5Gbps, 2x USB 2.0) LAN - 1x Intel® I219V 1Gb Ethernet port, ASUS LANGuard USB Type-C (2x USB 10Gbps) M.2 Slot |
| Εγγύηση | 3 Έτη |
