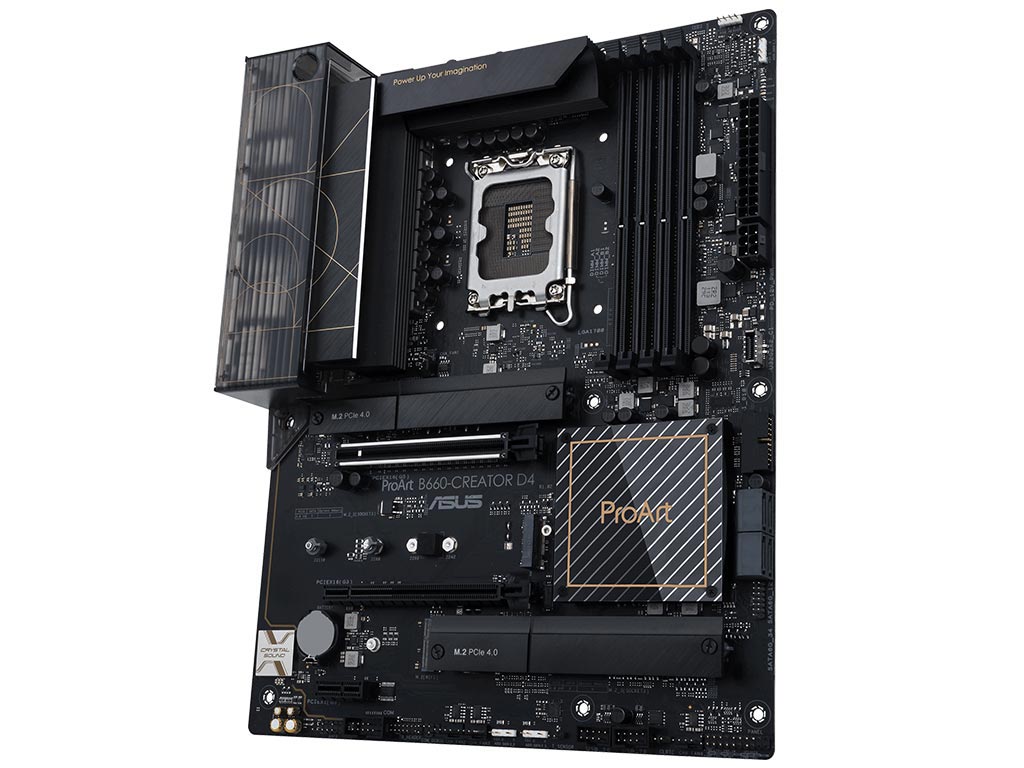

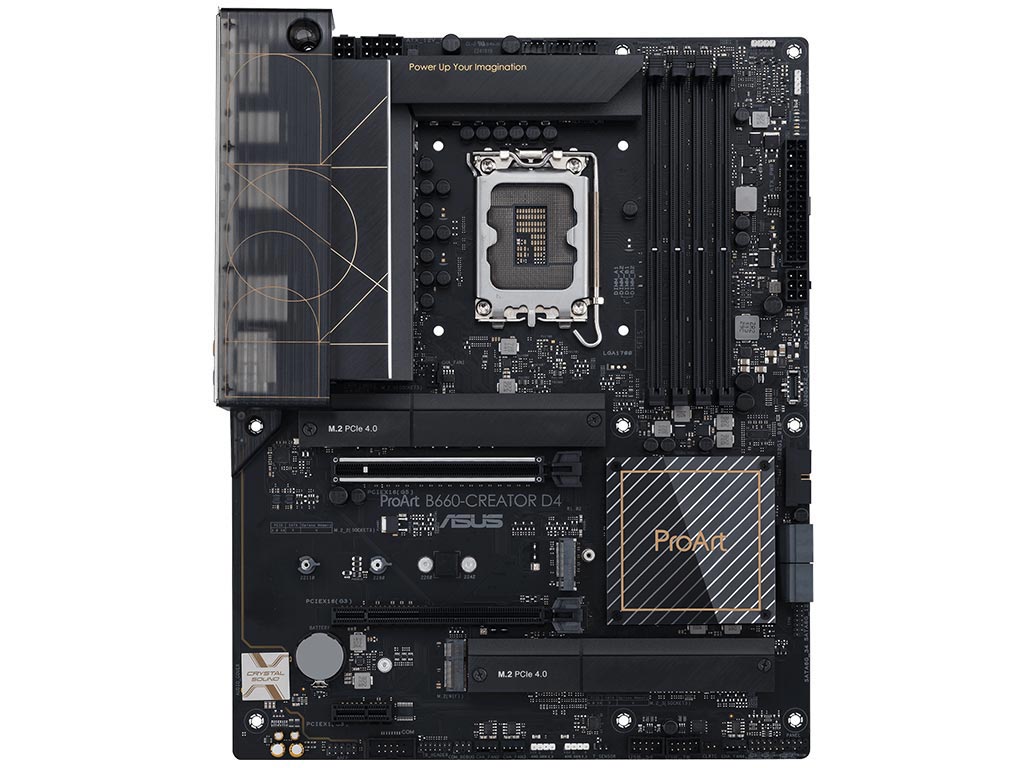

Asus ProArt B660-Creator D4

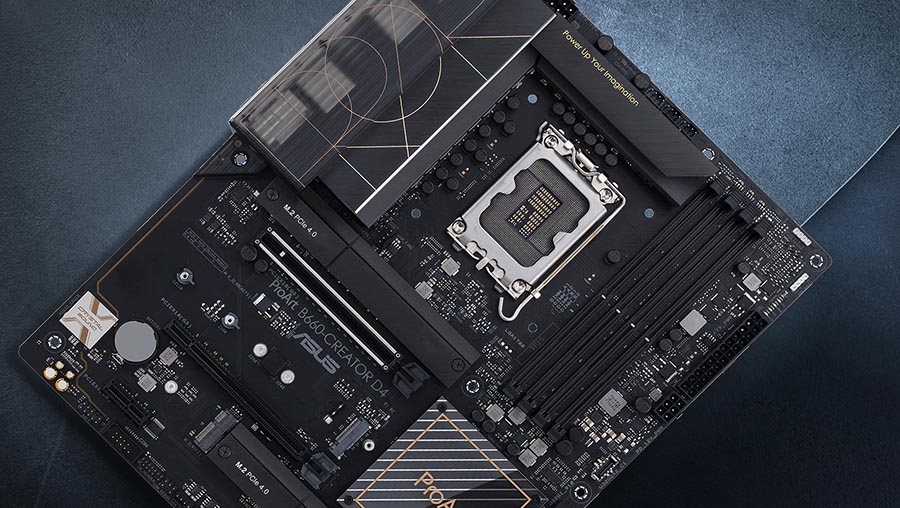

ProArt B660-CREATOR D4

Intel® B660 LGA 1700 ATX motherboard built for creators, with PCIe® 5.0, DDR4, 2.5 Gb and 1 Gb Ethernet, three PCIe 4.0 M.2 slots, plus USB-C DisplayPort™ and a USB 3.2 Gen 2x2 front-panel connector with Quick Charge 4+

• Socket LGA 1700 for 12th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors
• Comprehensive connectivity: 2.5 Gb & 1 Gb onboard Ethernet, three M.2 slots, Thunderbolt^TM header support, USB-C DisplayPort^TM and a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+
• Next-gen performance: 12+1 power stages rated for 50 amps, PCIe^® 5.0 ready
• Optimized thermal design: A massive VRM and chipset heatsink, aluminum M.2 heatsinks, six 4-pin PWM fan headers and an AIO pump header
• ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control
• Advanced security management: USB port restriction, software blacklisting and Windows Registry protection via ASUS Control Center Express

Your Powerhouse for Creativity

ProArt B660-Creator D4 is an enhanced motherboard designed for intensive content-creation workloads like 3D rendering and 4K/8K video editing. It unleashes the performance of 12th Gen Intel^® Core™ processors through robust power delivery and cooling design, and its comprehensive connectivity includes onboard 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C^® front-panel connector with Quick Charge 4+, and DisplayPort™ via USB-C.

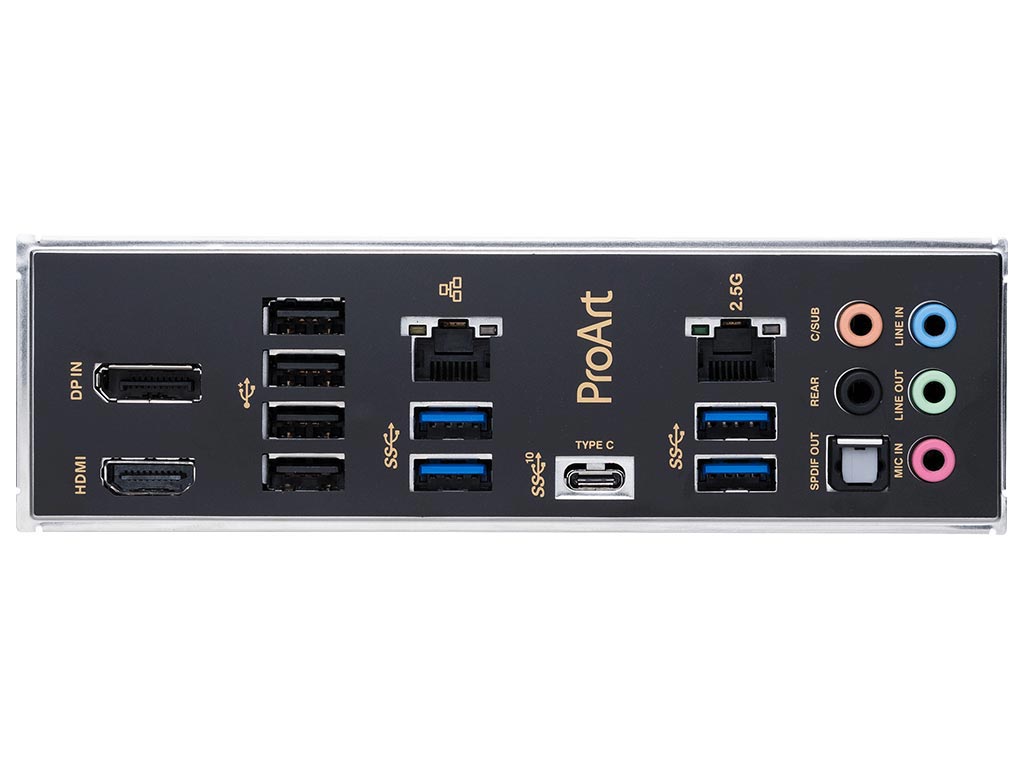

USB-C DisplayPort (DP Alt Mode)

This USB Type-C^® port delivers transfer speeds of up to 10 Gbps, and it supports an alternate mode that provides DisplayPort™ 1.4 output for up to 8K resolution at 60 Hz. This new feature gives creators premium-grade flexibility to choose between high-speed data or an additional hi-res display.

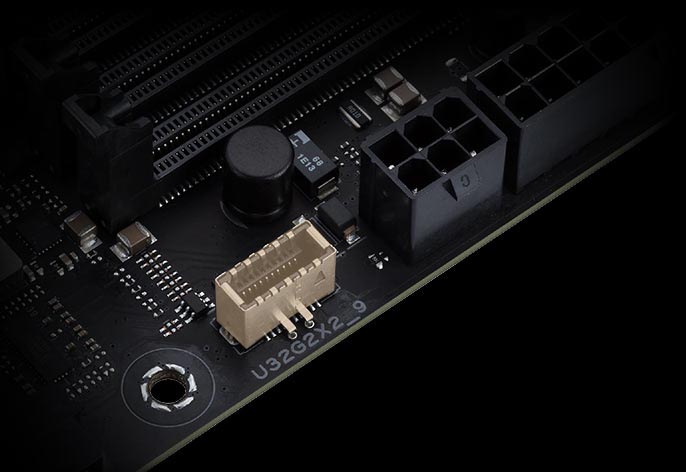

USB 3.2 Gen 2x2 Type-C^® Front-Panel Connector with Quick Charge 4+

A USB 3.2 Gen 2x2 connector boosts Type-C data transfers with speeds of up to 20 Gbps. The connector also features Quick Charge 4+ technology that can quickly charge devices up to 60 W with a PCIe power supply cable plugged into the nearby 6-pin connector.

Thunderbolt™ 4 Support

ProArt B660-Creator D4 features Thunderbolt™ 4 support via an on-board header. The ASUS ThunderboltEX 4 add-on card is certified by Intel and can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, the card has a daisy-chain function for multiscreen connection and supports one display with up to 8K resolution . It can also provide up to 100 watts of power to fast-charge devices.

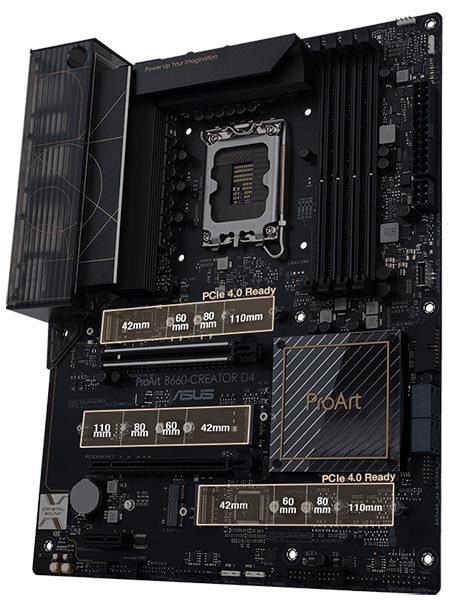

Ultrafast M.2 Transfer Speeds

Three M.2 slots support PCIe 4.0 or 3.0 drives and provide NVMe^® SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data transfer speeds.

M.2 Q-Latch

The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive, eliminating the need for screws.

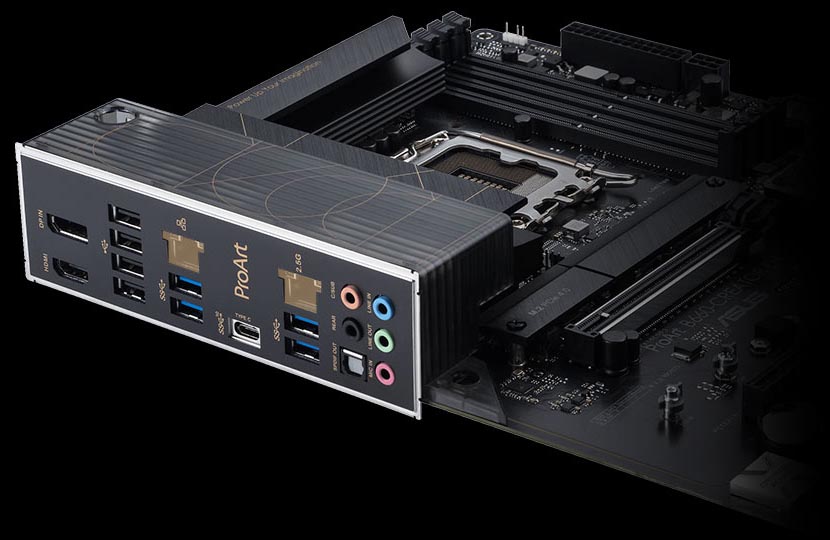

Dual Ethernet ports provide fast data transfers simultaneously for internet and for local network-attached storage (NAS), allowing for improved data organization and security.

2.5 Gb Ethernet

The 2.5 Gb Ethernet port provides faster data transfers and smooth high-res video streaming.

Intel^® 1Gb Ethernet

The Intel I219-V Ethernet chip reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.

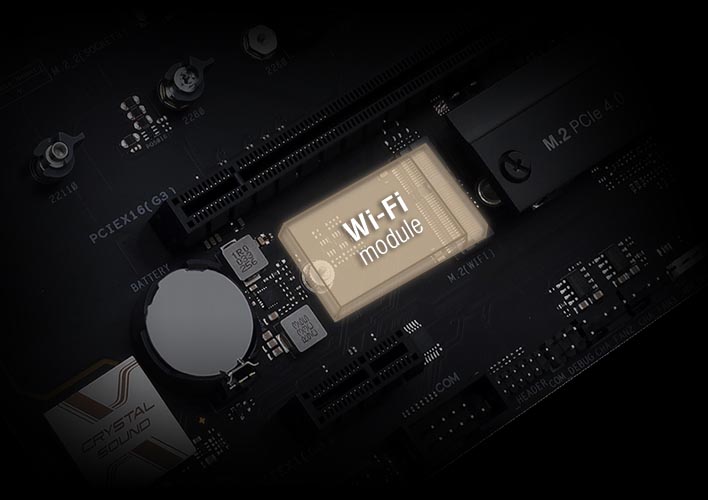

M.2 Slot (Key E)

ProArt B660-Creator D4 features an M.2 slot (key E) which can support type 2230 WiFi/Bluetooth and Intel CNVi (integrated WiFi/BT) modules.

Next-Gen Performance

With tailored CPU power delivery and support for high-performance memory, ProArt B660-Creator D4  easily handles the demands of the latest 12th Gen Intel Core processors. It features an intelligent VRM design that’s rated for 50 amps, plus carefully selected components and memory layout optimizations for multithreaded tasks such as 3D animation and video editing.

Optimized Cooling Design

Maintaining system stability under heavy loads is of paramount importance, so ProArt B660-Creator D4 features comprehensive cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass. Integrated premium components and multiple fan headers are also vital design elements that provide the best foundation for content creation systems.

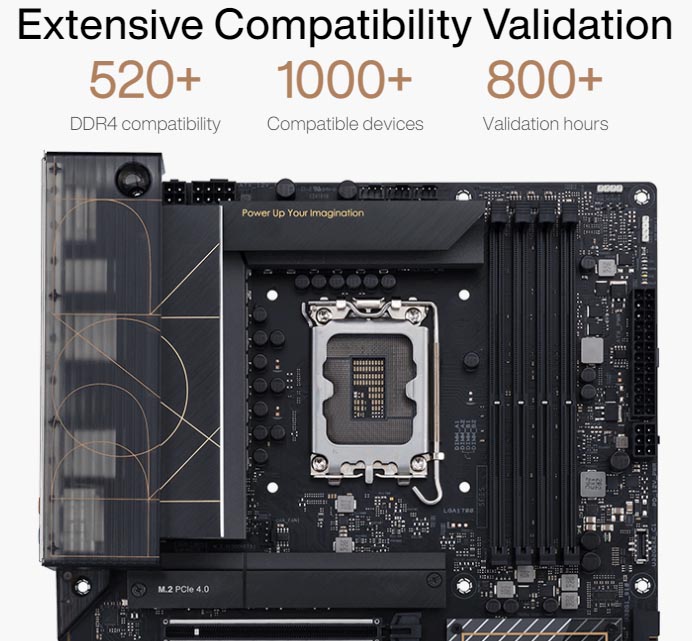

Trusted Stability

ProArt B660-Creator D4 is engineered and rigorously tested to offer superior quality, stability and compatibility ― all to ensure that it empowers creativity for years to come.
