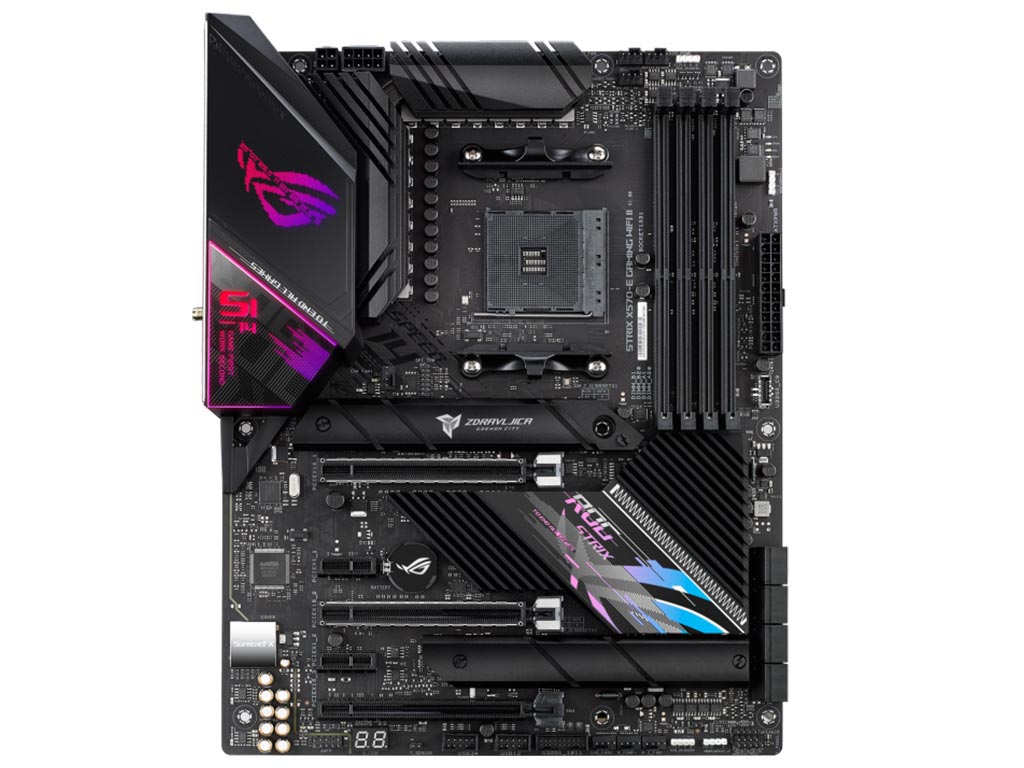

Asus ROG Strix X570-E Gaming WiFi II
![Asus ROG Strix X570-E Gaming WiFi II [90MB19W0-M0EAY0] Εικόνα 1](https://static.msystems.gr/photos/big_photos/43123.jpg)
![Asus ROG Strix X570-E Gaming WiFi II [90MB19W0-M0EAY0] Εικόνα 2](https://static.msystems.gr/photos/big_photos/43123.1.jpg)
![Asus ROG Strix X570-E Gaming WiFi II [90MB19W0-M0EAY0] Εικόνα 3](https://static.msystems.gr/photos/big_photos/43123.2.jpg)
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
Άτοκες Δόσεις
Δόσεις χωρίς πιστωτική
ROG STRIX X570-E GAMING WIFI II
AMD X570 ATX gaming motherboard with PCIe® 4.0, 12+4 power stages, and WiFi 6E (802.11ax), Realtek 2.5 Gb Ethernet, Two-Way AI Noise Cancelation, dual M.2 with heatsinks, SATA 6 GB/s, USB 3.2 Gen 2 Type C and Aura Sync RGB lighting
The ROG Strix X570-E Gaming WiFi II motherboard delivers the quintessential ROG experience. It is bristling with features such as new passive chipset cooling, WiFi 6E, plus improved overclocking and audio performance, along with DIY-friendly conveniences to help seasoned builders and beginners alike. With futuristic aesthetics complemented by onboard RGB illumination, the Strix X570-E Gaming WiFi II motherboard has everything you need to build a formidable gaming rig that rises above the rest.
- AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors; supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed
- Optimal Power Solution: 12+4 power stages with ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors
- Comprehensive Cooling: Passive chipset heatsink, VRM heatsink with 8 mm heatpipe, dual on-board M.2 heatsinks and a water pump header
- High-Performance Networking: 2.5 Gbps LAN and Intel Gigabit Ethernet with ASUS LANGuard, WiFi 6E (802.11ax) with MU-MIMO and gateway teaming via GameFirst V
- Best Gaming Connectivity: Supports PCIe® 4.0, HDMI® 2.0, and DisplayPort™ 1.2, and features dual M.2, USB 3.2 Type-A and USB 3.2 Gen 2 Type-C connectors

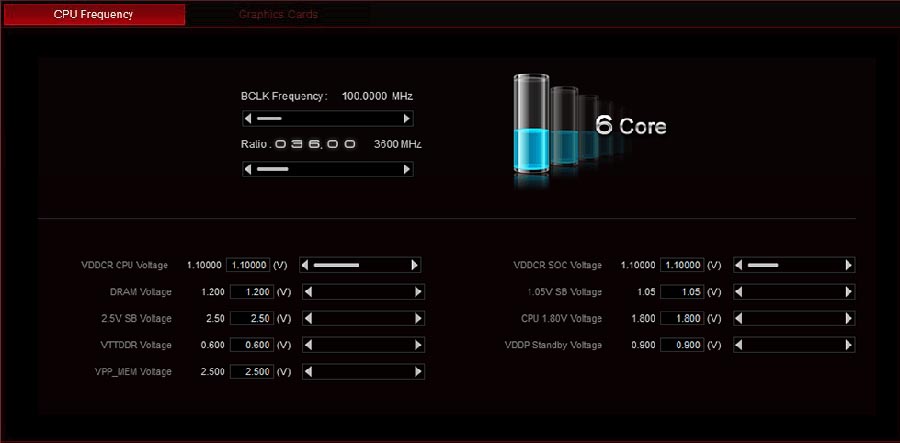

- 5-Way Optimization: Automated system-wide tuning including custom overclocking and cooling profiles
- Industry-Leading Gaming Audio: High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III
- DIY Friendly Design: M.2 Q-Latch, patented pre-mounted I/O shield, ASUS SafeSlot and BIOS FlashBack™
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
IMMERSIVE GAMING
Get deeper into the game with buffed networking for smoother online play and customizable audio that amplifies every detail and intelligently banishes unwanted noise.
.jpg)
PLAY IN STYLE
Pair the ROG Strix X570-E Gaming WiFi II with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.
.jpg)
ROG GIVES YOU MORE
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. The highly acclaimed AIDA64 utility is also included to give you a hand with system setup and performance tuning.
.jpg)
| CPU |
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors
* Refer to www.asus.com for CPU support list. |
| Chipset |
X570
|
| Memory |
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C.)/ 4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133, un-buffered memory AMD Ryzen™ 5000 and 4000 G-Series Processors 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133, un-buffered memory AMD Ryzen™ 2000 Series Desktop Processors 4 x DIMM, max. 128GB, DDR4 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133, un-buffered memory AMD Ryzen™ 2000 and 3000 G-Series Desktop Processors 4 x DIMM, max. 128GB, DDR4 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133, un-buffered memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| Graphics |
1 x DisplayPort 1 x HDMI® port - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz * VGA resolution support depends on processors' or graphic cards' resolution. For more details about the video input and output settings please refer to the user manual. |
| Expansion Slots |
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 2 x PCIe 4.0 x16 (x16 or dual x8)* AMD Ryzen™ 5000 G Series/4000 G-Series/ 2000 Series Processor 2 x PCIe 3.0 x16 (x16 or dual x8)* AMD Ryzen™ 2000 G-Series/ 3000 G-Series Processor 1 x PCIe 3.0 x16 (x8 mode)* AMD X570 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x1 *PCIeX16_3 slot shares bandwidth with PCIeX1_2. |
| Storage |
Supports 2 x M.2 slots and 8 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen™ 5000 G-Series/4000 G-Series/ 3000 G-Series/ 2000 G-Series/2000 Series Processor M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) AMD X570 Chipset M.2_2 slot (Key M), type2242/ 2260/ 2280/ 22110 (supports PCIe 4.0 x4 & SATA modes) 8 x SATA 6Gb/s ports Supports RAID 0, 1, 10 |
| Ethernet |
1 x Realtek 2.5Gb Ethernet 1 x Intel® I211-AT 1Gb Ethernet Anti-surge LANGuard ROG GameFirst Technology |
| Wireless & Bluetooth |
Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. |
| USB |
Rear USB: Total 8 ports
AMD RyzenTM 5000, 5000 G-Series, 4000 G-Series, and 3000 Series Desktop Processors - 4 x USB 3.2 Gen2 ports (4 ports at back panel, Type-A) AMD RyzenTM 3000 G-Series, 2000, and 2000 G-Series Desktop Processors - 4 x USB 3.2 Gen 1 ports (4 ports at back panel, Type-A) AMD X570 chipset - 1 x USB 3.2 Gen2 front panel connector - 4 x USB3.2 Gen2 (at back panel, 3x Type-A, 1x Type-C) - 2 x USB3.2 Gen1 ports (at front panel) - 4 x USB 2.0 ports (at front panel) |
| Audio |
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - SupremeFX Shielding Technology - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| Back Panel I/O Ports |
8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® I211-AT 1Gb Ethernet port 1 x Realtek 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button |
| Internal I/O Connectors |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers 1 x 4-pin M.2 Fan header 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 8 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x Speaker header 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
| Special Features |
Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-Code - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool II - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB headers - Addressable Gen 2 headers |
| Software Features |
ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - 5-Way Optimization by Dual Intelligent Processors 5 TPU EPU DIGI+ VRM Fan Xpert 4 Turbo app - EZ update DAEMON Tools WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode Dynamic OC Switcher |
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PXE
|
| Accessories |
Cables 4 x SATA 6Gb/s cables 1 x Thermistor cable pack Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Rubber Package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x Support DVD Documentation 1 x User manual |
| Form Factor |
ATX
30.5cm x 24.4cm
|
| Κατασκευαστής | Asus |
| Μοντέλο | ROG Strix X570-E Gaming WiFi II |
| Part Number | 90MB19W0-M0EAY0 |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | AM4 |
| Chipset | AMD X570 |
| Μέγεθος μητρικής | ATX 30.5cm x 24.4cm |
| Τύπος Μνήμης | DDR4 |
| Αριθμός Dimm | 4 |
| Expansion Slots | 3x PCIe x16 (2x PCIe 4.0 *x8 in dual mode, 1x PCIe 4.0 x4 ) 2x PCIe x1 (PCIe 4.0) |
| Αποθήκευση | 8x SATA 2x M.2 |
| Έξοδοι Γραφικών | 1x HDMI (v2.0b) 1x DisplayPort (v1.2) |
| Πρόσθετα Χαρακτηριστικά | LED Control Wi-Fi 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Bluetooth v5.2 USB Type-C M.2 Slot |
| Εγγύηση | 3 Έτη |
