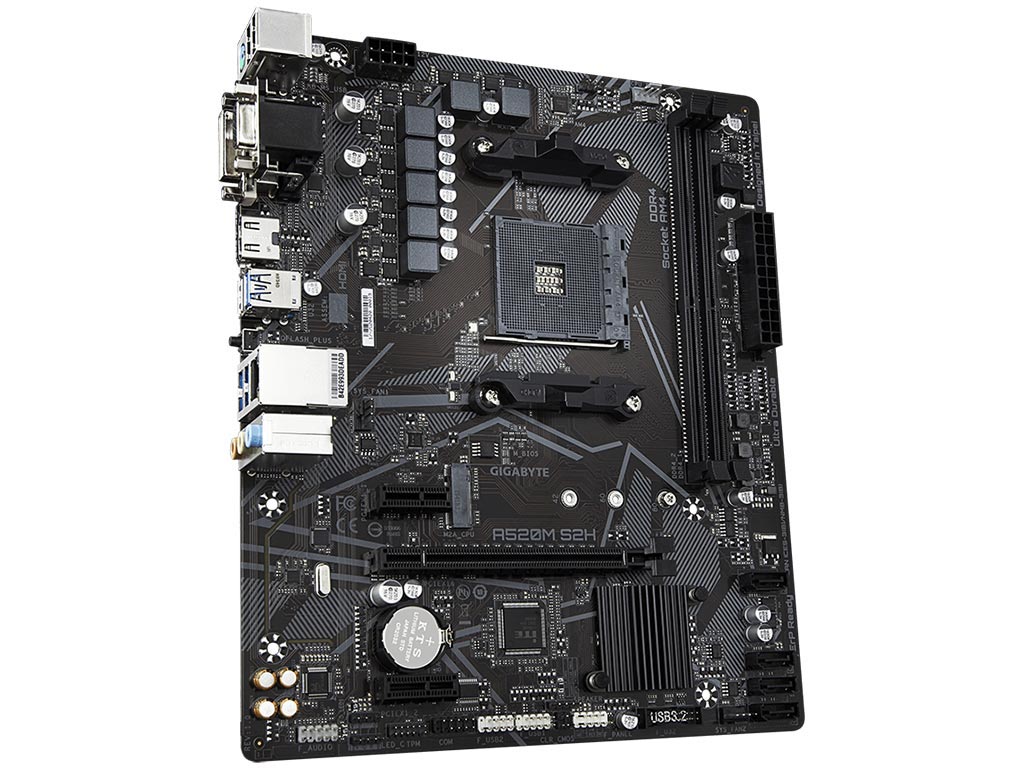

Gigabyte A520M S2H rev. 1.0
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
CPU | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors |
Chipset | AMD A520 |
Memory |
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory 3rd Gen AMD Ryzen™ Processors: 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
Onboard Graphics | Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Maximum shared memory of 16 GB |
Audio |
Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
LAN | Realtek® GbE LAN chip (1000 Mbit/100 Mbit) |
Expansion Slots |
CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset:2 x PCI Express x1 slots, supporting PCIe 3.0 |
Storage Interface |
CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset:4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
USB | CPU:
4 x USB 3.2 Gen 1 ports on the back panel Chipset:2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x speaker header 1 x chassis intrusion header 1 x Clear CMOS jumper |
Back Panel Connectors |
1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x Q-Flash Plus button 3 x audio jacks |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control |
BIOS |
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features |
Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
Bundled Software |
Norton® Internet Security (OEM version) Realtek® 8118 Gaming LAN Bandwidth Control Utility |
Operating System | Support for Windows 10 64-bit |
Form Factor | Micro ATX Form Factor; 24.4cm x 20.5cm |
Κατασκευαστής | Gigabyte |
Μοντέλο | A520M S2H rev. 1.0 |
Part Number | GAA52MS2H-00-G |
Κατηγορία | Μητρικές Κάρτες |
Socket | AM4 |
Chipset | AMD A520 |
Μέγεθος μητρικής | Micro ATX |
Τύπος Μνήμης | DDR4 |
Αριθμός Dimm | 2 |
Expansion Slots | 1x PCIe x16 2x PCIe x1 |
Αποθήκευση | 4x SATA 1x M.2 |
Έξοδοι Γραφικών | 1x HDMI 1x DVI 1x VGA |
Πρόσθετα Χαρακτηριστικά | LED Control M.2 Slot |
Εγγύηση | 3 Έτη |
