Gigabyte AORUS X570 Pro rev1.2
![Gigabyte AORUS X570 Pro rev1.2 [GAX57APRO-00-G12] Εικόνα 1](https://static.msystems.gr/photos/big_photos/39609.jpg)
![Gigabyte AORUS X570 Pro rev1.2 [GAX57APRO-00-G12] Εικόνα 2](https://static.msystems.gr/photos/big_photos/39609.1.jpg)
![Gigabyte AORUS X570 Pro rev1.2 [GAX57APRO-00-G12] Εικόνα 3](https://static.msystems.gr/photos/big_photos/39609.2.jpg)
![Gigabyte AORUS X570 Pro rev1.2 [GAX57APRO-00-G12] Εικόνα 4](https://static.msystems.gr/photos/big_photos/39609.3.jpg)
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
Άτοκες Δόσεις
Buy Now - Pay Later
| CPU |
AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 3nd Gen Ryzen™ with Radeon™ Vega Graphics/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors |
| Chipset |
AMD X570 |
| Memory |
AMD Ryzen™ 5000 series processors: 3rd Generation AMD Ryzen™ processors: 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors: 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors / 1st Generation AMD Ryzen™ with Radeon™ Vega Graphics processors: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only. |
| Expansion Slots |
Integrated in the CPU (PCIEX16/PCIEX8): 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) · 2nd Generation AMD Ryzen™ processors:1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/PCIEX1):1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 |
| Multi-Graphics Technology |
Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only. |
| Storage |
Integrated in the CPU (M2A_SOCKET):
|
| LAN |
Intel® GbE LAN chip (10/ 100/ 1000 Mbit) |
| Audio |
Realtek® ALC1220-VB codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| USB |
Integrated in the CPU: 3 x USB 3.2 Gen 1 ports on the back panel 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) on the back panel 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control |
| Unique Features |
Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Operating System Support |
Support for Windows 10 64-bit |

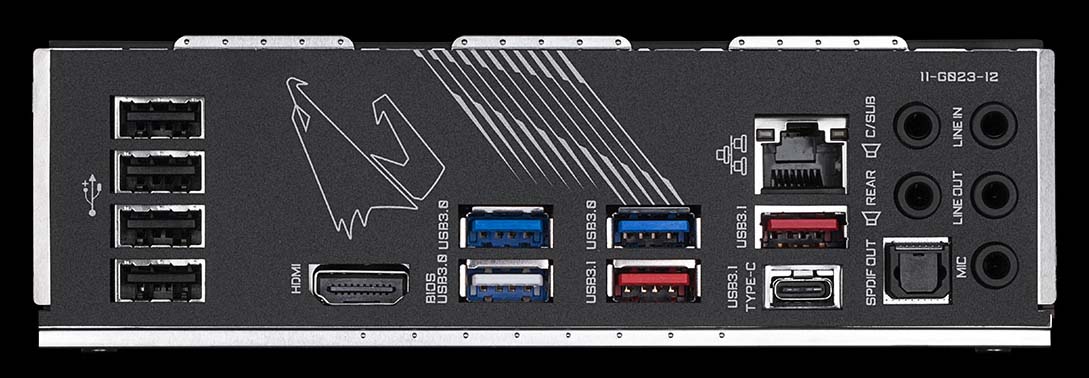

| Back I/O Ports |
1 x HDMI port 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
| Internal I/O Ports |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Thunderbolt™ add-in card connector 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button |
| I/O Controller | iTE® I/O Controller Chip |
| BIOS |
2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Bundle Software |
Norton® Internet Security (OEM version) cFosSpeed XSplit Gamecaster + Broadcaster (12 months license) |
| Form Factor |
ATX Form Factor; 30.5cm x 24.4cm |

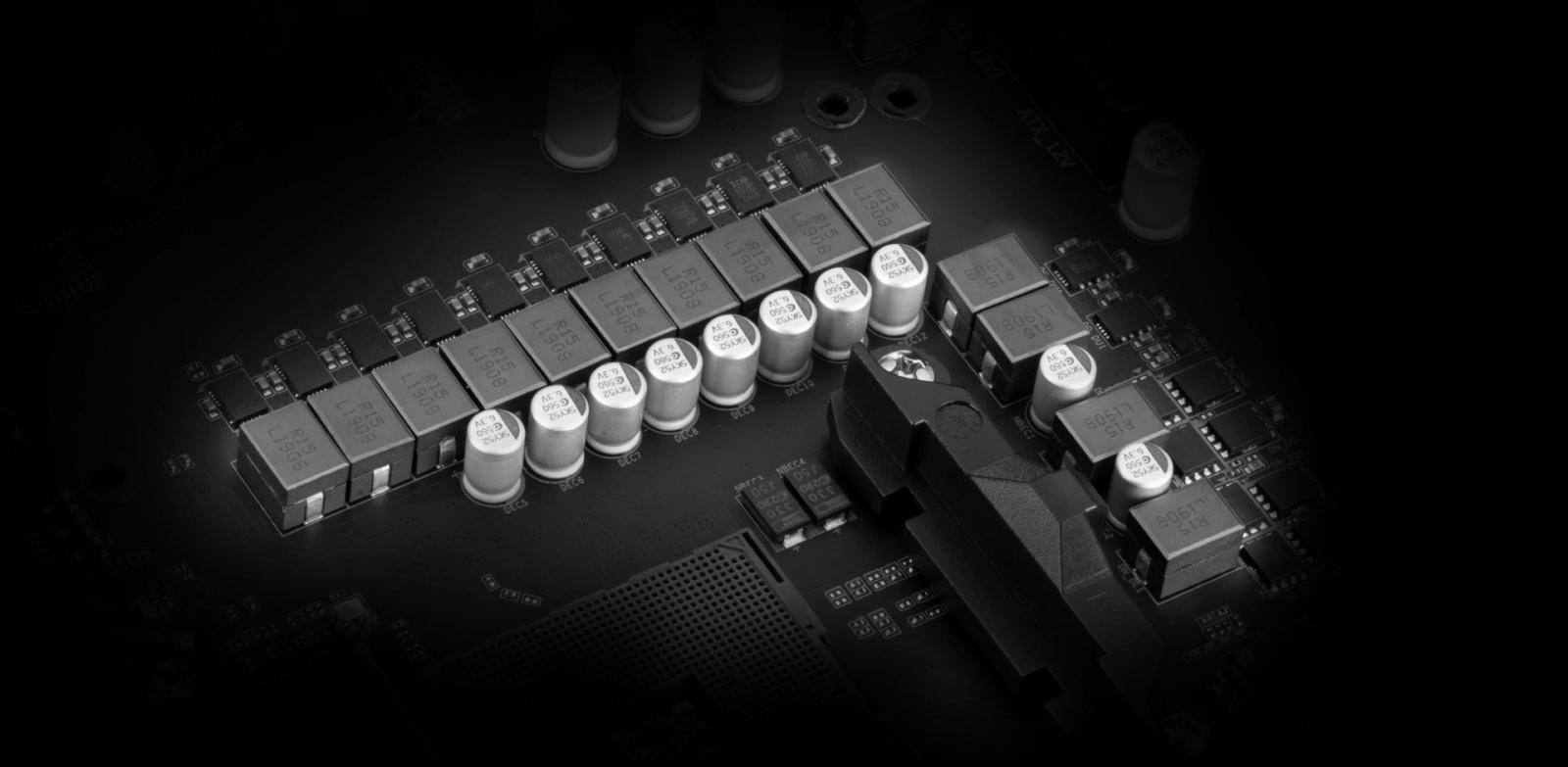

Ultimate Power Design
To unleash the full potential of the 3rd Generation of AMD Ryzen™ CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, the X570 AORUS is a true beast among motherboards.
.jpg)
Advanced Thermal Design
X570 AORUS PRO reaches a perfect balance between style and performance by combining the media acclaimed Fins-Array heatsink and Direct Touch heatpipe to provide 30% lower MOSFET temperatures for enthusiasts, overclockers and professional gamers
Fins-Array Heatsink with Direct Touch Heatpipe and High Thermal Conductivity Pad
X570 AORUS PRO uses Fins-Array Heatsink which increases the heat dissipation area by 300% compared to traditional heatsinks of the same size. Direct Touch Heatpipe helps transfer heat from MOS fins. By using LAIRD 1.5mm thick, 5W/mK high thermal conductivity pads, it can transfer 2.7x more heat compared to traditional thermal pads in the same time period.
.jpg)

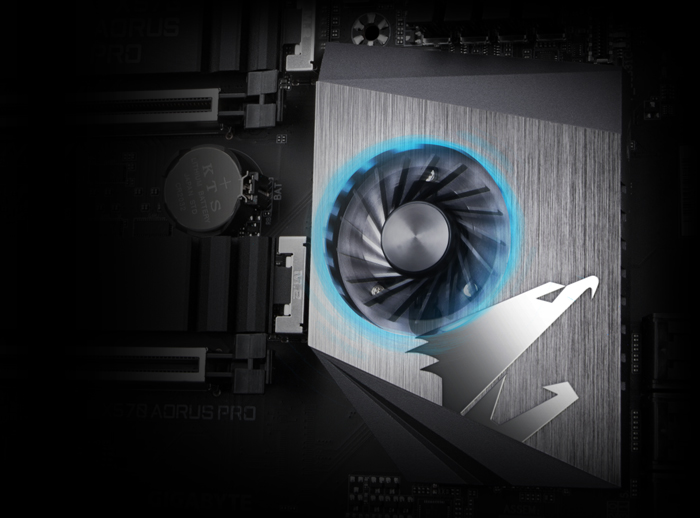

Smart Fan
Provides 3 different operating modes to minimize noise and extend the fan’s longevity. Silent, Balanced and Performance modes, choose the mode that suits you the best in any situation.
High Durability
X570 motherboards adopt a high quality ball bearing fan which guarantees 60,000* working hours.
.jpg)

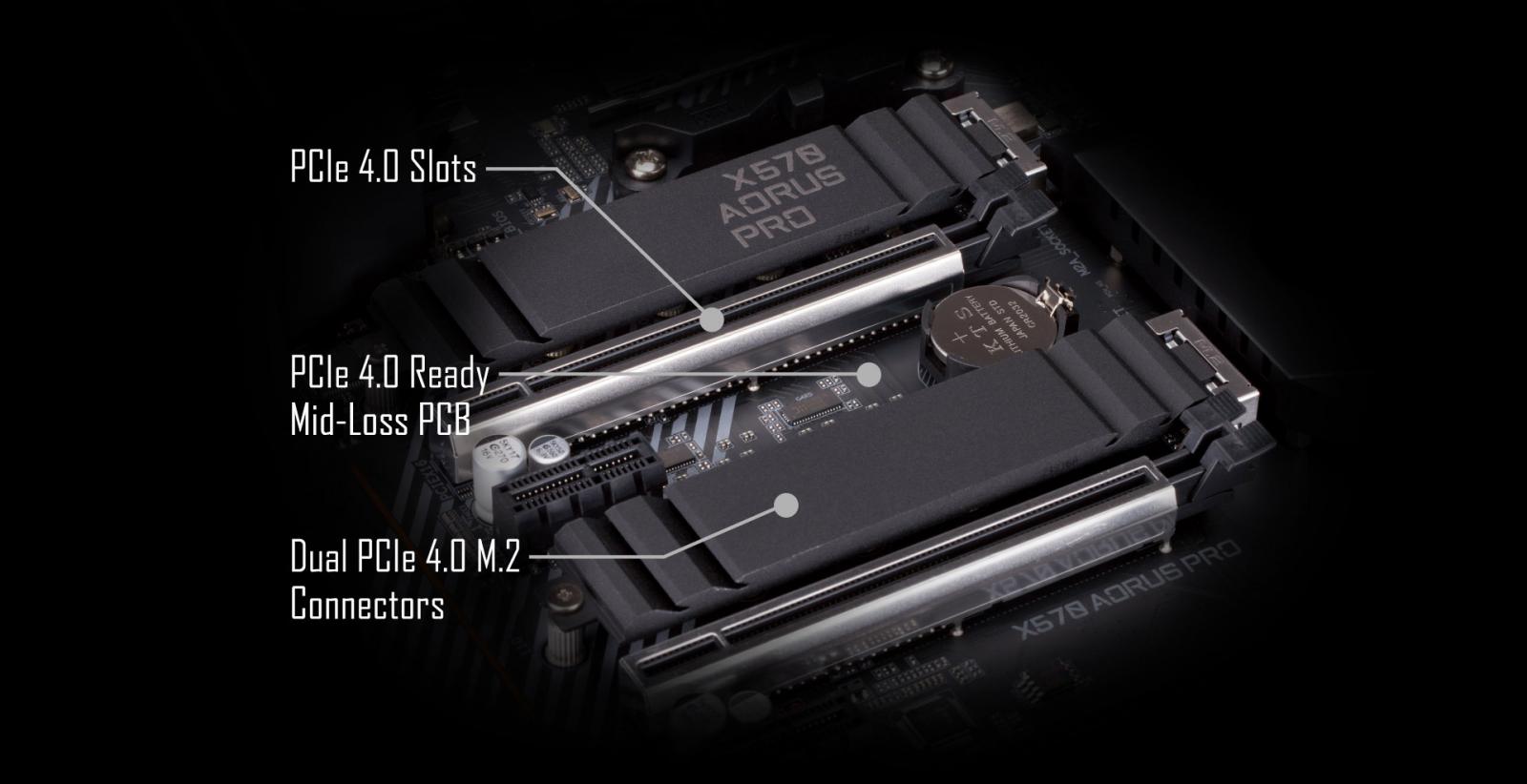

Full PCIe 4.0 Design
X570 AORUS pushes the envelope once again by featuring Full PCIe 4.0 Design, including PCIe 4.0 slots, PCIe 4.0 M.2 connectors and delivering highly optimized performance and flexibility demanded for power users and extreme gaming enthusiasts.
.jpg)
Next Generation Connectivity
A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. X570 AORUS motherboards provide all next generation network, storage to keep you up to speed.
.jpg)

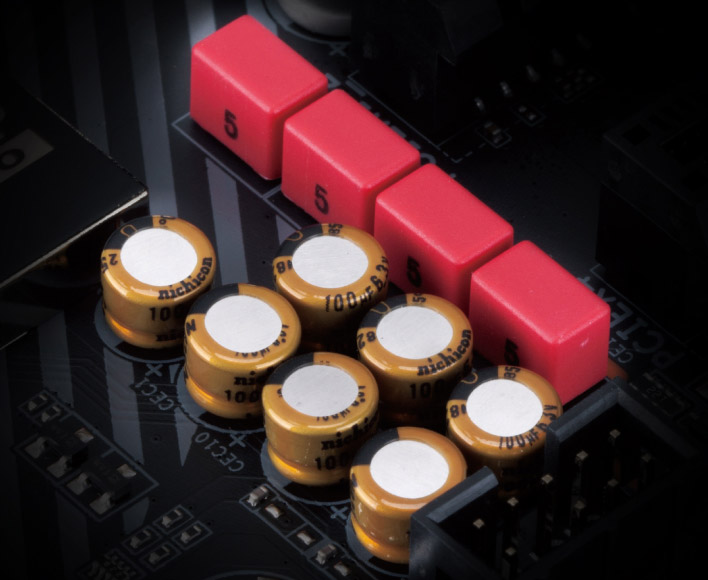

High-End WIMA & Audio Capacitors
The AORUS motherboards boast a combination of Hi-Fi grade WIMA FKP2 capacitors and high-end Chemicon audio capacitors. While the high-end audio capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AOURS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.
RGB Fusion 2.0
With AORUS Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on X570 Series AORUS Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.
AORUS Motherboards will support 5v Addressable LED lighting strips and up to 1000 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.
| Κατασκευαστής | Gigabyte |
| Μοντέλο | AORUS X570 Pro rev1.2 |
| Part Number | GAX57APRO-00-G12 |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | AM4 |
| Chipset | AMD X570 |
| Μέγεθος μητρικής | ATX |
| Τύπος Μνήμης | DDR4 |
| Αριθμός Dimm | 4 |
| Expansion Slots | 3x PCIe x16 (1x PCIe x16, 1x PCIe x8, 1x PCIe x4) 2x PCIe x1 AMD CrossFireX Nvidia SLI |
| Αποθήκευση | 6x SATA 2x M.2 |
| Έξοδοι Γραφικών | 1x HDMI |
| Πρόσθετα Χαρακτηριστικά | LED Control USB Type-C M.2 Slot |
| Εγγύηση | 3 Έτη |
