Κωδικός Msystems: 001-47522
112,00 €
Χωρίς ΦΠΑ: 90,32 €
Υπολογισμός Δόσεων
57,90 € / δόση = 115,80
Ενδεικτικά μεταφορικά
Για Αττική: Δωρεάν μεταφορικά Δείτε εδώ για ποιές περιοχές ισχύει
Εκτός Αττικής 6,5 € (μεταφορικά & αντικαταβολή με courier)
1-3 εργάσιμες
Μοιράσου το
Εγγύηση:
3 Έτη
Περιγραφή
CPU

Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package

L3 cache varies with CPU

Chipset

Intel® B460 Express Chipset

Memory

Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules

Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.

Support for up to 3 displays at the same time
Maximum shared memory of 512 MB

Audio

Realtek® ALC1200 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN

Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot, running at x4 (PCIEX4)

3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Multi-Graphics Technology Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD) (M2Q_SB)

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD) (M2A_SB)

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel® Optane™ Memory Ready
* System Acceleration with Intel® Optane™ Memory enabled on the M2Q_SB connector only.

USB Chipset:

6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

2 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x S/PDIF Out header

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x parallel port header

1 x Clear CMOS jumper

Back Panel Connectors

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x DVI-D port

1 x HDMI port

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

6 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

2 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer

Support for Q-Flash

Support for Xpress Install

Bundle Software

Norton® Internet Security (OEM version)

Realtek® 8118 Gaming LAN bandwidth Control Utility

Operating System

Support for Windows 10 64-bit

Form Factor

ATX Form Factor; 30.5cm x 22.5cm

Τεχνικά Χαρακτηριστικά
ΚατασκευαστήςGigabyte

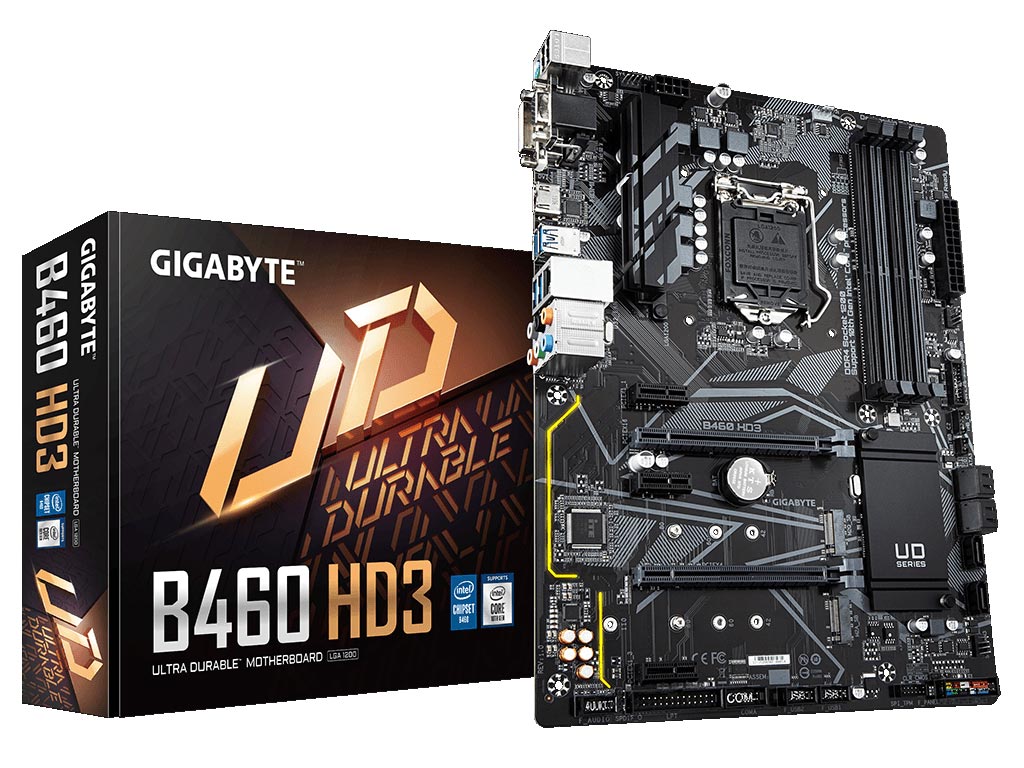

ΜοντέλοB460 HD3
ΚατηγορίαΜητρικές Κάρτες
Socket1200
ChipsetIntel B460
Μέγεθος μητρικήςATX
Τύπος ΜνήμηςDDR4
Αριθμός Dimm4
Expansion Slots1x PCIe x16 , 1x PCIe x4 , 3x PCIe x1 , AMD CrossFireX
Αποθήκευση6x SATA , 2x M.2
Έξοδοι Γραφικών1x HDMI , 1x DVI , 1x VGA
Πρόσθετα ΧαρακτηριστικάM.2 Slot
Εγγύηση3 Έτη
