Περιγραφή

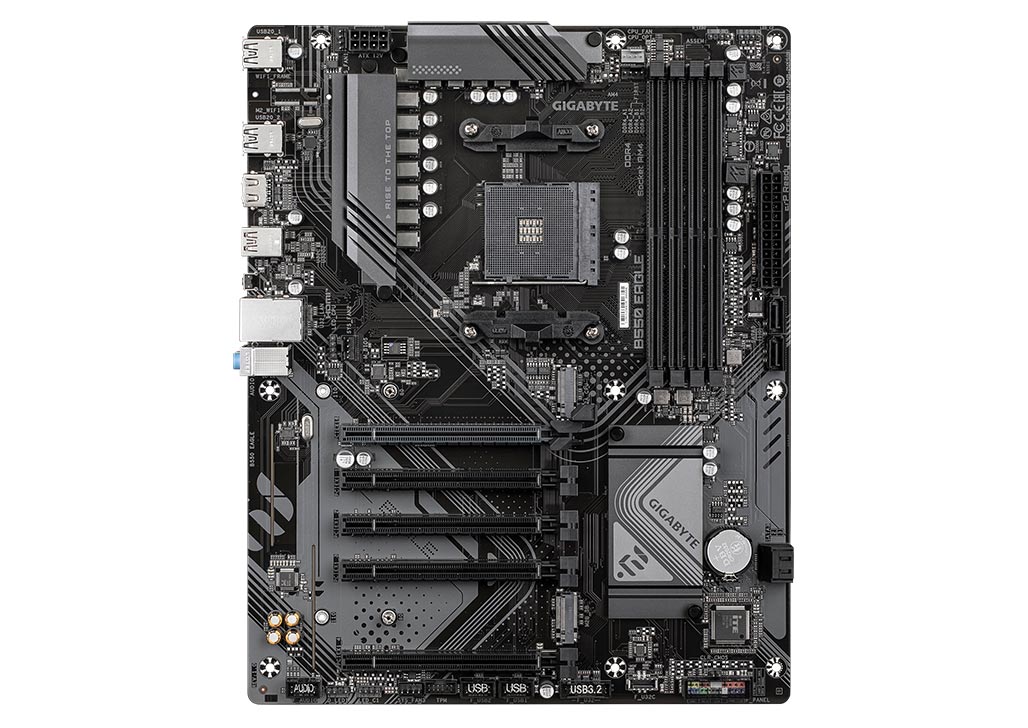

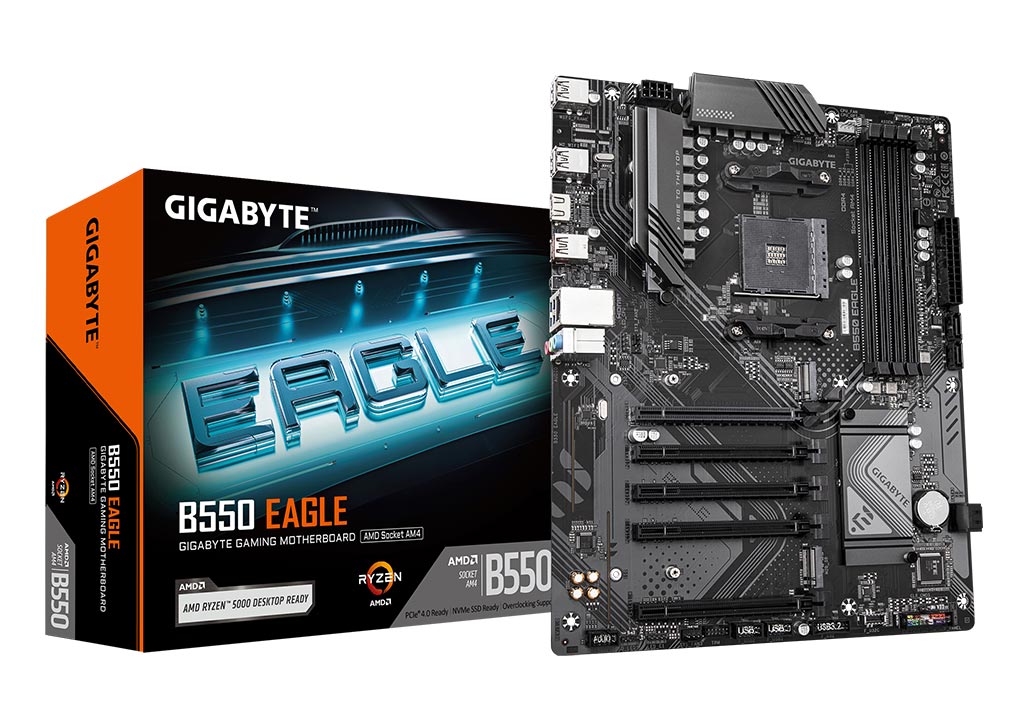

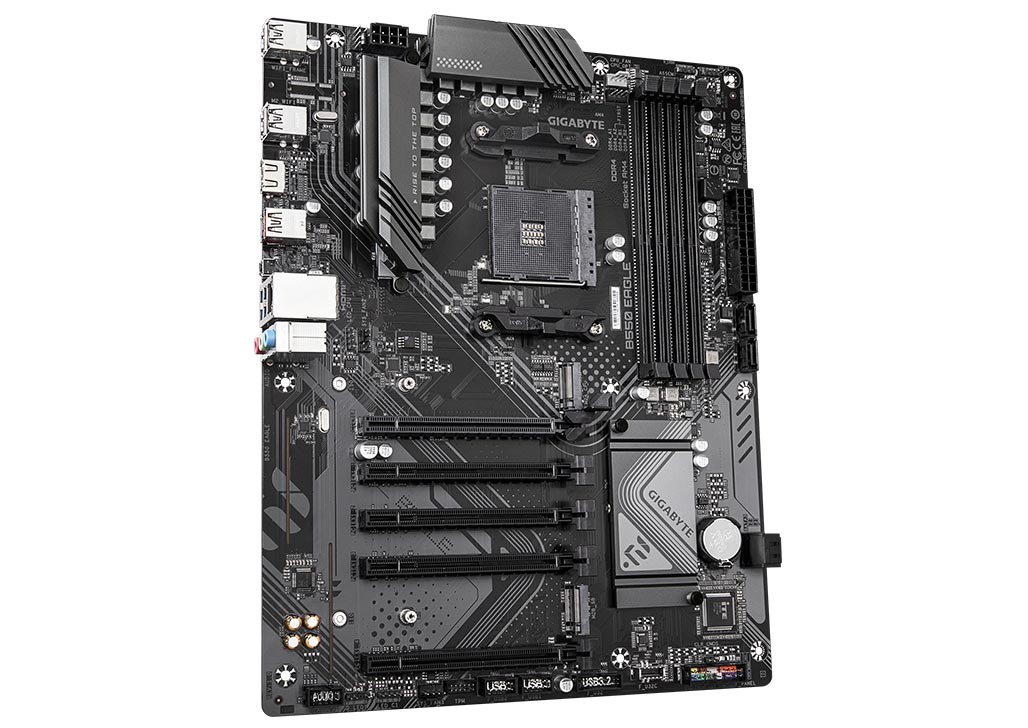

Gigabyte B550 EAGLE

AMD Socket AM4: Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors
Digital twin 10+3 phases VRM solution
Dual Channel DDR4: 4*DIMMs
EZ-Latch: PCIe slots with Quick Release Design
Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x1
Efficient Thermal: VRM Thermal Armor Advanced
Fast Networking: GbE LAN
Extended Connectivity: HDMI
PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

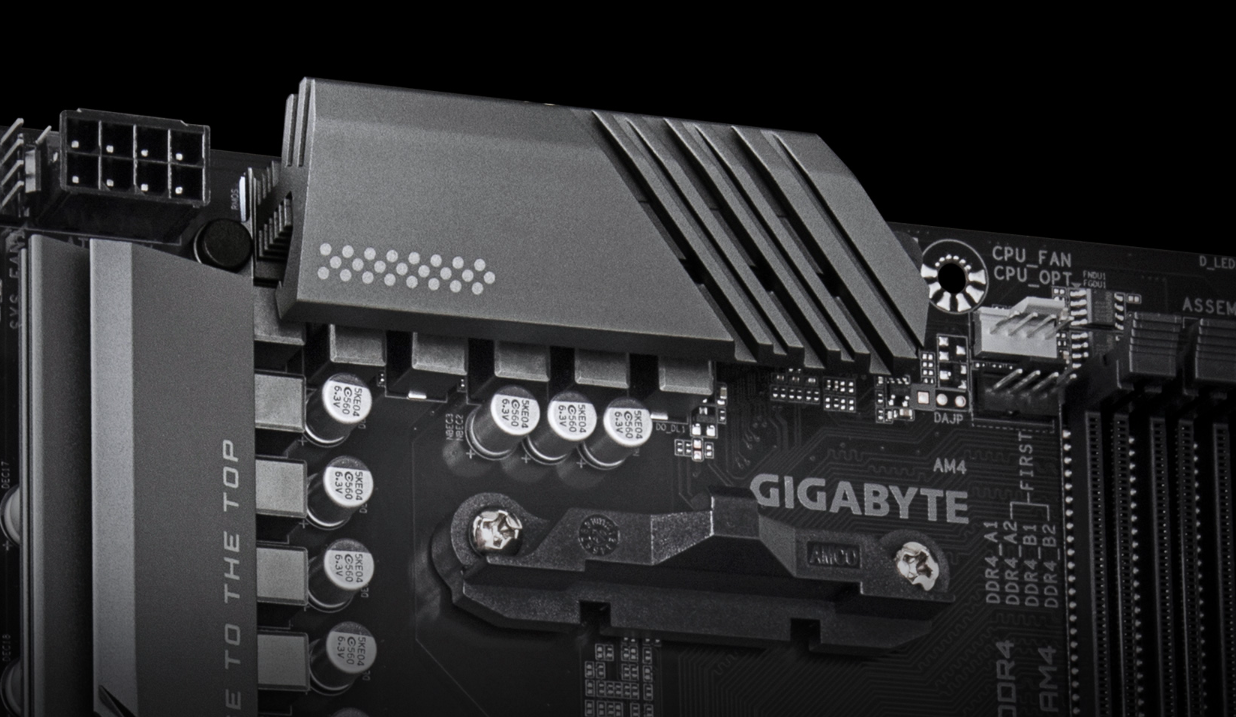

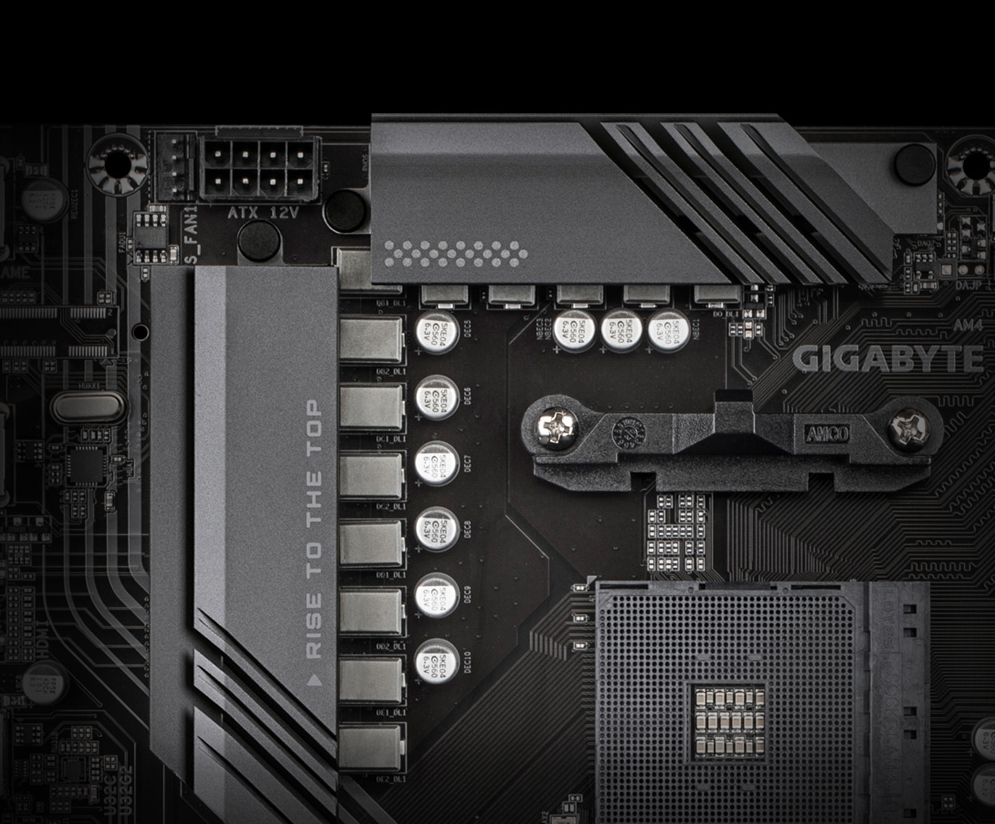

Sturdy VRM Design

Eagle Series with steady power keeps your AI operation smooth.

• 5+5 phases parallel power design
• Unlock the full power of your multi-core CPU for unmatched performance.

"Stay Cool, Game On"

High-coverage MOSFETs with integrated molded heatsinks

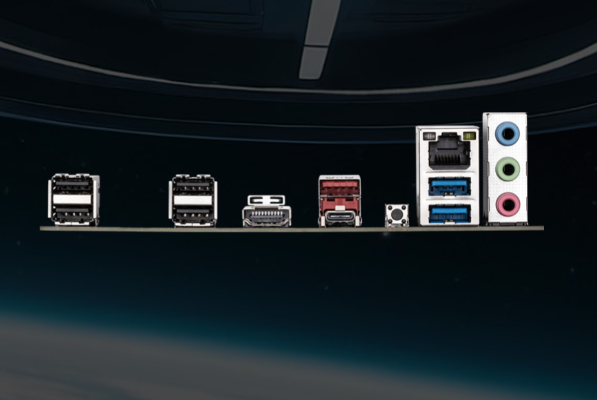

All-round Connectivity

Experience ultimate connectivity with next-generation network, storage, delivering lightning-fast data transfer speeds.

CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors AMD Ryzen™ 5000 Series Processors AMD Ryzen™ 4000 G-Series Processors AMD Ryzen™ 3000 G-Series Processors AMD Ryzen™ 3000 Series Processors
Chipset	AMD B550
Memory	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) Maximum shared memory of 16 GB
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots	CPU: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4)
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU: - AMD Ryzen™ 5000/3000 Series Processors support one USB 3.2 Gen 2 Type-A port (red) on the back panel - AMD Ryzen™ 5000 G/4000 G/3000 G-Series Processors support one USB 3.2 Gen 1 port (red) on the back panel - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 2 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper

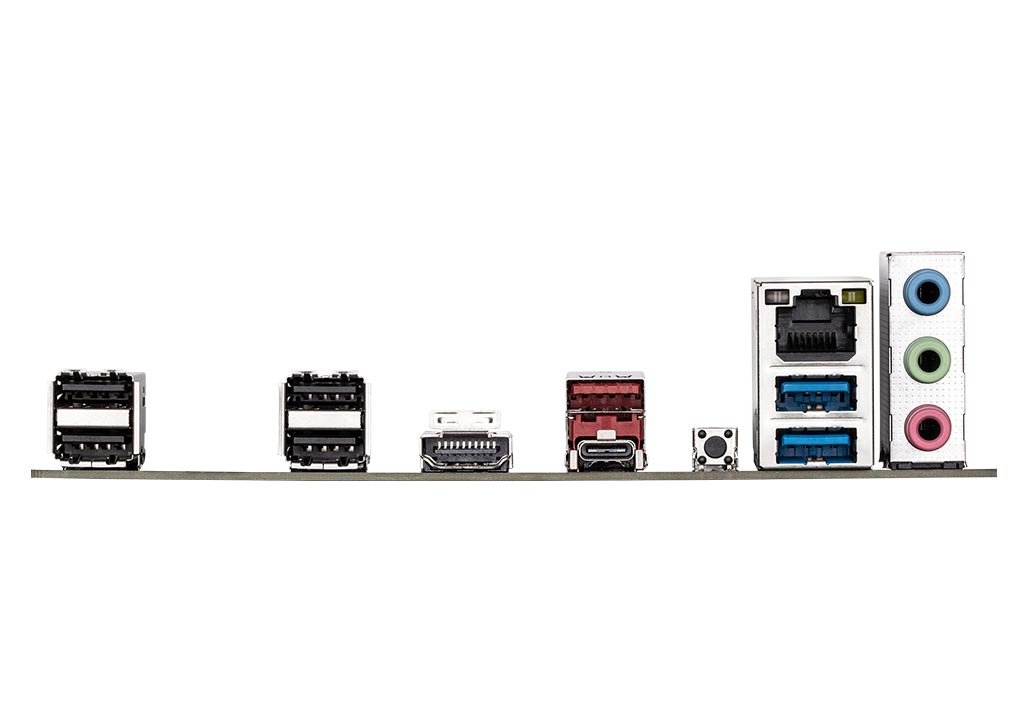

Back Panel Connectors	4 x USB 2.0/1.1 ports 1 x HDMI port (Note) 1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red) 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks (Note) Actual support may vary by CPU.
I/O Controller	iTE^® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm

Τεχνικά Χαρακτηριστικά

Κατασκευαστής	Gigabyte
Μοντέλο	B550 EAGLE
Part Number	9MB55EG-00-G10
Κατηγορία	Μητρικές Κάρτες
Socket	AM4
Chipset	AMD B550
Μέγεθος μητρικής	ATX (30.5 x 24.4 cm)
Τύπος Μνήμης	DDR4
Αριθμός Dimm	4
Expansion Slots	5x PCIe x16 (1x PCIe 4.0 x16, 4x PCIe 3.0 x1)
Αποθήκευση	4x SATA 2x M.2 (1x PCIe 4.0 x4, 1x PCIe 3.0 x4)
Έξοδοι Γραφικών	1x HDMI (v 2.1)
Πρόσθετα Χαρακτηριστικά	USB (1x USB-A 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 4x USB 2.0/1.1) LAN - Realtek GbE (1 Gbps/100 Mbps/10 Mbps) USB Type-C (1x USB-C 3.2 Gen 1) M.2 Slot
Εγγύηση	3 Έτη
