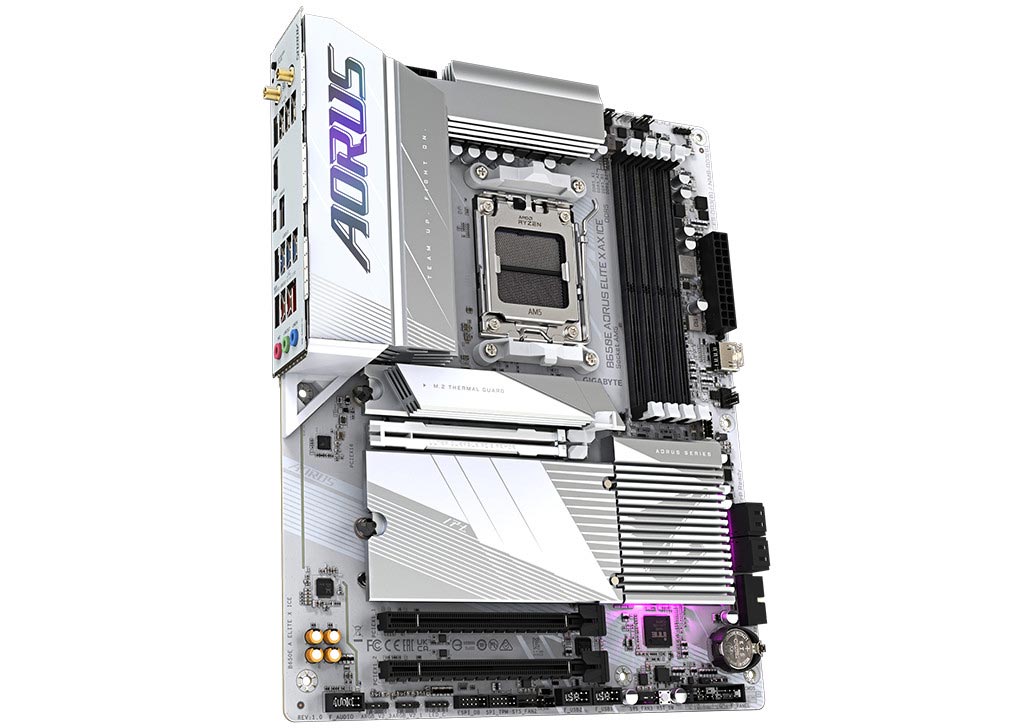

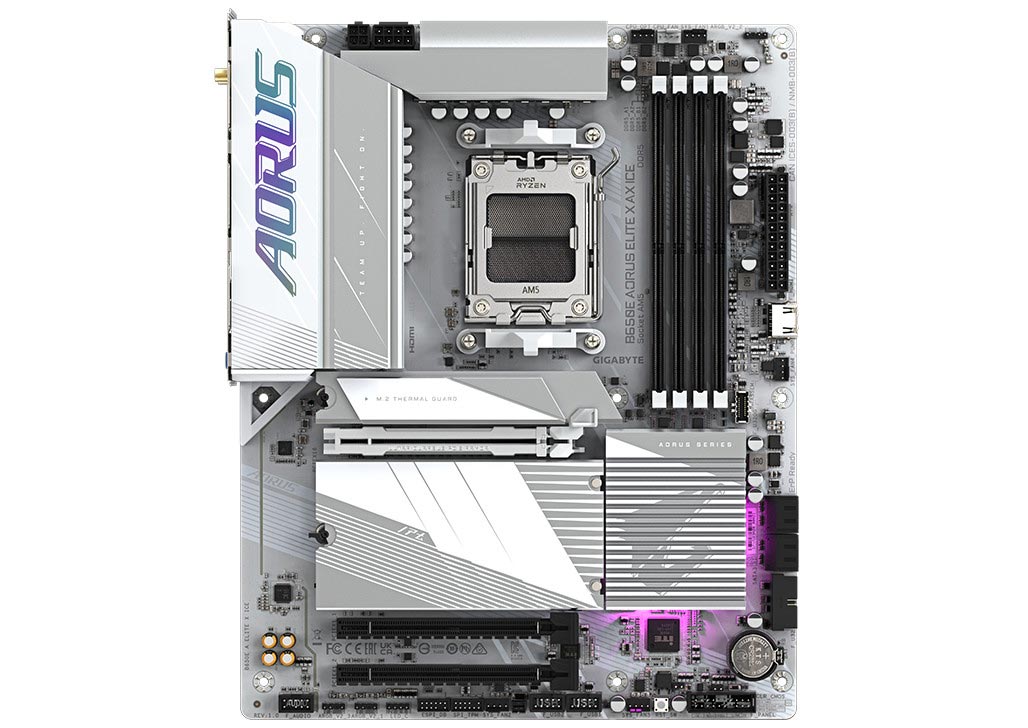

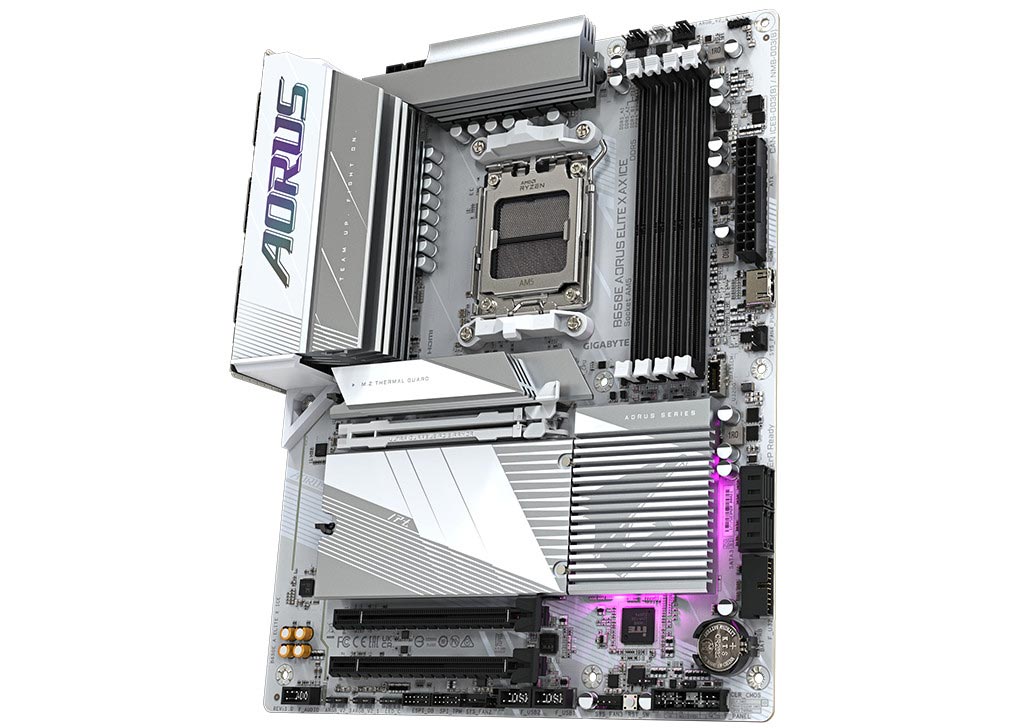

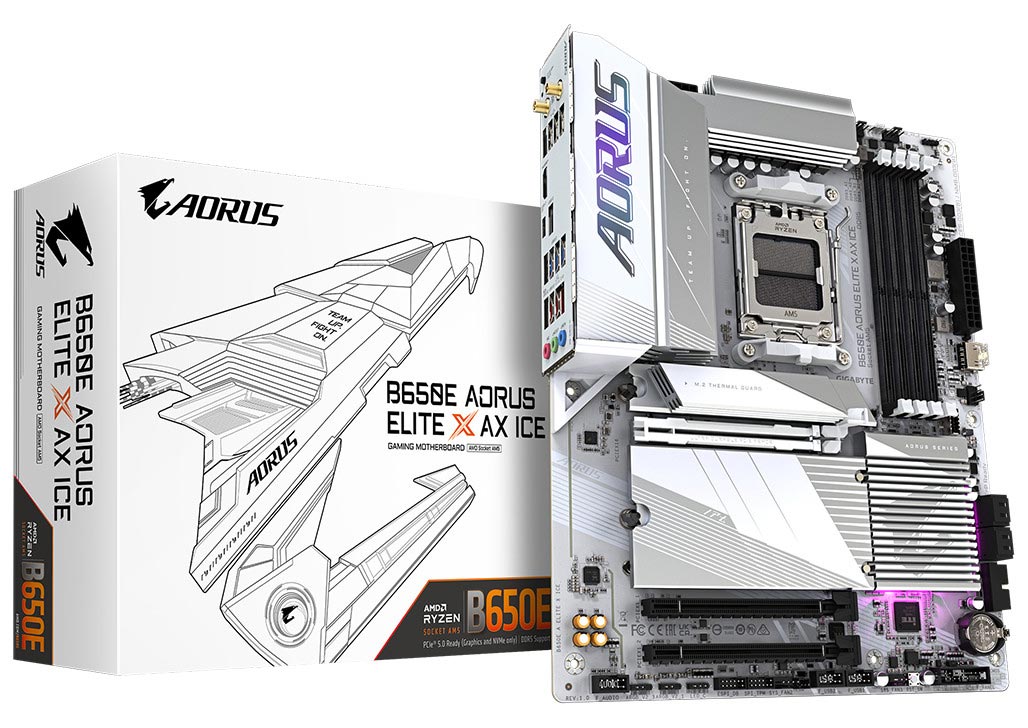

Gigabyte B650E AORUS ELITE X AX ICE
Χωρίς ΦΠΑ: 201,61 €
Πληροφορίες
Δόσεις
Άτοκες Δόσεις
Buy Now - Pay Later

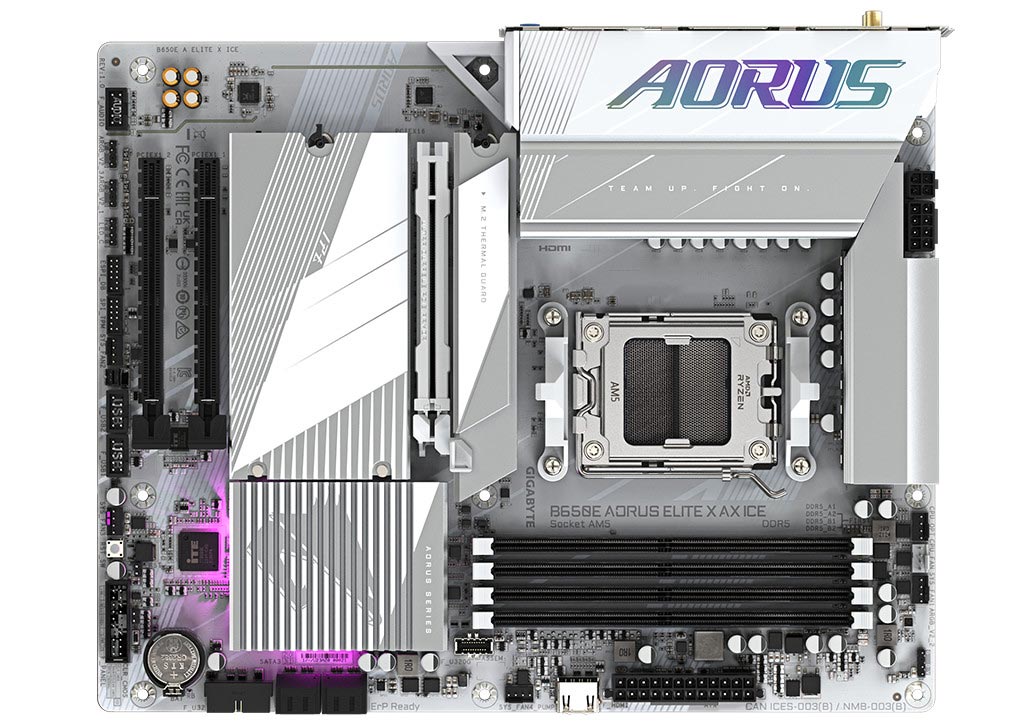

B650E AORUS ELITE X AX ICE
Key Features
- AMD Socket AM5：Supports AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
- Digital twin 12+2+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Click：M.2 heatsinks with screwless design
- EZ-Latch Plus：M.2 slots with Quick Release & Screwless Design
- Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
- UC BIOS：User-Centred intuitive UX with Quick Access function
- Ultra-Fast Storage：3*M.2 slots, including 1* PCIe 5.0 x16
- Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard XL
- Fast Networking：2.5GbE LAN & Wi-Fi 6E with Ultra-high gain antenna
- Extended Connectivity：HDMI, Rear USB-C® support up to 40Gb/s, Front USB-C® 20Gb/s
- Reliable Audio：8-Ch HD Audio & Audiophile Grade Capacitors

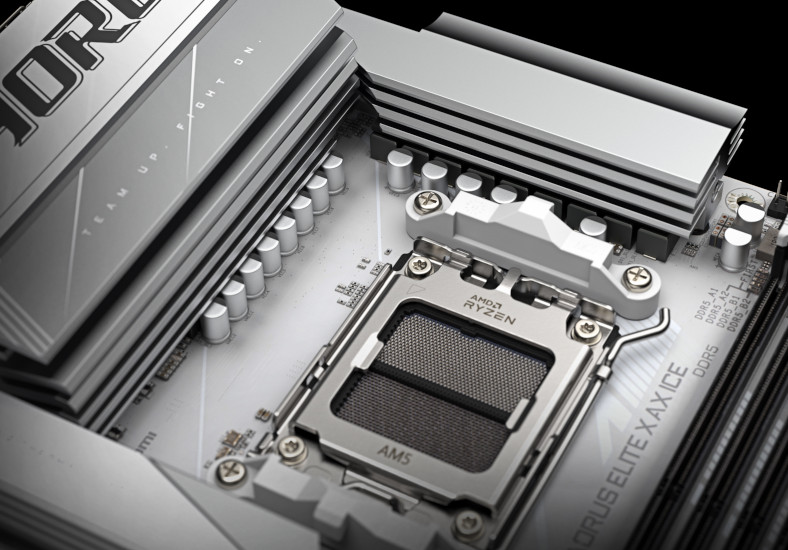

Power in number - Robust Digital Twin VRM Design
All AORUS series gaming motherboards are equipped with an all-digital power design, which delivers the best stability under heavy workloads and ensures stable high-power delivery for advanced overclocking.
Memory, to the future
All AORUS series gaming motherboards feature multiple techniques to enhance the performance of DDR5 memory with the best compatibility.
- Feature-rich BIOS functions enable easy access to the best-in-class DDR5 performance.
- Memory routing is shielded within the PCB's inner layer to protect against interference.
- Optimized routing eliminates the stub effect, enabling higher memory frequencies and providing professional gamers with a faster and denser system memory experience.
Overall Thermal
Every AORUS motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast.

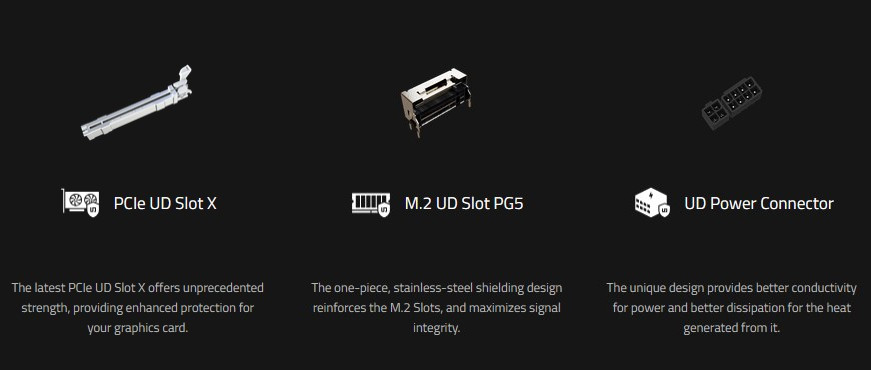

Get everything - Ultra Durable™
GIGABYTE Ultra Durable™ Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. AORUS series motherboard is built to last longer and stand stronger.
Connectivity versatile
Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
High Quailty Sound
Enjoy a high-quality sound experience, which supports 7.1 channel playback, features an advanced microphone array, and offers versatile connectivity options for gaming and entertainment.
Audiophile Grade Capacitors
Premium Grade Audio capacitors provide stable current, delivering a studio-quality experience.
Elevating Performance Together
AORUS series motherboard signifies our dedication to BIOS optimization. Through our community partnership, we're making next-gen performance more user-friendly.

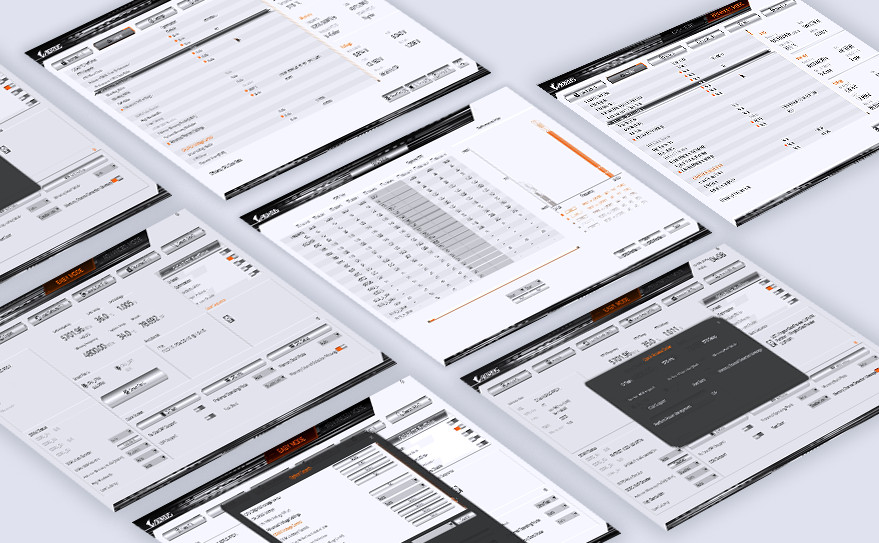

UC BIOS - Redesigned UI and UX
GIGABYTE User-Centred(UC) BIOS has enhanced the BIOS UX to provide users with an optimized experience featuring an intuitive operation interface and an aesthetically pleasing design.
Quick Access
GIGABYTE UC BIOS' Quick Access function selects 9 practical preset options from ADVANCE MODE and places them in EASY MODE for effortless access without switching or searching.
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Chipset | AMD B650 |
| Memory | Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Onboard Graphics |
Integrated Graphics Processor with AMD Radeon™ Graphics support: 1x HDMI port, supporting a maximum resolution of 1920 x 1080 @30 Hz 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840 x 2160 @144 Hz |
| Audio |
Realtek® Audio CODEC |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Realtek® Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Expansion Slots |
CPU: Chipset: |
| Storage Interface |
CPU: 1x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/ 2280 SSDs: Chipset: |
| USB |
CPU: Chipset: |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x CPU fan header 1x CPU fan/water cooling pump header 3x system fan headers 1x system fan/water cooling pump header 3x addressable RGB Gen2 LED strip headers 1x RGB LED strip header 3x M.2 Socket 3 connectors 4x SATA 6Gb/s connectors 1x front panel header 1x front panel audio header 1x USB Type-C® header, with USB 3.2 Gen 2x2 support 1x USB 3.2 Gen 1 header 2x USB 2.0/1.1 headers 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1x HDMI port* *Note: Only available with the AMD Radeon™ Graphics Processors. 1x reset button 1x reset jumper 1x Clear CMOS jumper |

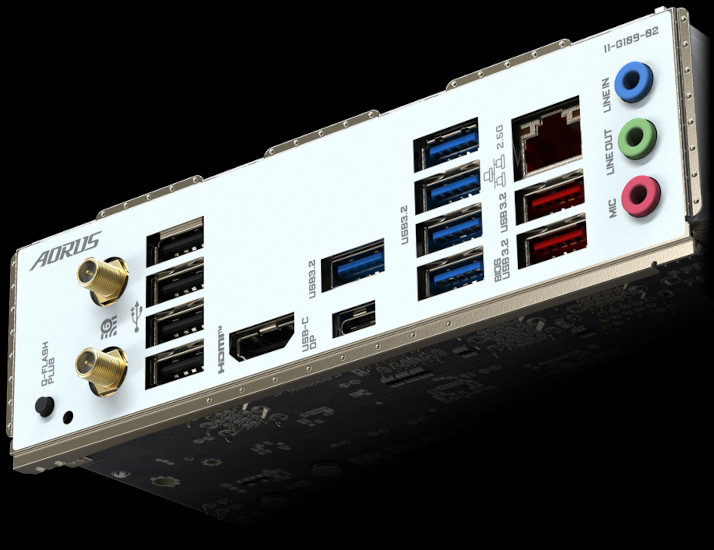

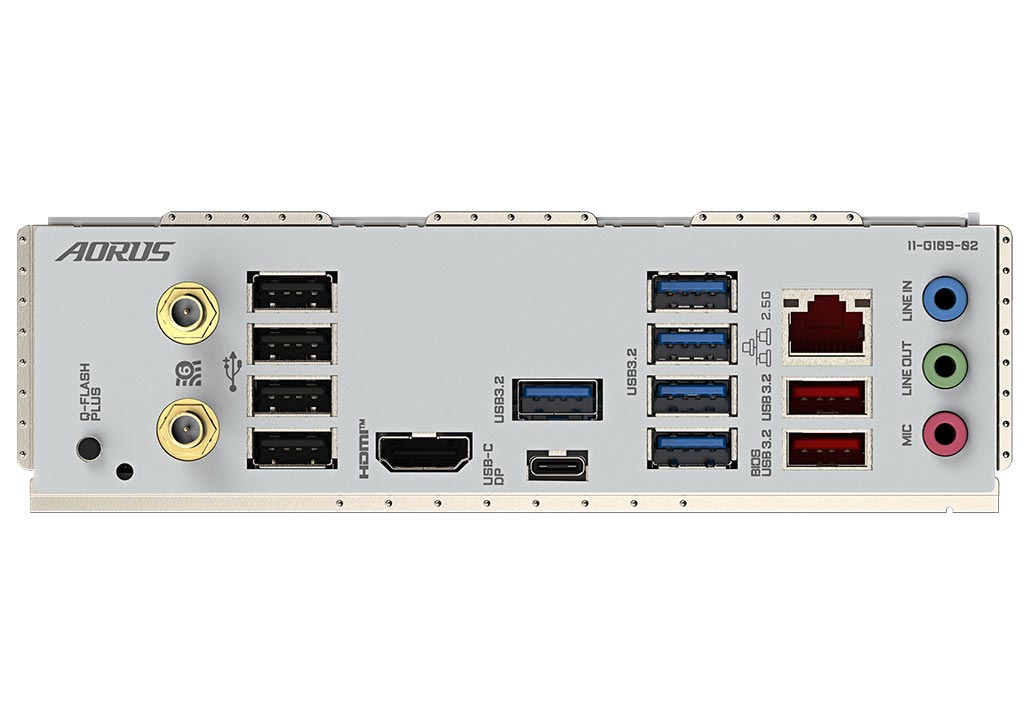

| Back Panel Connectors | 1x Q-Flash Plus button 2x SMA antenna connectors (2T2R) 1x HDMI port 1x USB Type-C® port, with USB 3.2 Gen 2 support 2x USB 3.2 Gen 2 Type-A ports (red) 5x USB 3.2 Gen 1 ports 4x USB 2.0/1.1 ports 1x RJ-45 port 3x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control Note: Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| BIOS | 1x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for GIGABYTE Control Center (GCC) Support for Q-Flash |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System |
Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor: 30.5 x 24.4 cm |
| Κατασκευαστής | Gigabyte |
| Μοντέλο | B650E AORUS ELITE X AX ICE |
| Part Number | B650E A ELITE X ICE |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | AM5 |
| Chipset | AMD B650 Extreme |
| Μέγεθος μητρικής | ATX (30.5 x 24.4 cm) |
| Τύπος Μνήμης | DDR5 - (Up to 256 GB total / 64 GB single DIMM capacity) |
| Αριθμός Dimm | 4 |
| Expansion Slots | 3x PCIe x16 - (1x Supports PCIe 5.0 and runs at x16, 2x Support PCIe 3.0 and run at x1) |
| Αποθήκευση | 4x SATA 3x M.2 |
| Έξοδοι Γραφικών | 1x HDMI - (v 2.1 with HDCP 2.3) |
| Πρόσθετα Χαρακτηριστικά | LED Control Wi-Fi - WiFi 6E Realtek RTL8852CE (a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands) Bluetooth - (v 5.3) USB LAN - Realtek 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) USB Type-C M.2 Slot |
| Εγγύηση | 3 Έτη |
