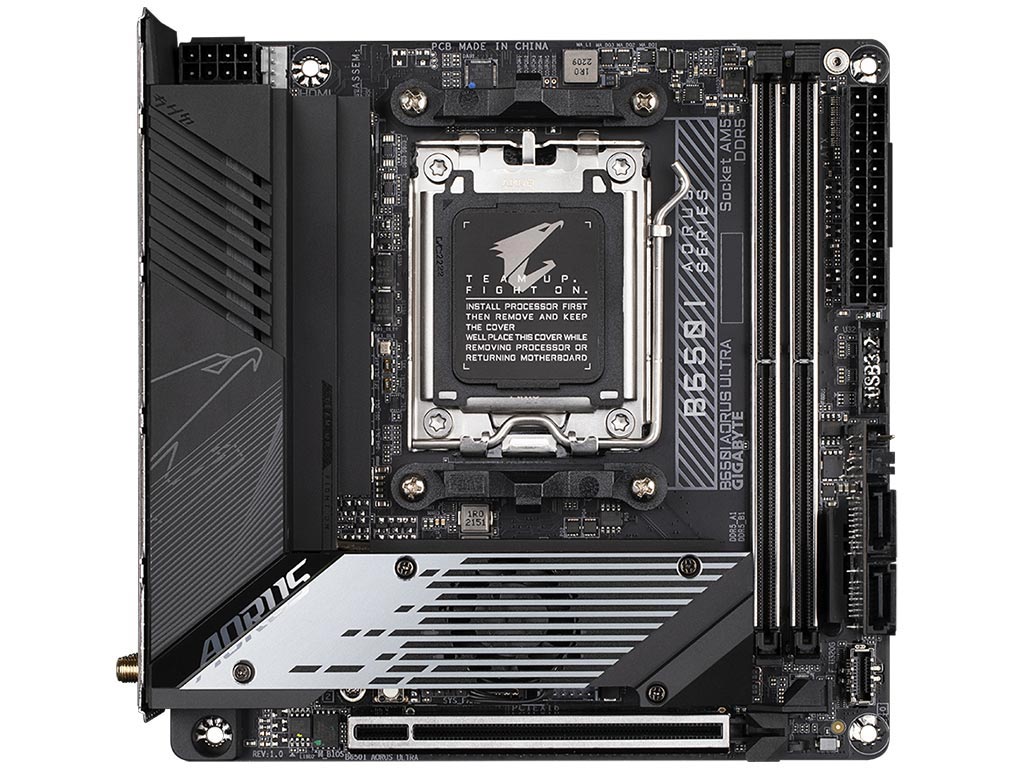

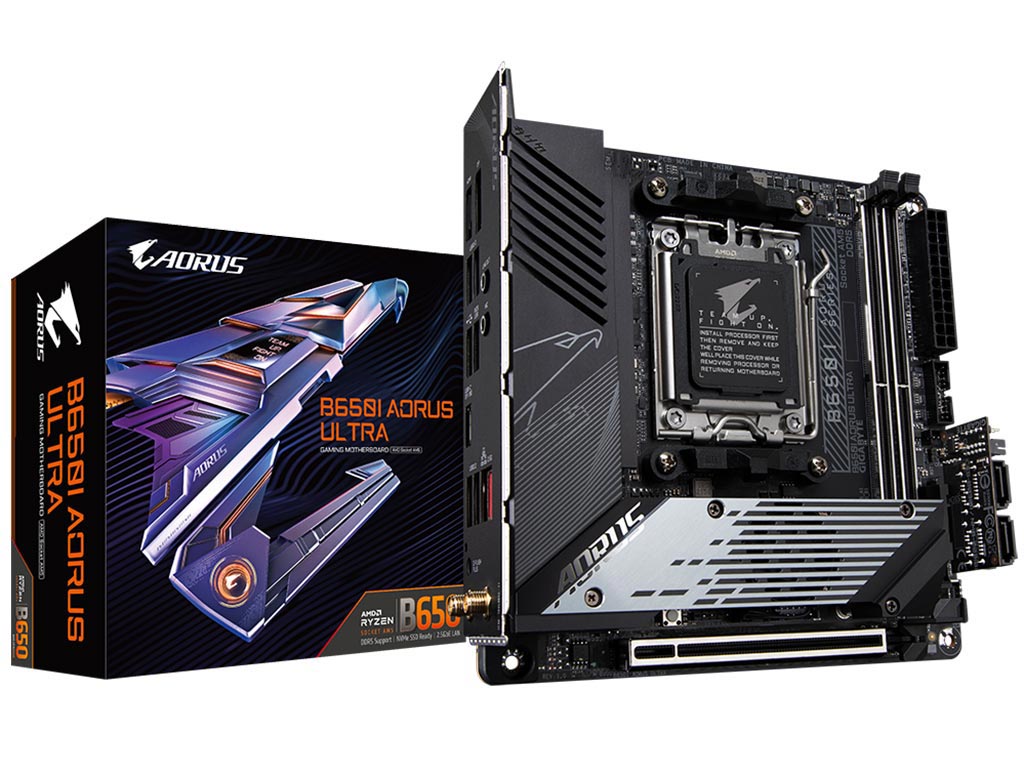

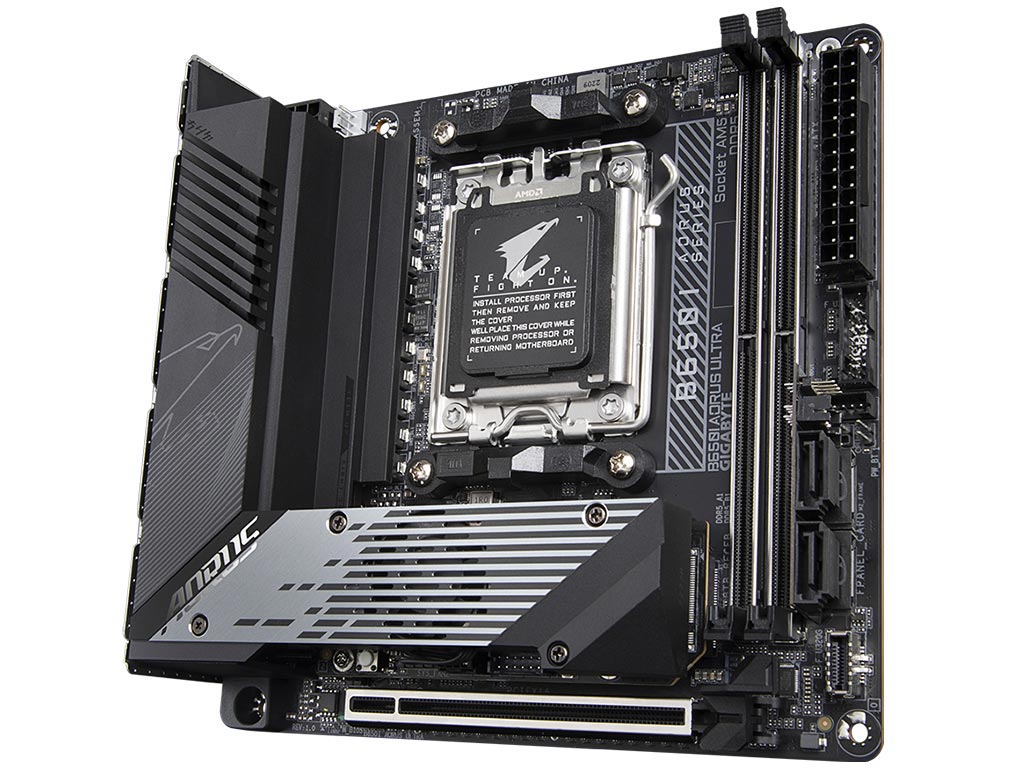

Gigabyte B650I Aorus Ultra
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
Άτοκες Δόσεις
Δόσεις χωρίς πιστωτική
Buy Now - Pay Later
B650I AORUS ULTRA
- AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
- Unparalleled Performance：Direct 8+2+1 Phases Digital VRM Solution
- Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- Next Generation Storage：1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
- Fully Covered Heatpipe & M.2 Thermal Guard III with Active Cooling：To Ensure 2280 PCIe 5.0 M.2 SSD Performance
- EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Hi-Fi Audio with DTS:X® Ultra：ALC4080 CODEC
- Fast Networks：Intel® 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity：DP, HDMI, Rear USB-C® with DP Alt Mode, Front USB-C® 20Gb/s
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
| CPU |
AMD Socket AM5, support for: AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors |
| Chipset |
AMD B650 |
| Memory |
Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules.) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support:
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840 x 2160@144 Hz 1 x HDMI port, supporting a maximum resolution of 7680 x 4320@60 Hz |
| Audio |
Realtek® ALC4080 CODEC High Definition Audio 2-channel |
| LAN |
Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.2)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Expansion Slots | 1 x PCI Express x16 slot, integrated in the CPU:
AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| Storage Interface | 1 x M.2 connector on the front of GC-B650I BTB PLUG (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSD AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSD AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSD 1 x M.2 connector on the back of GC-B650I BTB PLUG (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280/ 2260 SSDs:AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSD AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSD AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSD 1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD4 x SATA 6Gb/s connectors on the front of GC-B650I FRONT CARD RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB | CPU:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub:4 x USB 2.0/1.1 ports available through the F_USB header on the front of GC-B650I BTB PLUG Chipset:1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header (SYS_FAN1(Note 1)) 1 x addressable LED strip header(Note 2) 1 x RGB LED strip header(Note 1) 3 x M.2 Socket 3 connectors (M2B_CPU(Note 2)/ M2A_CPU(Note 3)/ M2C_SB(Note 4)) 4 x SATA 6Gb/s connectors(Note 1) 1 x front panel header(Note 1) 1 x front panel audio header (routed from the adapter card on the rear panel) 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header(Note 2) 1 x reset button(Note 2) 1 x reset jumper 1 x power switch jumper 1 x Clear CMOS jumper (Note 1) The connector is on the front of GC-B650I FRONT CARD.(Note 2) The connector is on the front of GC-B650I BTB PLUG. (Note 3) The connector is on the back of GC-B650I BTB PLUG. (Note 4) The connector is on the back of the motherboard. |
| Back Panel Connectors |

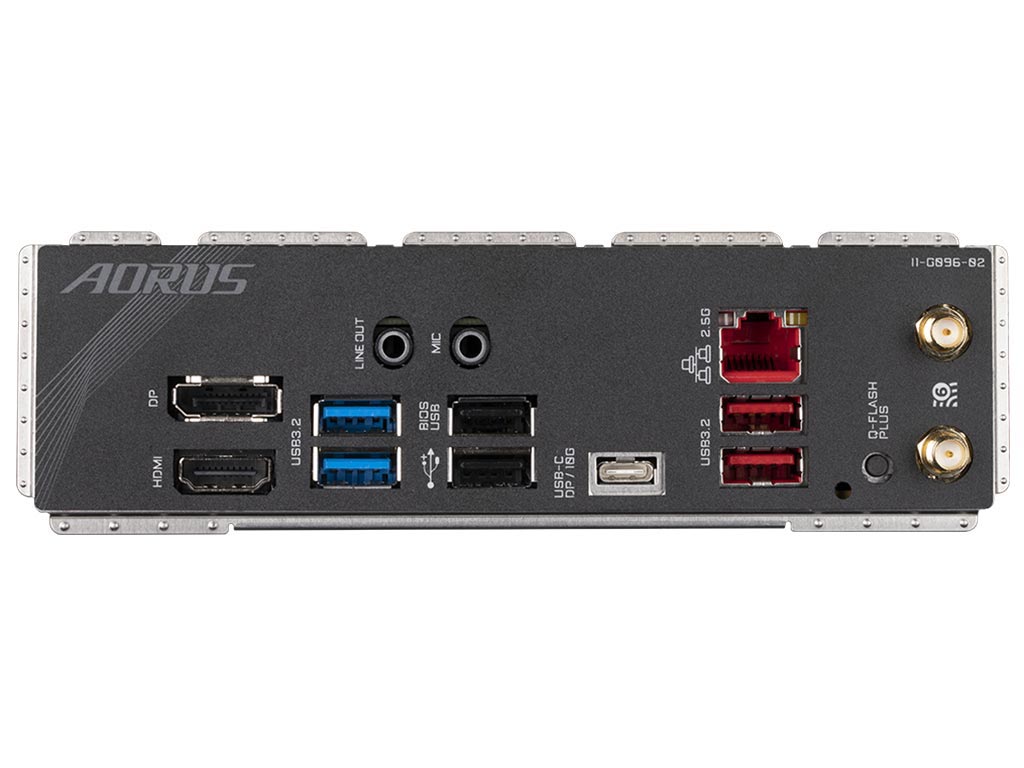

1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 1 x Q-Flash Plus button 2 x audio jacks |
| I/O Controller |
iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| BIOS |
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
| Bundled Software |
Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System |
Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor |
Mini-ITX Form Factor; 17.0cm x 17.0cm |
| Κατασκευαστής | Gigabyte |
| Μοντέλο | B650I Aorus Ultra |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | AM5 |
| Chipset | AMD B650 |
| Μέγεθος μητρικής | Mini-ITX (17.0 x 17.0cm) |
| Τύπος Μνήμης | DDR5 |
| Αριθμός Dimm | 2 |
| Αποθήκευση | 4x SATA 1x M.2 |
| Έξοδοι Γραφικών | 1x HDMI v2.1 1x DisplayPort v1.4 |
| Πρόσθετα Χαρακτηριστικά | LED Control Wi-Fi 6E Bluetooth v5.3 USB Type-C 3.2 Gen 2 supporting Display Port Video Output up to 3840 x 2160@144 Hz M.2 Slot |
| Εγγύηση | 3 Έτη |
