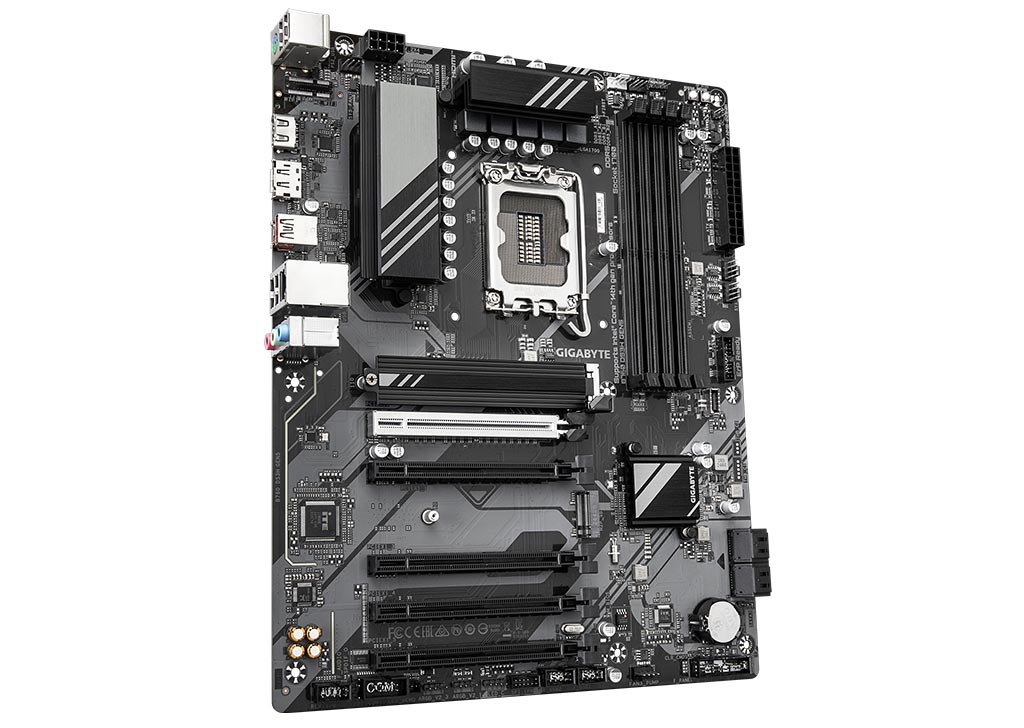

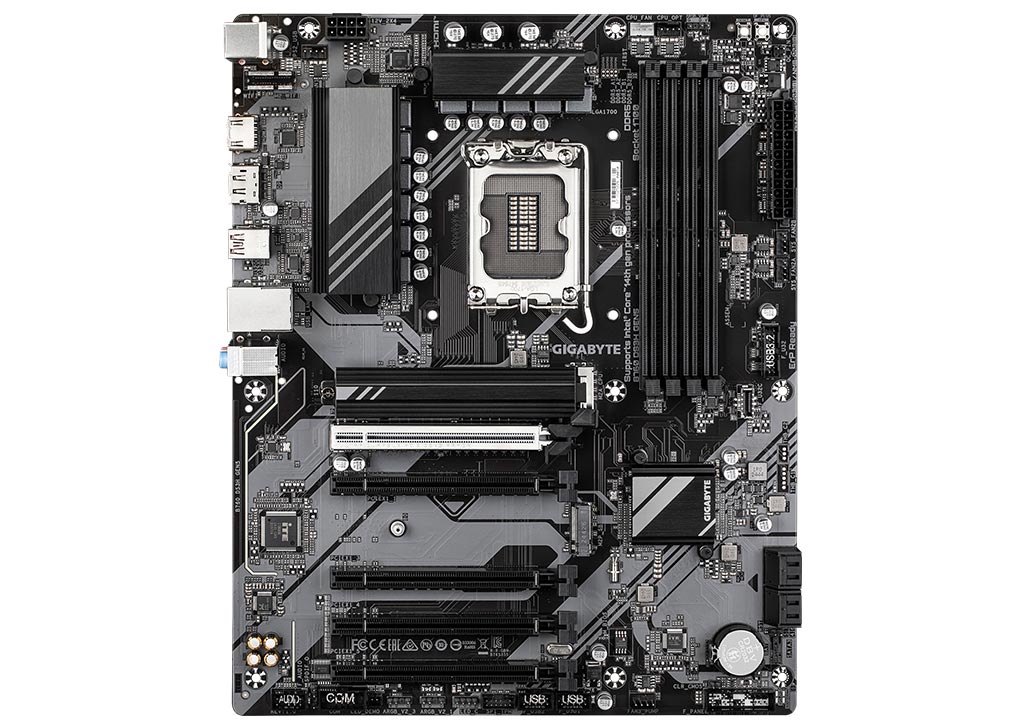

Gigabyte B760 DS3H Gen5
![Gigabyte B760 DS3H Gen5 [B760 DS3H GEN5] Εικόνα 1](https://static.msystems.gr/photos/big_photos/52450.jpg)
![Gigabyte B760 DS3H Gen5 [B760 DS3H GEN5] Εικόνα 2](https://static.msystems.gr/photos/big_photos/52450.1.jpg)
![Gigabyte B760 DS3H Gen5 [B760 DS3H GEN5] Εικόνα 3](https://static.msystems.gr/photos/big_photos/52450.2.jpg)
![Gigabyte B760 DS3H Gen5 [B760 DS3H GEN5] Εικόνα 4](https://static.msystems.gr/photos/big_photos/52450.3.jpg)
Χωρίς ΦΠΑ: 107,98 €
Πληροφορίες
Δόσεις
Buy Now - Pay Later
B760 DS3H Gen5
- PCIe Gen5 Performance : Perfect Sync to Win
- Supports Intel® Core™ 14th/ 13th /12th processors
- EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
- PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance : Hybrid 8+2+1 Phases VRM Solution
- Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support
- Fast Networks : GbE LAN
- Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
- Extended Connectivity : Rear USB-C® 20Gb/s, DP, HDMI
- Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card

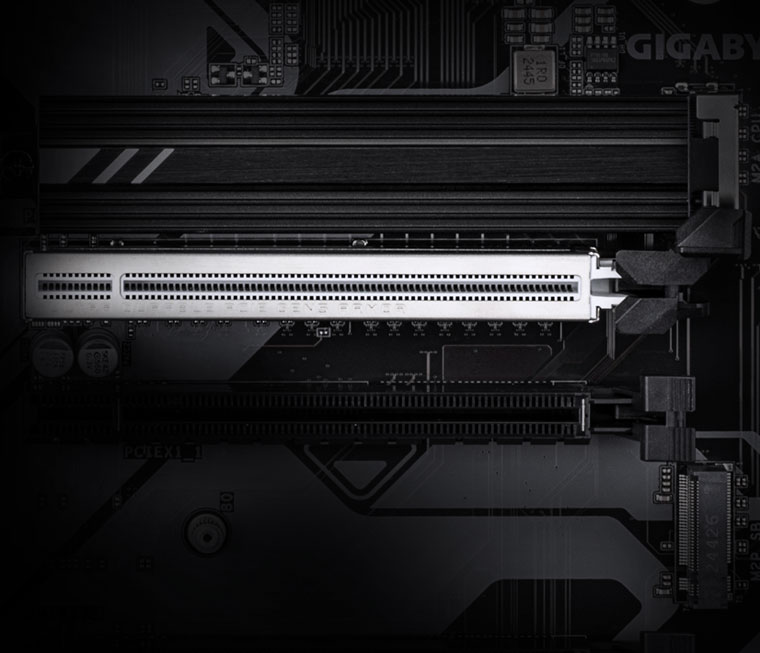

PCIe UD Slot
GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards.
.png)

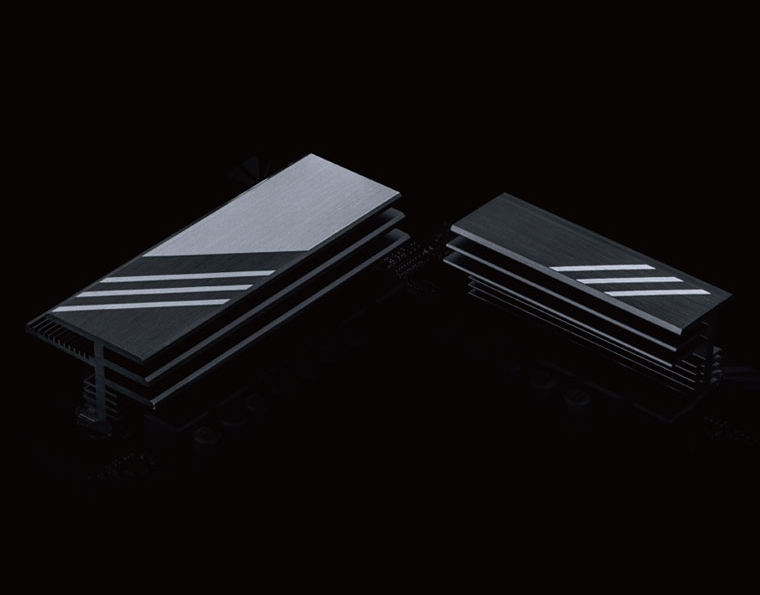

VRM Thermal
Durable VRM heatsinks keep your system cool and efficient.
.png)

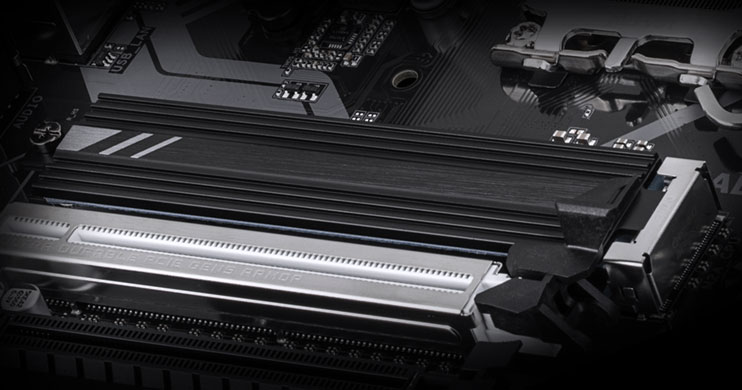

M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
.png)

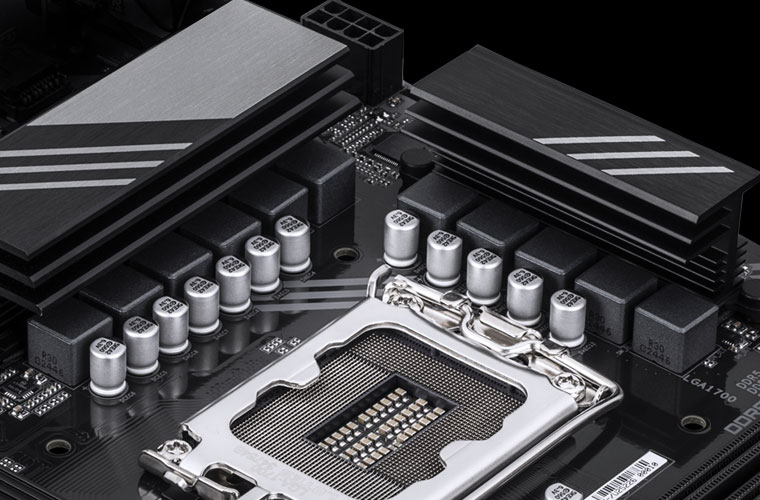

Hybrid VRM Design
The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.
- 8+2+1 Phases Hybrid PWM
- Support the latest CPUs, and deliver enhanced system performance and ultimate hardware scalability.
.png)

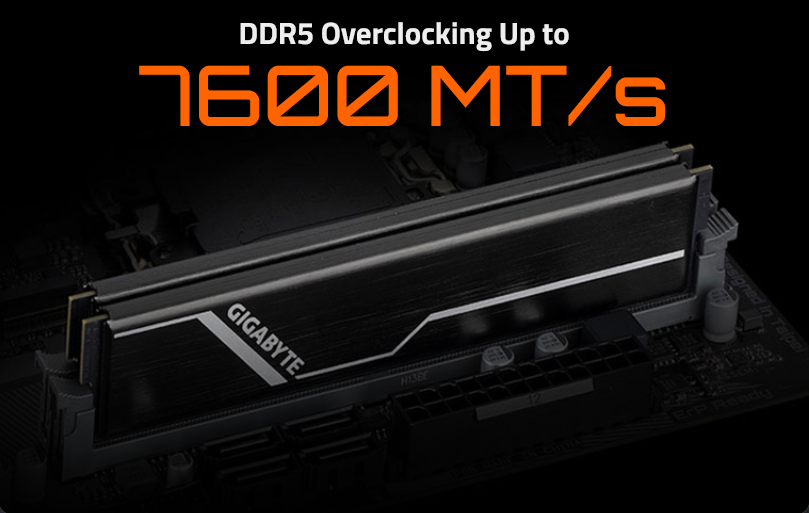

Unlock DDR5 Performance
- Unlocks Native DDR5 PMIC secure mode into programmable mode and controls Native DDR5 voltage with wide range.
- Supports all PMIC vendors for maximum compatibility.
- Memory overclocking capability will vary based on users' hardware configuration.
.png)
| CPU |
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset |
Intel® B760 Express Chipset |
| Memory |
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
| Audio |
Realtek® Audio CODEC * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| LAN |
Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset:- 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5) |
| Storage Interface | CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage device |
| USB | Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB header |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector |
| Back Panel Connectors |
1 x PS/2 keyboard/mouse port |
| I/O Controller |
iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| BIOS |
1 x 128 Mbit flash |
| Unique Features |
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash |
| Bundled Software |
Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System |
Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor |
ATX Form Factor; 30.5cm x 24.4cm |
| Κατασκευαστής | Gigabyte |
| Μοντέλο | B760 DS3H Gen5 |
| Part Number | B760 DS3H GEN5 |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | 1700 |
| Chipset | Intel B760 |
| Μέγεθος μητρικής | ATX (30.5cm x 24.4cm) |
| Τύπος Μνήμης | DDR5 |
| Αριθμός Dimm | 4 |
| Expansion Slots | 5x PCIe x16 (1x PCIe 5.0 x16, 4x PCIe 3.0 x1) |
| Αποθήκευση | 4x SATA 2x M.2 |
| Έξοδοι Γραφικών | 1x HDMI v2.1 1x DisplayPort v1.2 |
| Πρόσθετα Χαρακτηριστικά | LED Control USB (1x 3.2 Gen 2, 4 x USB 2.0/1.1) LAN - Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) USB Type-C (1x USB 3.2 Gen 2x2) M.2 Slot |
| Εγγύηση | 3 Έτη |
