Gigabyte B760 Gaming X Gen5
![Gigabyte B760 Gaming X Gen5 [B760 GAMING X GEN5] Εικόνα 1](https://static.msystems.gr/photos/big_photos/52451.jpg)
![Gigabyte B760 Gaming X Gen5 [B760 GAMING X GEN5] Εικόνα 2](https://static.msystems.gr/photos/big_photos/52451.1.jpg)
![Gigabyte B760 Gaming X Gen5 [B760 GAMING X GEN5] Εικόνα 3](https://static.msystems.gr/photos/big_photos/52451.2.jpg)
![Gigabyte B760 Gaming X Gen5 [B760 GAMING X GEN5] Εικόνα 4](https://static.msystems.gr/photos/big_photos/52451.3.jpg)
Χωρίς ΦΠΑ: 116,85 €
Πληροφορίες
Δόσεις
Buy Now - Pay Later
B760 Gaming X Gen5
- PCIe Gen5 Performance : Perfect Sync to Win
- Supports Intel® Core™ 14th/ 13th/12 processors
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
- PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance : Hybrid 8+1+1 Phases VRM Solution
- Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
- Fast Networks : 2.5GbE LAN
- Extended Connectivity : Front USB-C® 10Gb/s, DP, HDMI
- Next Generation Storage : 3*PCIe 4.0 x4 M.2 Connectors
- Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
Express to PCIE5 Performance

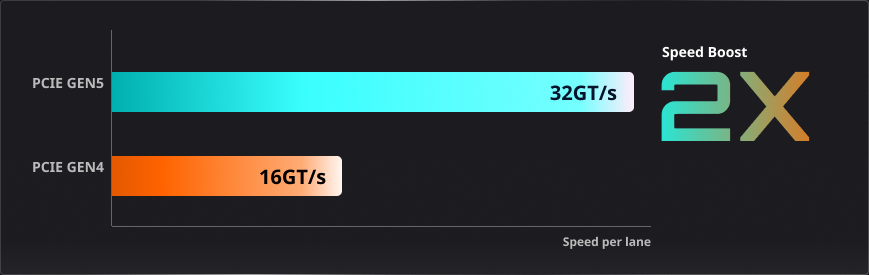

The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.
.png)

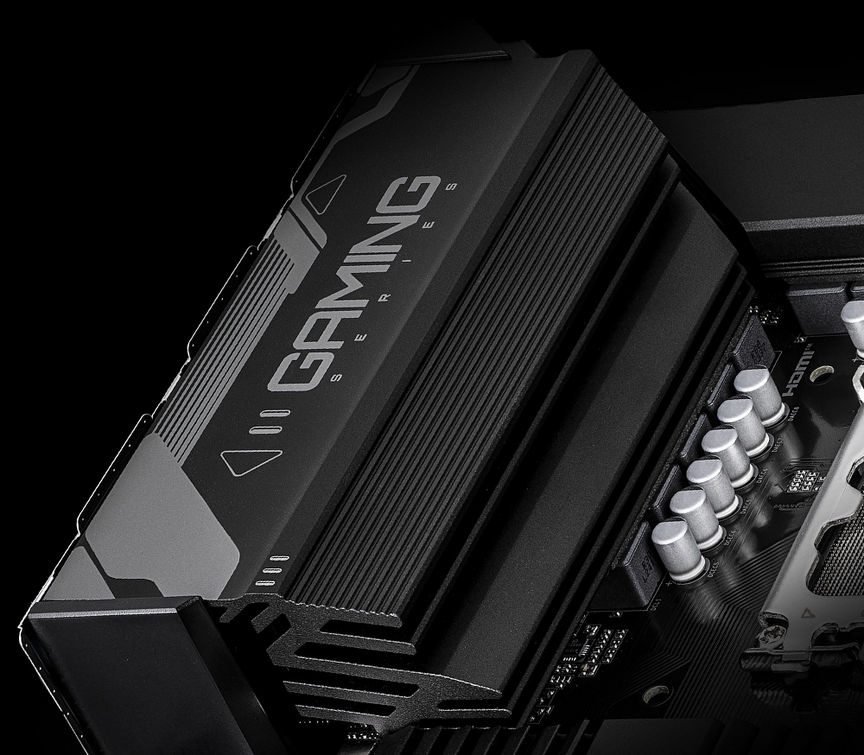

Fully Covered Thermal Design
High coverage MOSFET and integrated molding Heatsinks to improve thermal efficiency with better airflow and heat exchange.
Fully Covered MOSFET Heatsink
4X Large Surface
Increased surface area up to 4X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.
Real One-piece Build
TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.
Multi-Cut Design
TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.
.png)

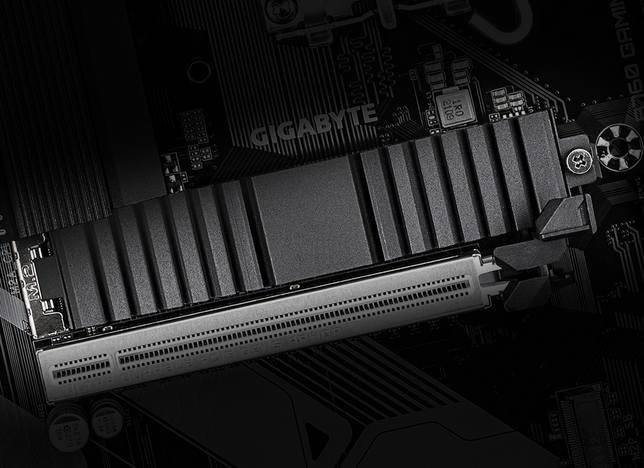

M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
.png)
Unlock DDR5 Performance
Motherboard provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory IC.
- Unlocks Native DDR5 PMIC secure mode into programmable mode and controls Native DDR5 voltage with wide range.
- Supports all PMIC vendors for maximum compatibility.
- Memory overclocking capability will vary based on users' hardware configuration.
.png)
All-round Connectivity
Experience ultimate connectivity with next-generation network and storage solutions, delivering lightning-fast data transfer speeds.
.png)
| CPU |
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, |
| Chipset |
Intel® B760 Express Chipset |
| Memory |
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3. |
| Audio |
Realtek® Audio CODEC * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset:- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
| Storage Interface | CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) - 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector |

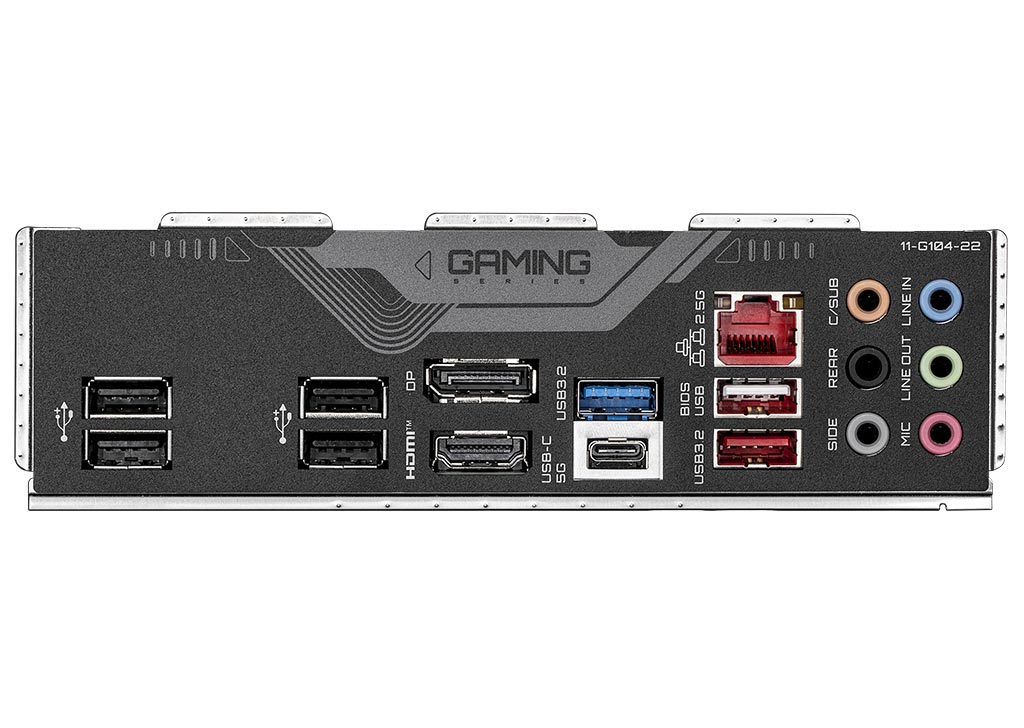

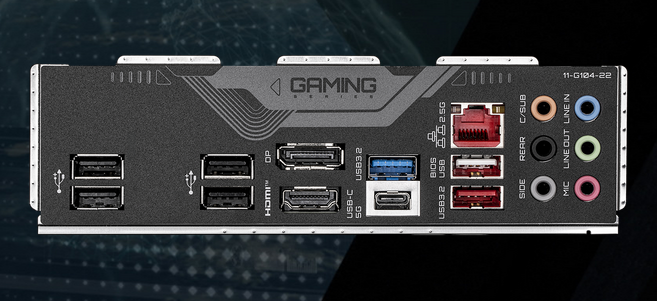

| Back Panel Connectors |
1 x USB 3.2 Gen 2 Type-A port (red) |
| I/O Controller |
iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| BIOS |
1 x 256 Mbit flash |
| Unique Features |
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash |
| Bundled Software |
Norton® Internet Security (OEM version) |
| Operating System |
Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor |
ATX Form Factor; 30.5cm x 24.4cm |
| Κατασκευαστής | Gigabyte |
| Μοντέλο | B760 Gaming X Gen5 |
| Part Number | B760 GAMING X GEN5 |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | 1700 |
| Chipset | Intel B760 |
| Μέγεθος μητρικής | ATX (30.5cm x 24.4cm) |
| Τύπος Μνήμης | DDR5 |
| Αριθμός Dimm | 4 |
| Expansion Slots | 3x PCIe x16 (1x PCIe 5.0 x16, 2x PCIe 3.0 x1) |
| Αποθήκευση | 4x SATA 3x M.2 |
| Έξοδοι Γραφικών | 1x HDMI v2.1 TMDS 1x DisplayPort v1.2 |
| Πρόσθετα Χαρακτηριστικά | LED Control USB (1x USB 3.2 Gen 2, 1x USB 3.2 Gen 1, 5x USB 2.0/1.1) LAN - Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) USB Type-C (1x USB 3.2 Gen 1) M.2 Slot |
| Εγγύηση | 3 Έτη |
