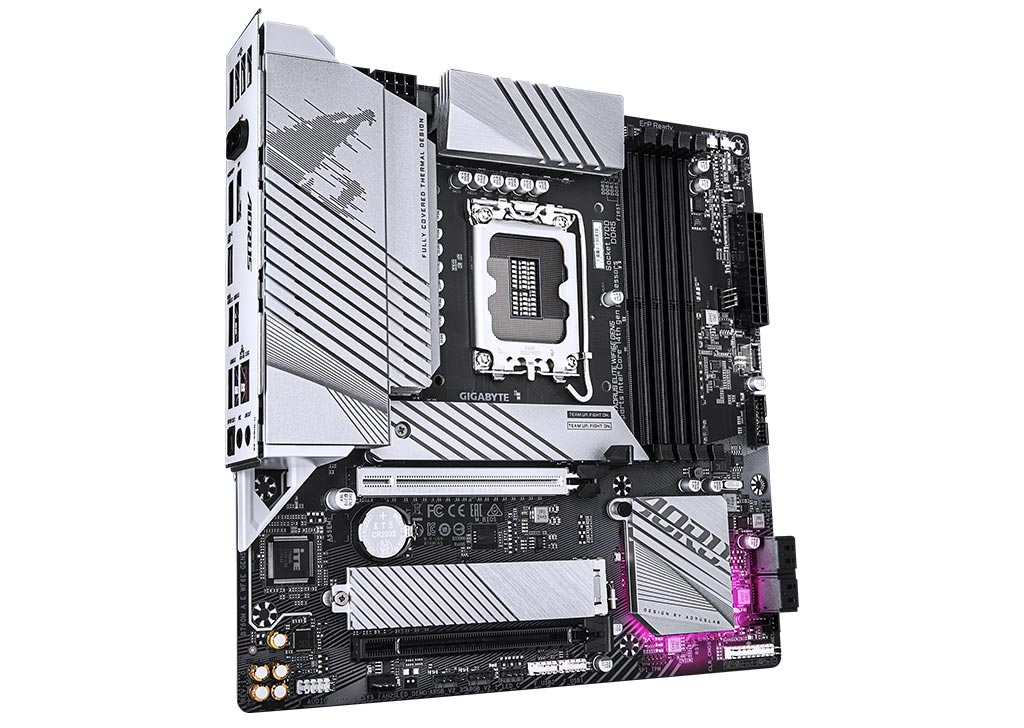

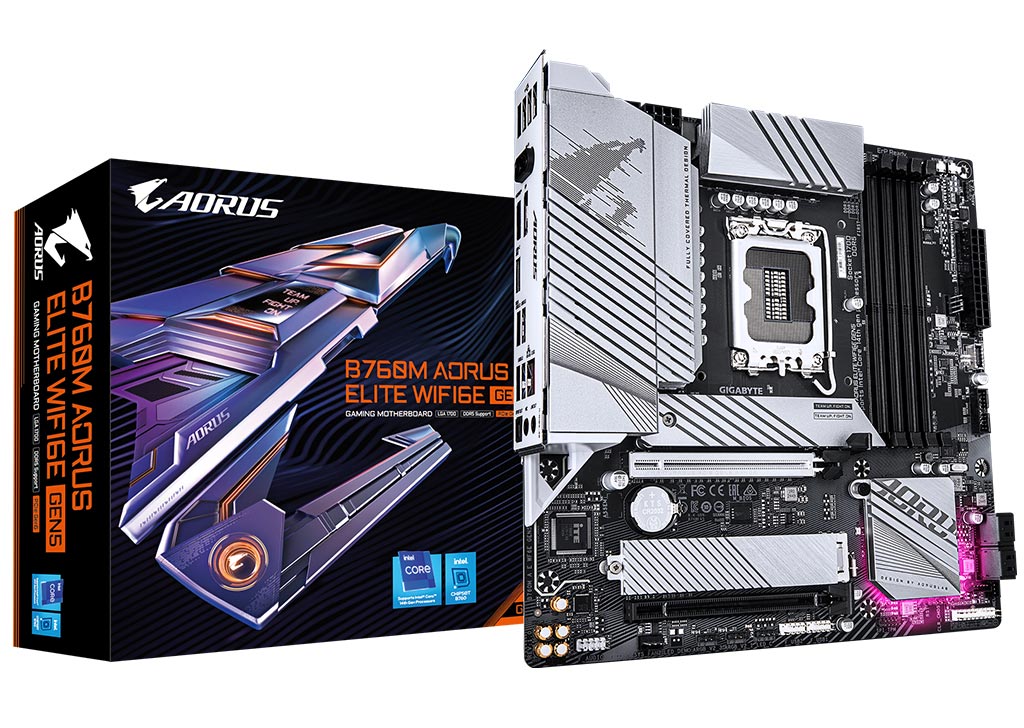

Gigabyte B760M Aorus Elite WiFi 6E Gen 5
![Gigabyte B760M Aorus Elite WiFi 6E Gen 5 [B760M A E WF6E GEN5] Εικόνα 1](https://static.msystems.gr/photos/big_photos/52594.jpg)
![Gigabyte B760M Aorus Elite WiFi 6E Gen 5 [B760M A E WF6E GEN5] Εικόνα 2](https://static.msystems.gr/photos/big_photos/52594.1.jpg)
![Gigabyte B760M Aorus Elite WiFi 6E Gen 5 [B760M A E WF6E GEN5] Εικόνα 3](https://static.msystems.gr/photos/big_photos/52594.2.jpg)
![Gigabyte B760M Aorus Elite WiFi 6E Gen 5 [B760M A E WF6E GEN5] Εικόνα 4](https://static.msystems.gr/photos/big_photos/52594.3.jpg)
Χωρίς ΦΠΑ: 153,15 €
Πληροφορίες
Δόσεις
4 άτοκες δόσεις με tbi bank
Πλήρωσε την πρώτη δόση τώρα, με τη χρεωστική σου κάρτα, και το υπόλοιπο ποσό σε 3 ακόμη άτοκες δόσεις κάθε 30 ημέρες, εύκολα και χωρίς άγχος!
B760M Aorus Elite WiFi 6E Gen 5
- PCIe Gen5 Performance : Perfect Sync to Win
- Supports Intel® Core™ 14th/ 13th /12th processors
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal
- EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
- EZ-Latch Plus : M.2 Connectors with Quick Release & Screwless Design
- PCIe UD Slot: SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance : Twin 12*+1+1 Phases Hybrid VRM Solution
- Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
- Fast Networks : 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity : Rear USB-C® 20Gb/s, Front USB-C® 10Gb/s, DP, HDMI
- Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
- Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
- High-Res Audio : ALC1220 & High-End Audio Capacitors

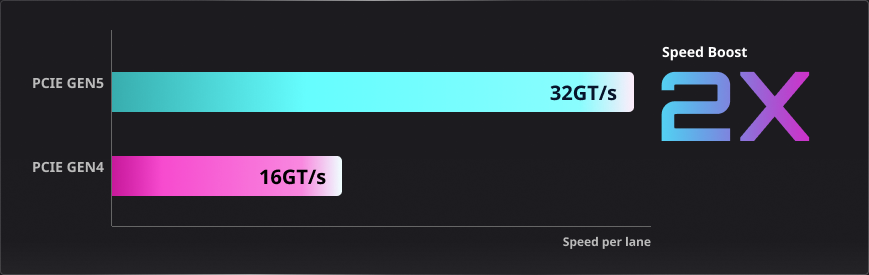

Express to PCIE5 Performance
The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.
.png)
Fully Covered MOSFET Heatsink
4X Large Surface
Increased surface area up to 4X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.
Real One-piece Build
TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.
Multi-Cut Design
TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.
.png)

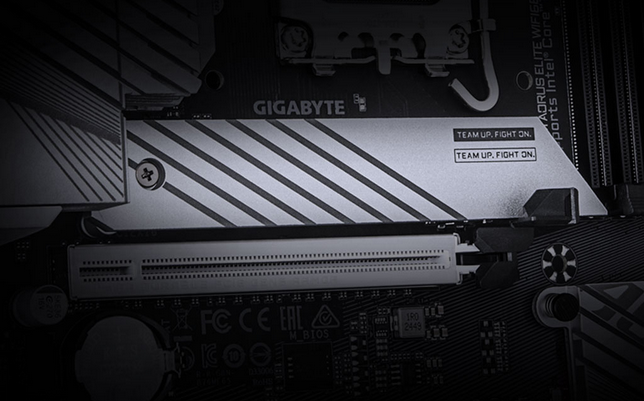

M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
.png)

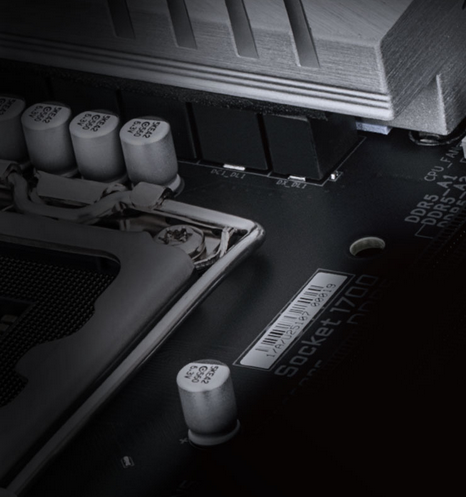

2X Copper PCB
By adopting 2X copper on PCB inner layer, it lowers the components' temperature at least 3% by turning the PCB into a super thin PCB size copper heatsink to dissipate the heat from the components effectively, due to it’s high thermal conductivity and lower impedance.
.png)

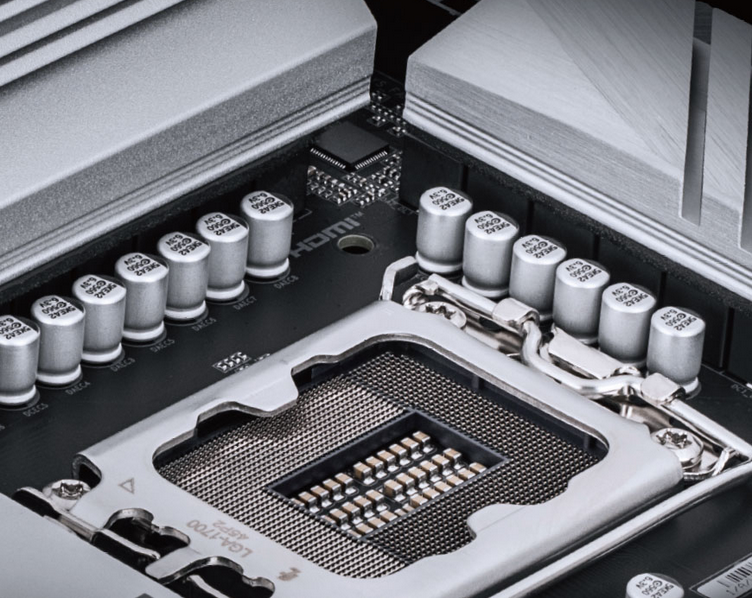

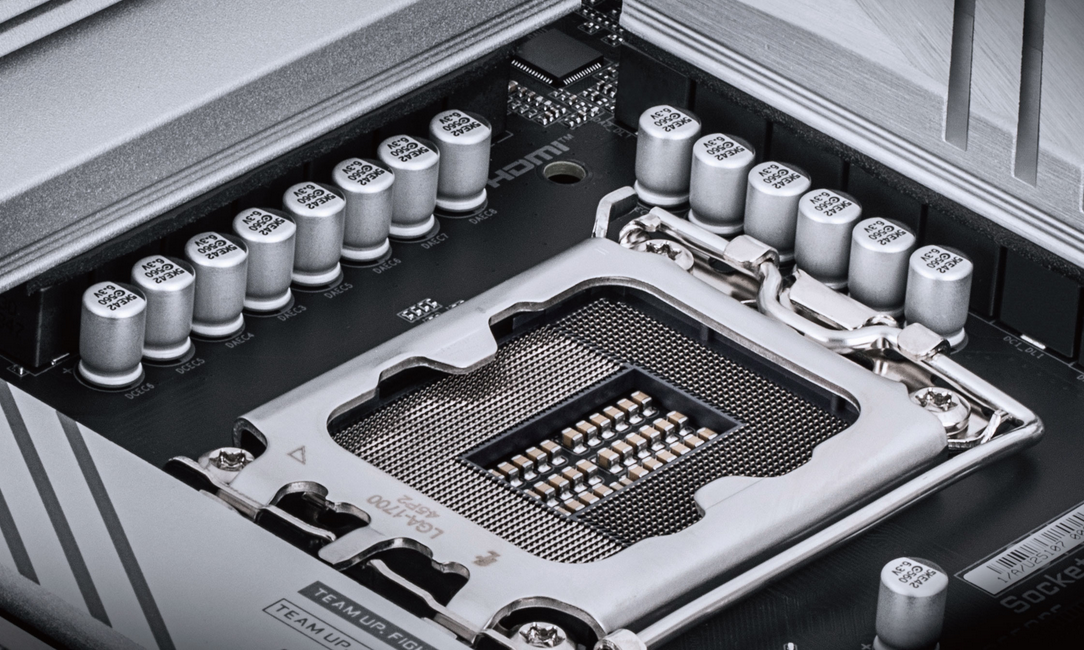

Optimal Power
Twin Hybrid VRM Design
To ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, AORUS series motherboard equip the best VRM design ever built with the highest quality components.
.png)

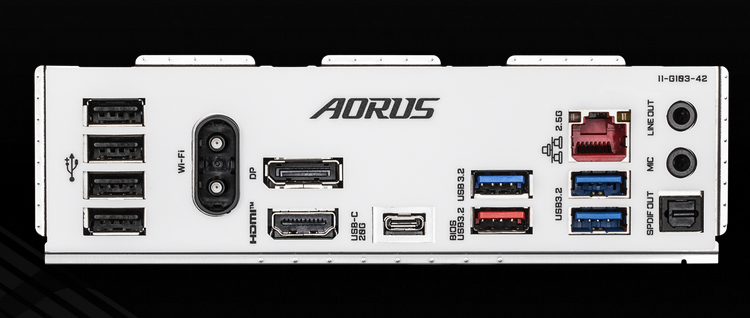

All-round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
.png)
| CPU |
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™,Pentium® Gold and Celeron® Processors |
| Chipset |
Intel® B760 Express Chipset |
| Memory |
Support for DDR5 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
| Audio |
Realtek® Audio CODEC * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Intel® Wi-Fi 6E AX210 - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Storage Interface | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 1 x USB 3.2 Gen 1 port on the back panel - 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector |
| Back Panel Connectors |
2 x antenna connectors (2T2R) |
| I/O Controller |
iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection * Whether the fan speed control function is supported will depend on the fan you install. |
| BIOS |
1 x 256 Mbit flash |
| Unique Features |
Support for GIGABYTE Control Center (GCC) |
| Bundled Software |
Norton® Internet Security (OEM version) |
| Operating System |
Support for Windows 11 64-bit |
| Form Factor |
Micro ATX Form Factor; 24.4cm x 24.4cm |
| Κατασκευαστής | Gigabyte |
| Μοντέλο | B760M Aorus Elite WiFi 6E Gen 5 |
| Part Number | B760M A E WF6E GEN5 |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | 1700 |
| Chipset | Intel B760 |
| Μέγεθος μητρικής | ATX (24.4cm x 24.4cm) |
| Τύπος Μνήμης | DDR5 |
| Αριθμός Dimm | 4 |
| Expansion Slots | 2x PCIe x16 (1x PCIe 5.0 x16, 1x PCIe 4.0 x4) |
| Αποθήκευση | 4x SATA 2x M.2 |
| Έξοδοι Γραφικών | 1x HDMI v2.1 1x DisplayPort v1.2 |
| Πρόσθετα Χαρακτηριστικά | LED Control Wi-Fi - Intel® Wi-Fi 6E AX210 6GHz 160MHz Bluetooth v5.3 USB (1x USB 3.2 Gen 2, 3x USB 3.2 Gen 1, 4x USB 2.0/1.1) LAN - Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) USB Type-C (1x USB 3.2 Gen 2x2) M.2 Slot |
| Εγγύηση | 3 Έτη |
