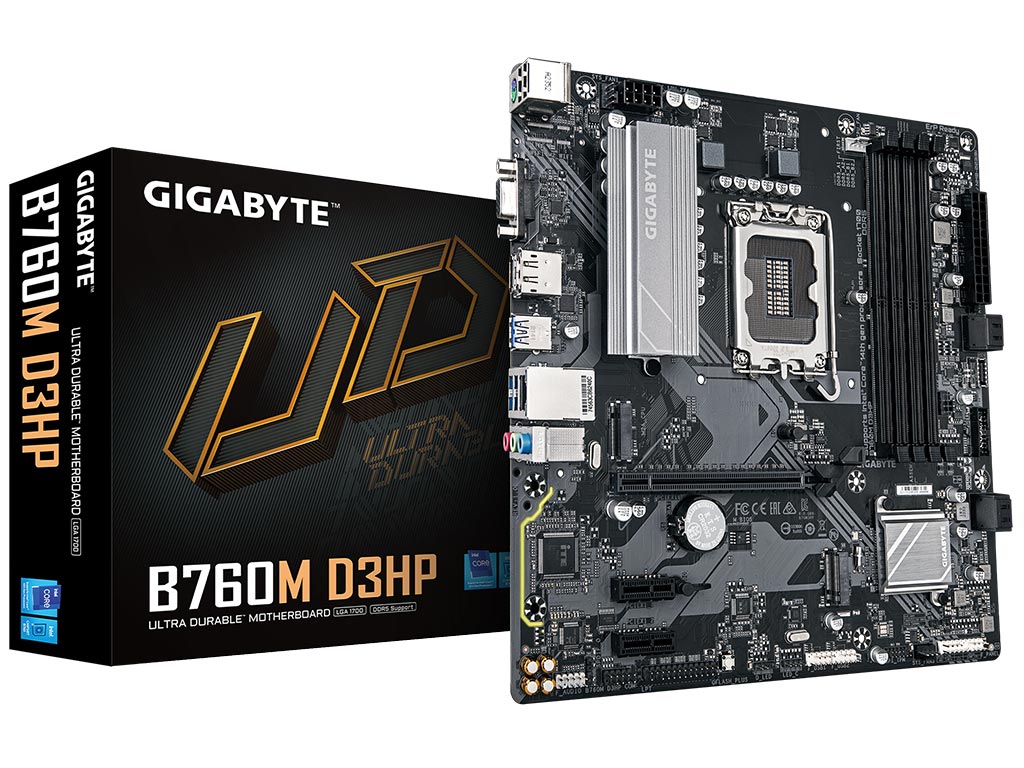

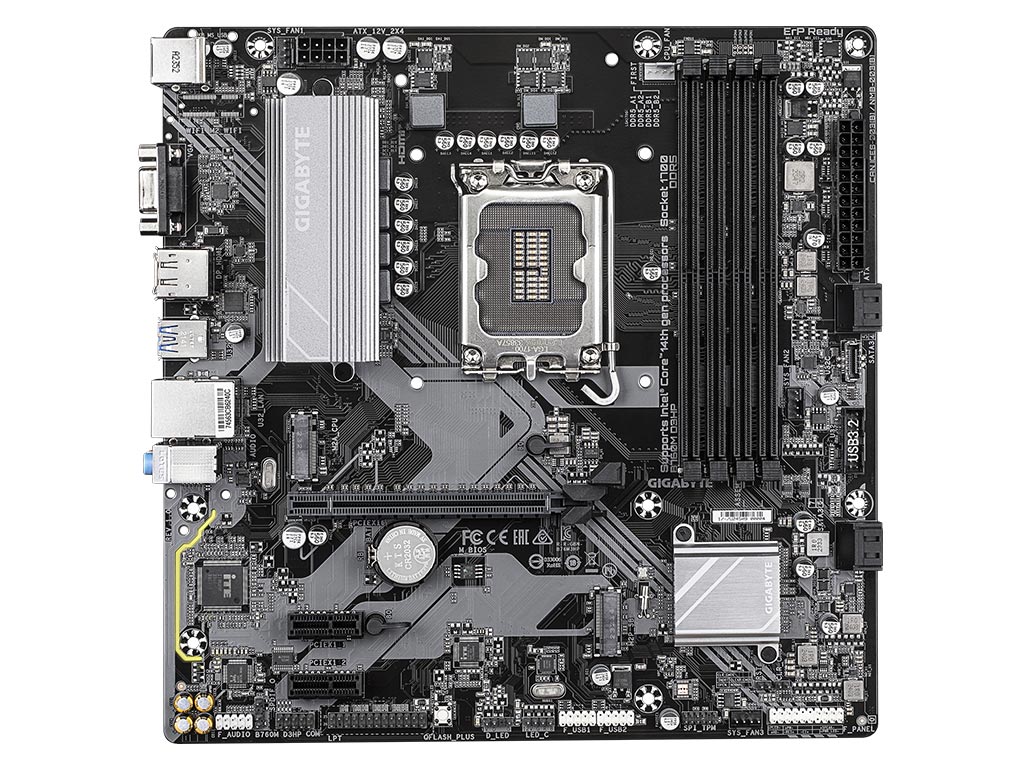

Gigabyte B760M D3HP
![Gigabyte B760M D3HP [B760M D3HP] Εικόνα 1](https://static.msystems.gr/photos/big_photos/50243.jpg)
![Gigabyte B760M D3HP [B760M D3HP] Εικόνα 2](https://static.msystems.gr/photos/big_photos/50243.1.jpg)
![Gigabyte B760M D3HP [B760M D3HP] Εικόνα 3](https://static.msystems.gr/photos/big_photos/50243.2.jpg)
Χωρίς ΦΠΑ: 92,66 €
Πληροφορίες
Δόσεις
Buy Now - Pay Later
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 4+1+1 Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- Fast Networks：GbE LAN
- Extended Connectivity：Front USB-C® 5Gb/s, DP, HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

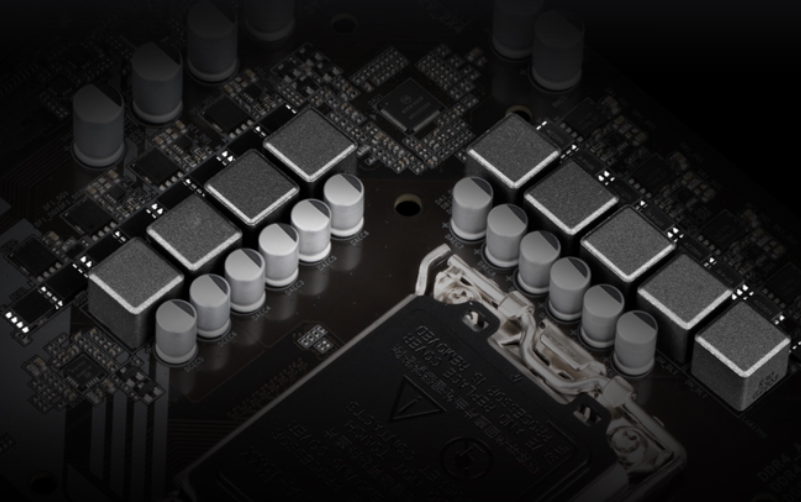

Digital VRM Design
The best VRM design ever built with the highest quality components.
• 4+1+1 Phases digital PWM + Low RDS(on) MOSFETs
• Support the latest CPUs, and deliver enhanced system performance and ultimate hardware scalability.
.png)
Unlock DDR5
DDR5 Overclocking Up to 7600 and Beyond
GIGABYTE is offering a tested and proven platform with extreme memory performance boost.
.png)

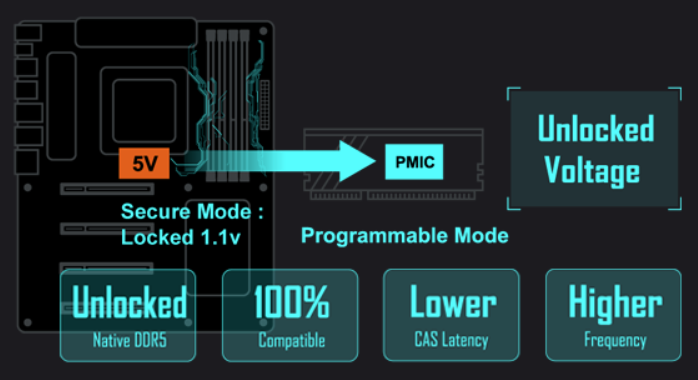

Unlock DDR5 Voltage
GIGABYTE Exclusive DDR5 Circuit Design Increases DDR5 memory overclocking performance and capability by transforming Native DDR5 memory module to Overclocked DDR5 memory.
.png)

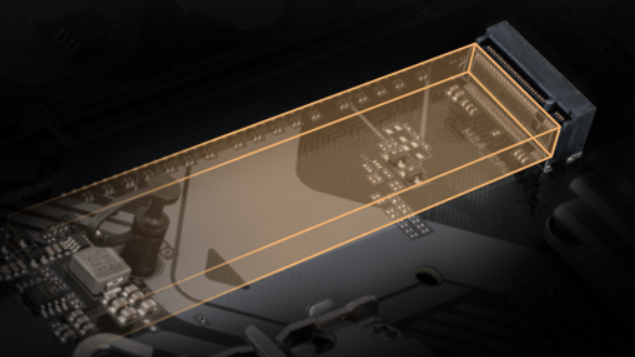

PCIe 4.0 Hardware Design
Featuring one or multiple PCIe 4.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 4.0 devices to provide the superior performance.
.png)

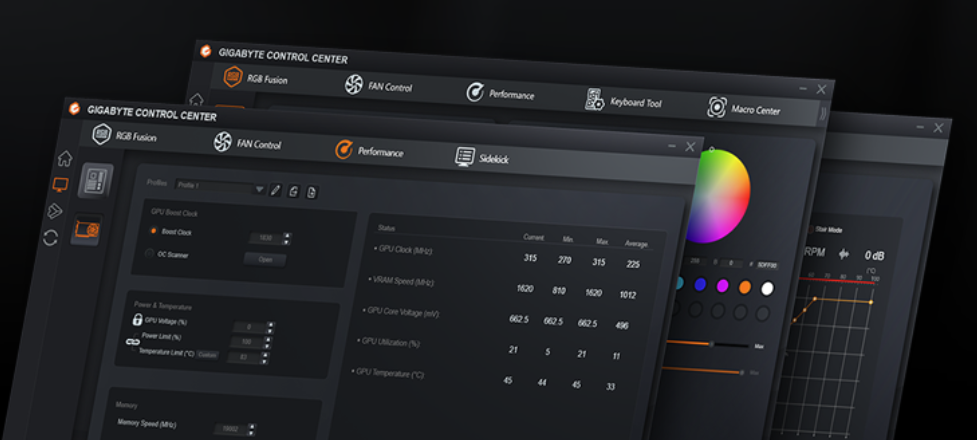

GIGABYTE Control Center
Unified software platform for all Gigabyte supported products.
- - Intuitive user interface
- - Modularized control
- - Auto update
.png)
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
| Chipset | Intel® B760 Express Chipset |
| Memory |
14th and 13th Generation Intel® Core™ i9/i7 Processors: |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)Support for up to triple-display at the same time |
| Audio |
Realtek® Audio CODEC * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| LAN |
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset:- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Storage Interface | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector |

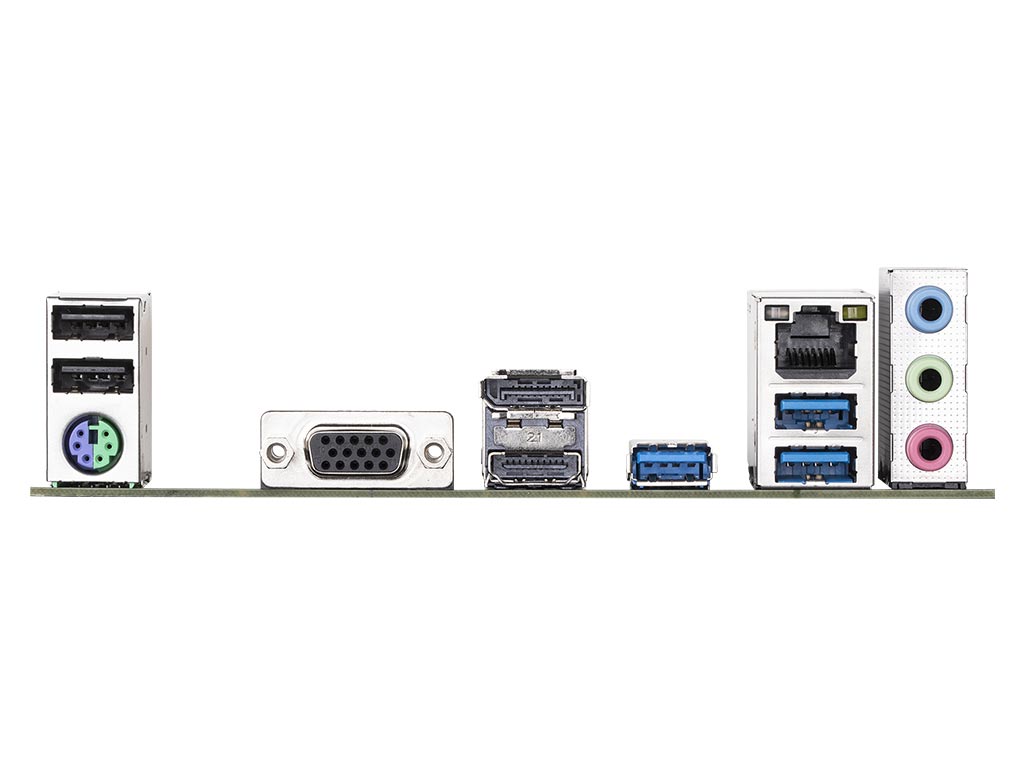

| Back Panel Connectors |
2 x USB 2.0/1.1 ports |
| I/O Controller |
iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection * Whether the fan speed control function is supported will depend on the fan you install |
| BIOS |
1 x 128 Mbit flash |
| Unique Features |
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash |
| Bundled Software |
Norton® Internet Security (OEM version) |
| Operating System |
Support for Windows 11 64-bit |
| Form Factor |
Micro ATX Form Factor; 24.4cm x 24.4cm |
| Κατασκευαστής | Gigabyte |
| Μοντέλο | B760M D3HP |
| Part Number | B760M D3HP |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | 1700 |
| Chipset | Intel B760 |
| Μέγεθος μητρικής | Micro ATX (24.4cm x 24.4cm) |
| Τύπος Μνήμης | DDR5 |
| Αριθμός Dimm | 4 |
| Expansion Slots | 1x PCIe x16 - (PCIe 4.0 x16) 2x PCIe x1 - (PCIe 3.0 x1) |
| Αποθήκευση | 4x SATA 2x M.2 |
| Έξοδοι Γραφικών | 1x HDMI (v2.1) 1x DisplayPort (v1.2) 1x VGA |
| Πρόσθετα Χαρακτηριστικά | LED Control USB (3x USB 3.2 Gen 1, 2 x USB 2.0/1.1) LAN - Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) M.2 Slot |
| Εγγύηση | 3 Έτη |
