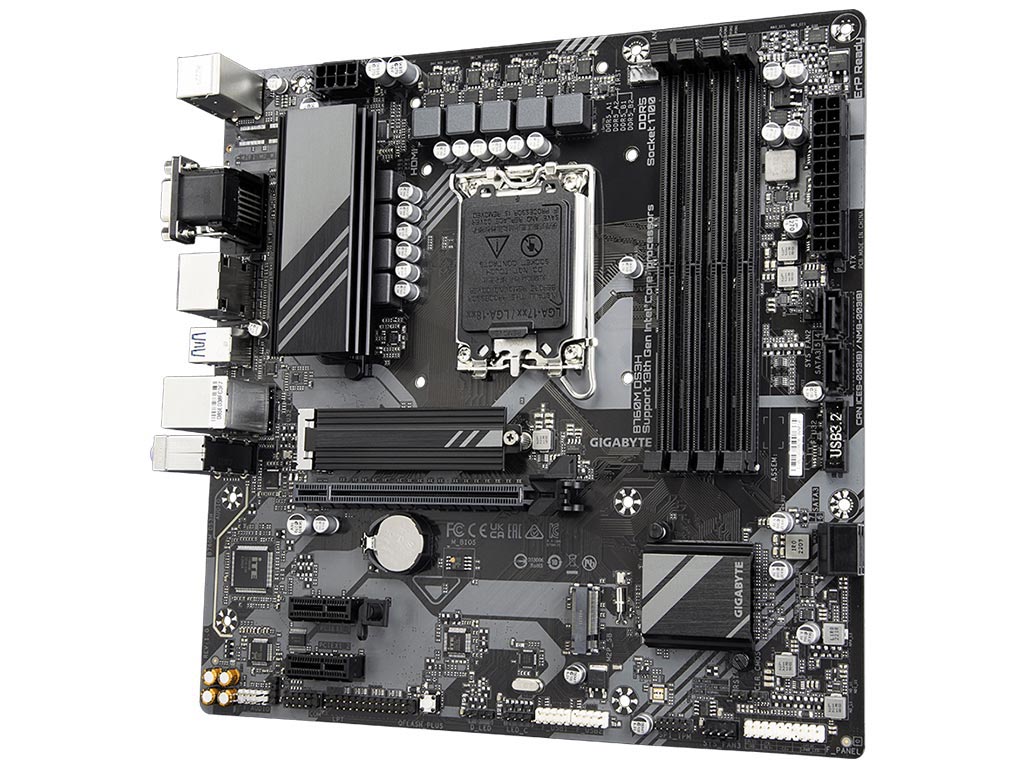

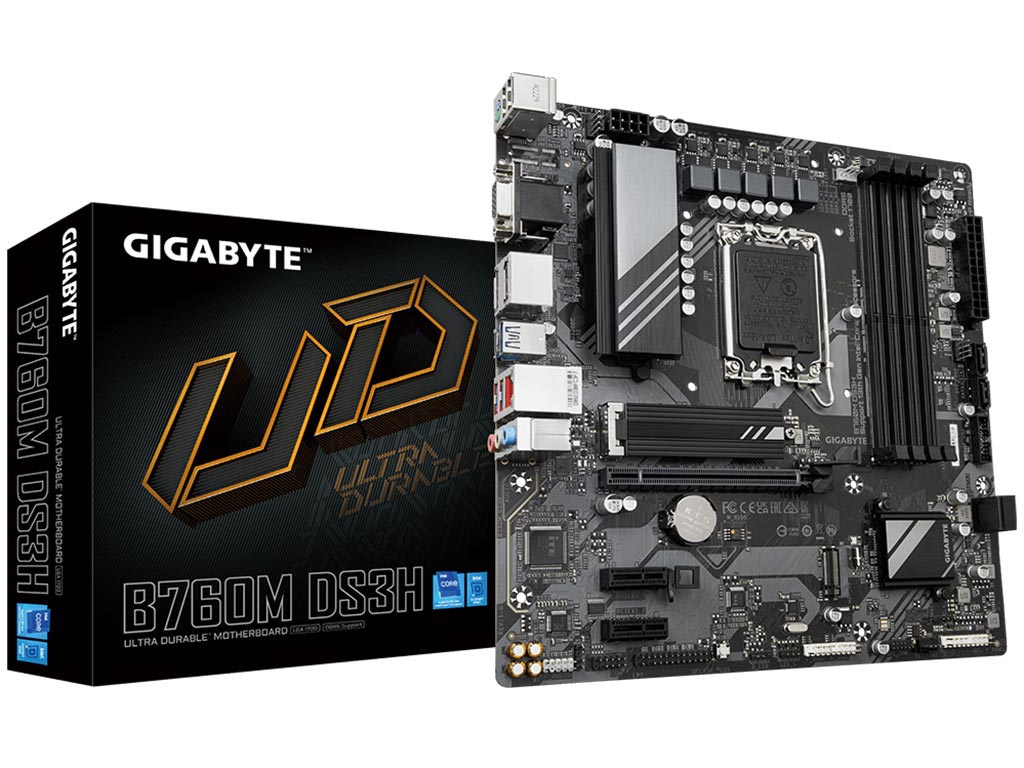

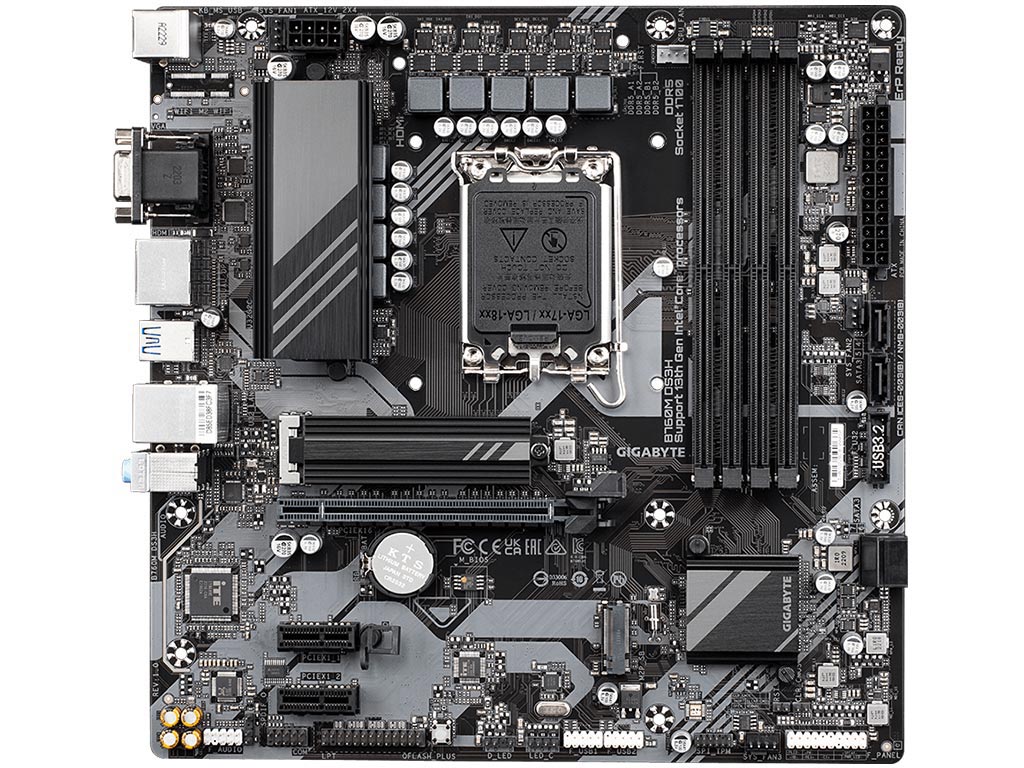

Gigabyte B760M DS3H
Χωρίς ΦΠΑ: 112,82 €
Πληροφορίες
Δόσεις
Buy Now - Pay Later
B760M DS3H
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- M.2 Thermal Guard：To Ensure M.2 SSD Performance
- EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN
- Extended Connectivity：Rear USB-C® 10Gb/s, DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

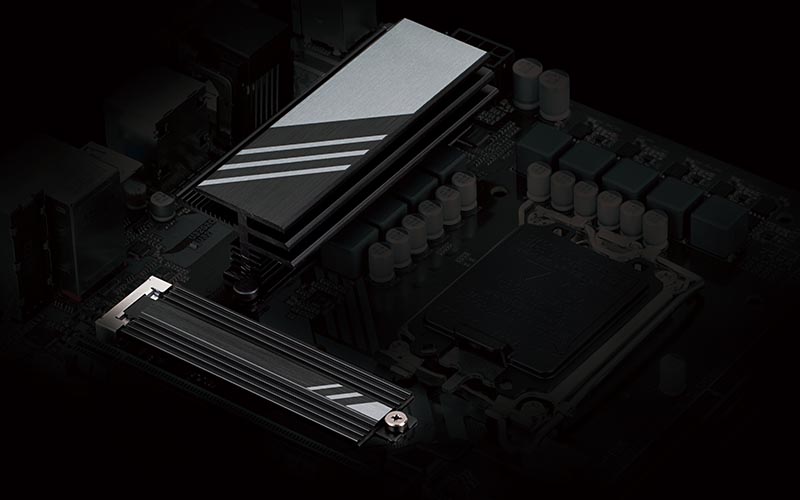

THERMAL
Enlarged Surface Design of MOSFET Heatsink greatly improves heat dissipation.

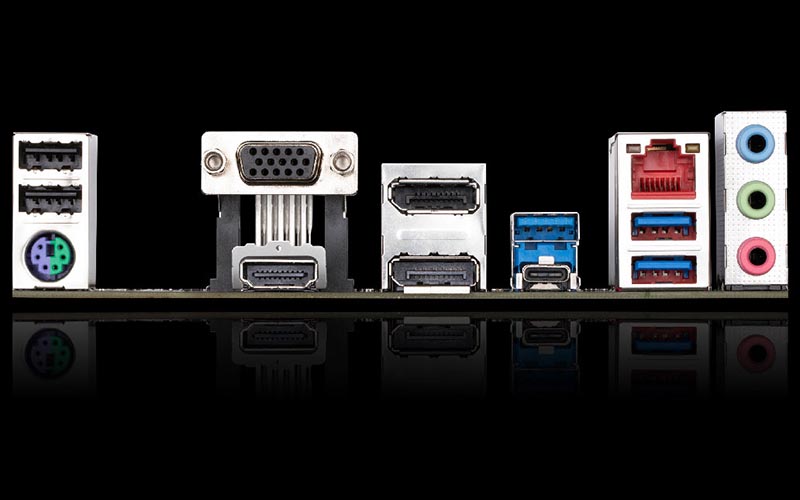

CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network and storage.
.jpg)
PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
.jpg)
| CPU |
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU |
| Chipset |
Intel® B760 Express Chipset |
| Memory |
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules.) |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x 1200 @60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x 2160 @60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x 2304 @60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x 2304 @60 Hz Support for up to quad-display at the same time |
| Audio |
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset:2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Storage Interface | CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | Chipset:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs:4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/ GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |

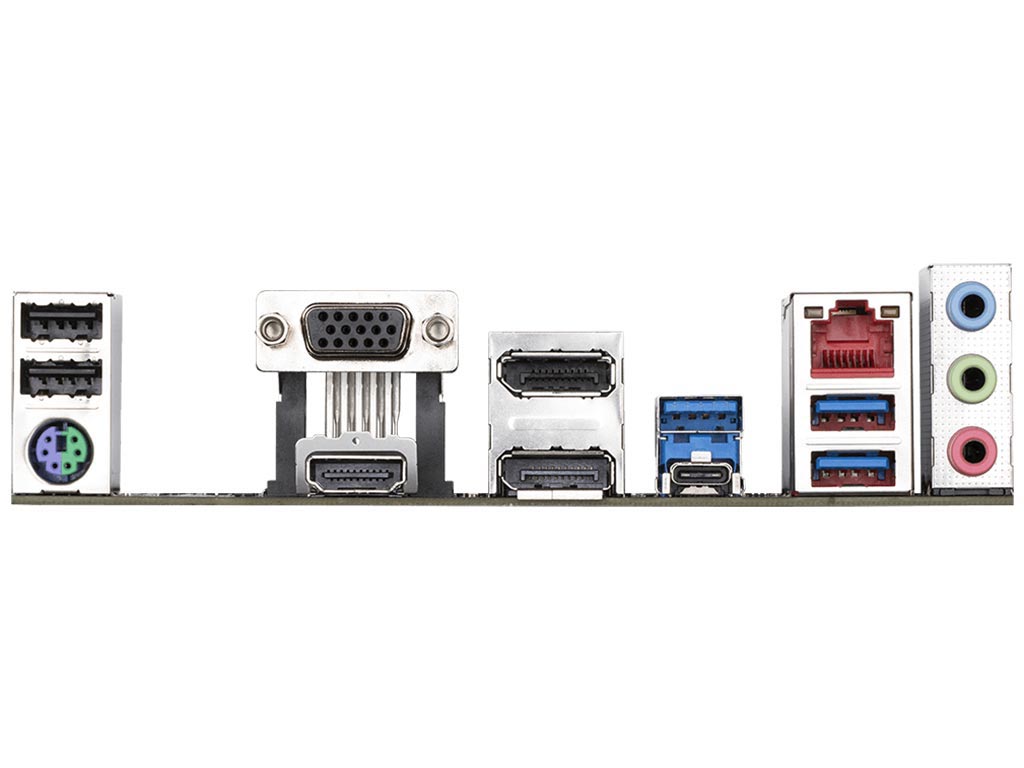

| Back Panel Connectors |
2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks |
| I/O Controller |
iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| BIOS |
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
| Bundled Software |
Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System |
Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor |
Micro ATX Form Factor; 24.4cm x 24.4cm |
| Κατασκευαστής | Gigabyte |
| Μοντέλο | B760M DS3H |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | 1700 |
| Chipset | Intel B760 |
| Μέγεθος μητρικής | Micro ATX (24.4 x 24.4cm) |
| Τύπος Μνήμης | DDR5 |
| Αριθμός Dimm | 4 |
| Expansion Slots | 1x PCIe x16 (PCIe 4.0) 2x PCIe x1 (PCIe 3.0) |
| Αποθήκευση | 4x SATA 2x M.2 |
| Έξοδοι Γραφικών | 1x HDMI v2.0 2x DisplayPort v1.2 1x VGA |
| Πρόσθετα Χαρακτηριστικά | LED Control USB Type-C M.2 Slot |
| Εγγύηση | 3 Έτη |
