Gigabyte B860 Gaming X WiFi 6E

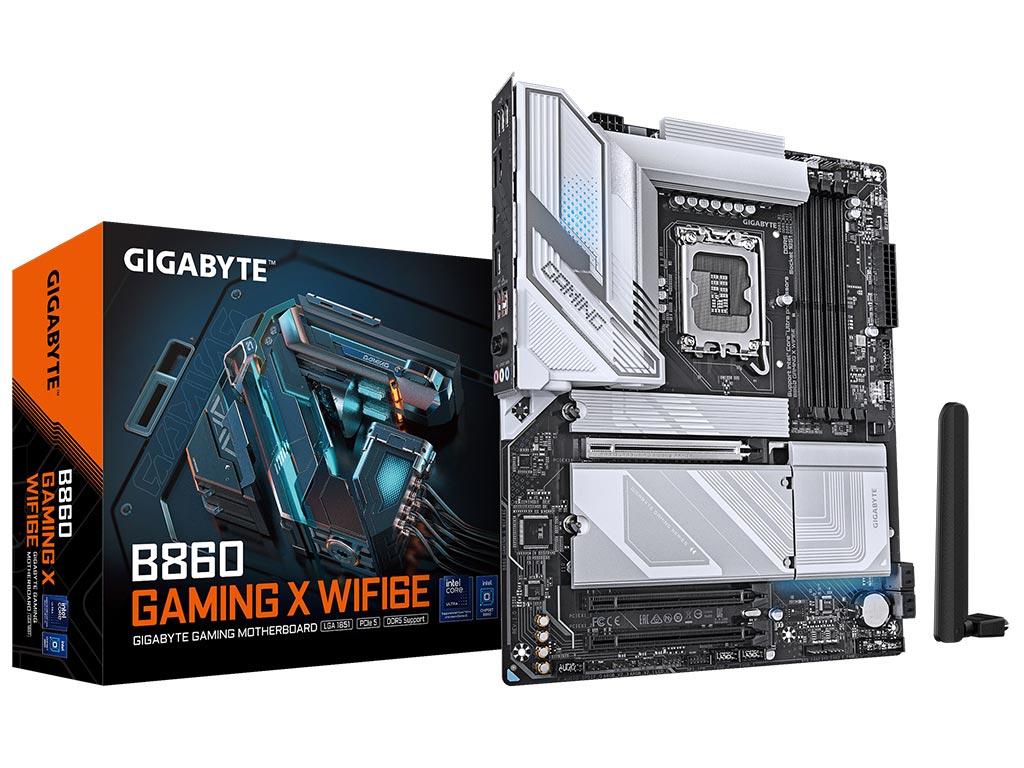

![Gigabyte B860 Gaming X WiFi 6E [B860 GAMING X WIFI6E] Εικόνα 1](https://static.msystems.gr/photos/big_photos/50224.jpg)

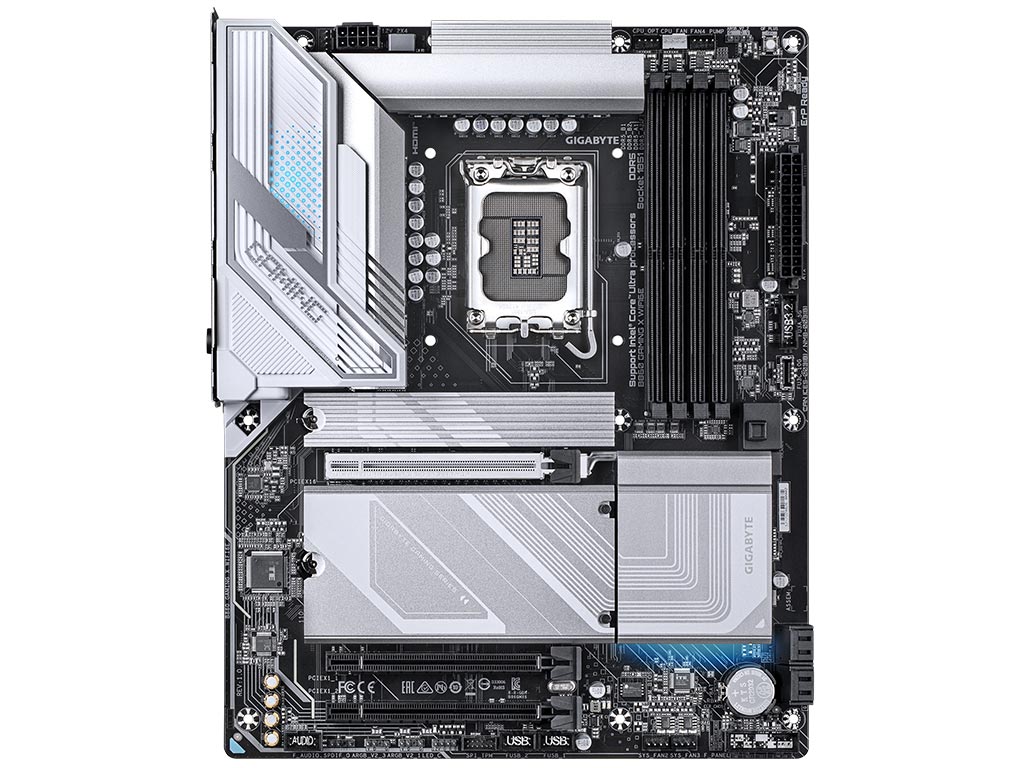

![Gigabyte B860 Gaming X WiFi 6E [B860 GAMING X WIFI6E] Εικόνα 2](https://static.msystems.gr/photos/big_photos/50224.1.jpg)
![Gigabyte B860 Gaming X WiFi 6E [B860 GAMING X WIFI6E] Εικόνα 3](https://static.msystems.gr/photos/big_photos/50224.2.jpg)
Χωρίς ΦΠΑ: 212,82 €
Πληροφορίες
Δόσεις
Άτοκες Δόσεις
Buy Now - Pay Later
- Supports Intel® Core™ Ultra processors (Series 2)
- Twin Hybrid 12+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity : USB4 Type-C with DP-Alt, HDMI, DisplayPort
Infinite Memory Performance
Gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
.png)

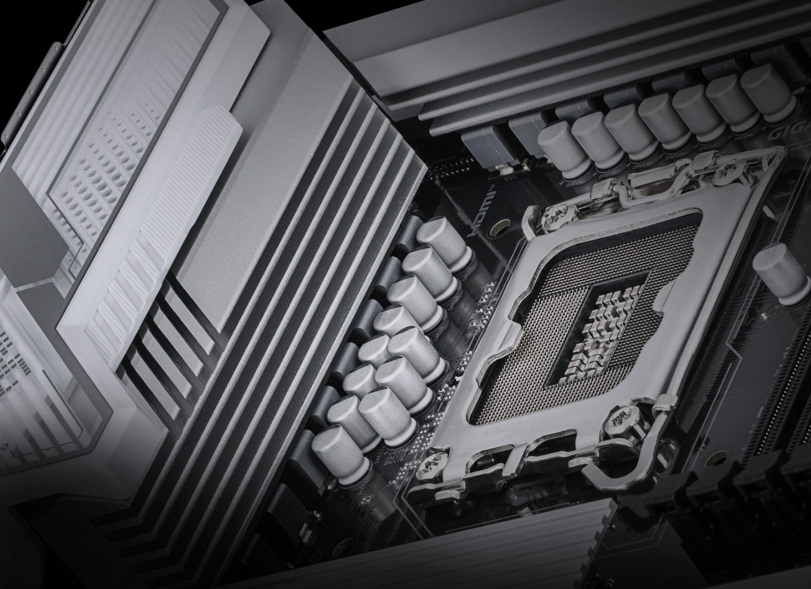

Steady Power
Better Play GAMING Series, steady power keeps your gaming smooth.
.png)

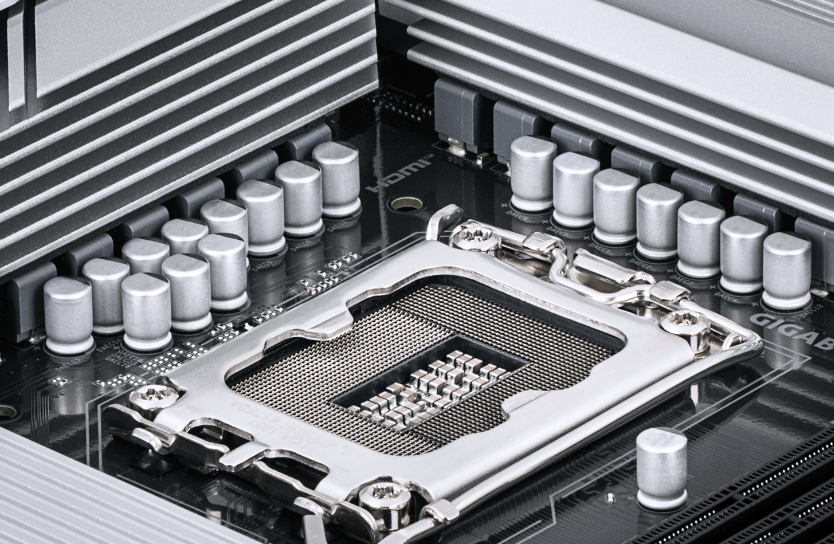

Level Up Epic VRM heatsinks for non-stop gaming
High-coverage MOSFETs with integrated molded heatsinks
.png)

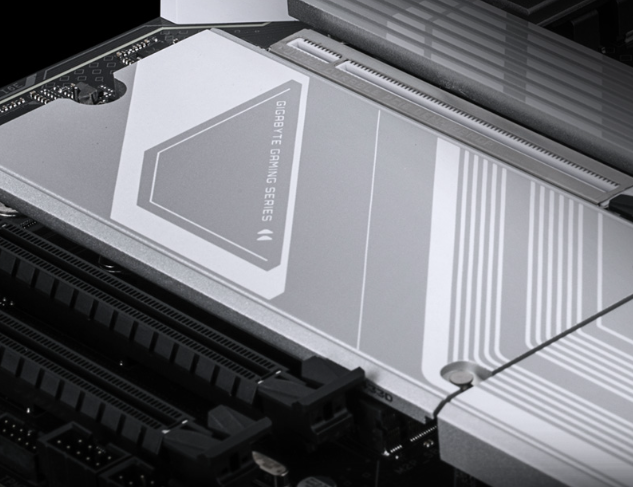

M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
.png)

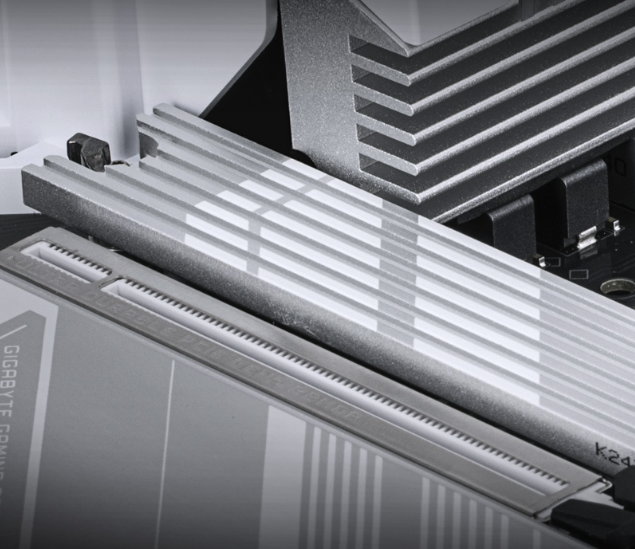

M.2 Thermal Guard Ext.
.png)

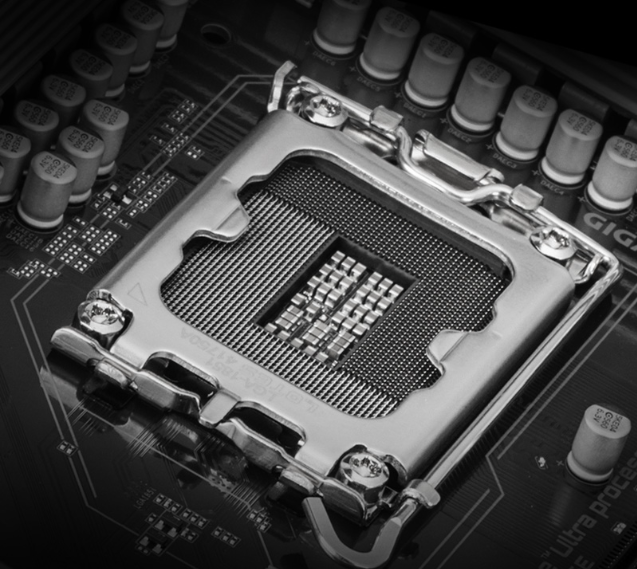

RL-ILM design
The RL-ILM (Reduced Load-independent loading mechanisms) significantly improves thermal performance up to 4°C and avoids possible bending of the CPU IHS (integrated heat spreader), allowing overclockers and enthusiasts to push their CPUs beyond the limit without any worries.
.png)
All-round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
.png)
| CPU | LGA1851 socket: Support for Intel ® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
| Chipset | Intel ® B860 Express Chipset |
| Memory |
Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.)- Support for up to triple-display at the same time |
| Audio |
Realtek® Audio CODEC * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Intel ® Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset:- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1,PCIEX1_2) |
| Storage Interface | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | CPU: - 1 x USB4® USB Type-C® port on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: - 9 x USB 2.0/1.1 ports (5 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector |

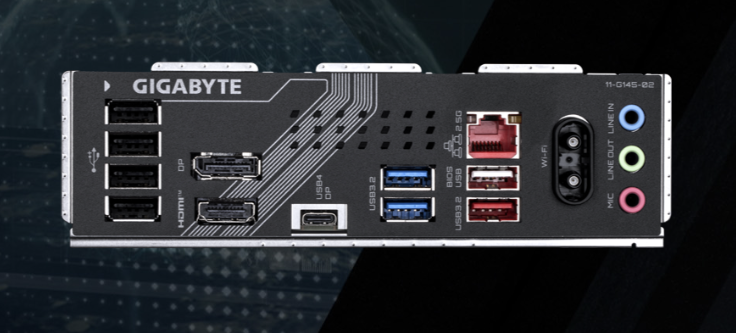

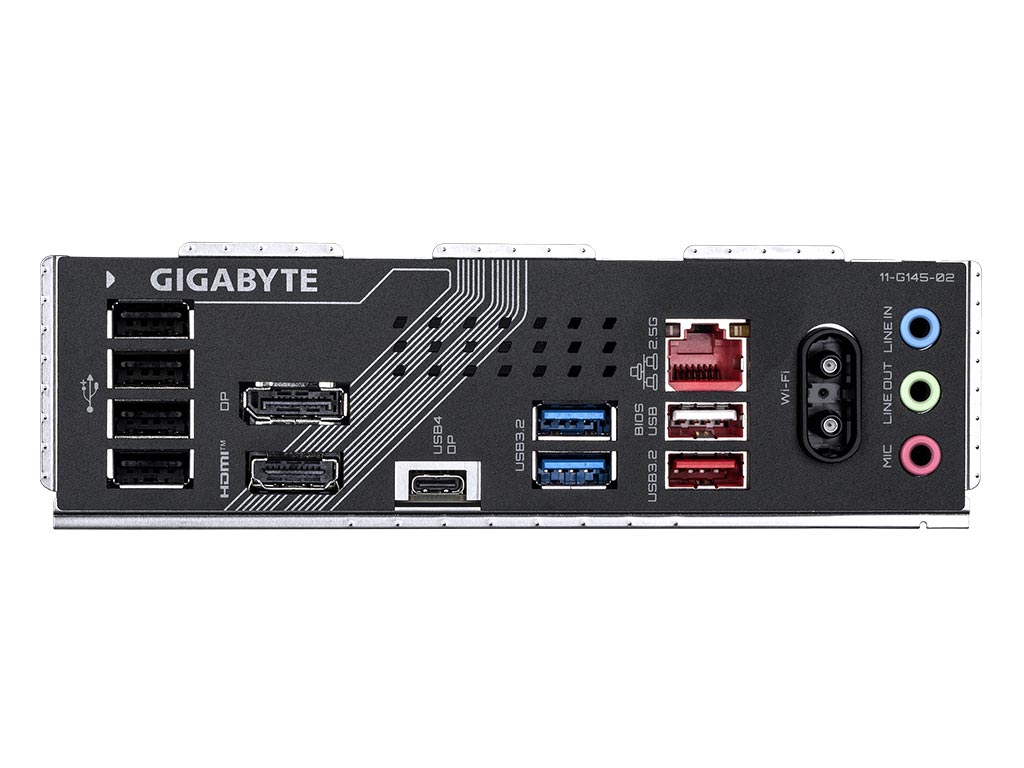

| Back Panel Connectors |
1 x HDMI port (Note) |
| I/O Controller |
iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install. |
| BIOS |
1 x 256 Mbit flash |
| Unique Features |
Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash |
| Bundled Software |
Norton® Internet Security (OEM version) |
| Operating System |
Support for Windows 11 64-bit |
| Form Factor |
ATX Form Factor; 30.5cm x 24.4cm |
| Κατασκευαστής | Gigabyte |
| Μοντέλο | B860 Gaming X WiFi 6E |
| Part Number | B860 GAMING X WIFI6E |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | 1851 |
| Chipset | Intel B860 |
| Μέγεθος μητρικής | ATX - (30.5 x 24.4 cm) |
| Τύπος Μνήμης | DDR5 |
| Αριθμός Dimm | 4 |
| Expansion Slots | 3x PCIe x16 - (1x PCIe 5.0 x16, 2x PCIe 4.0 x1) |
| Αποθήκευση | 4x SATA 3x M.2 |
| Έξοδοι Γραφικών | 1x HDMI (v2.1) 1x DisplayPort (v2.1) |
| Πρόσθετα Χαρακτηριστικά | LED Control Wi-Fi - Intel ® Wi-Fi 6E AX211 160MHz 6GHz Bluetooth v5.3 USB (2 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2, 5 x USB 2.0/1.1) LAN - Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) USB Type-C (1x USB4® (DisplayPort)) M.2 Slot |
| Εγγύηση | 3 Έτη |
