Gigabyte H410M H V3 (rev.1.3)

Εξαντλημένο
-
Χωρίς ΦΠΑ: - €
Πληροφορίες
Κωδικός Msystems: 001-53901
Part Number: GAH41MHV3-00-G
Εγγύηση: 3 Έτη

Παρακαλώ συμπληρώστε τον ΤΚ σας
Παρακαλώ επιλέξτε νομό
Παρακαλώ επιλέξτε πόλη

Με πιστωτική κάρτα Visa, Mastercard, American Express, Diners
Παρακάτω βλέπετε τις επιλογές για τις έντοκες δόσεις. για άτοκες δόσεις πρέπει το συνολικό ποσό της παραγγελίας σας να ξεπερνά τα 200€
38,72 € / δόση = 77,44
25,93 € / δόση = 77,79
19,53 € / δόση = 78,14
15,70 € / δόση = 78,48
13,14 € / δόση = 78,83
11,31 € / δόση = 79,18
9,94 € / δόση = 79,54
8,88 € / δόση = 79,89
8,02 € / δόση = 80,24
7,33 € / δόση = 80,60
6,75 € / δόση = 80,96
6,26 € / δόση = 81,32
5,83 € / δόση = 81,68
5,47 € / δόση = 82,04
5,15 € / δόση = 82,40
4,87 € / δόση = 82,77
4,62 € / δόση = 83,14
4,40 € / δόση = 83,51
4,19 € / δόση = 83,88
4,01 € / δόση = 84,25
3,85 € / δόση = 84,62
3,70 € / δόση = 85,00
3,56 € / δόση = 85,37
3,43 € / δόση = 85,75
3,31 € / δόση = 86,13
3,20 € / δόση = 86,51
3,10 € / δόση = 86,89
3,01 € / δόση = 87,28
2,92 € / δόση = 87,66
2,84 € / δόση = 88,05
2,76 € / δόση = 88,44
2,69 € / δόση = 88,83
2,62 € / δόση = 89,22
2,56 € / δόση = 89,62
2,50 € / δόση = 90,01

Buy Now - Pay Later μέσω tbi bank
Πραγματοποιήστε τις αγορές σας, για ποσά από 30€ έως 250€, σε 4 μηνιαίες δόσεις με την χρήση μόνο της χρεωστικής σας κάρτας
Facebook Twitter Email
Facebook Twitter Email
Περιγραφή
CPU

Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1200 package

L3 cache varies with CPU

Chipset

Intel® H410 Express Chipset

Memory

Intel® Core™ i9/i7 processors:
Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules

Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/ 2400/ 2133 MHz memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920 x 1200@60 Hz

1 x HDMI port, supporting a maximum resolution of 4096 x 2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.

Maximum shared memory of 512 MB
(Graphics specifications may vary depending on CPU support.)
Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

LAN

Gigabit Ethernet Chip (1 Gbps/100 Mbps)

Expansion Slots

1 x PCI Express x16 slot, running at x16

1 x PCI Express x1 slot
(The PCI Express slots conform to PCI Express 3.0 standard.

Storage Interface Chipset:

1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 PCIe x4/x2 SSD support)

4 x SATA 6Gb/s connectors

USB Chipset:

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

4 x SATA 6Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x RGB LED strip header

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/ GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Clear CMOS jumper

*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Back Panel Connectors

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x D-Sub port

1 x HDMI port

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer

Support for Q-Flash

Support for Xpress Install

Bundled Software

Norton® Internet Security (OEM version)

Realtek® 8118 Gaming LAN Bandwidth Control Utility

Operating System

Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 22.6cm x 18.5cm

H410M H V3

Intel® Ultra Durable Motherboard with GIGABYTE Gaming GbE LAN, Anti-Sulfur Resistor, Smart Fan 5

  • Supports 10th Gen Intel®Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • NVMe PCIe Gen3 x4 2280 M.2 Connector
  • GIGABYTE Gaming GbE LAN with Bandwidth Management
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design

Exclusive Realtek 8118 Gaming LAN

High Speed Gigabit LAN with Automatic Bandwidth Allocation

Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

NVMe PCIe Gen3 x4 2280 M.2 Connector

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

  • 4 Temperature Sensors
  • 2 Fan Pin Headers
  • All Fan Pin Headers Upgraded to Hybrid Fan Headers
  • Interoperable Fans and Sensors
  • Intuitive UI for Fan Control

Intelligent Fan Control Design

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC. All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage preferences.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

The Industry's Leading Surge Protection

GIGABYTE motherboards also feature special anti-surge IC that protect your motherboard, helping to ensure that your PC is equipped to deal with any potentially irregular electrical spikes.

Humidity Protection Glass Fabric PCB

There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.

High Temperature Protection Lower RDS(on) MOSFETs Design

GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.

Refreshed BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

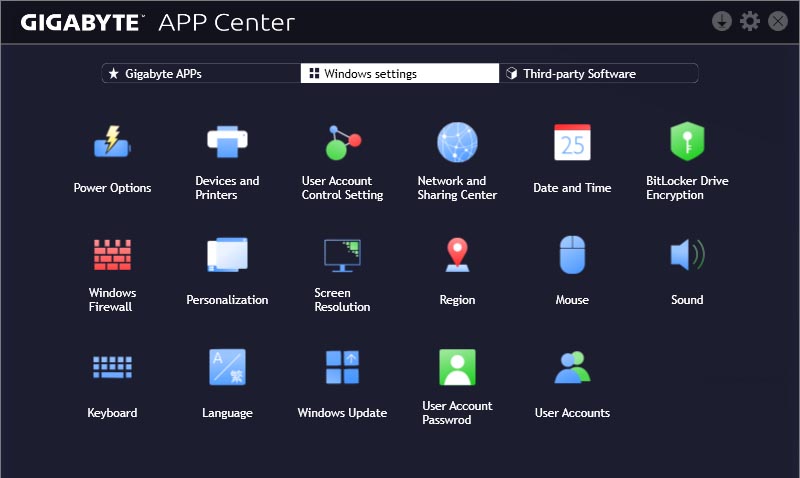

APP CENTER

GIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version.

EasyTune™

GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

@BIOS

The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Τεχνικά Χαρακτηριστικά
ΚατασκευαστήςGigabyte
ΜοντέλοH410M H V3 (rev.1.3)
Part NumberGAH41MHV3-00-G
ΚατηγορίαΜητρικές Κάρτες
Socket1200
ChipsetIntel H410
Μέγεθος μητρικήςMicro ATX
Τύπος ΜνήμηςDDR4
Αριθμός Dimm2
Expansion Slots1x PCIe x16
1x PCIe x1
Αποθήκευση4x SATA
2x M.2
Έξοδοι Γραφικών1x HDMI (v1.4)
1x VGA
Πρόσθετα ΧαρακτηριστικάLED Control
M.2 Slot
Εγγύηση3 Έτη
