Gigabyte X570S UD
![Gigabyte X570S UD [GAX57SUD-00-G] Εικόνα 1](https://static.msystems.gr/photos/big_photos/44140.jpg)
![Gigabyte X570S UD [GAX57SUD-00-G] Εικόνα 2](https://static.msystems.gr/photos/big_photos/44140.1.jpg)
![Gigabyte X570S UD [GAX57SUD-00-G] Εικόνα 3](https://static.msystems.gr/photos/big_photos/44140.2.jpg)
![Gigabyte X570S UD [GAX57SUD-00-G] Εικόνα 4](https://static.msystems.gr/photos/big_photos/44140.3.jpg)
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
Buy Now - Pay Later
X570S UD
AMD® X570S UD Motherboard with Twin 12+2 Phases Digital VRM Solution with 50A DrMOS, Fully Covered Thermal Design, Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard, Fast 2.5GbE LAN, Rear & Front USB 3.2 Type-C®, RGB FUSION 2.0, Q-Flash Plus
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 Series/ Ryzen™ 3000 G-Series/ Ryzen™ 2000 Series/ Ryzen™ 2000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- Twin 12+2 Phases Digital VRM Solution with 50A DrMOS
- Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
- Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
- Fast 2.5GbE LAN with Bandwidth Management
- Rear and Front USB3.2 Type-C® for Fast and Versatile Connections
- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
PERFORMANCE
To unleash the full potential of the latest AMD Ryzen™ 5000 series processors, the motherboard requires the best CPU power, memory and IO design. With the best quality components and GIGABYTE R&D design capability, X570S UD is a true beast among motherboards.
.jpg)
Thermal
X570S UD uses an unprecedented and innovative thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full loading application and gaming.
.jpg)
CONNECTIVITY
A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. X570S UD provides all next generation network, storage, and connectivity to keep you up to speed.
.jpg)
LIGHTING
X570S UD features RGB FUSION 2.0 to offer lighting effected options and customized settings with outstanding aesthetics, and able to let enthusiasts building a stylish and unique gaming PC.

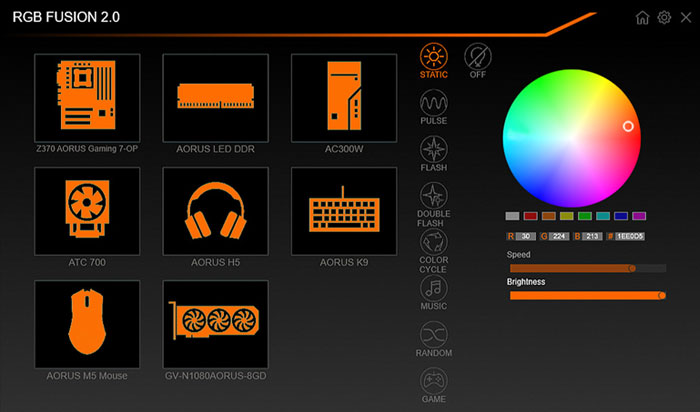

With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.
.jpg)
ULTRA DURABLE
GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the GIGABYTE motherboard and reinforce every slot to make each of them solid and durable.
.jpg)
| CPU |
AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ AMD Ryzen™ 4000 G-Series/ AMD Ryzen™ 3000 Series/ AMD Ryzen™ 3000 G-Series/ AMD Ryzen™ 2000 Series/ AMD Ryzen™ 2000 G-Series Processors |
| Chipset |
AMD X570 |
| Memory |
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096 x 2160@ 60 Hz |
| Audio |
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 2000 Series Processors support PCIe 3.0 x16 mode AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G-Series Processors support PCIe 3.0 x8 mode Supporting PCIe 4.0(Note)/3.0 x2 mode Supporting PCIe 4.0(Note)/3.0 (Note) For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs:
AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs:Supporting PCIe 4.0(Note)/3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs:Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs 6 x SATA 6Gb/s connectors, integrated in the Chipset:Support for RAID 0, RAID 1, and RAID 10 (Note) For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only. |
| USB | CPU:
4 x USB 3.2 Gen 1 ports on the back panel Chipset:2 x USB Type-C® ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. |
| Back Panel Connectors |
1 x PS/2 keyboard/mouse port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 1 x Q-Flash Plus button 1 x RJ-45 port 6 x audio jacks |
| I/O Controller |
iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| BIOS |
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Bundled Software |
Norton® Internet Security (OEM version) Realtek® 8125 Gaming LAN Bandwidth Control Utility |
| Operating System |
Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor |
ATX Form Factor; 30.5cm x 24.4cm |
| Remark |
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. |
| Κατασκευαστής | Gigabyte |
| Μοντέλο | X570S UD |
| Part Number | GAX57SUD-00-G |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | AM4 |
| Chipset | AMD X570 |
| Μέγεθος μητρικής | ATX (30.5cm x 24.4cm) |
| Τύπος Μνήμης | DDR4 |
| Αριθμός Dimm | 4 |
| Expansion Slots | 2x PCIe x16 (1x PCIe 4.0 x16, 1x PCIe 4.0 x2) 2x PCIe x1 (PCIe 4.0) |
| Αποθήκευση | 6x SATA 3x M.2 |
| Έξοδοι Γραφικών | 1x HDMI v2.1 |
| Πρόσθετα Χαρακτηριστικά | LED Control USB Type-C M.2 Slot |
| Εγγύηση | 3 Έτη |
