Περιγραφή

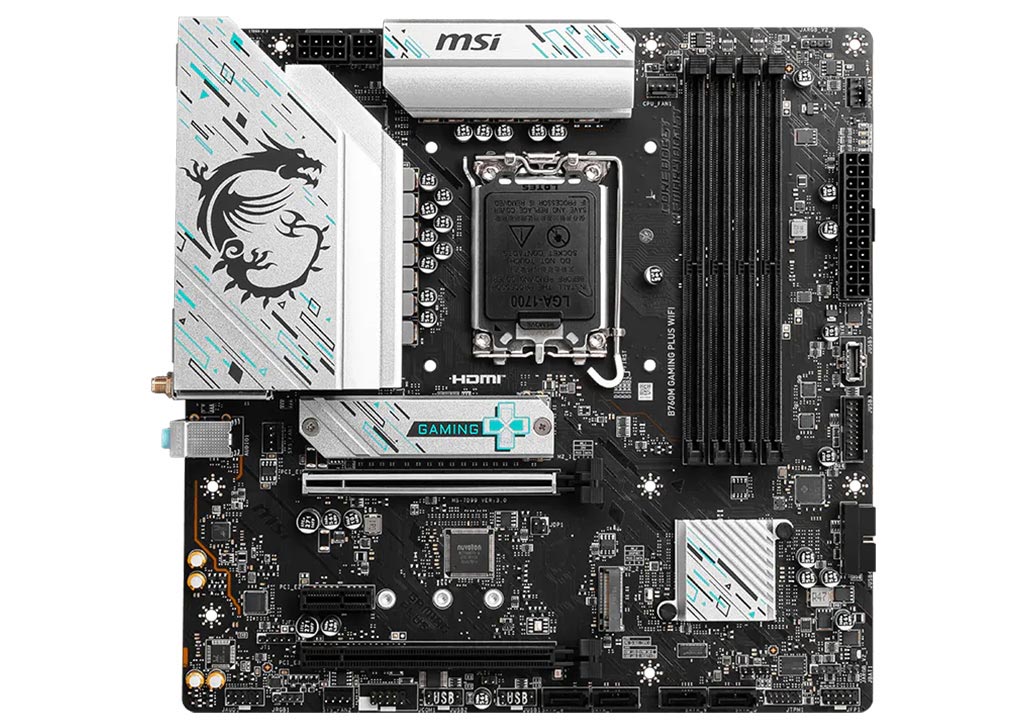

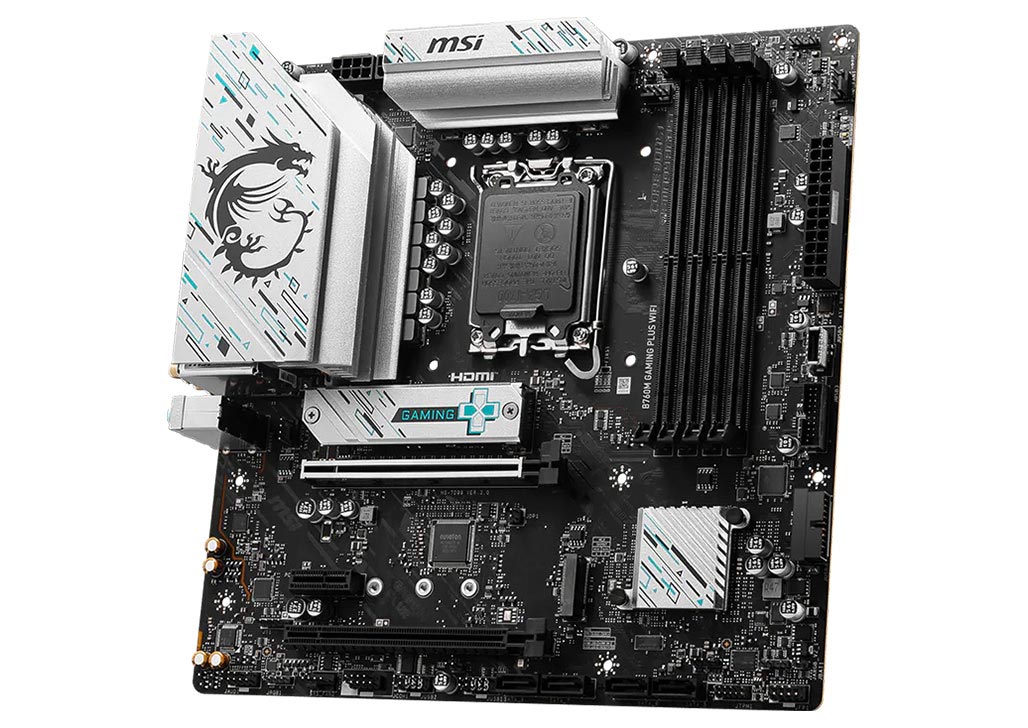

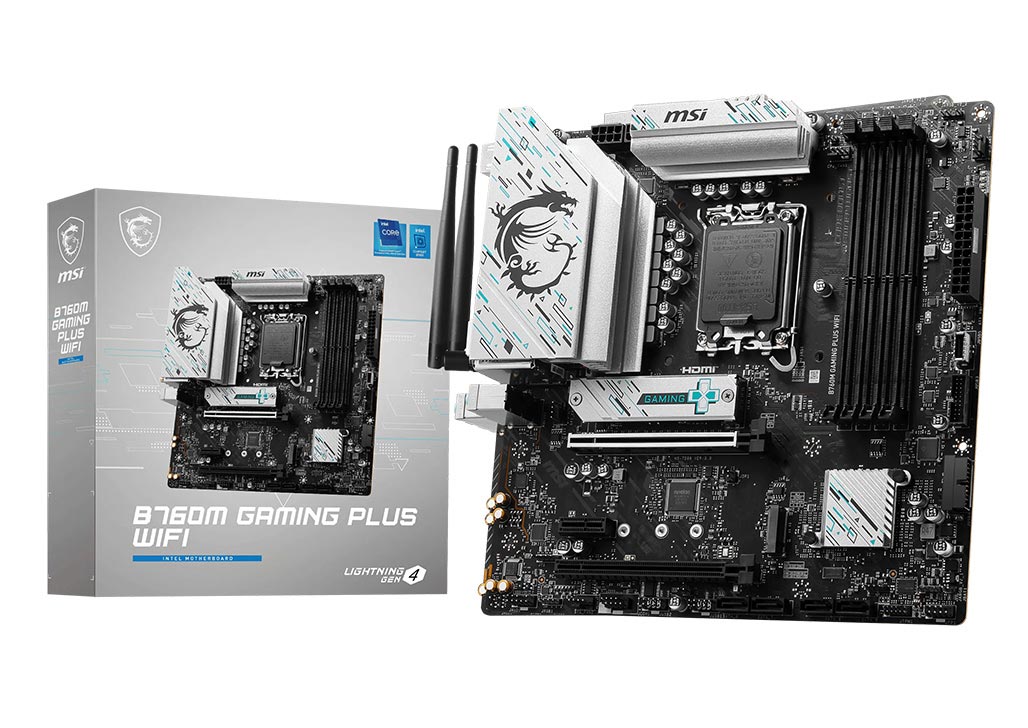

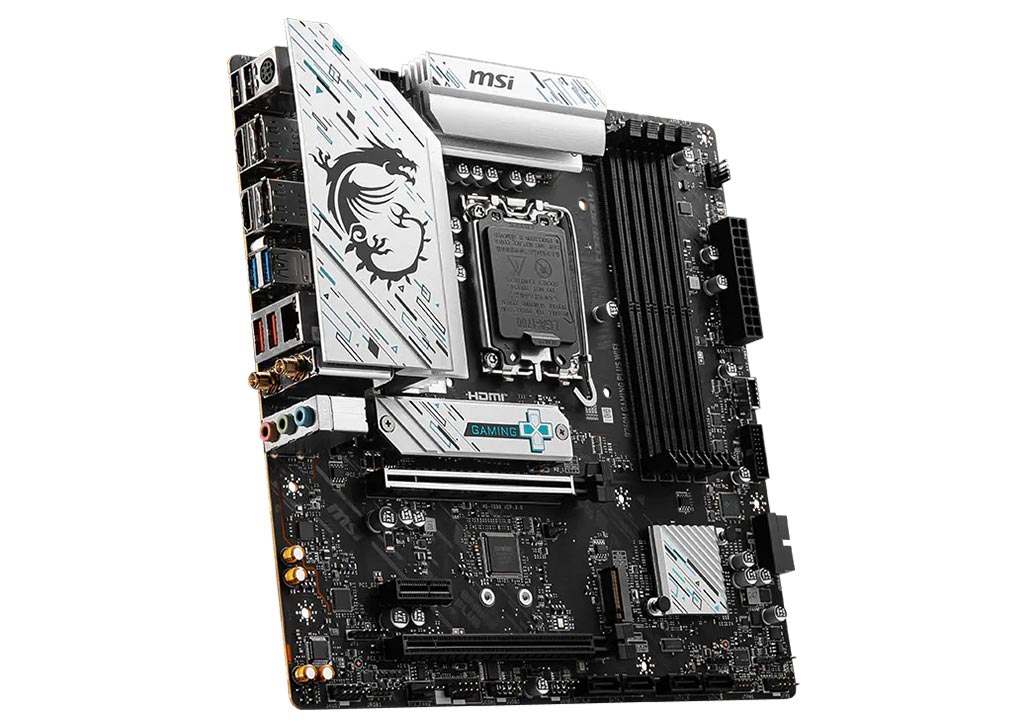

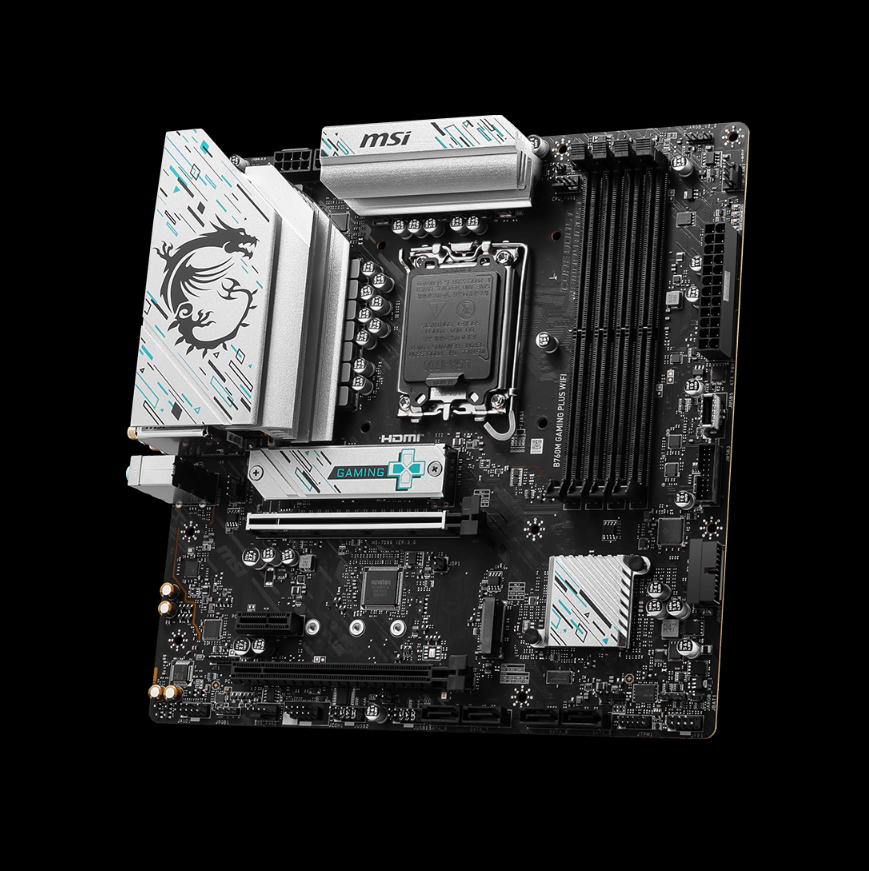

B760M GAMING PLUS WIFI

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)

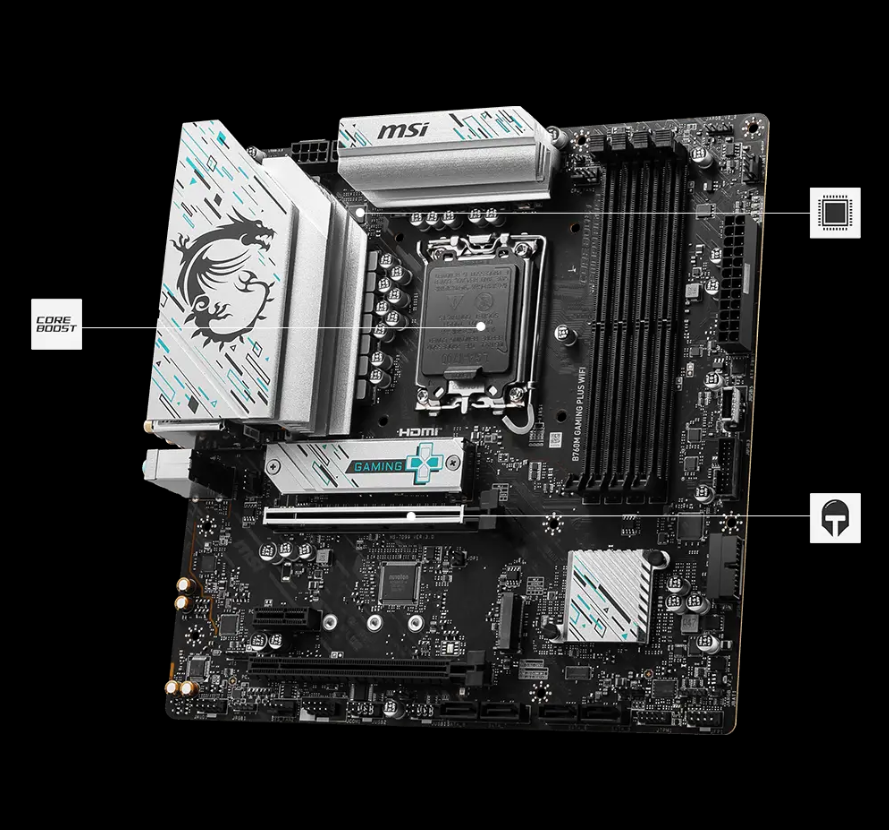

Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
High Quality PCB: 6-layer PCB made by 2oz thickened copper
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

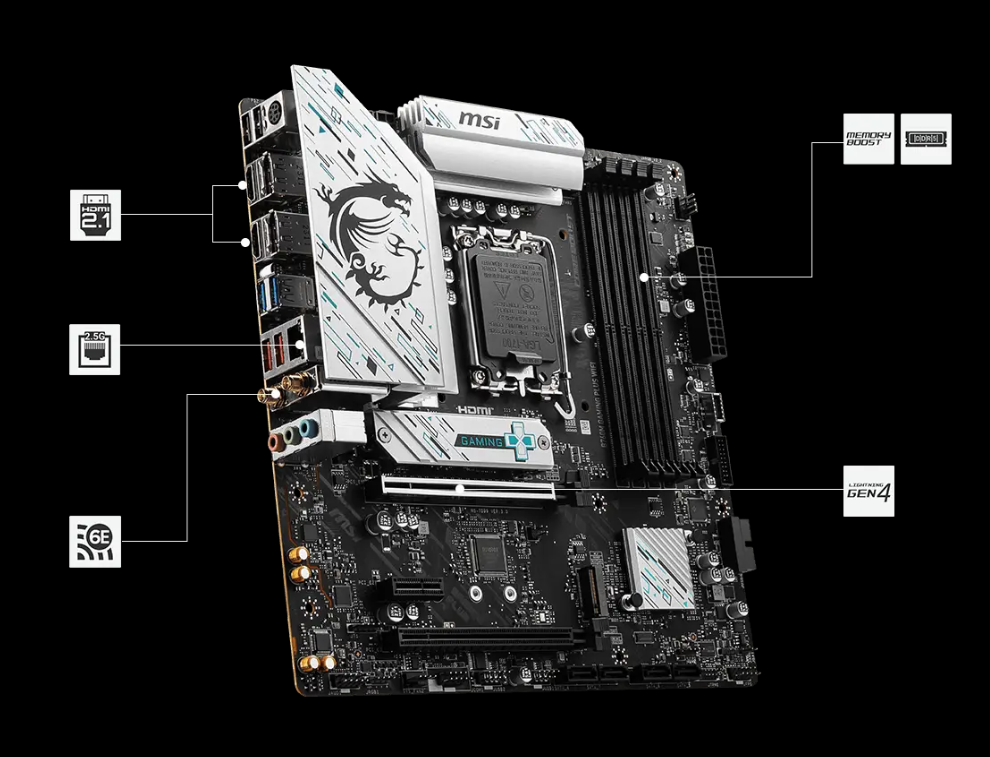

Exclusive Features

Stability & DIY Friendly

Connectivity

Lightning Gen 4

HDMI v2.1

DDR5 Support

2.5G Network Solution

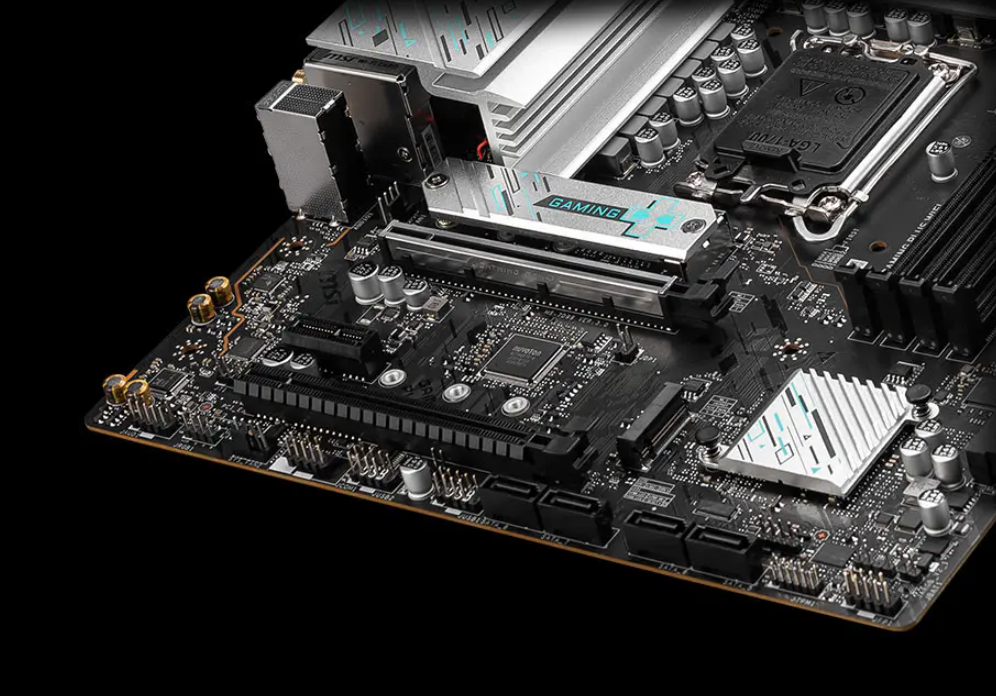

Integrated Cooling Features

Extended Heatsink

M.2 Shield Frozr

Heatsink with 7W/mK Thermal Pad

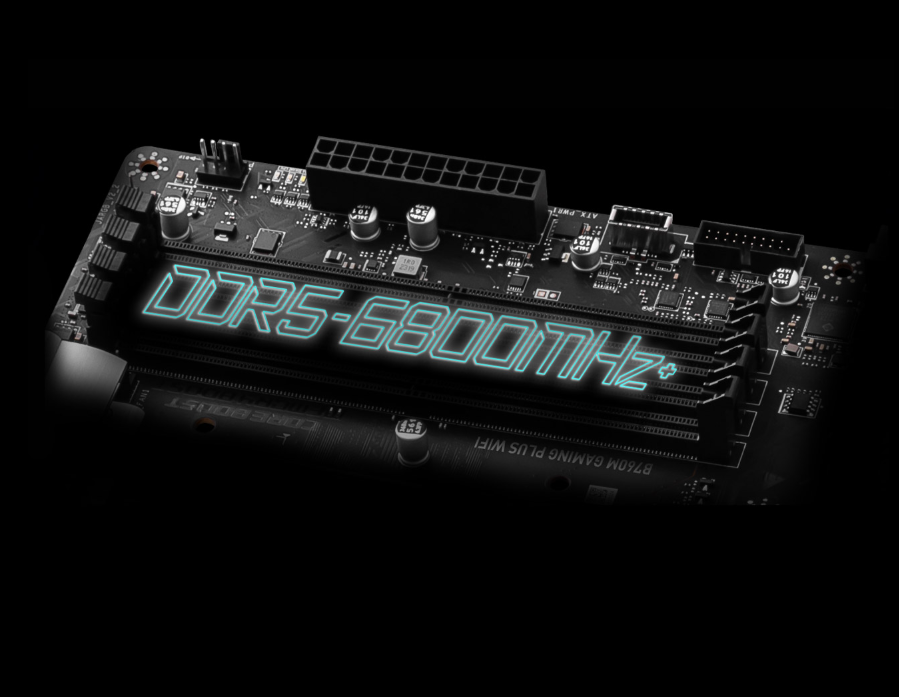

Latest DDR5 Memory with SMT Slot

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

Lighting Gen 4 Pci-E with Steel Armor

Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

High-Bandwidth and Low-Latency Network

MSI's premium network solution provides incredible data transfer speed for demanding users.

Audio Boost

De-Pop Protection

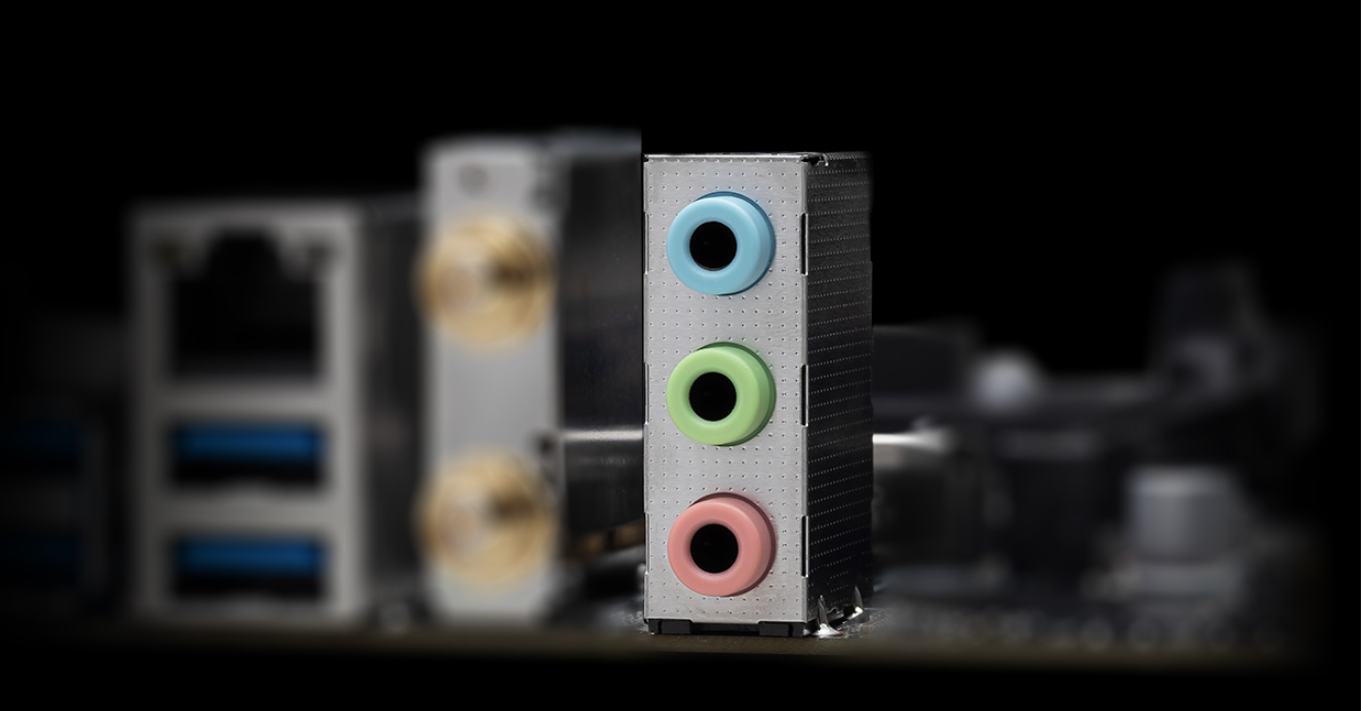

The Isolated Analogy Structure for Audio Connectors

To provide clear voice, MSI develops a unique structure Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.

Chipset	INTEL B760
CPU Support	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Memory	4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 6800+(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(JEDEC) / 5000(JEDEC) / 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics	2x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 2x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slot	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 2x USB 10Gbps Type A (Rear)
LAN	Realtek RTL8125BG 2.5G LAN
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Internal I/O	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
LED FEATURE	4x EZ Debug LED

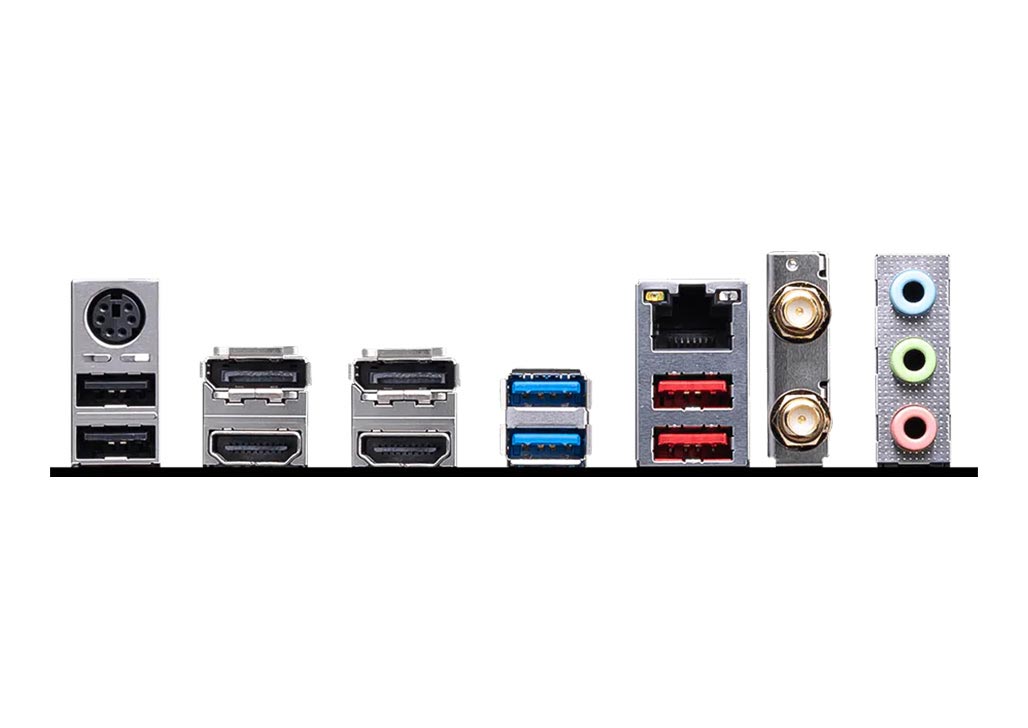

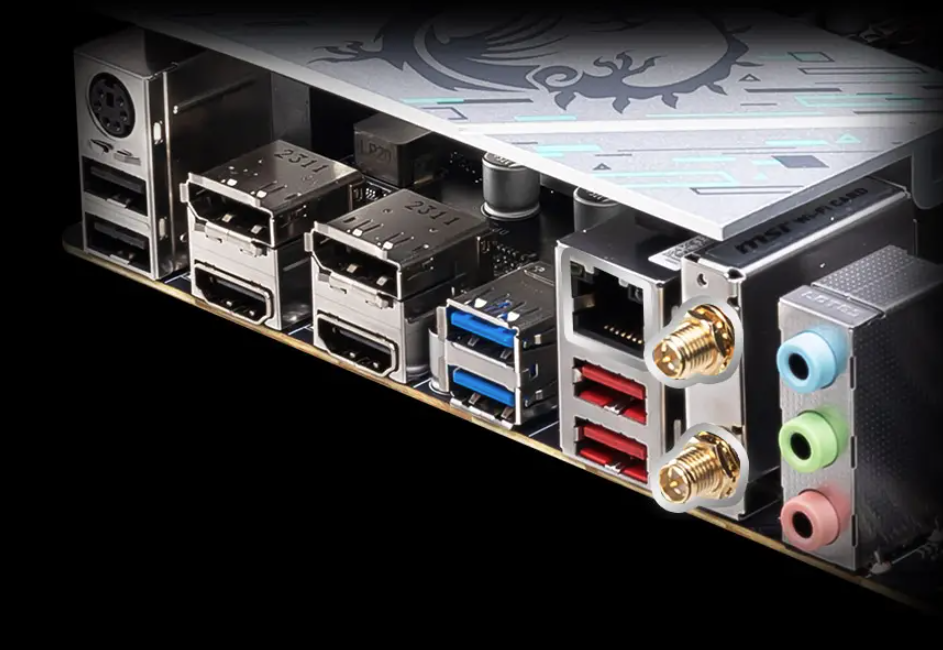

BACK PANEL PORTS	Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth USB 2.0 HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) Audio Connectors
OPERATING SYSTEM	Support for Windows 11 64-bit, Windows 10 64-bit
PCB Dimension	mATX 243.84mmx243.84mm

Τεχνικά Χαρακτηριστικά

Κατασκευαστής	MSI
Μοντέλο	B760M GAMING PLUS WIFI
Part Number	B760M GAMING PLUS WIFI
Κατηγορία	Μητρικές Κάρτες
Socket	1700
Chipset	Intel B760
Μέγεθος μητρικής	Micro ATX (243.84mm x 243.84mm)
Τύπος Μνήμης	DDR5
Αριθμός Dimm	4
Expansion Slots	2x PCIe x16 (1x PCIe 4.0 x16, 1x PCIe 4.0 x4) 1x PCIe x1 (1x PCIe 3.0 x1)
Αποθήκευση	4x SATA 2x M.2
Έξοδοι Γραφικών	2x HDMI v2.1 2x DisplayPort v1.4
Πρόσθετα Χαρακτηριστικά	LED Control Wi-Fi - Wi-Fi 6E (Triple Band) Bluetooth v5.3 USB - (2x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1 Type-A, 2x USB 2.0) LAN - Realtek® RTL8125BG 2.5G LAN M.2 Slot
Εγγύηση	3 Έτη
