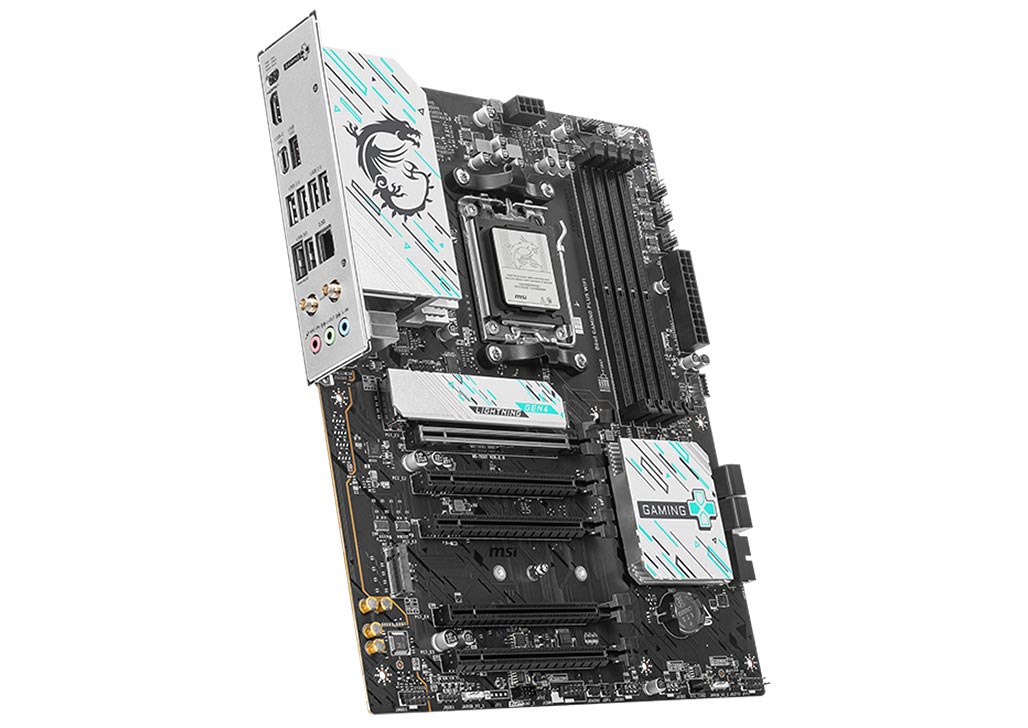

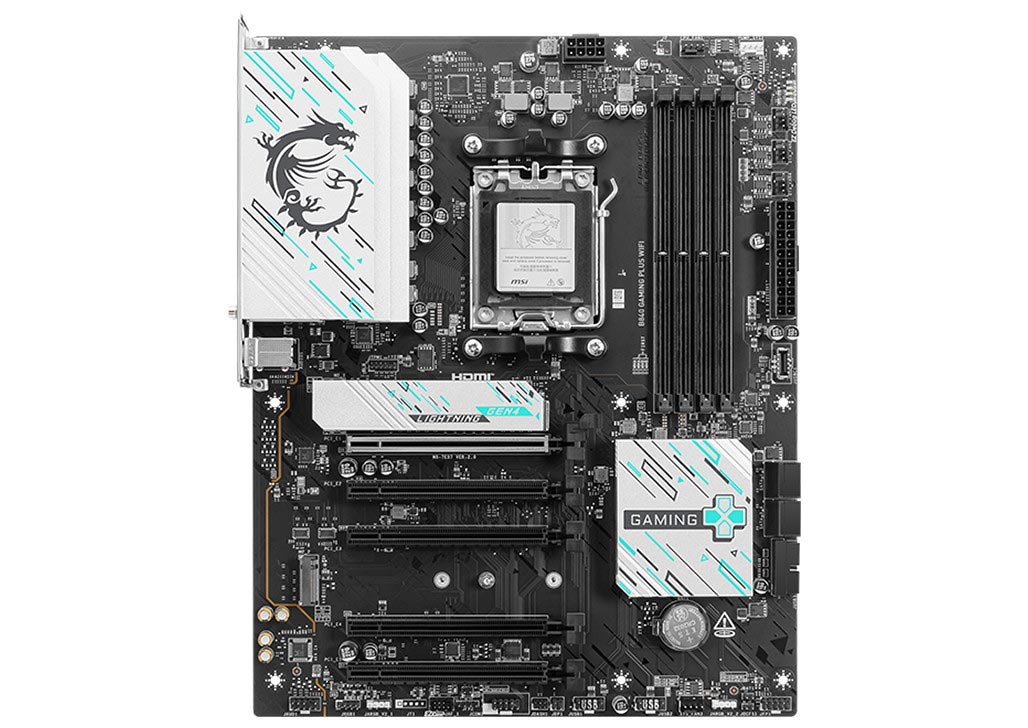

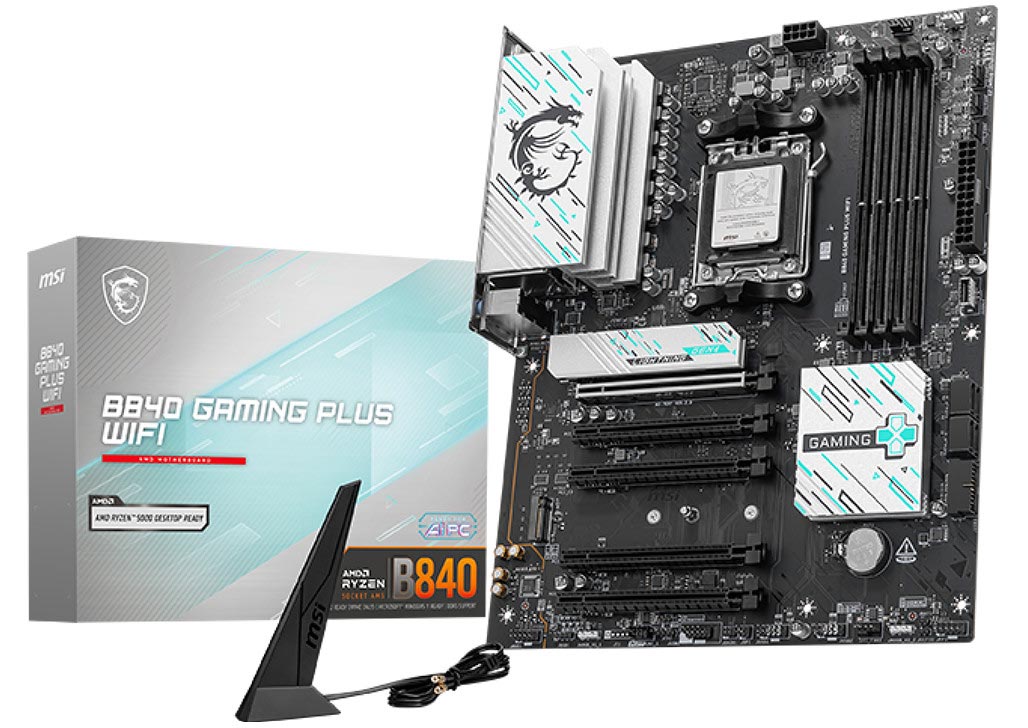

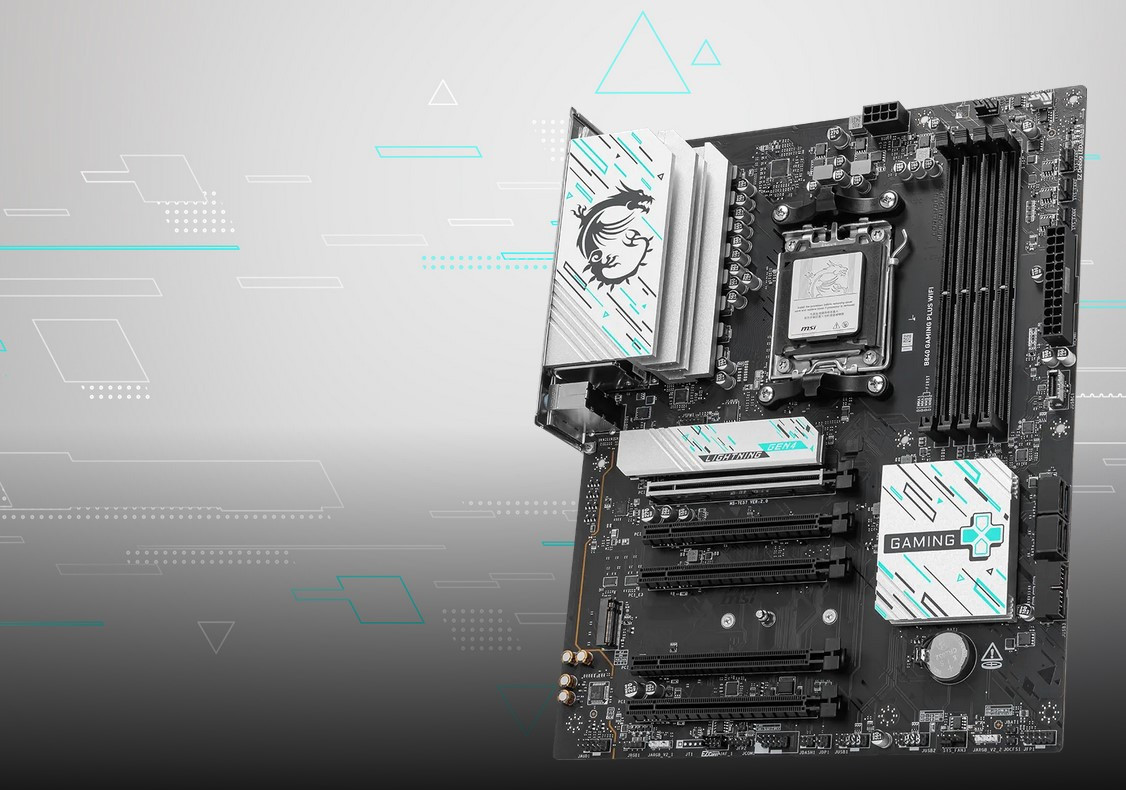

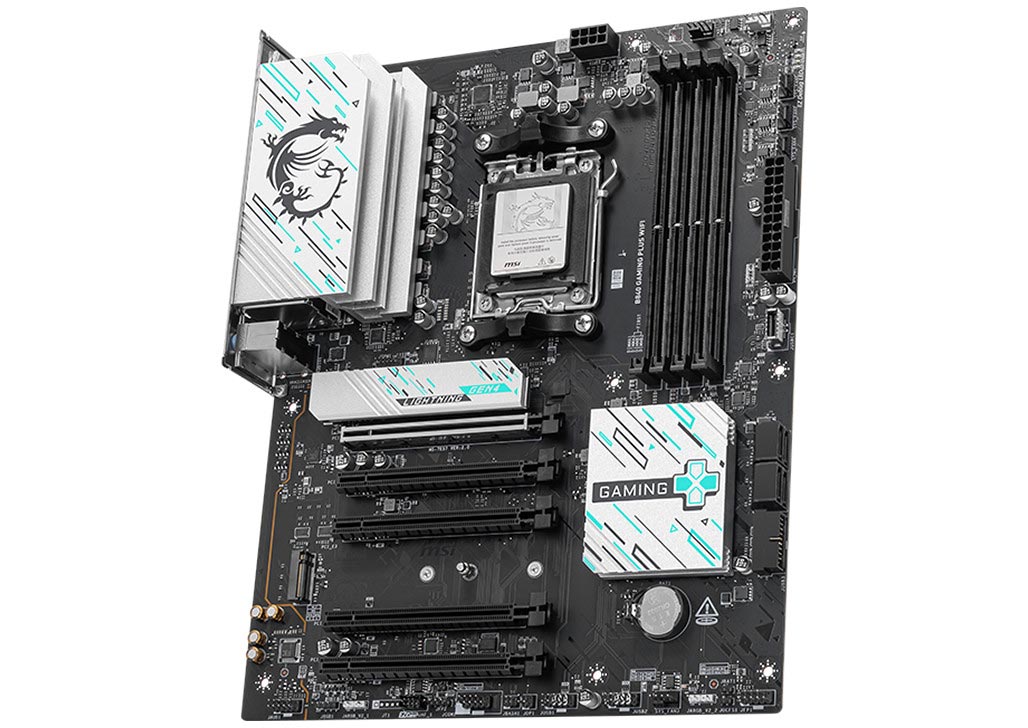

MSI B840 Gaming Plus WiFi
![MSI B840 Gaming Plus WiFi [601-7E57-03S] Εικόνα 1](https://static.msystems.gr/photos/big_photos/50142.jpg)
![MSI B840 Gaming Plus WiFi [601-7E57-03S] Εικόνα 2](https://static.msystems.gr/photos/big_photos/50142.1.jpg)
![MSI B840 Gaming Plus WiFi [601-7E57-03S] Εικόνα 3](https://static.msystems.gr/photos/big_photos/50142.2.jpg)
![MSI B840 Gaming Plus WiFi [601-7E57-03S] Εικόνα 4](https://static.msystems.gr/photos/big_photos/50142.3.jpg)
![MSI B840 Gaming Plus WiFi [601-7E57-03S] Εικόνα 5](https://static.msystems.gr/photos/big_photos/50142.4.jpg)
5-10 εργάσιμες
195,00 €
Χωρίς ΦΠΑ: 157,26 €
Χωρίς ΦΠΑ: 157,26 €
Πληροφορίες
Κωδικός Msystems: 001-68683
Part Number: 601-7E57-03S
Εγγύηση: 3 Έτη
Δόσεις
Με πιστωτική κάρτα Visa, Mastercard, American Express, Diners
Παρακάτω βλέπετε τις επιλογές για τις έντοκες δόσεις.
για άτοκες δόσεις πρέπει το συνολικό ποσό της παραγγελίας σας να ξεπερνά τα 200€
100,81 € / δόση = 201,61 €
67,51 € / δόση = 202,53 €
50,86 € / δόση = 203,42 €
40,86 € / δόση = 204,32 €
34,21 € / δόση = 205,24 €
29,45 € / δόση = 206,15 €
25,88 € / δόση = 207,07 €
23,11 € / δόση = 207,99 €
20,89 € / δόση = 208,90 €
19,08 € / δόση = 209,84 €
17,56 € / δόση = 210,78 €
16,29 € / δόση = 211,71 €
15,19 € / δόση = 212,65 €
14,24 € / δόση = 213,58 €
13,41 € / δόση = 214,54 €
12,68 € / δόση = 215,49 €
12,03 € / δόση = 216,45 €
11,44 € / δόση = 217,41 €
10,92 € / δόση = 218,38 €
10,44 € / δόση = 219,34 €
10,01 € / δόση = 220,31 €
9,62 € / δόση = 221,29 €
9,26 € / δόση = 222,26 €
8,93 € / δόση = 223,26 €
8,62 € / δόση = 224,23 €
8,34 € / δόση = 225,23 €
8,08 € / δόση = 226,22 €
7,84 € / δόση = 227,23 €
7,61 € / δόση = 228,23 €
7,39 € / δόση = 229,24 €
7,20 € / δόση = 230,26 €
7,01 € / δόση = 231,27 €
6,83 € / δόση = 232,28 €
6,67 € / δόση = 233,32 €
6,51 € / δόση = 234,35 €
Buy Now - Pay Later
Buy Now - Pay Later μέσω tbi bank
Πραγματοποιήστε τις αγορές σας, για ποσά από 20€ έως 400€, σε 4 μηνιαίες δόσεις με την χρήση μόνο της χρεωστικής σας κάρτας
MSI B840 Gaming Plus WiFi
The B840 GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring full-speed Wi-Fi 7, 2.5G LAN, PCIe 4.0 solution and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- High-speed Connectivity: Full-speed Wi-Fi 7 with 2.5G LAN - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Ultra Performance: 7+2+1 Phase Direct CPU Power, 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB with 2oz thickened copper
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2, Front USB Type-C
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience

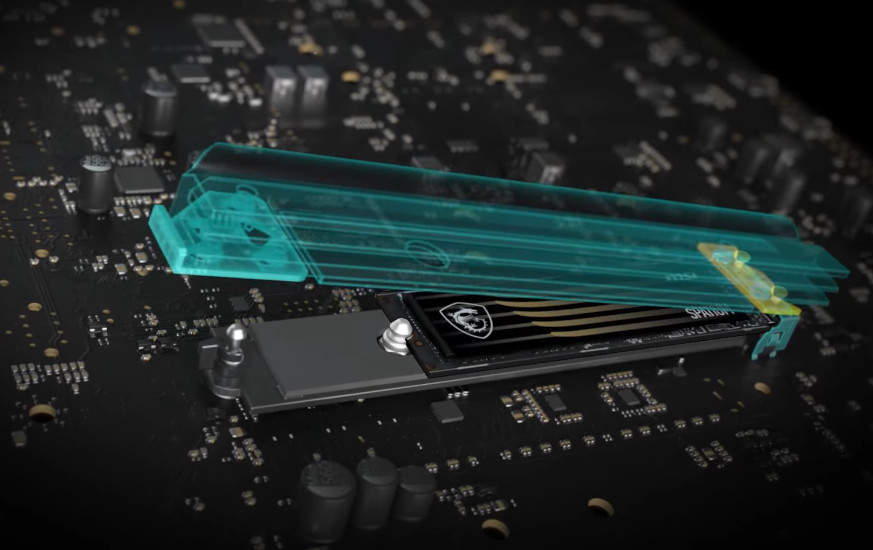

EZ M.2 INSTALLATION
MSI’s exclusive EZ M.2 Shield Frozr II and EZ M.2 CLIP II make M.2 installation seamless. Insert the SSD card into the slot and press it down to lock it in place with the clip. As fasten the SSD, flick the clip outwards and then the SSD is removed. The process is smooth, and you don’t need to use your tools like before. One finger can give you perfect DIY experience.
EZ Mounting
MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.

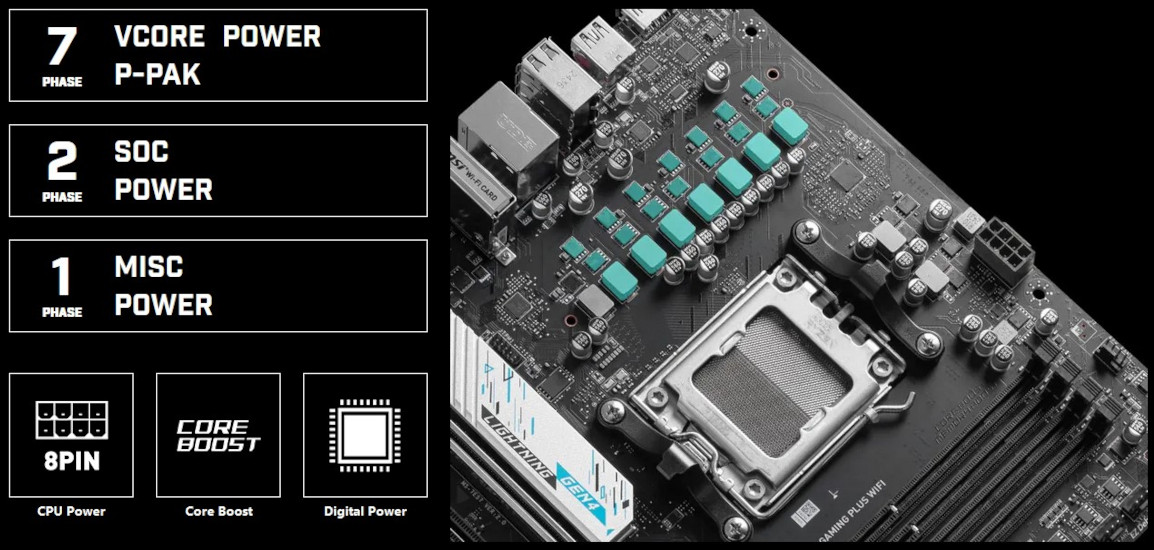

DIRECT 7+2+1 POWER DESIGN
Unleash and sustain excellent performance with an enhanced VRM design built with digital CPU power system, 8-pin power connector and exclusive Core Boost technology, the B840 GAMING PLUS WIFI is ready to sustain heavy gaming loadings.

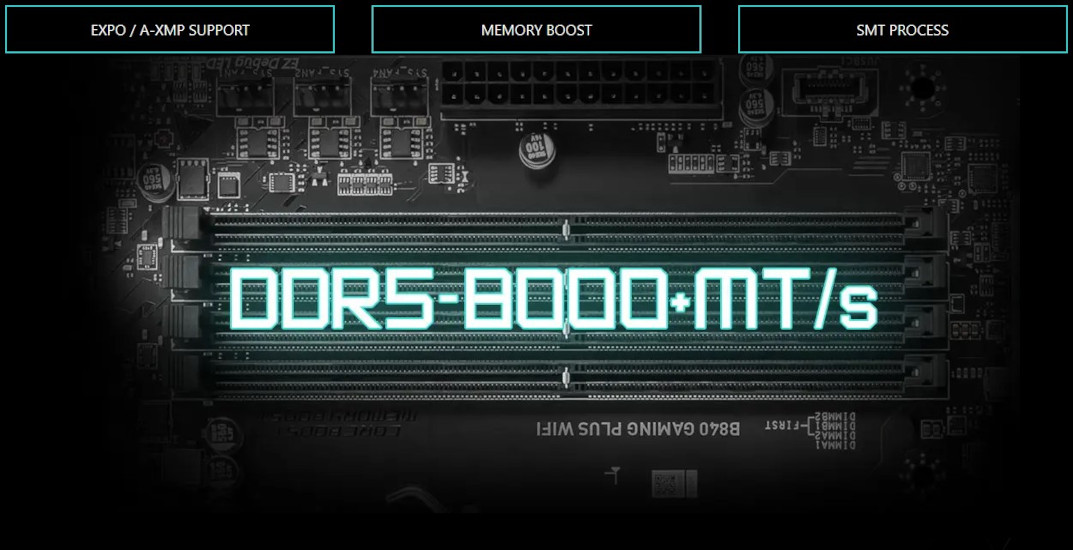

DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, B840 GAMING PLUS WIFI is ready to deliver the world class memory performance.

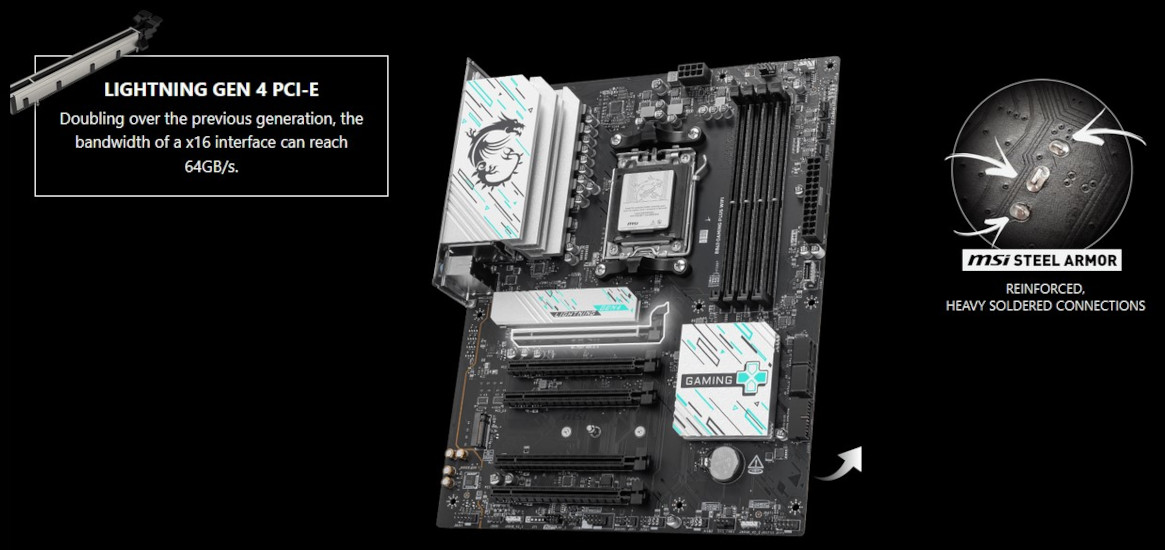

LIGHTNING GEN 4 PCI-E WITH STEEL ARMOR
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

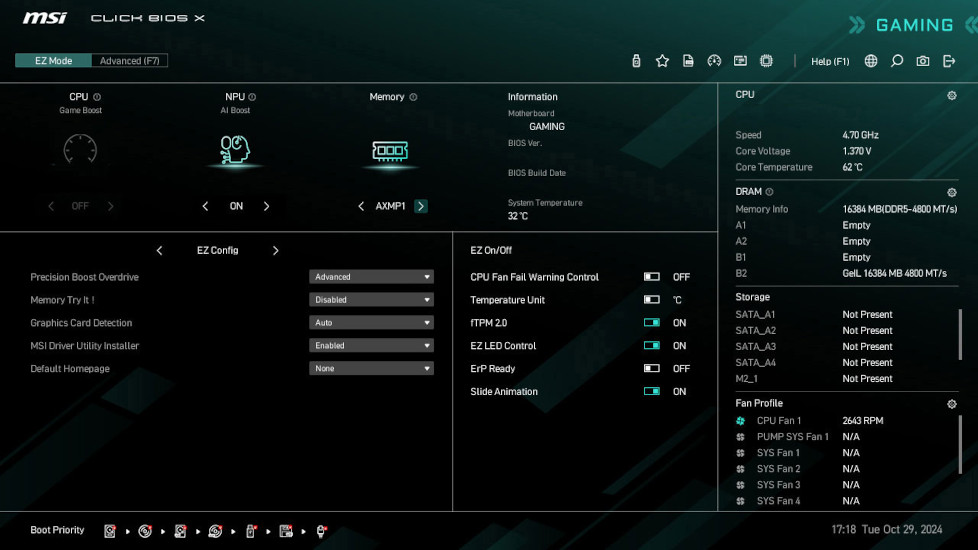

Click BIOS X
MSI’s newly designed CLICK BIOS X offers an aesthetically pleasing and user-friendly experience. The new design ensures that users of all experience levels can quickly access and adjust system configurations with ease.

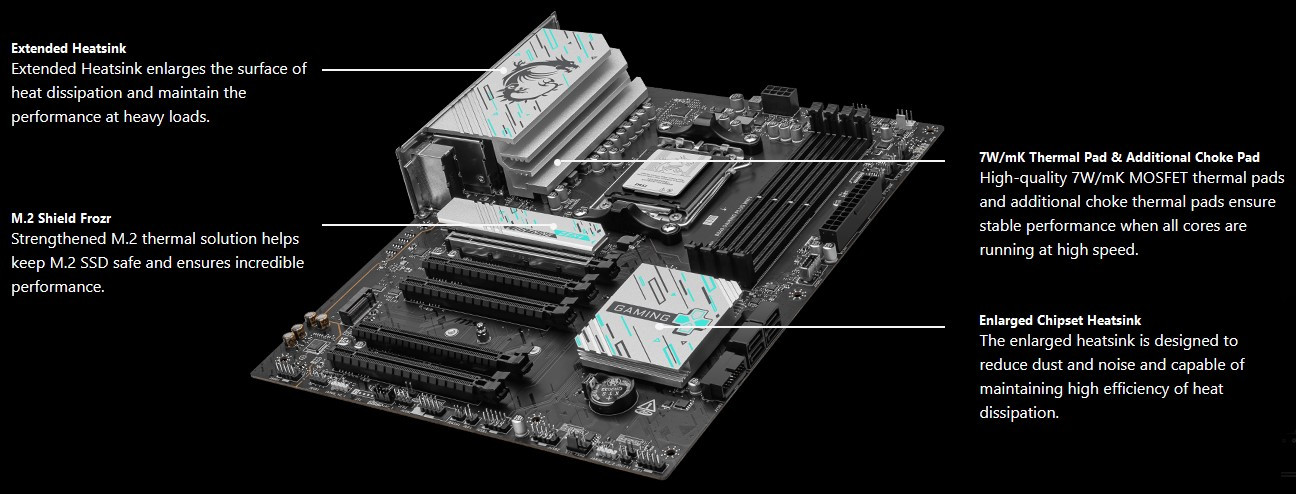

FROZR GUARD - Cooling Overview
| Chipset | AMD B840 |
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit msi.com/support/. |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) * PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot. * PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot. |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/ 2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/ 2280/ 2260 devices 4x SATA 6G M2_2 slot • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processor) *Please refer to the manual for M.2 SSD heatsink restrictions. |
| RAID | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |

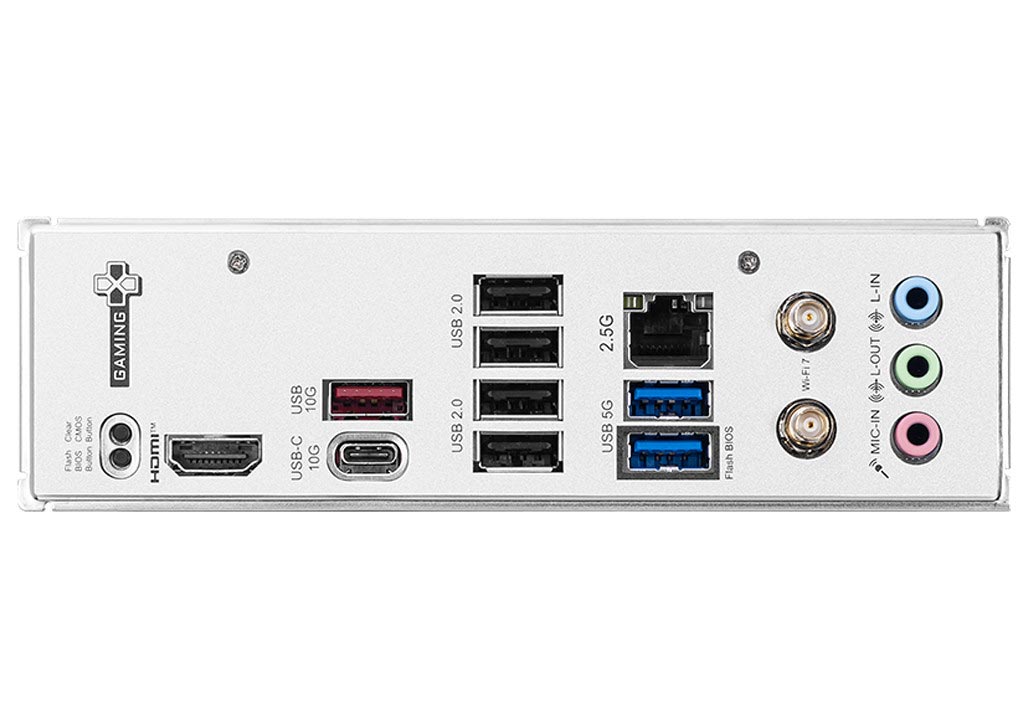

| USB | Rear USB (Total 8 ports) 4x USB 2.0 2x USB 5Gbps Type A 1x USB 10Gbps Type A 1x USB 10Gbps Type C Front USB (Total 9 ports) 4x USB 2.0 2x USB 5Gbps Type A 1x USB 5Gbps Type C |
| LAN | Realtek® 8125BG 2.5G LAN |
| Internal IO | 1x Power Connector (ATX_PWR) 1x Power Connector (CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector (JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector (JRGB) 1x TPM pin header (Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
| LED FEATURE | 4x EZ Debug LED |
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
| PCB Info | ATX 243.84mm x 304.8mm |
| Κατασκευαστής | MSI |
| Μοντέλο | B840 Gaming Plus WiFi |
| Part Number | 601-7E57-03S |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | AM5 |
| Chipset | AMD B840 |
| Μέγεθος μητρικής | ATX - (243.84 x 304.8 mm) |
| Τύπος Μνήμης | DDR5 |
| Αριθμός Dimm | 4 |
| Expansion Slots | 5x PCIe x16 - (1x PCIe 4.0 x16, 1x PCIe 3.0 x4, 3x PCIe 3.0 x1) |
| Αποθήκευση | 4x SATA 2x M.2 |
| Έξοδοι Γραφικών | 1x HDMI (v 2.1) |
| Πρόσθετα Χαρακτηριστικά | Wi-Fi 7 (802.11be) Bluetooth (v 5.4) USB Type-C M.2 Slot |
| Εγγύηση | 3 Έτη |
