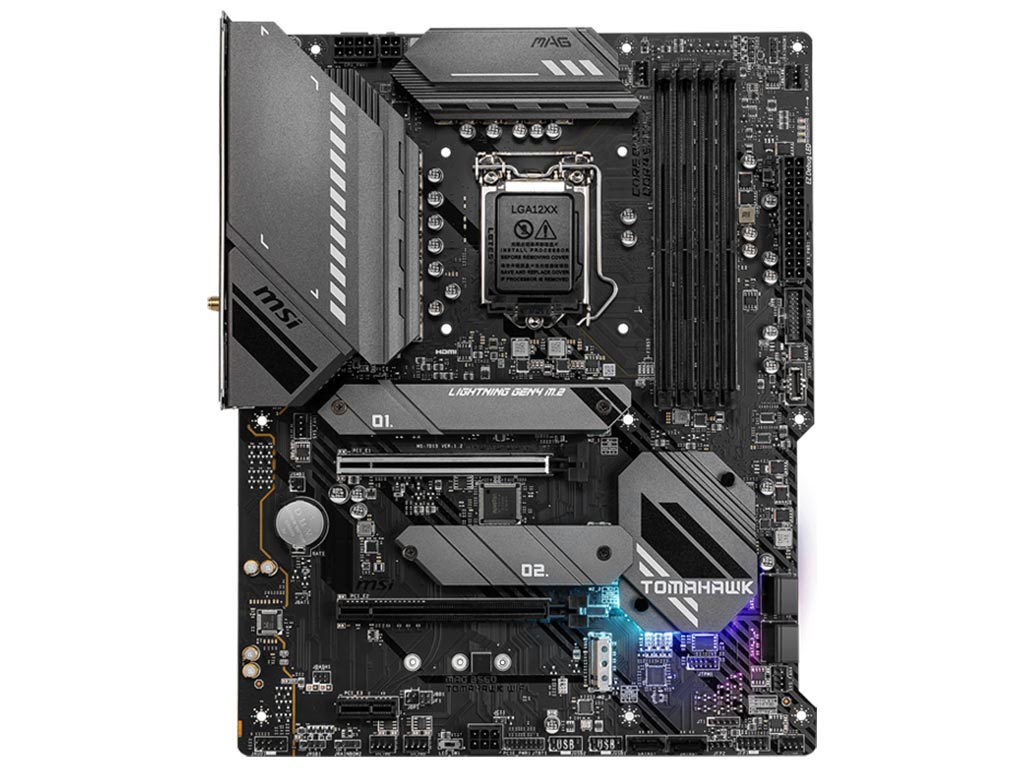

MSI MAG B560 TOMAHAWK WIFI
![MSI MAG B560 TOMAHAWK WIFI [912-7D15-013] Εικόνα 1](https://static.msystems.gr/photos/big_photos/43308.jpg)
![MSI MAG B560 TOMAHAWK WIFI [912-7D15-013] Εικόνα 2](https://static.msystems.gr/photos/big_photos/43308.1.jpg)
![MSI MAG B560 TOMAHAWK WIFI [912-7D15-013] Εικόνα 3](https://static.msystems.gr/photos/big_photos/43308.2.jpg)
![MSI MAG B560 TOMAHAWK WIFI [912-7D15-013] Εικόνα 4](https://static.msystems.gr/photos/big_photos/43308.3.jpg)
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
Άτοκες Δόσεις
4 άτοκες δόσεις με tbi bank
Πλήρωσε την πρώτη δόση τώρα, με τη χρεωστική σου κάρτα, και το υπόλοιπο ποσό σε 3 ακόμη άτοκες δόσεις κάθε 30 ημέρες, εύκολα και χωρίς άγχος!
MAG B560 TOMAHAWK WIFI
- Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5066(OC) MHz
- Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
- Audio Boost: Reward your ears with studio grade sound quality
- Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™

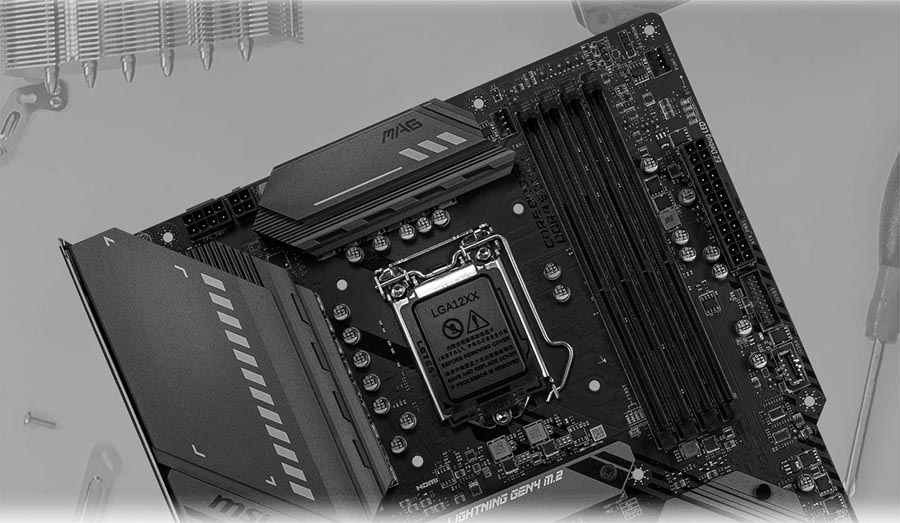

PREMIUM HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
.jpg)

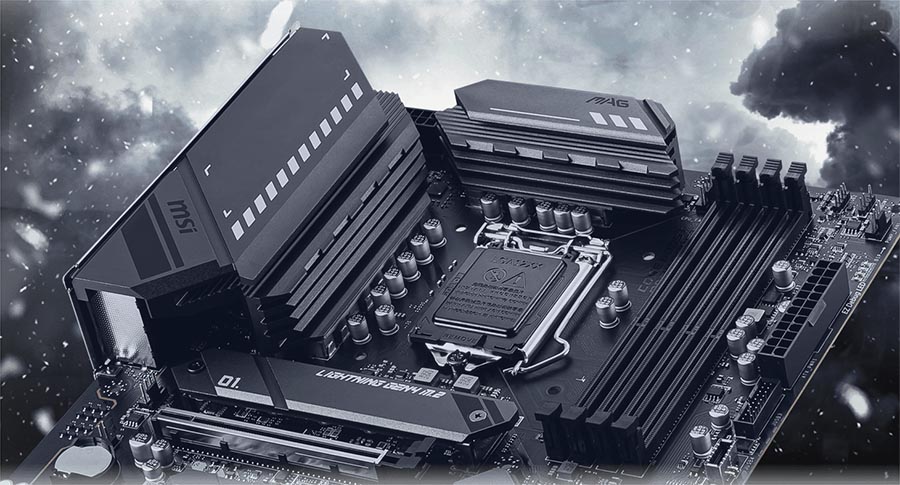

ENHANCED PERFORMANCE
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.
.jpg)
CONNECTIVITY
MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.
.jpg)
| Processor |
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron®1 Processor socket LGA1200 Please go to intel.com for compatibility information. |
| Chipset |
Intel® B560 Chipset |
| Memory |
4 x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer www.msi.com for more information on compatible memory. |
| Expansion Slot |
2x PCIe x16 slots PCI_E1 (from CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU PCI_E2 (from B560 chipset) Support up to PCIe 3.0 x4 1x PCIe 3.0 x1 slot (from B560 chipset) |
| Onboard Graphics |
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics Graphics specifications may vary depending on the CPU installed. |
| Multi-GPU |
Supports 2-Way AMD® CrossFire™ Technology |
| Storage |
6x SATA 6Gb/s ports (from B560 chipset) 3x M.2 slots (Key M) M2_1 slot (from CPU) Available only on 11th Gen Intel® CPU M2_2 slot (from B560 chipset) Supports up to PCIe 3.0 x4 M2_3 slot (from B560 chipset) Supports up to PCIe 3.0 x4 Supports Intel® Smart Response Technology for Intel Core™ processors SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| USB |
Intel® B560 Chipset 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel) 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector) 4x USB 2.0 ports on the back panel Hub-GL850G 4x USB 2.0 ports available through the internal connectors |
| Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN |
1x Realtek® RTL8125B 2.5Gbps LAN controller |
| Wireless LAN & Bluetooth |
Intel®Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 [Key-E] slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2, FIPS, FISMA Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1. Bluetooth 5.2 will be ready in WIN10 21H1. |
| Internal connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 5x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
| LED Feature |
1x EZ LED Control switch 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED |

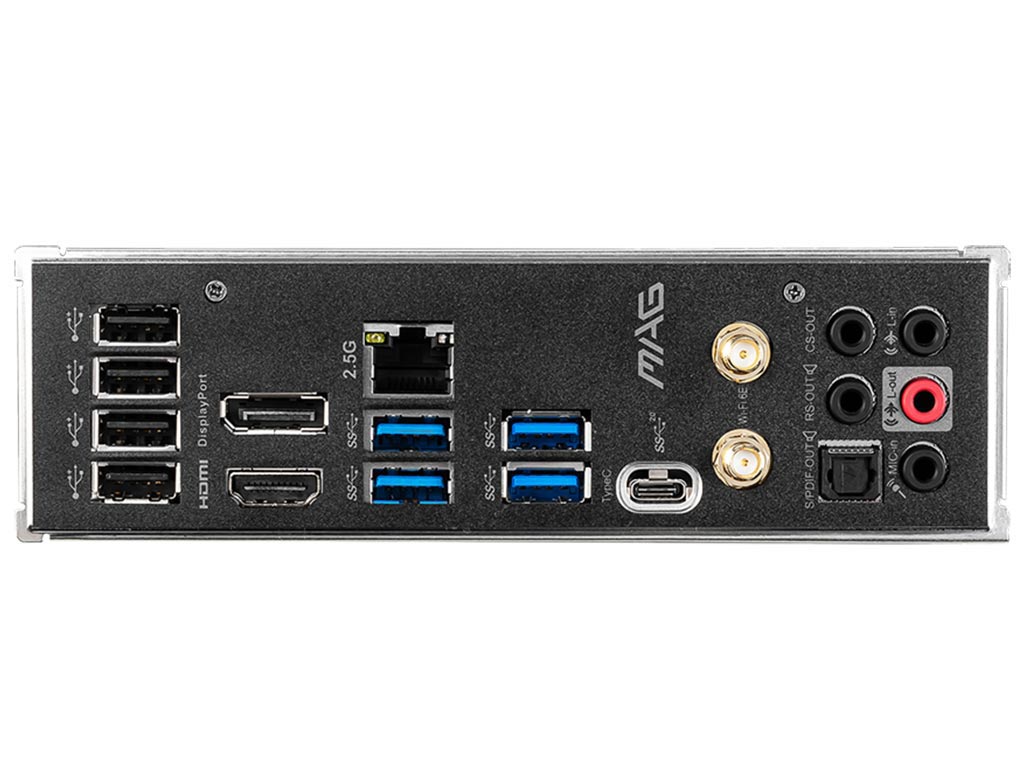

| Back panel ports |
USB 2.0 DisplayPort 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT |
| Κατασκευαστής | MSI |
| Μοντέλο | MAG B560 TOMAHAWK WIFI |
| Part Number | 912-7D15-013 |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | 1200 |
| Chipset | Intel B560 |
| Μέγεθος μητρικής | ATX |
| Τύπος Μνήμης | DDR4 |
| Αριθμός Dimm | 4 |
| Expansion Slots | 2x PCIe x16 (1x PCie 4.0 x16, 1x PCie 3.0 x4) 1x PCIe x1 (PCIe 3.0) AMD CrossFireX |
| Αποθήκευση | 6x SATA 3x SATA Express |
| Έξοδοι Γραφικών | 1x HDMI (v2.0b) 1x DisplayPort (v1.4) |
| Πρόσθετα Χαρακτηριστικά | LED Control Wi-Fi Intel®Wi-Fi 6E AX210 802.11 a/ b/ g/ n/ ac/ ax Bluetooth v5.2 USB Type-C M.2 Slot |
| Εγγύηση | 3 Έτη |
