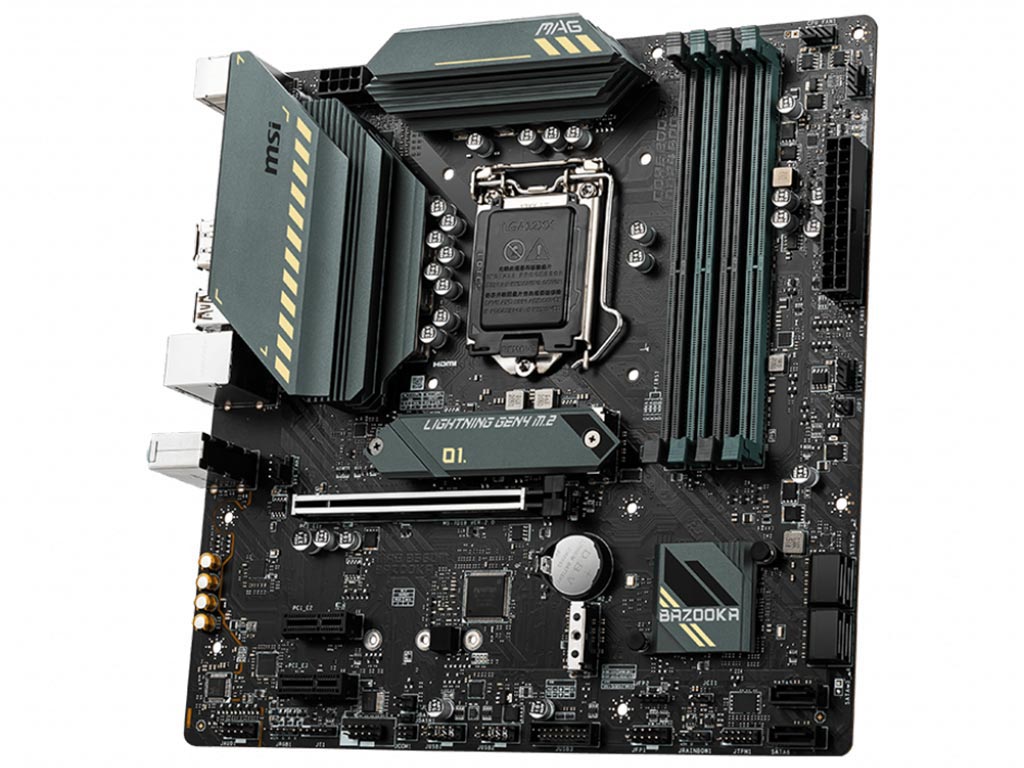

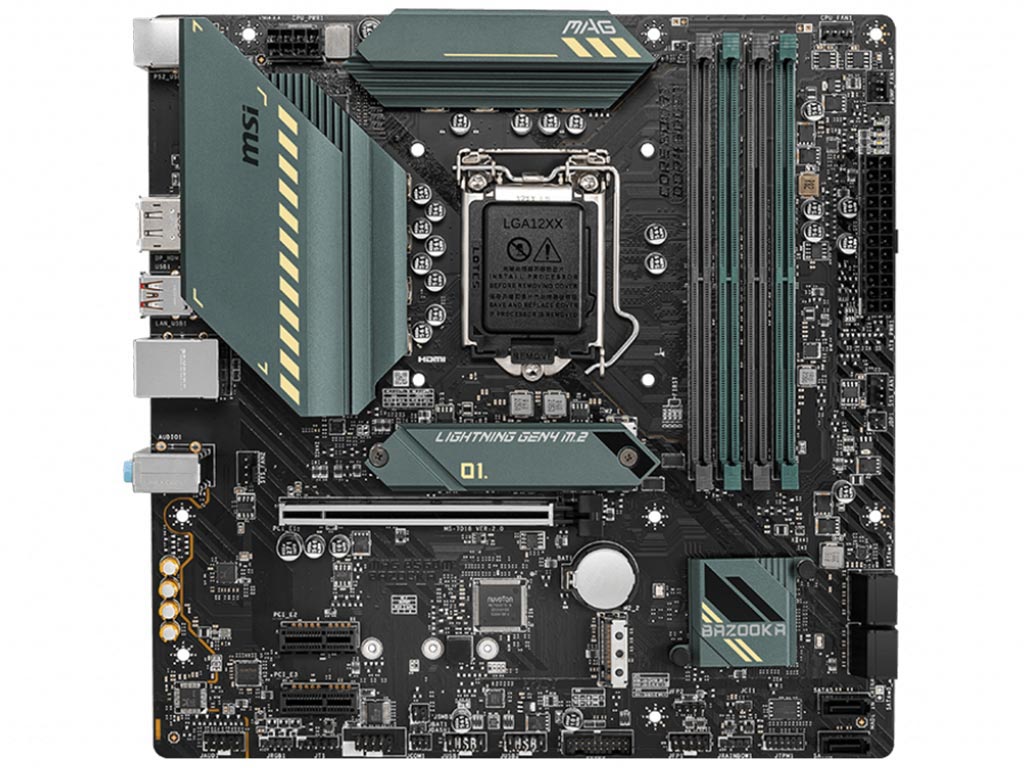

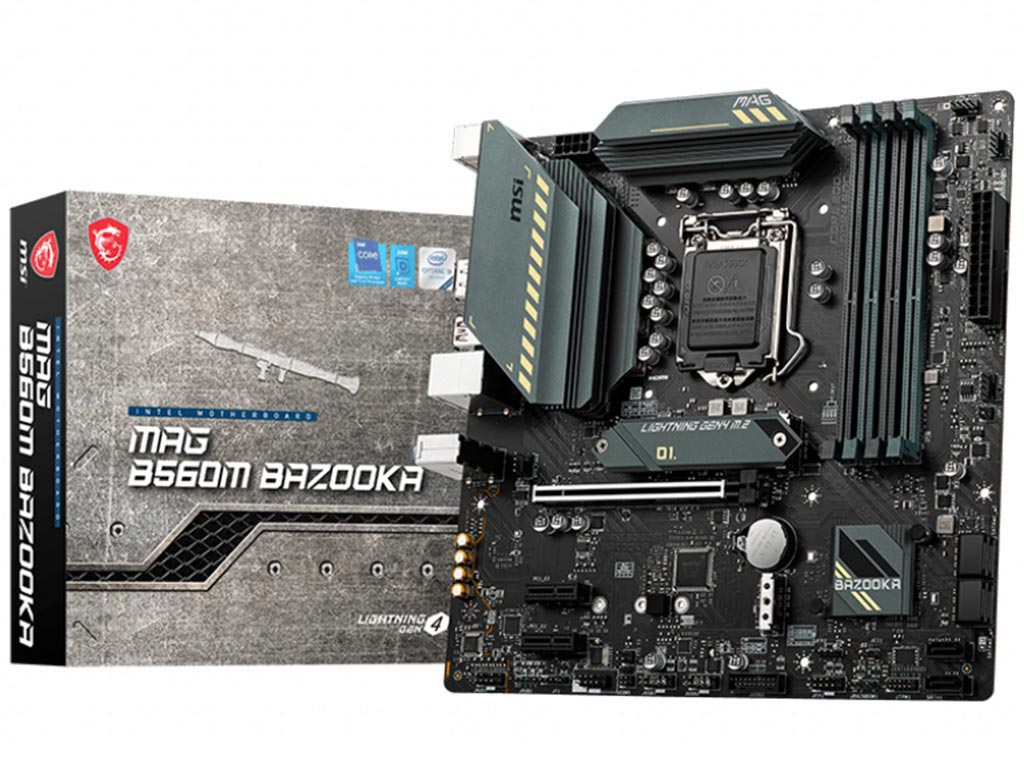

MSI MAG B560M Bazooka
![MSI MAG B560M Bazooka [7D18-003R] Εικόνα 1](https://static.msystems.gr/photos/big_photos/42499.jpg)
![MSI MAG B560M Bazooka [7D18-003R] Εικόνα 2](https://static.msystems.gr/photos/big_photos/42499.1.jpg)
![MSI MAG B560M Bazooka [7D18-003R] Εικόνα 3](https://static.msystems.gr/photos/big_photos/42499.2.jpg)
![MSI MAG B560M Bazooka [7D18-003R] Εικόνα 4](https://static.msystems.gr/photos/big_photos/42499.3.jpg)
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
Buy Now - Pay Later
MAG B560M BAZOOKA
- Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5066(OC) MHz
- Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
- Audio Boost: Reward your ears with studio grade sound quality

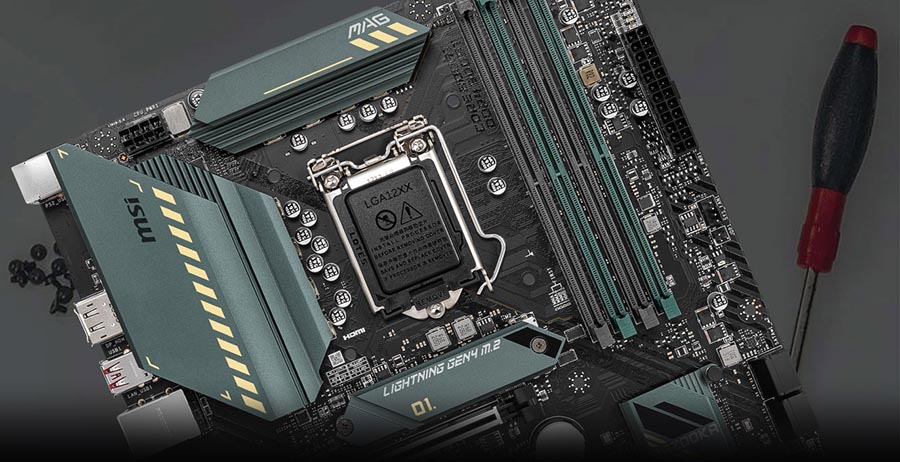

PREMIUM HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
.jpg)

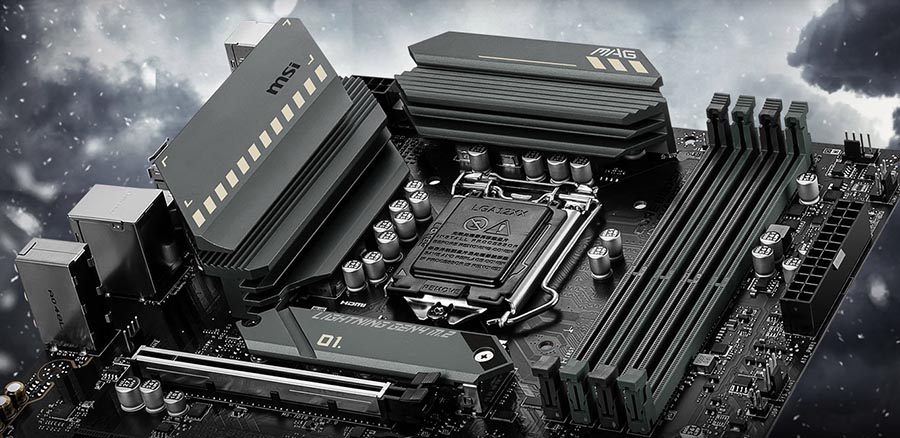

ENHANCED PERFORMANCE
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.
.jpg)
CONNECTIVITY
MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.
.jpg)
| Processor |
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1200 Please go to intel.com for compatibility information. |
| Chipset |
Intel® B560 Chipset |
| Memory |
4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer www.msi.com for more information on compatible memory. |
| Expansion Slot |
1x PCIe x16 slot PCI_E1 (from CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU 2x PCIe 3.0 x1 slots PCI_E2 & PCI_E3 (From B560 chipset) |
| Onboard Graphics |
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Storage |
6x SATA 6Gb/s ports (from B560 chipset) 2x M.2 slots (Key M) M2_1 slot Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU(From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset) Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from B560 chipset) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready Supports Intel® Smart Response Technology for Intel Core™ processors SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. |
| USB |
Intel® B560 Chipset 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 2x USB 2.0 Type-A ports on the back panel USB Hubs GL850G 4x USB 2.0 ports are available through the internal USB 2.0 connectors |
| Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| LAN |
1x Realtek® RTL8125B 2.5Gbps LAN controller |
| Internal connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Serial port connector 1x Tuning Controller connector |
| LED Feature |
1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 4x EZ Debug LED |
| Back panel ports |
Mouse / Keyboard DisplayPort 2.5G LAN Port Audio Connectors USB 2.0 HDMI USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A |
| Dimensions |
Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Mounting |
8 mounting holes |
| Operating System |
Support for Windows® 10 64-bit |
| Κατασκευαστής | MSI |
| Μοντέλο | MAG B560M Bazooka |
| Part Number | 7D18-003R |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | 1200 |
| Chipset | Intel B560 |
| Μέγεθος μητρικής | Micro ATX (24.4 cm x 24.4 cm) |
| Τύπος Μνήμης | DDR4 |
| Αριθμός Dimm | 4 |
| Expansion Slots | 1x PCIe x16 (PCIe 4.0) 2x PCIe x1 (PCIe 3.0) |
| Αποθήκευση | 6x SATA 2x M.2 |
| Έξοδοι Γραφικών | 1x HDMI (v2.0b) 1x DisplayPort (v1.4) |
| Πρόσθετα Χαρακτηριστικά | LED Control M.2 Slot |
| Εγγύηση | 3 Έτη |
