MSI MAG H670 TOMAHAWK WIFI DDR4

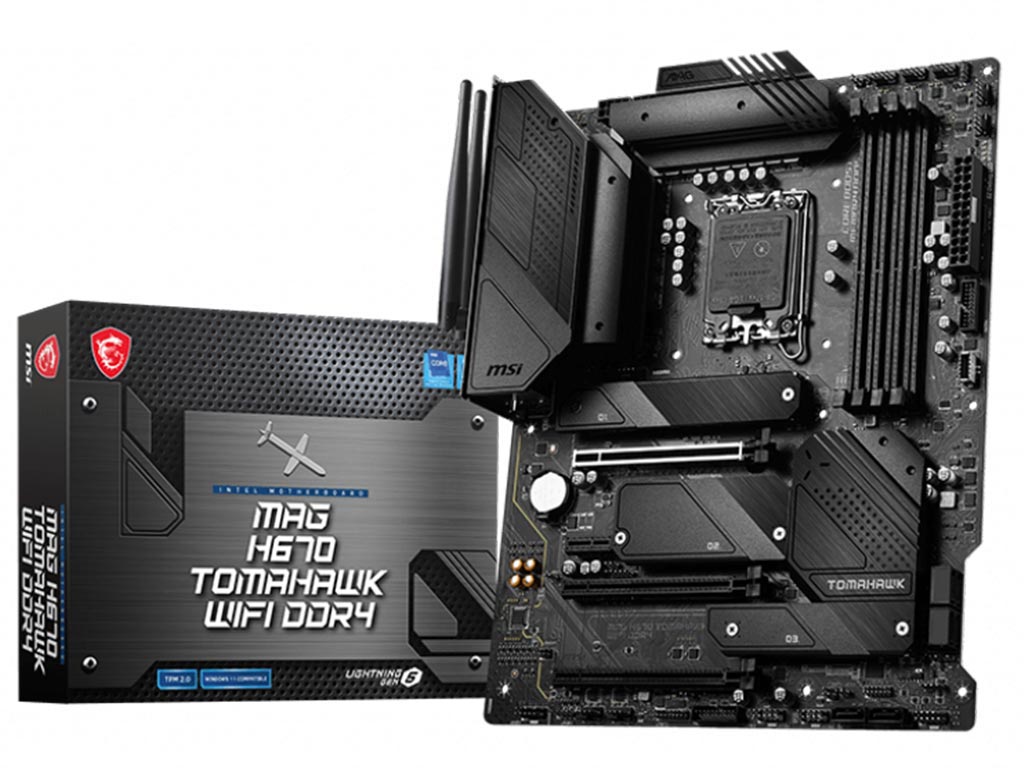

![MSI MAG H670 TOMAHAWK WIFI DDR4 [911-7D25-026] Εικόνα 1](https://static.msystems.gr/photos/big_photos/43314.jpg)

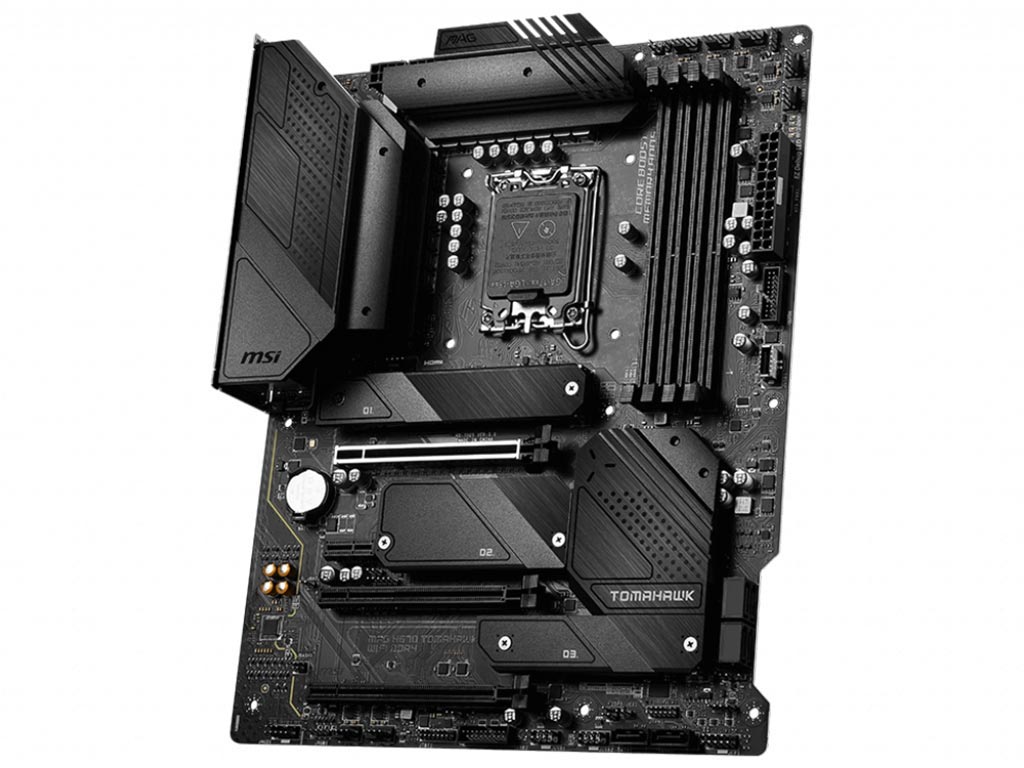

![MSI MAG H670 TOMAHAWK WIFI DDR4 [911-7D25-026] Εικόνα 2](https://static.msystems.gr/photos/big_photos/43314.1.jpg)

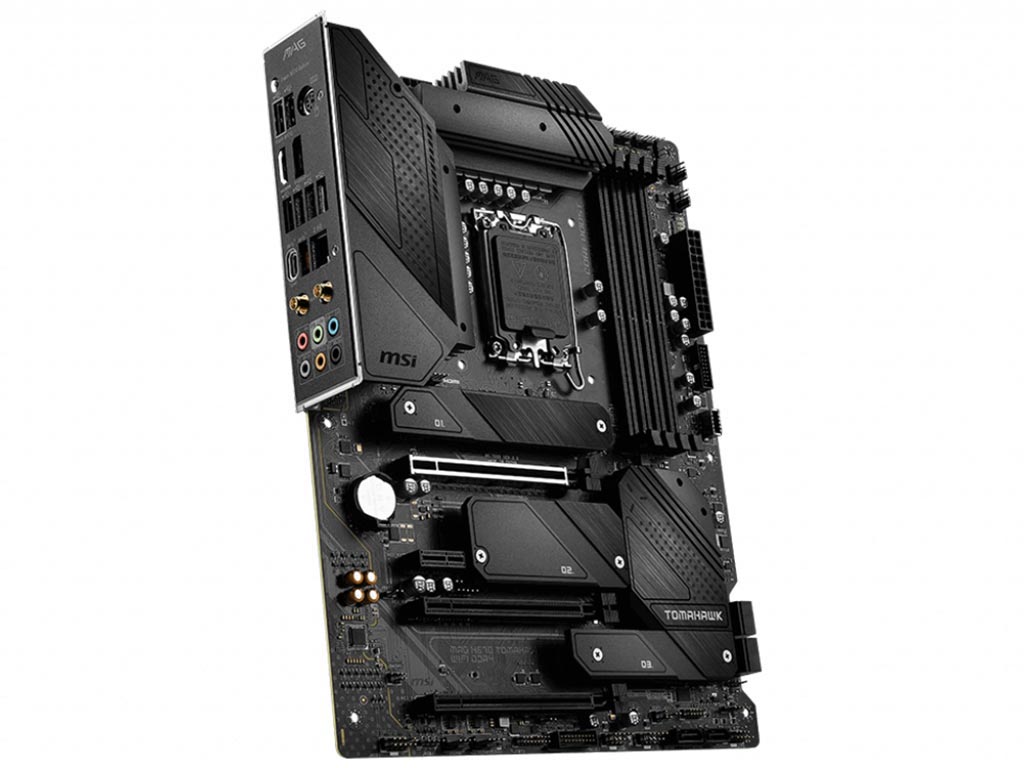

![MSI MAG H670 TOMAHAWK WIFI DDR4 [911-7D25-026] Εικόνα 3](https://static.msystems.gr/photos/big_photos/43314.2.jpg)
![MSI MAG H670 TOMAHAWK WIFI DDR4 [911-7D25-026] Εικόνα 4](https://static.msystems.gr/photos/big_photos/43314.3.jpg)
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
Buy Now - Pay Later
MAG H670 TOMAHAWK WIFI DDR4
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 4800+(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- AUDIO BOOST: Reward your ears with studio grade sound quality
- Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™

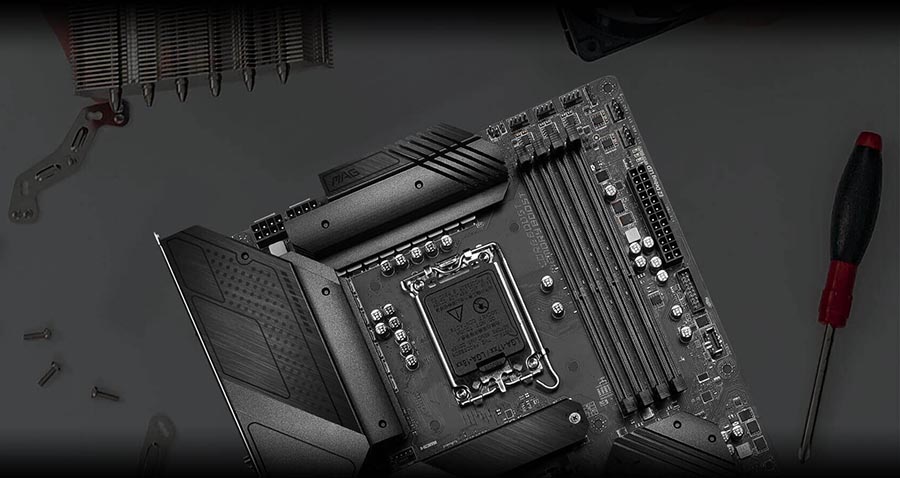

PREMIUM HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
.jpg)

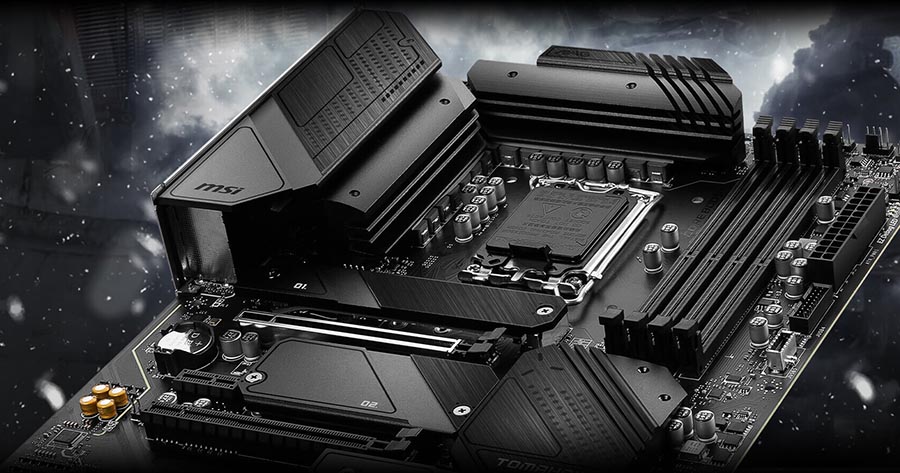

ENHANCED PERFORMANCE
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.
.jpg)
CONNECTIVITY
MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.
.jpg)
| PROCESSOR |
Supports 12th Gen Intel® Core™ Processors Processor socket LGA1700 Please go to www.msi.com to get the newest support status as new processors are released. |
| Chipset |
Intel® H670 chipset |
| Memory |
4x DDR4 memory slots, support up to 128GB Supports 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel ® Extreme Memory Profile (XMP) Please go to www.msi.com for more information on compatible memory |
| Expansion Slot |
3x PCIe x16 slots PCI_E1 (From CPU) PCI_E3 & PCI_E4 (From H670 chipset) 1x PCIe 3.0 x1 slot (Fom H670 chipset) |
| Multi-GPU |
Supports AMD CrossFire™ Technology |
| Onboard Graphics |
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| LAN |
1x Intel® I225V 2.5Gbps LAN controller |
| Wireless LAN & Bluetooth® |
Intel® Wi-Fi 6 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2 |
| Storage |
6x SATA 6Gb/s ports (From H670 chipset) 3x M.2 slots (Key M) M2_1 slot (From CPU) M2_2 slot (From H670 chipset) M2_3 slot (From H670 chipset) M2_2 and M2_3 support Intel® Optane™ Memory Support Intel® Smart Response Technology for Intel Core™ processors |
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 , RAID 1 and RAID 5 for M.2 NVMe storage devices |
| USB |
Intel® H670 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 4x USB 3.2 Gen 1 5Gbps ports are available through the internal USB connectors) 6x USB 2.0 Type-A ports on the back panel USB Hub GL850G 4x USB 2.0 ports are available through the internal USB connectors |
| Internal connectors |
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Tuning controller connector 1x TBT connector (Supports RTD3) |
| LED Feature |
1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED |

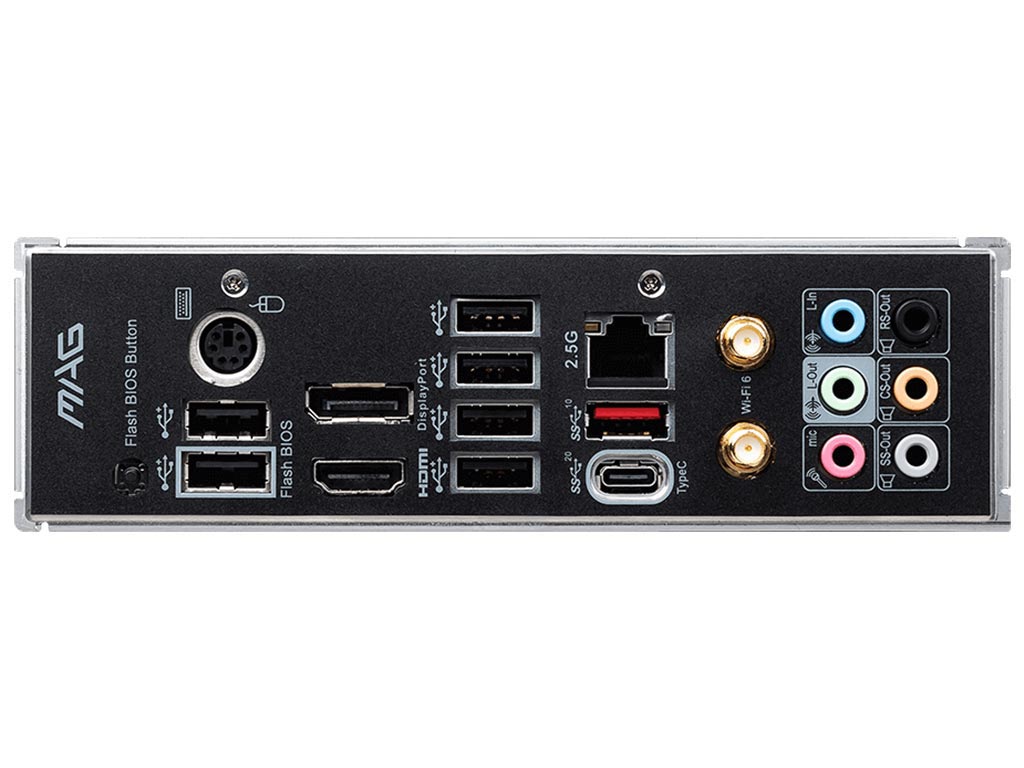

| Back panel ports |
Keyboard / Mouse DisplayPort 1.4 USB 2.0 2.5G LAN Port Wi-Fi / Bluetooth Audio Connectors Flash BIOS Bottom USB 2.0 HDMI 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C USB 3.2 Gen 2 10Gbps Type-A |
| Dimensions |
ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Κατασκευαστής | MSI |
| Μοντέλο | MAG H670 TOMAHAWK WIFI DDR4 |
| Part Number | 911-7D25-026 |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | 1700 |
| Chipset | Intel H670 |
| Μέγεθος μητρικής | ATX (30.5 cm x 24.4 cm) |
| Τύπος Μνήμης | DDR4 |
| Αριθμός Dimm | 2 |
| Expansion Slots | 3x PCIe x16 (1x PCIe 5.0 x16, 1x PCIe 3.0 x4, 1x PCIe 3.0 x1) 1x PCIe x1 (PCIe 3.0) AMD CrossFireX |
| Αποθήκευση | 6x SATA 3x M.2 |
| Έξοδοι Γραφικών | 1x HDMI (v2.1) 1x DisplayPort (v1.4) |
| Πρόσθετα Χαρακτηριστικά | LED Control Wi-Fi Intel® Wi-Fi 6 802.11 a/ b/ g/ n/ ac/ ax Bluetooth v5.2 USB Type-C M.2 Slot |
| Εγγύηση | 3 Έτη |
