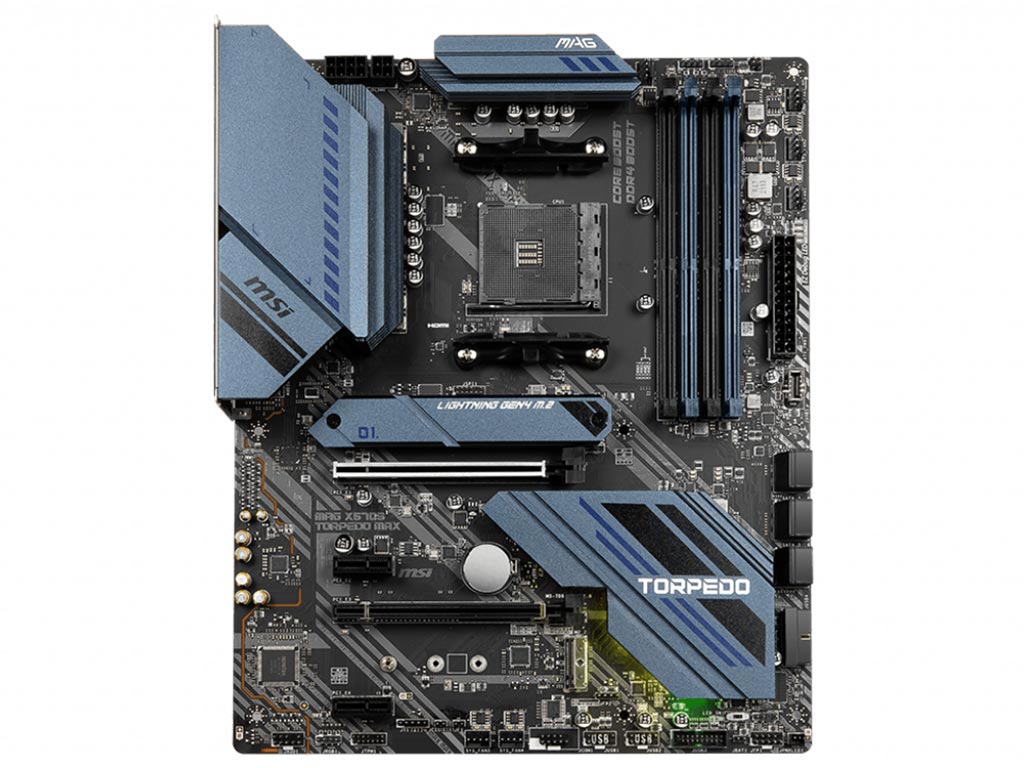

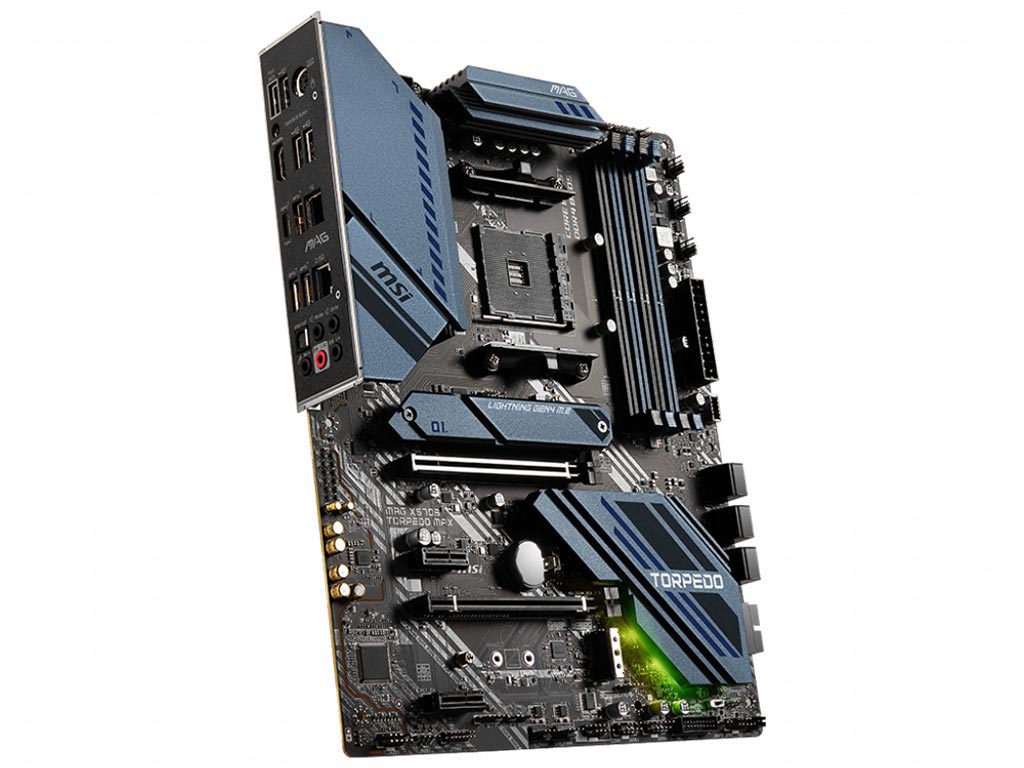

MSI MAG X570S Torpedo Max
![MSI MAG X570S Torpedo Max [7D54-005R] Εικόνα 1](https://static.msystems.gr/photos/big_photos/43440.jpg)
![MSI MAG X570S Torpedo Max [7D54-005R] Εικόνα 2](https://static.msystems.gr/photos/big_photos/43440.1.jpg)
![MSI MAG X570S Torpedo Max [7D54-005R] Εικόνα 3](https://static.msystems.gr/photos/big_photos/43440.2.jpg)
![MSI MAG X570S Torpedo Max [7D54-005R] Εικόνα 4](https://static.msystems.gr/photos/big_photos/43440.3.jpg)
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
Άτοκες Δόσεις
Buy Now - Pay Later
MAG X570S TORPEDO MAX
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
- Supports DDR4 Memory, up to 5100(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
- Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™
.jpg)
PREMIUM HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
.jpg)
ENHANCED PERFORMANCE
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.
.jpg)
CONNECTIVITY
MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.
.jpg)
| Processor |
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors Supports Socket AM4 Please go to msi.com to get the newest support status as new processors are released. |
| Chipset |
AMD X570 Chipset |
| Memory |
4x DDR4 memory slots, support up to 128GB Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Max overclocking frequency by A-XMP OC mode: For Ryzen™ 5000 G-Series & 4000 G-Series processors For Ryzen™ 5000 Series & 3000 Series processors Supports Dual-Channel mode Supports non-ECC, un-buffered memory Please refer to www.msi.com for more information on compatible memory. |
| Expansion Slot |
Supports PCIe 4.0 / PCIe 3.0 specification PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors 1x PCIe x16 slot (From processor) PCI_E1 supports PCIe 4.0/ 3.0 x16 1x PCIe x16 slot (From X570 chipset) PCI_E3 supports PCIe 4.0/ 3.0 x4 2x PCIe 3.0 x1 slots (From X570 chipset) |
| Multi-GPU |
Supports AMD CrossFire™ Technology |
| Onboard Graphics |
1x HDMI 2.1 port, supports a maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Storage |
6x SATA 6Gb/s ports (from AMD X570 Chipset) 2x M.2 slots (Key M) Support up to PCIe 4.0 for AMD Ryzen™ 5000 Series and 3000 Series desktop processors Support up to PCIe 3.0 for AMD Ryzen™ 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor Supports up to SATA 6Gb/s M2_1 slot (from Processor) M2_2 slot (from AMD X570 Chipset) |
| RAID |
Supports RAID 0, RAID 1 and RAID 10 |
| USB |
AMD X570 Chipset 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector) 4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A &Type-C) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Audio |
Realtek® ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN |
1x Realtek® 8125B 2.5Gbps LAN Controller 1x Realtek® RTL8111H 1Gbps LAN Controller |
| Internal connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Serial port connector 1x Chassis Intrusion connector |
| LED Feature |
2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED 1X EZ LED Control switch |
| Back panel ports |
PS/2 Mouse / Keyboard USB 3.2 Gen 1 5Gbps (Type-A) Gigabit LAN Port 2.5G LAN Port HD Audio Connectors USB 2.0 Port Flash BIOS Button HDMI 2.1 Port USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) Optical S/PDIF OUT |
| Dimensions |
ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Operating System |
Support for Windows® 10 64-bit |
| Κατασκευαστής | MSI |
| Μοντέλο | MAG X570S Torpedo Max |
| Part Number | 7D54-005R |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | AM4 |
| Chipset | AMD X570 |
| Μέγεθος μητρικής | ATX (30.5 cm x 24.4 cm) |
| Τύπος Μνήμης | DDR5 |
| Αριθμός Dimm | 4 |
| Expansion Slots | 2x PCIe x16 (1x PCIe 4.0 x16, 1x PCIe 4.0 x4) 2x PCIe x1 (PCIe 3.0) AMD CrossFireX |
| Αποθήκευση | 6x SATA 2x M.2 |
| Έξοδοι Γραφικών | 1x HDMI (v2.1) |
| Πρόσθετα Χαρακτηριστικά | LED Control USB Type-C M.2 Slot |
| Εγγύηση | 3 Έτη |
