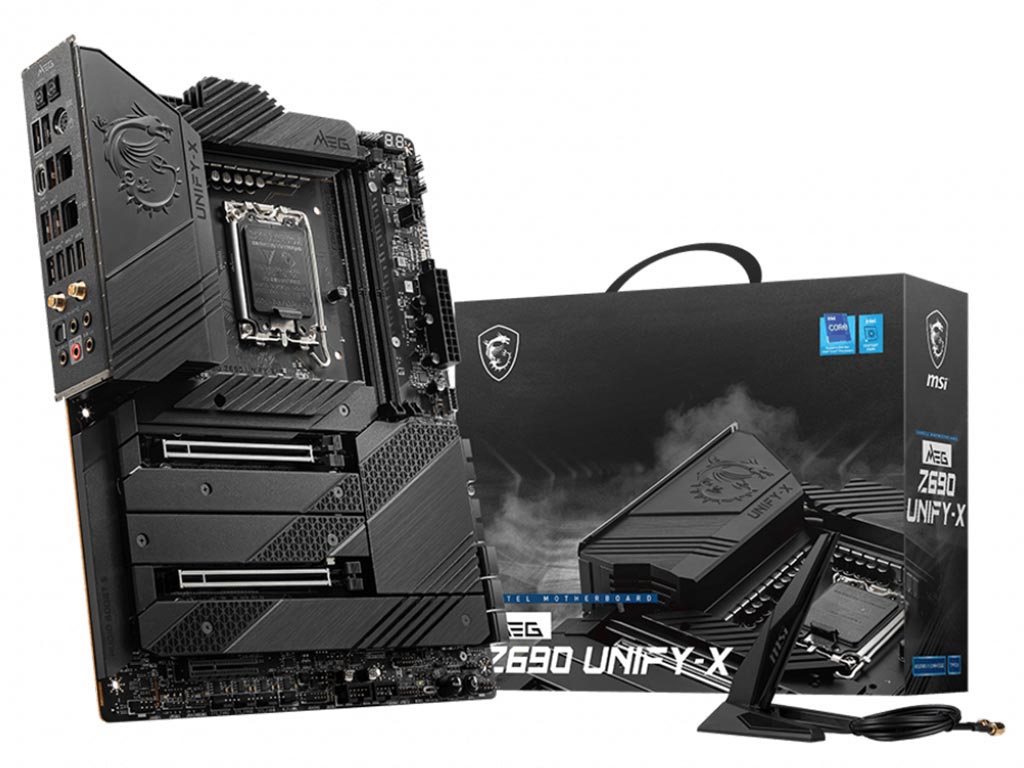

MSI MEG Z690 Unify-X DDR5
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
Άτοκες Δόσεις
Δόσεις χωρίς πιστωτική
Επίλεξε από 3 έως 60 μηνιαίες πληρωμές για αγορές από 300€ έως και 10.000€
MEG Z690 UNIFY-X
- Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5-6800+MHz(OC)
- Dedicated for Extreme OC: The top-notch R&D design and exclusive 2 DIMM solution for an even clearer DDR5 memory signal to explore the boundaries of memory overclocking, deliver the world class memory performance.
- Quintuple M.2 Connectors: Onboard 5x M.2 connectors for the maximum storage performance with quad Lightning Gen 4 solution. Double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Extreme Power Design: Premium digital PWM, direct 19+2 phases with 105A Smart Power Stage, Titanium Choke III and dual CPU power connectors to unleash the true power of your processors.
- Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp.
- Dual 2.5G LAN with latest Wi-Fi 6E: Onboard dual 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, Front & Rear USB 3.2 Gen 2x2 20G.
- 8 Layer Server Grade PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
- Exclusive DIY Accessory: DIY Stands Set and Tuning Controller provide a new way to build and control your PC platform with ease.
- Audio Boost 5: Isolated audio with a high quality ALC4080 audio processor & amp for the most immersive gaming experience.
.jpg)
PREMIUM HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
.jpg)
ENHANCED PERFORMANCE
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.
.jpg)
CONNECTIVITY
MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.
.jpg)
| Processor |
Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1700 Please go to www.msi.com to get the newest support status as new processors are released. |
| Chipset |
Intel® Z690 Chipset |
| Memory |
2x DDR5 memory slots, support up to 64GB Supports 1R 4800 MHz (by JEDEC & POR) Max. overclocking frequency: Supports Intel® XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory Please refer to www.msi.com for more information on compatible memory. |
| Expansion Slots |
2x PCIe x16 slots (From CPU) 1x PCIe x4 slot (From Z690 Chipset) |
| Multi-GPU |
Supports AMD® CrossFire™ Technology |
| USB |
Intel® Z690 Chipset 2x USB 3.2 Gen2x2 20Gbps ports ( 1 Type-C port on the back panel, 1 Type-C internal connector) 3x USB 3.2 Gen2 10Gbps Type-A ports on the back panel 2x USB 2.0 Type-A port on the back panel Hub GL3590 4x USB 3.2 Gen2 10Gbps ports on the back panel Hub ASM1074 4x USB 3.2 Gen1 5Gbps ports available through internal USB connectors Hub GL850G 4x USB 2.0 ports available through internal USB connectors |
| Storage |
6x SATA 6Gb/s ports SATA5~8 (From Z690 Chipset) SATAA~B (From ASMedia ASM1061) 5x M.2 slots (Key M) M2_1 slot (From CPU) M2_2 slot (From Z690 Chipset) M2_3 slot (From Z690 Chipset) M2_4 slot (From Z690 Chipset) M2_5 slot (From Z690 Chipset) M2_2~5 supports Intel® Optane™ Memory Supports Intel® Smart Response Technology for Intel Core™ processors |
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices SATAA & SATAB do not support RAID function. |
| Audio |
Realtek® ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN |
2x Intel® I225-V 2.5Gbps LAN controllers |
| Wireless LAN & Bluetooth |
Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2 , FIPS, FISMA Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 version 21H1 and Windows 11. Bluetooth 5.2 will be ready in Windows 10 version 21H1 and Windows 11. |
| Internal connectors |
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 5x M.2 slots (M-Key) 1x USB 3.2 Gen 2x2 20Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connector (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 2-pin Thermal Sensors connector 1x Water flow connector 1x V-check point 1x TPM module connector 1x Tuning controller connector 1x Debug port connector 1x TBT connector (Supports RTD3) |
| LED Features |
1x 2-Digit Debug Code LED 4x EZ Debug LED 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin JCORSAIR LED connector |
| Back panel ports |
Clear CMOS Button PS/2 Keyboard / Mouse Port 2.5G LAN 2.5G LAN USB 3.2 Gen 2 10Gbps (Type-A) Wi-Fi / Bluetooth HD Audio Connectors Flash BIOS Button USB 2.0 USB 3.2 Gen 2x2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) Optical S/PDIF-Out |
| Dimensions |
12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor |
| Κατασκευαστής | MSI |
| Μοντέλο | MEG Z690 Unify-X DDR5 |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | 1700 |
| Chipset | Intel Z690 |
| Μέγεθος μητρικής | ATX (30.5 cm x 24.4 cm) |
| Τύπος Μνήμης | DDR5 |
| Αριθμός Dimm | 2 |
| Expansion Slots | 2x PCIe x16 (PCie 5.0 *x16 single, x8 when both slots are used) 1x PCIe x4 (PCIe 4.0) AMD CrossFireX |
| Αποθήκευση | 6x SATA 5x M.2 |
| Πρόσθετα Χαρακτηριστικά | LED Control Wi-Fi (Intel® Wi-Fi 6E) Bluetooth (v5.2) USB Type-C M.2 Slot |
| Εγγύηση | 3 Έτη |
