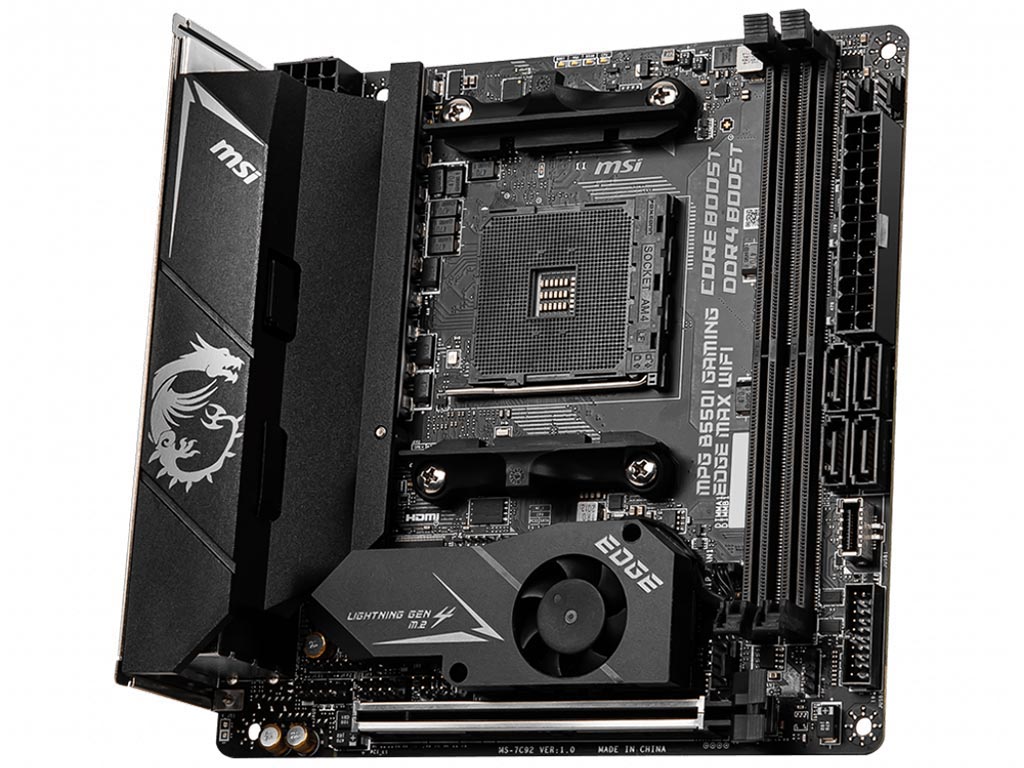

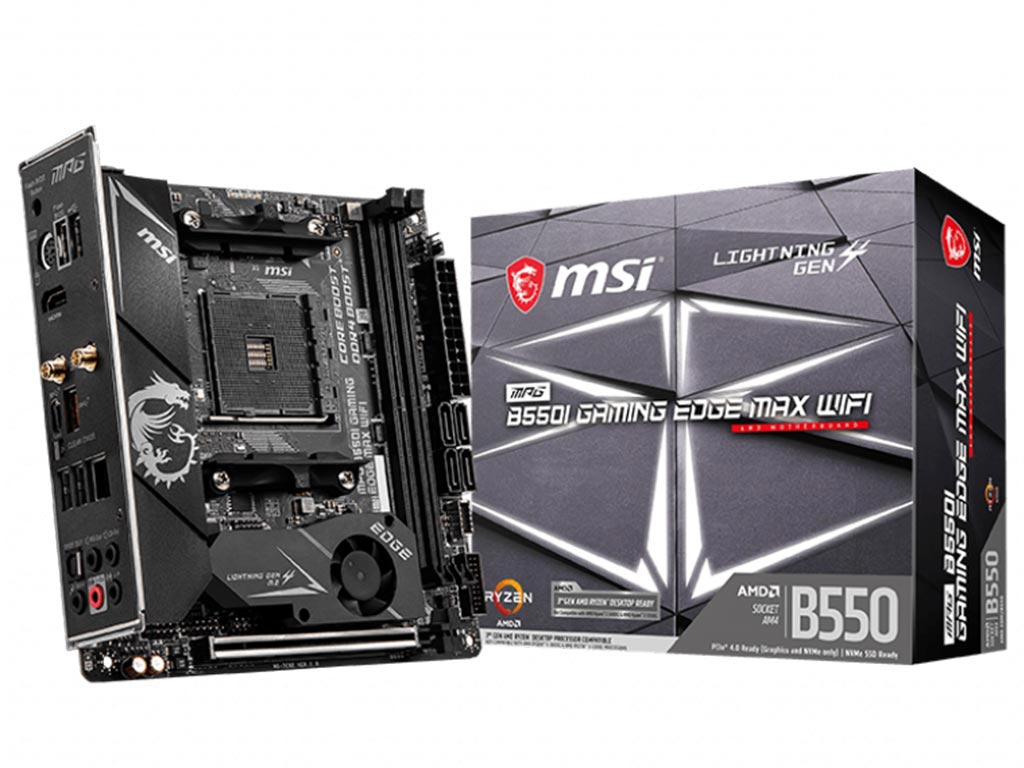

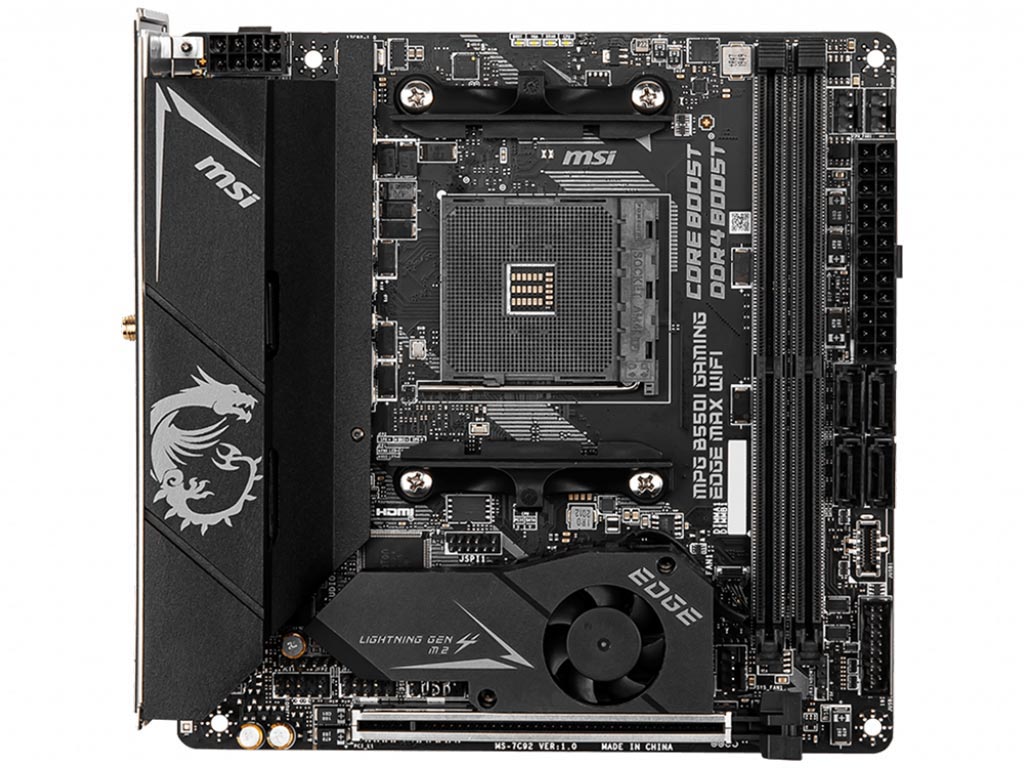

MPG B550I GAMING EDGE MAX WIFI
- Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
- Supports DDR4 Memory, up to 4600(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, AMD Turbo USB 3.2 Gen 2 10Gbps and Front USB Type-C connector
- Enhanced Power Design: 8+2+1 Digital Power Design with Dr.MOS 60A, Core Boost, DDR4 Boost
- Premium Thermal Solution: Extended Heatsink Design, M.2 Shield Frozr and 8 layer PCB with 2oz Thickened Copper are built for high performance system and non-stop gaming experience
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- HDMI 2.1: Support 4K display with up to 4096x2160@60Hz
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
- Audio Boost: Reward your ears with studio grade sound quality
- Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
.jpg)

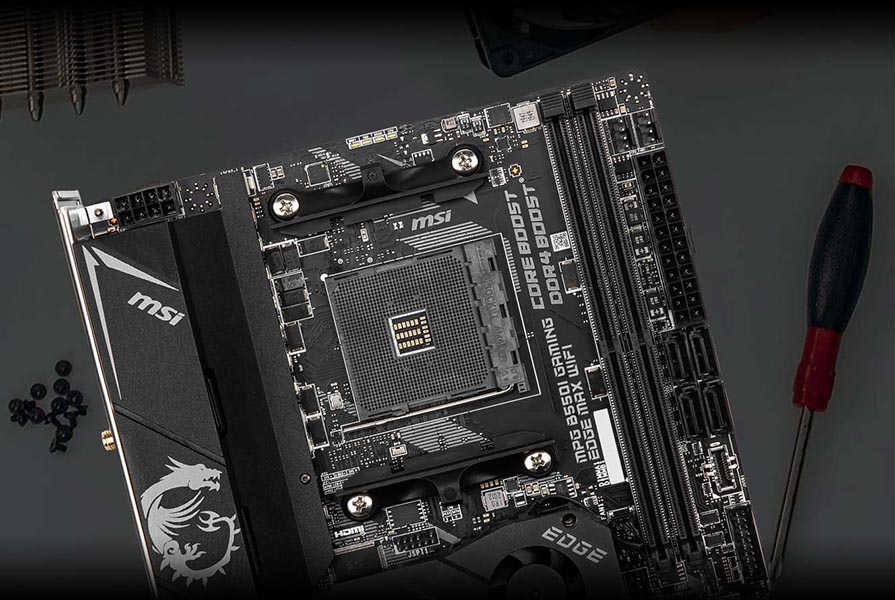

PREMIUM HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

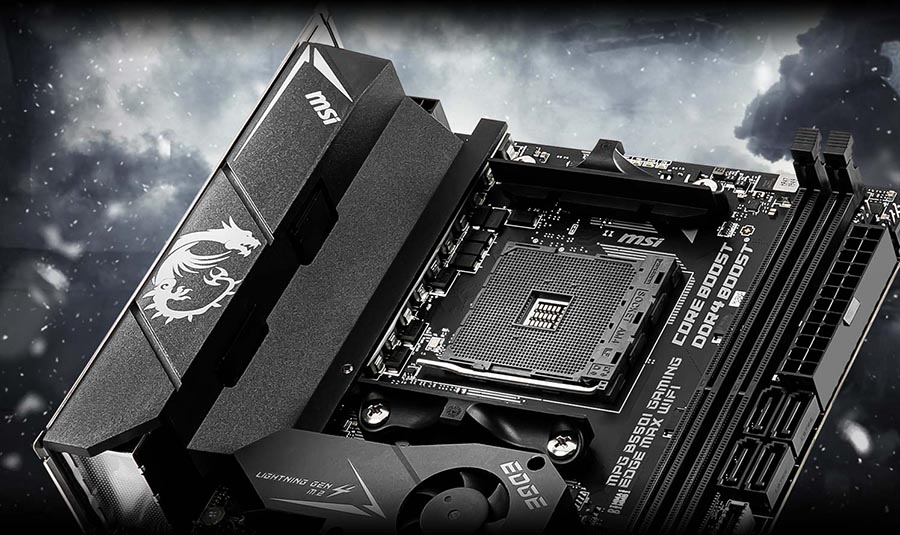

ENHANCED PERFORMANCE
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.
CONNECTIVITY
MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.
.jpg)
| CPU |
Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors |
| Chipset |
AMD B550 Chipset |
| Memory |
2x DDR4 memory slots, support up to 64GB Supports DDR4 1866/ 2133/ 2400/ 2667 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4466/ 4533 / 4600+ MHz by A-XMP OC MODE Dual channel memory architecture Supports non-ECC UDIMM memory Supports un-buffered memory Please refer www.msi.com for more information on compatible memory. |
| Expansion Slots |
1x PCIe 4.0 / 3.0 x16 slot The supported specification depends on installed processor. |
| Onboard Graphics |
1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz Maximum shared memory of 2048 MB Available for the processor with integrated graphics. |
| Storage |
AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots [Key M] M2 1 slot [from AMD Processor] M2_2 slot [from AMD B550 chipset] The supported specification depends on installed processor. |
| RAID |
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB |
AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports [1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector] 4x USB 2.0 ports [2 Type-A ports on the back panel, 2 ports through the internal USB 2.0 connector] AMD Processor 2x USB 3.2 Gen 2 10Gbps ports [1 Type-C port and 1 Type-A port] on the back panel 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Audio |
Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN |
1x Realtek® RTL8125B 2.5Gbps LAN controller |
| Wireless LAN & Bluetooth® |
Intel® AX200/AX210 The Wireless module is pre-installed in the M.2 [Key-E] slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz [160MHz] up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2 |
| Internal connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots [M-Key] 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector [supports additional 2 USB 3.2 Gen 1 5Gbps ports] 1x USB 2.0 connector [supports additional 2 USB 2.0 ports] 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x 3-pin RAINBOW LED connector 1x Clear CMOS jumper 4x EZ Debug LED |
| Back panel ports |
USB 2.0 WiFi / Bluetooth USB 3.2 Gen 2 10Gbps(Type-A) 2.5G LAN HD Audio Connectors Flash BIOS Button PS/2 Combo Port HDMI 2.1 USB 3.2 Gen 2 10Gbps(Type-C) Clear CMOS USB 3.2 Gen 1 5Gbops(Type-A) Optical S/PDIF OUT |
| I/O Controller |
NUVOTON NCT6687-R Controller Chip |
| Dimensions |
Mini-ITX Form Factor 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm) |
| Κατασκευαστής | MSI |
| Μοντέλο | MPG B550I Gaming Edge Max WIFI |
| Part Number | 7C92-012R |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | AM4 |
| Chipset | AMD B550 |
| Μέγεθος μητρικής | Mini-ITX (17.0 cm x 17.0 cm) |
| Τύπος Μνήμης | DDR4 |
| Αριθμός Dimm | 2 |
| Expansion Slots | 1x PCIe x16 (PCIe 4.0) |
| Αποθήκευση | 4x SATA 2x M.2 |
| Έξοδοι Γραφικών | 1x HDMI (v2.1) |
| Πρόσθετα Χαρακτηριστικά | LED Control Wi-Fi (Intel® AX200/AX210 802.11 a/ b/ g/ n/ ac/ ax) Bluetooth (v5.2) USB Type-C M.2 Slot |
| Εγγύηση | 3 Έτη |
