Περιγραφή

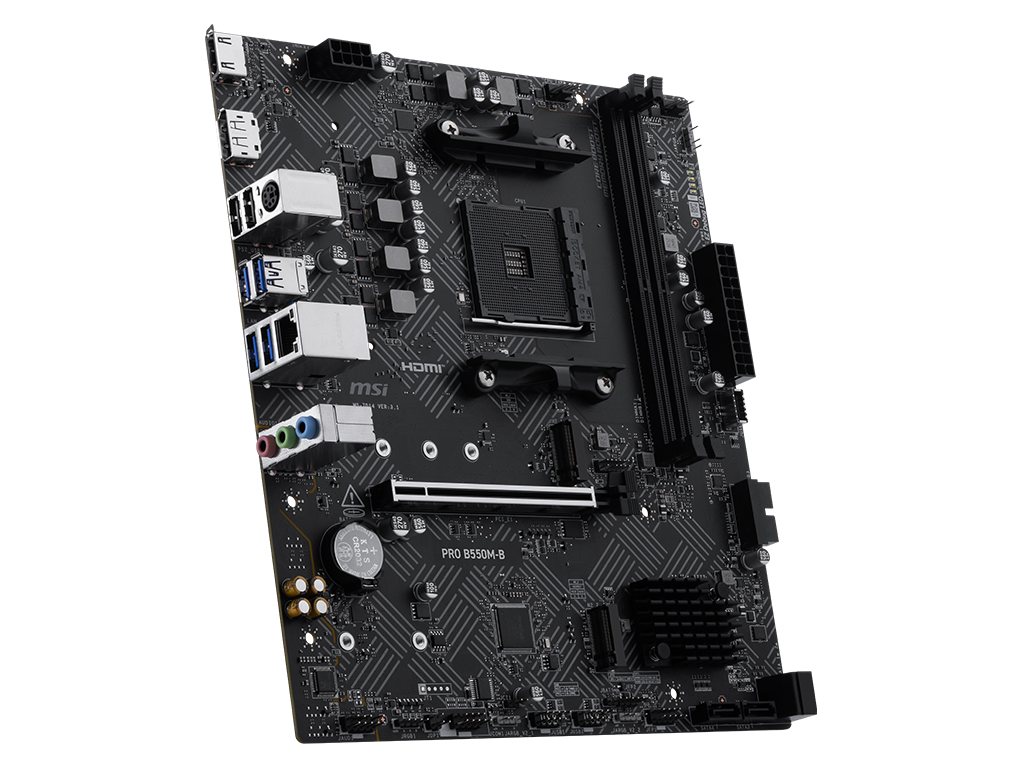

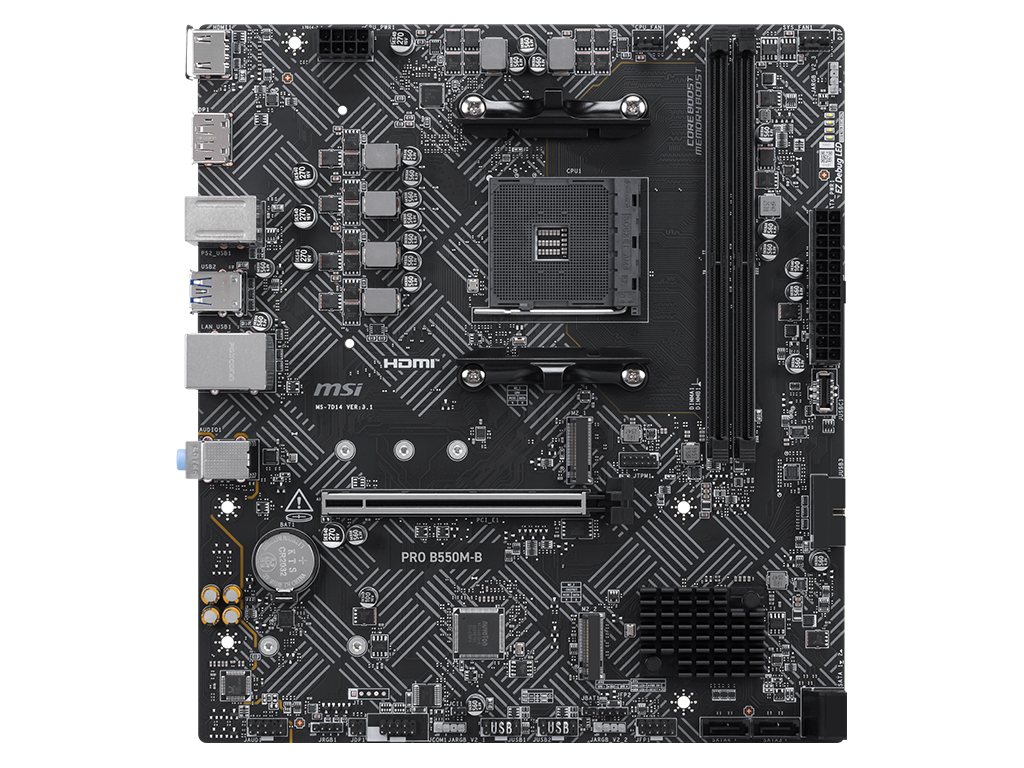

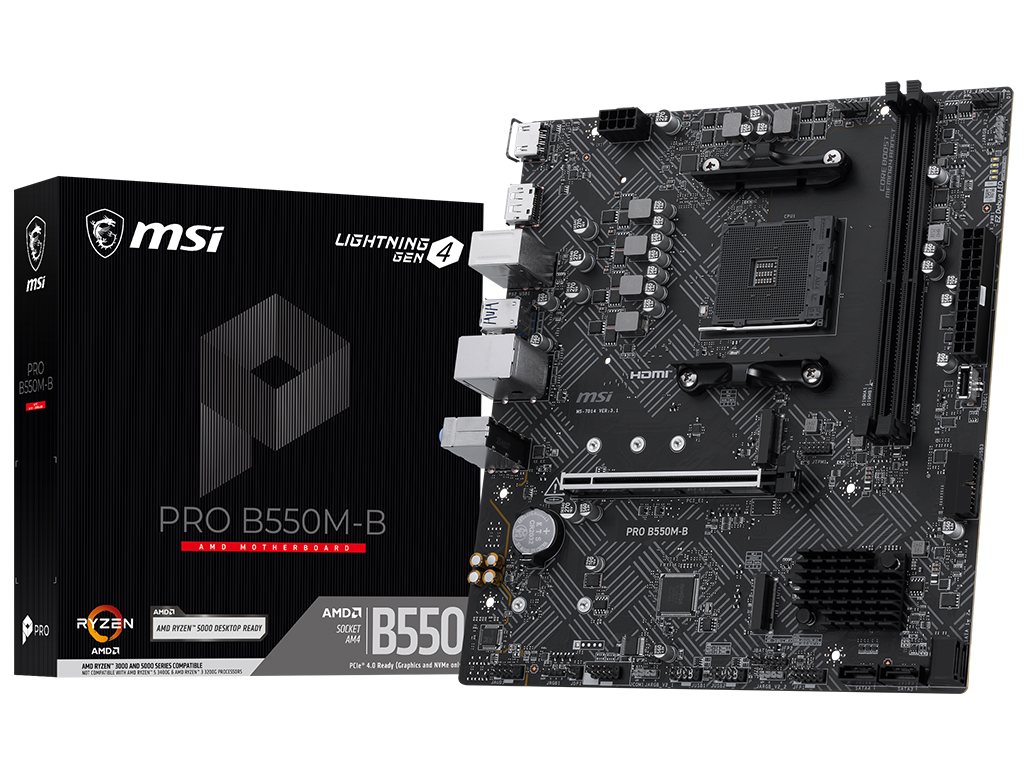

PRO B550M-B

PRO B550M-B is engineered with PCIe 4.0 M.2, Frozr AI Cooling, and Front Type-C, ready for the AMD Ryzen 5000 series processors.

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, and 3000 G-Series processors
Supports DDR4 Memory, up to 4600+ MT/s (OC)
Lightning Fast Experience: PCIe 4.0 slot and Lightning Gen4 x4 M.2
EZ DIY: EZ Debug LED, EZ Mounting
Audio Boost: Reward your ears with studio-grade sound quality
MSI Center: A brand-new software which integrates all MSI exclusive tools with user-friendly user interface.

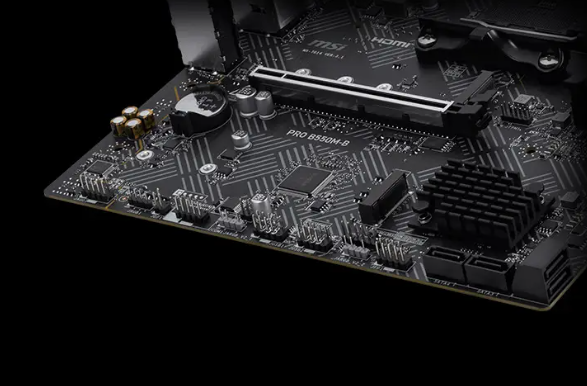

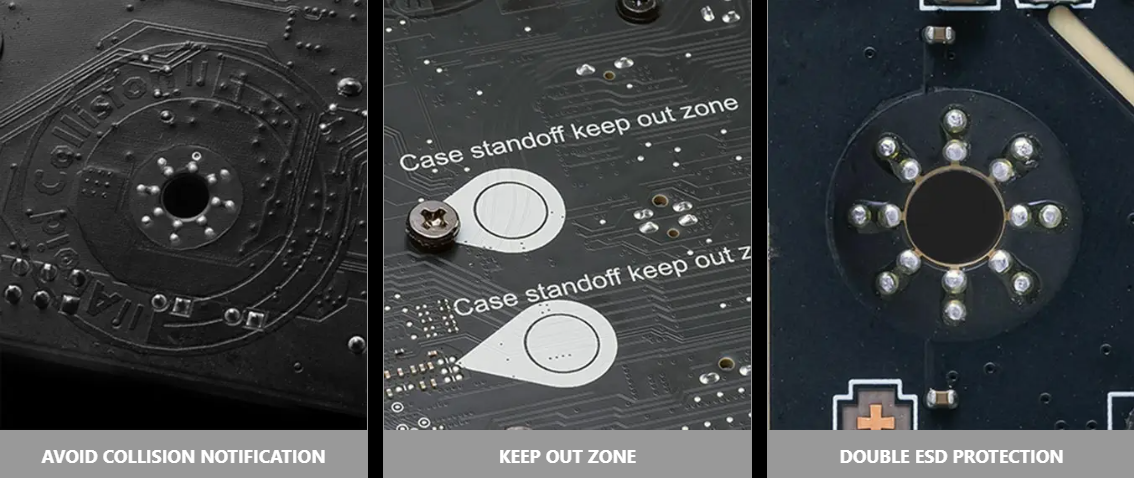

EZ MOUNTING

MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.

POWER SOLUTION

Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

REINFORCED, HEAVY SOLDERED CONNECTIONS

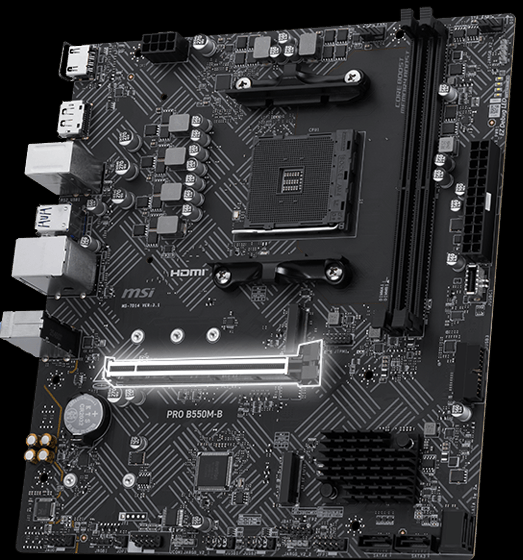

LIGHTNING GEN 4 PCI-E

MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

Chipset	AMD B550
CPU SUPPORT	Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors Socket AM4
Memory	2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE Max. overclocking frequency: • 1DPC 1R Max speed up to 4600+ MHz • 1DPC 2R Max speed up to 3866+ MHz Supports JEDEC Speed Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Memory Overclocking by A-XMP OC mode • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Supports DP 1.2, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT	1x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) *The supported specification depends on installed processor.
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 22110/2280 devices 4x SATA 6G *The supported specification depends on installed processor.
RAID	Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front)
LAN	Realtek RTL8111H 1Gbps LAN
Internal I/O	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports

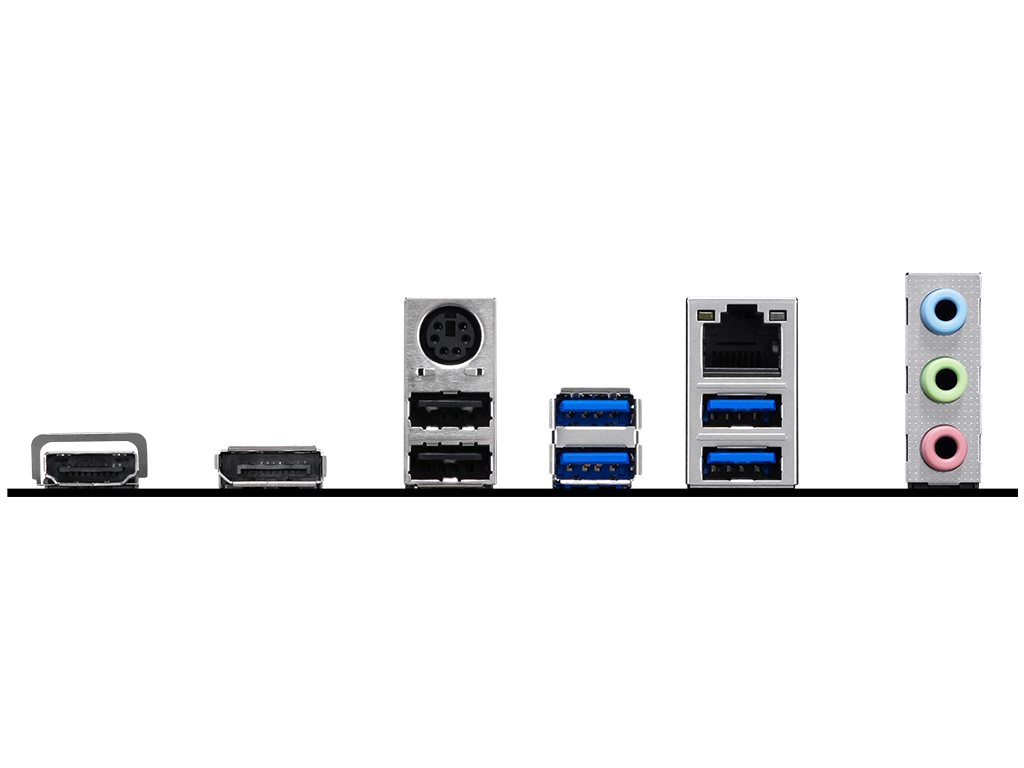

BACK PANEL PORTS	1x HDMI 1x DisplayPort 1x Keyboard / Mouse 4x USB 5Gbps Type-A 1x LAN Port 3x Audio connectors 2x USB 2.0
OPERATING SYSTEM	Support for Windows 11 64-bit, Windows 10 64-bit
PCB Dimension	mATX 220mm x 243.84mm

Τεχνικά Χαρακτηριστικά

Κατασκευαστής	MSI
Μοντέλο	PRO B550M-B
Part Number	PRO B550M-B
Κατηγορία	Μητρικές Κάρτες
Socket	AM4
Chipset	AMD B550
Μέγεθος μητρικής	Micro ATX (220mm x 243.84mm)
Τύπος Μνήμης	DDR4
Αριθμός Dimm	2
Expansion Slots	1x PCIe x16 (1x PCIe 4.0 x16)
Αποθήκευση	4x SATA 2x M.2
Έξοδοι Γραφικών	1x HDMI v2.1 1x DisplayPort v1.2
Πρόσθετα Χαρακτηριστικά	LED Control USB - (4x USB 2.0 Type-A, 2x USB 5Gbps Type-A) LAN - Realtek RTL8111H 1Gbps M.2 Slot
Εγγύηση	3 Έτη
