MSI PRO B660M-A DDR4
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
Buy Now - Pay Later

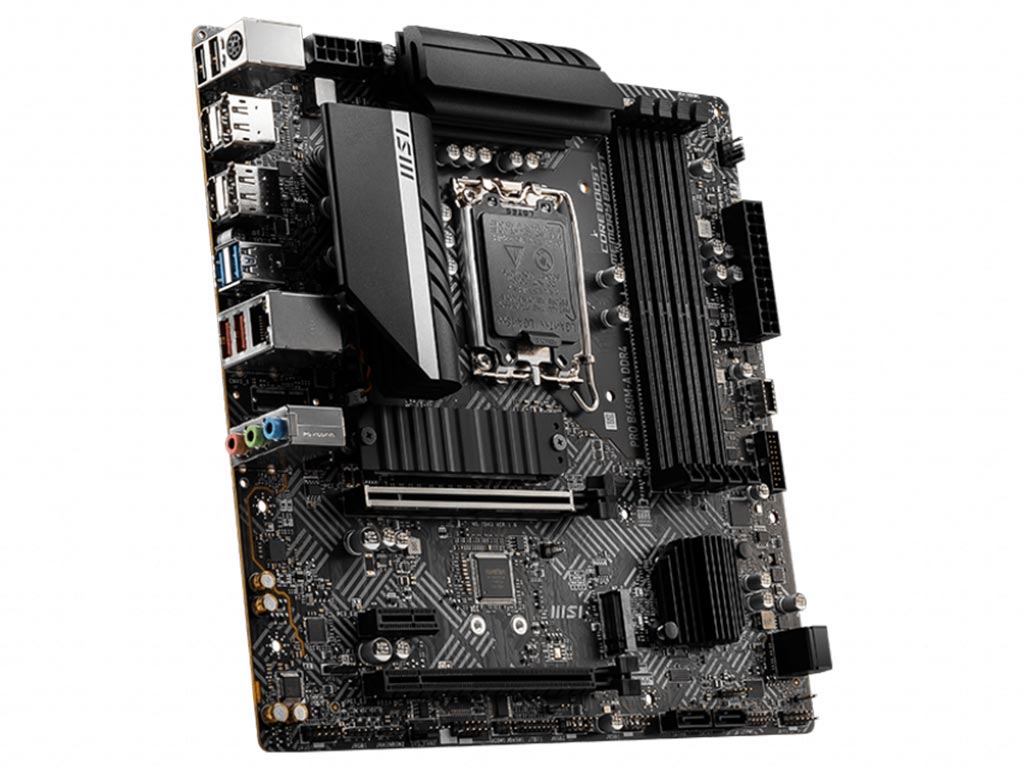

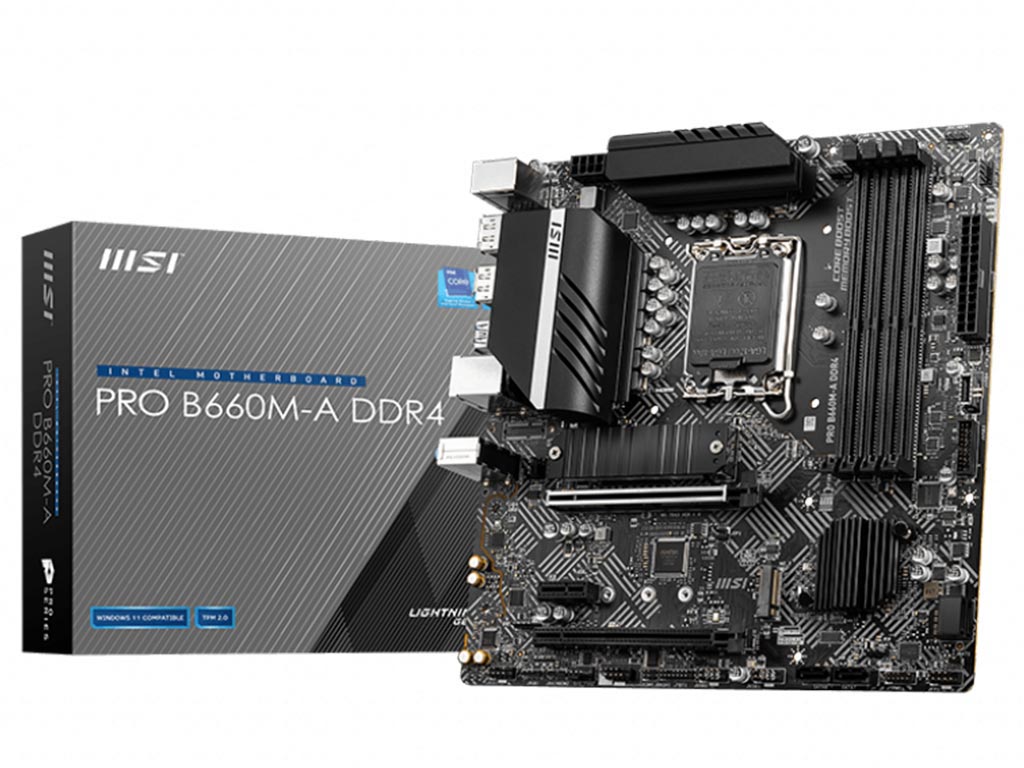

PRO B660M-A DDR4
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 4800+(OC) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost: Reward your ears with studio grade sound quality
.jpg)

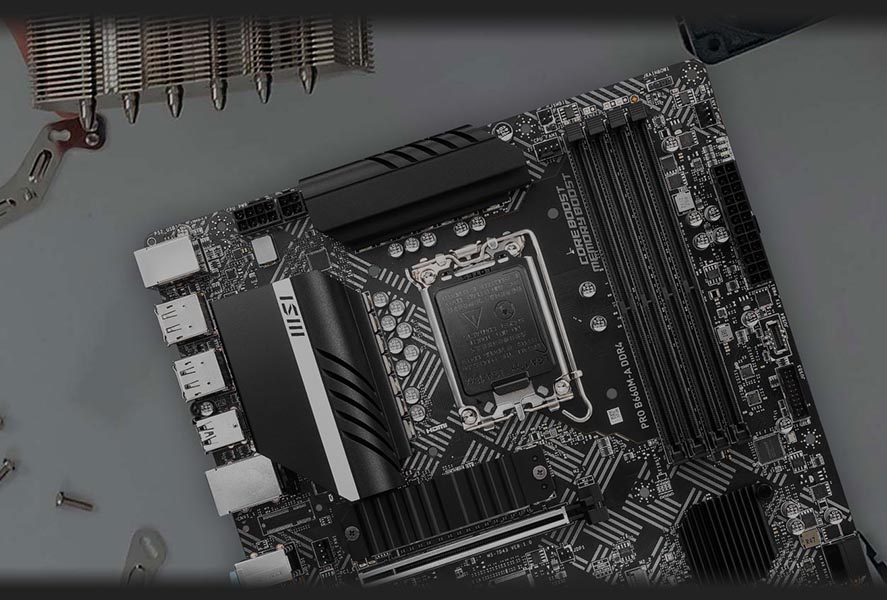

USER FRIENDLY DESIGN
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.
.jpg)
CONNECTIVITY
The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.
EXPERIENCE MORE
MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.
.jpg)
| CPU |
Supports 12th Gen Intel® Core™ Processors Processor socket LGA1700 Please go to www.msi.com to get the newest support status as new processors are released. |
| Chipset |
Intel® B660 Chipset |
| Memory |
4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memoryy Supports Intel® Extreme Memory Profile (XMP) Please refer to www.msi.com for more information on compatible memory. |
| Expansion Slot |
2x PCIe x16 slots PCI_E1 (From CPU) Support PCIe 4.0 x16 PCI_E3 (From B660 chipset) Support PCIe 3.0 x4 1x PCIe 3.0 x1 slot (Fom B660 chipset) |
| Onboard Graphics |
2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz 2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60 Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage |
4x SATA 6Gb/s ports (From B660 chipset) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 chipset) Supports up to PCIe 4.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Optane™ Memory Support Intel® Smart Response Technology for Intel Core™ processors SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| LAN |
1x Realtek® RTL8125BG 2.5Gbps LAN controller |
| USB |
Intel® B660 Chipset 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel 3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 1 Type-C available through the internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors) Asmedia ASM1074 2X USB 3.2 Gen 1 5Gbps Type-A ports through the internal connector |
| Internal connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Serial port 1x Tuning Controller connector |
| LED Features |
1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED |
| Back panel ports |
Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0 HDMI USB 3.2 Gen 2 10Gbps Type-A |
| Dimensions |
Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Κατασκευαστής | MSI |
| Μοντέλο | PRO B660M-A DDR4 |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | 1700 |
| Chipset | Intel B660 |
| Μέγεθος μητρικής | Micro ATX (24.4 cm x 24.4 cm) |
| Τύπος Μνήμης | DDR4 |
| Αριθμός Dimm | 4 |
| Expansion Slots | 2x PCIe x16 (1x PCIe 4.0 x16, 1x PCIe 3.0 x4) 1x PCIe x1 (PCIe 3.0) |
| Αποθήκευση | 4x SATA 2x M.2 |
| Έξοδοι Γραφικών | 2x HDMI (v2.1) 2x DisplayPort (v1.4) |
| Πρόσθετα Χαρακτηριστικά | LED Control M.2 Slot |
| Εγγύηση | 3 Έτη |
