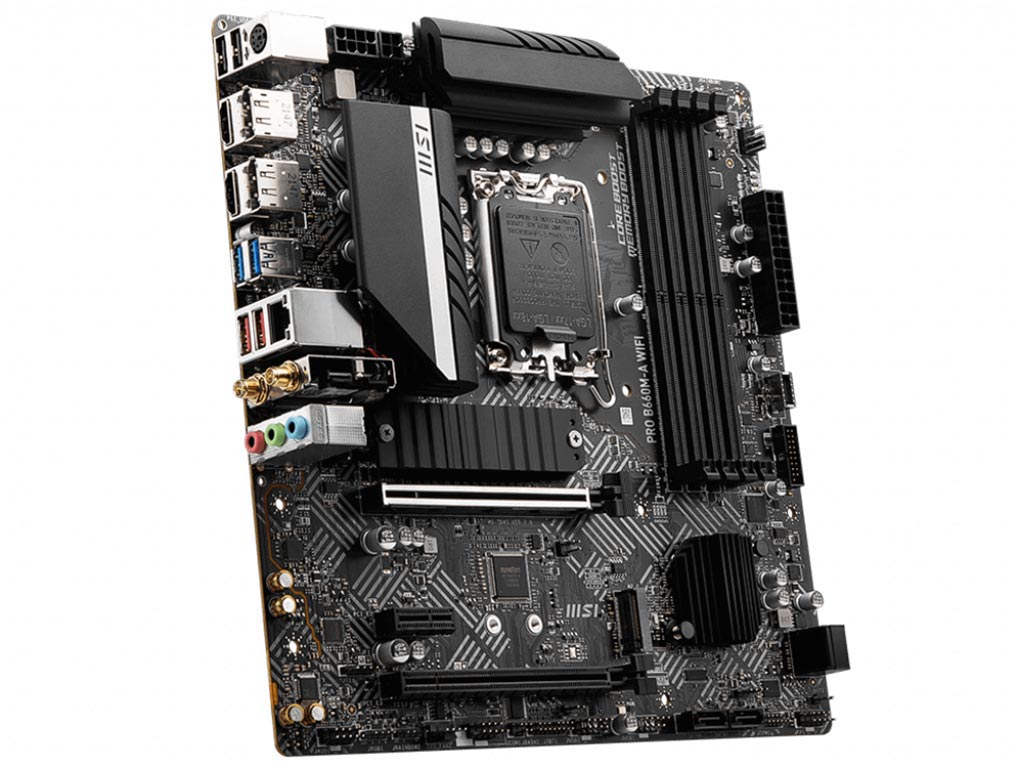

MSI PRO B660M-A WIFI (DDR5)
![MSI PRO B660M-A WIFI (DDR5) [911-7D43-009] Εικόνα 1](https://static.msystems.gr/photos/big_photos/43310.jpg)
![MSI PRO B660M-A WIFI (DDR5) [911-7D43-009] Εικόνα 2](https://static.msystems.gr/photos/big_photos/43310.1.jpg)
![MSI PRO B660M-A WIFI (DDR5) [911-7D43-009] Εικόνα 3](https://static.msystems.gr/photos/big_photos/43310.2.jpg)
![MSI PRO B660M-A WIFI (DDR5) [911-7D43-009] Εικόνα 4](https://static.msystems.gr/photos/big_photos/43310.3.jpg)
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
Άτοκες Δόσεις
Buy Now - Pay Later
PRO B660M-A WIFI
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 6200+(OC) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost: Reward your ears with studio grade sound quality

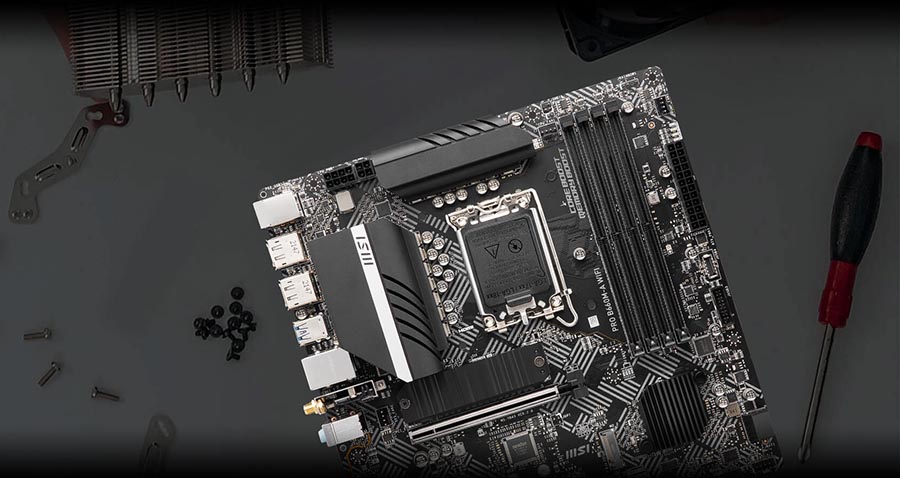

USER FRIENDLY DESIGN
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.
.jpg)

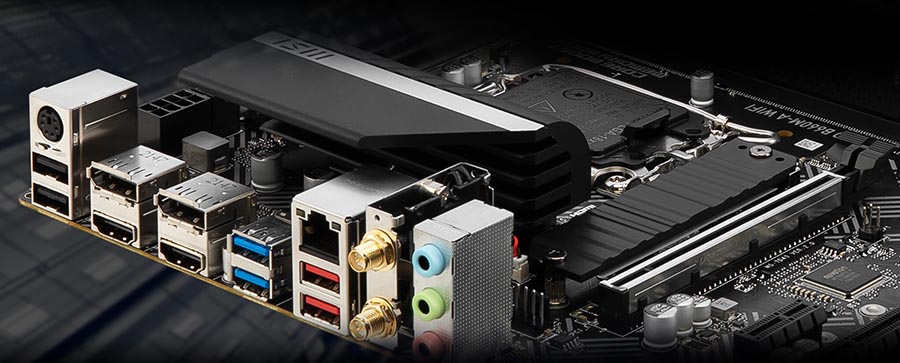

CONNECTIVITY
The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.
.jpg)
EXPERIENCE MORE
MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.
.jpg)
|
CPU |
Supports 12th Gen Intel® Core™ Processors Processor socket LGA1700 Please go to www.msi.com to get the newest support status as new processors are released. |
|
Chipset |
Intel® B660 Chipset |
|
Memory |
4x DDR5 memory slots, support up to 128GB Supports 1R 4800 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 6200+ MHz 1DPC 2R Max speed up to 5200+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
|
|
Expansion Slot |
2x PCIe x16 slots PCI_E1 (From CPU) PCI_E3 (From B660 chipset) 1x PCIe 3.0 x1 slot (Fom B660 chipset) |
|
Onboard Graphics |
2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz 2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
Multi-GPU |
Supports AMD® CrossFire™ Technology |
|
Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
|
Storage |
4x SATA 6Gb/s ports (From B660 chipset) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 M2_2 slot (From B660 chipset) Supports up to PCIe 4.0 x4 Support Intel® Smart Response Technology for Intel Core™ processors SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
|
RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|
LAN |
1x Realtek® RTL8125BG 2.5Gbps LAN controller |
|
Wi-Fi & Bluetooth® |
Intel® Wi-Fi 6 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2 |
|
Power Connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector |
|
Internal USB Connectors |
1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset) 1x USB 3.2 Gen 1 5Gbps Type-A connector (From ASM1074) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From B660 chipset) Supports additional 4 USB 2.0 ports |
|
Fan Connectors |
1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors |
|
System Connectors |
1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Tuning Controller connector 1x TBT connector (supports RTD3) 1x Serial port |
|
Jumpers |
1x Clear CMOS jumper |
|
LED Features |
1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED |
|

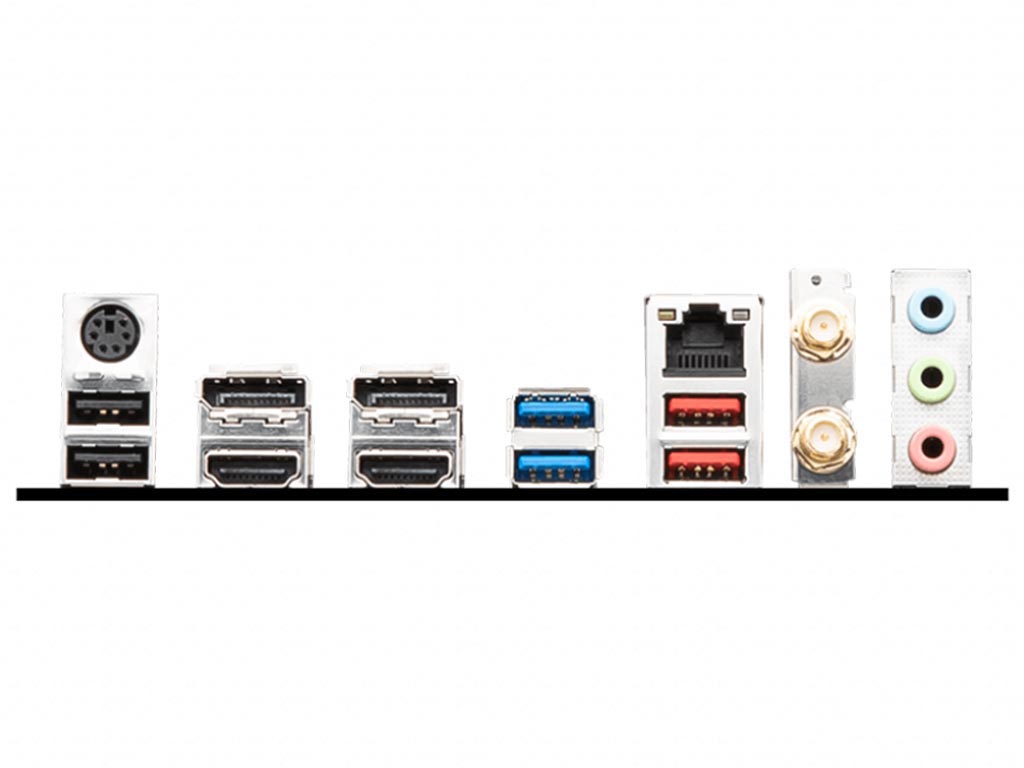

Back panel ports |
Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0 HDMI USB 3.2 Gen 2 10Gbps Type-A Wi-Fi / Bluetooth |
|
Dimensions |
Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Κατασκευαστής | MSI |
| Μοντέλο | PRO B660M-A WIFI (DDR5) |
| Part Number | 911-7D43-009 |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | 1700 |
| Chipset | Intel B660 |
| Μέγεθος μητρικής | Micro ATX (24.4 cm x 24.4 cm) |
| Τύπος Μνήμης | DDR5 |
| Αριθμός Dimm | 4 |
| Expansion Slots | 2x PCIe x16 (1x PCIe 4.0 x16, 1x PCIe 3.0 x4) 1x PCIe x1 (PCIe 3.0) AMD CrossFireX |
| Αποθήκευση | 4x SATA 2x M.2 |
| Έξοδοι Γραφικών | 2x HDMI (v2.1) 2x DisplayPort (v1.4) |
| Πρόσθετα Χαρακτηριστικά | LED Control Wi-Fi Intel® Wi-Fi 6 802.11 a/ b/ g/ n/ ac/ ax Bluetooth v5.2 M.2 Slot |
| Εγγύηση | 3 Έτη |
