MSI PRO B660M-E DDR4
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
Buy Now - Pay Later

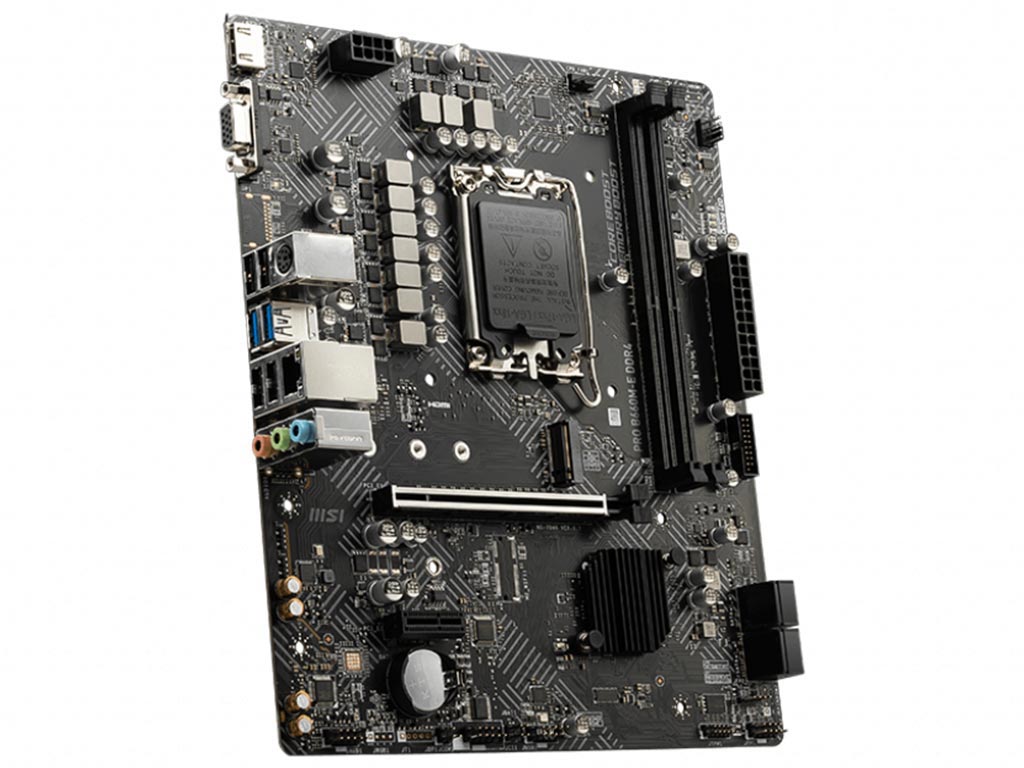

PRO B660M-E DDR4
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 4600+(OC) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
.jpg)
USER FRIENDLY DESIGN
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.
.jpg)
CONNECTIVITY
The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.
.jpg)
EXPERIENCE MORE
MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.
.jpg)
| Processor |
Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1700 Please go to www.msi.com to get the newest support status as new processors are released. |
| Chipset |
Intel® B660 Chipset |
| Memory |
2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4600+ MHz 1DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer to www.msi.com for more information on compatible memory. |
| Expansion Slot |
1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot (From B660 chipset) Supports PCIe 3.0 x1 |
| Onboard Graphics |
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz Available only on processors featuring integrated graphics Graphics specifications may vary depending on the CPU installed. |
| SATA Ports |
4x SATA 6Gb/s ports (From B660chipset) SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
| M.2 SSD Slot |
1x M.2 slot (Key M, from B660 chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Support Intel® Optane™ Memory Supports Intel® Smart Response Technology for Intel Core™ processors SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio |
Realtek® ALC892/ ALC897 Codec 7.1-Channel High Definition Audio |
| LAN |
1x Intel® I219V 1Gbps LAN controller |
| Power Connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector |
| USB |
Intel® B660 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) |
| Fan Connectors |
1x 4-pin CPU fan connector 1x 4-pin system fan connector |
| System Connectors |
1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector |
| Jumpers |
1x Clear CMOS jumper |
| LED Features |
4x EZ Debug LED |
| Back panel ports |
HDMI VGA Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0 |
| Dimensions |
M-ATX Form Factor 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm) |
| Κατασκευαστής | MSI |
| Μοντέλο | PRO B660M-E DDR4 |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | 1700 |
| Chipset | Intel B660 |
| Μέγεθος μητρικής | Micro ATX (24.4 cm x 21.1 cm) |
| Τύπος Μνήμης | DDR4 |
| Αριθμός Dimm | 2 |
| Expansion Slots | 1x PCIe x16 (PCIe 4.0) 1x PCIe x1 (PCIe 4.0) |
| Αποθήκευση | 4x SATA 1x M.2 |
| Έξοδοι Γραφικών | 1x HDMI (v2.1) 1x VGA |
| Πρόσθετα Χαρακτηριστικά | M.2 Slot |
| Εγγύηση | 3 Έτη |
