MSI PRO B660M-P WiFi DDR4
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
Buy Now - Pay Later
PRO B660M-P WIFI DDR4
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 4600+(OC) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
- Wireless and Bluetooth: Intel® Dual Band Wireless-AC 3168, Bluetooth 4.2
USER FRIENDLY DESIGN
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.
.jpg)

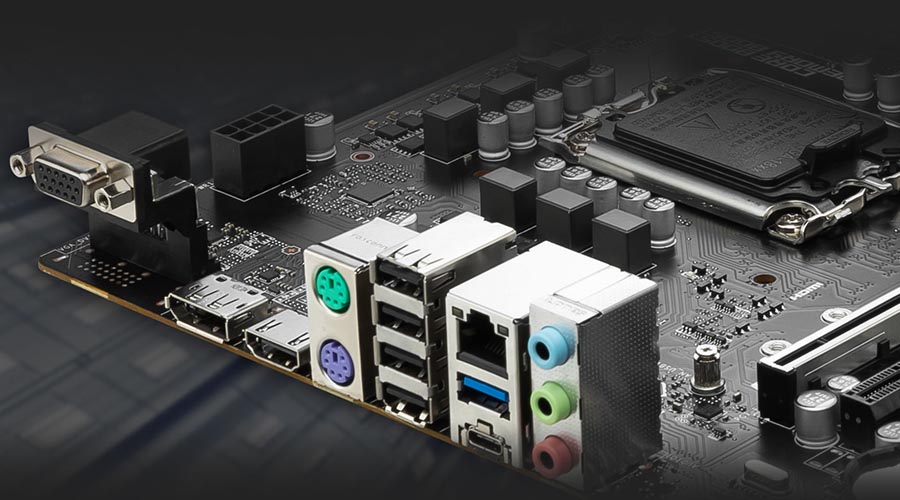

CONNECTIVITY
The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.
.jpg)
EXPERIENCE MORE
MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.
.jpg)
| CPU |
Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1700 Please go to msi.com to get the newest support status as new processors are released. |
| Chipset |
Intel® B660 chipset |
| Memory |
4x DDR4 memory slots, supporting up to 128GB Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer www.msi.com for more information on compatible memory. |
| Expansion Slot |
1x PCIe x16 slot 2x PCIe x1 slots |
| Onboard Graphics |
1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz 1x VGA port, supporting a maximum resolution of 2048 x 1536 50Hz, 2048 x 1280 60Hz, 1920 x 1200 60Hz Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| LAN | 1x Realtek® RTL8111H 1Gbps LAN controller |
| Storage |
4x SATA 6Gb/s ports (From B660 chipset) 1x M.2 slot (Key M) |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Form Factor |
M-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Wi-Fi & Bluetooth | Intel® Dual Band Wireless-AC 3168
Dual Band 1x1 802.11ac |
| BIOS Features |
1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4 Multi-language |
| Power Connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector |
| Internal USB Connectors |
1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset) 1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset) 1x USB 2.0 Type-A connector (From B660 chipset) |
| Fan Connectors |
1x 4-pin CPU fan connector 1x 4-pin system fan connector |
| System Connectors |
1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x parallel port connector 1x Serial port |
| Power Connectors |
1x Clear CMOS jumper |
| LED Feature |
4x EZ Debug LED |
| Back panel Connectors |

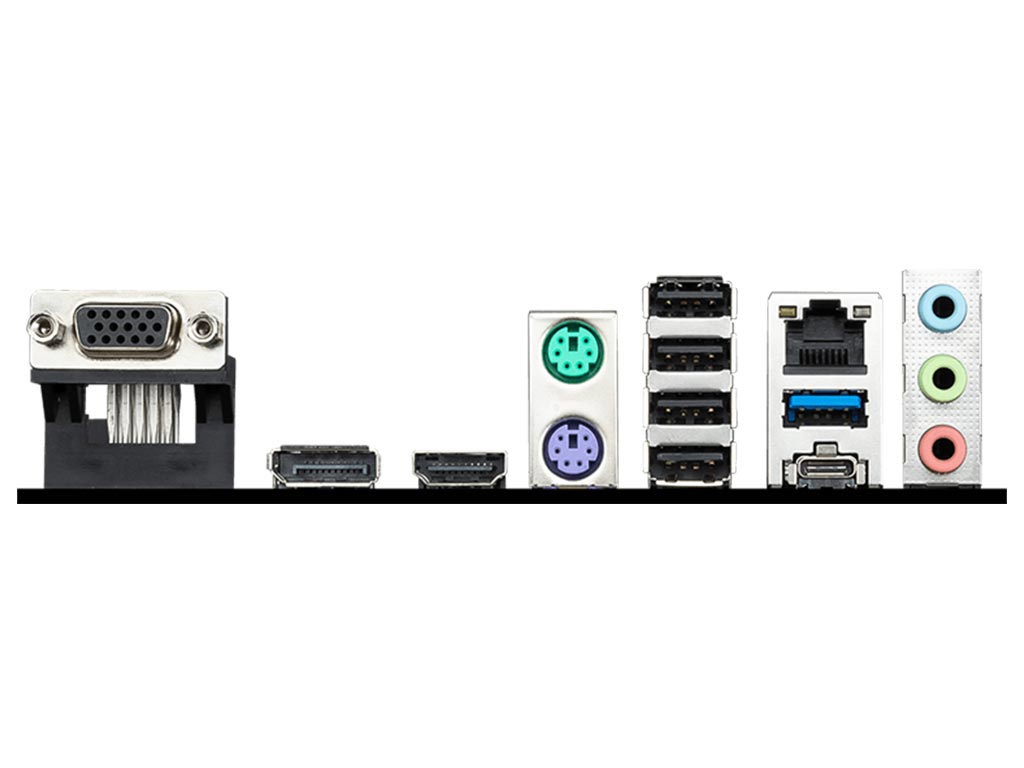

VGA DisplayPort HDMI Keyboard / Mouse USB 2.0 LAN port Audio connectors USB 3.2 Gen 2 10Gbps Type-C USB 3.2 Gen 1 5Gbps Type-A |
| Κατασκευαστής | MSI |
| Μοντέλο | PRO B660M-P WiFi DDR4 |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | 1700 |
| Chipset | Intel B660 |
| Μέγεθος μητρικής | Micro ATX (24.4 cm x 24.4 cm) |
| Τύπος Μνήμης | DDR4 |
| Αριθμός Dimm | 4 |
| Expansion Slots | 1x PCIe x16 4.0 2x PCIe x1 3.0 |
| Αποθήκευση | 4x SATA 1x M.2 |
| Έξοδοι Γραφικών | 1x HDMI v1.4 1x DisplayPort v1.4 1x VGA |
| Πρόσθετα Χαρακτηριστικά | Wi-Fi Intel® Dual Band Wireless-AC 3168 433 Mbps Max Speed Bluetooth v4.2 USB Type-C M.2 Slot |
| Εγγύηση | 3 Έτη |
