Περιγραφή

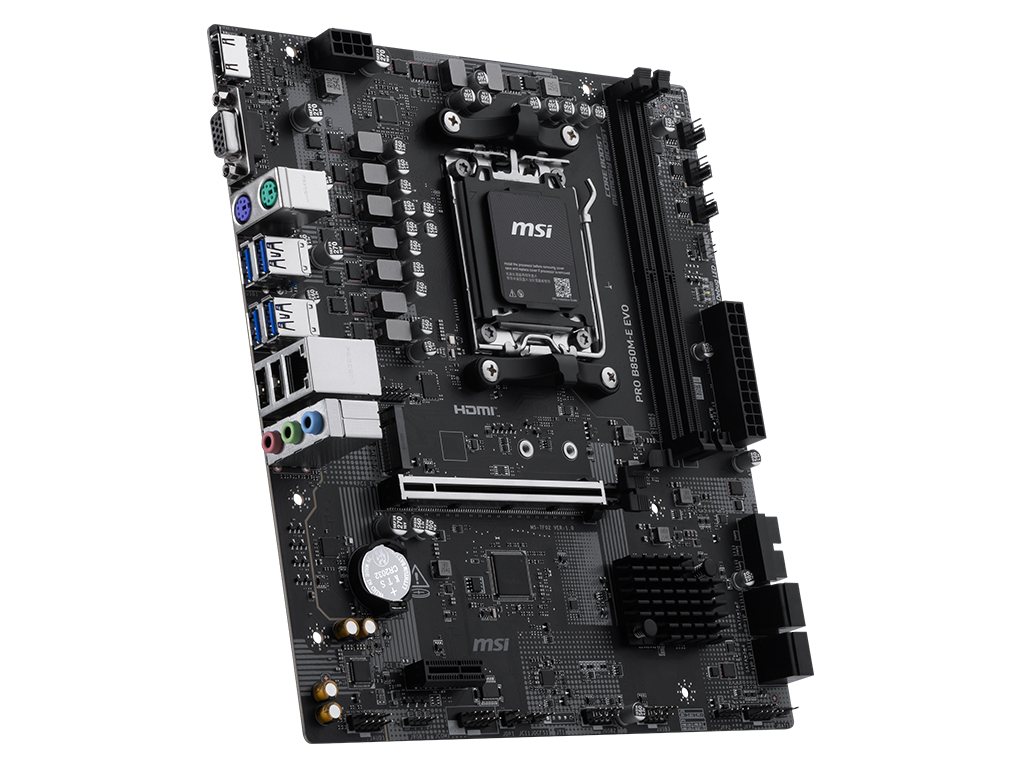

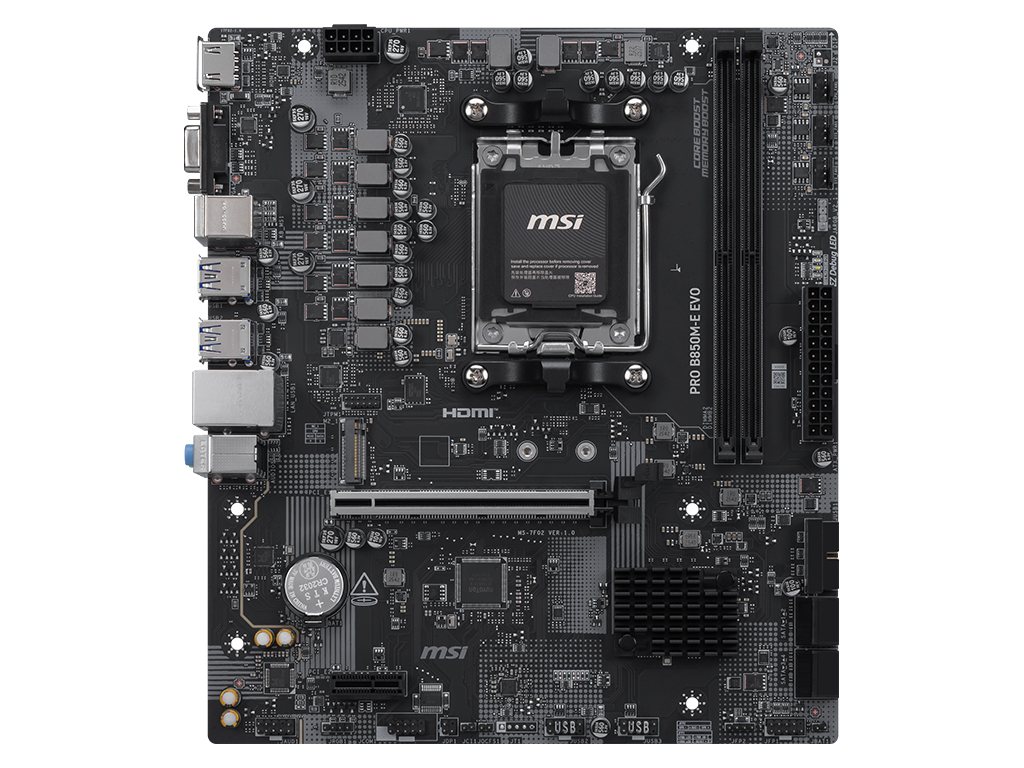

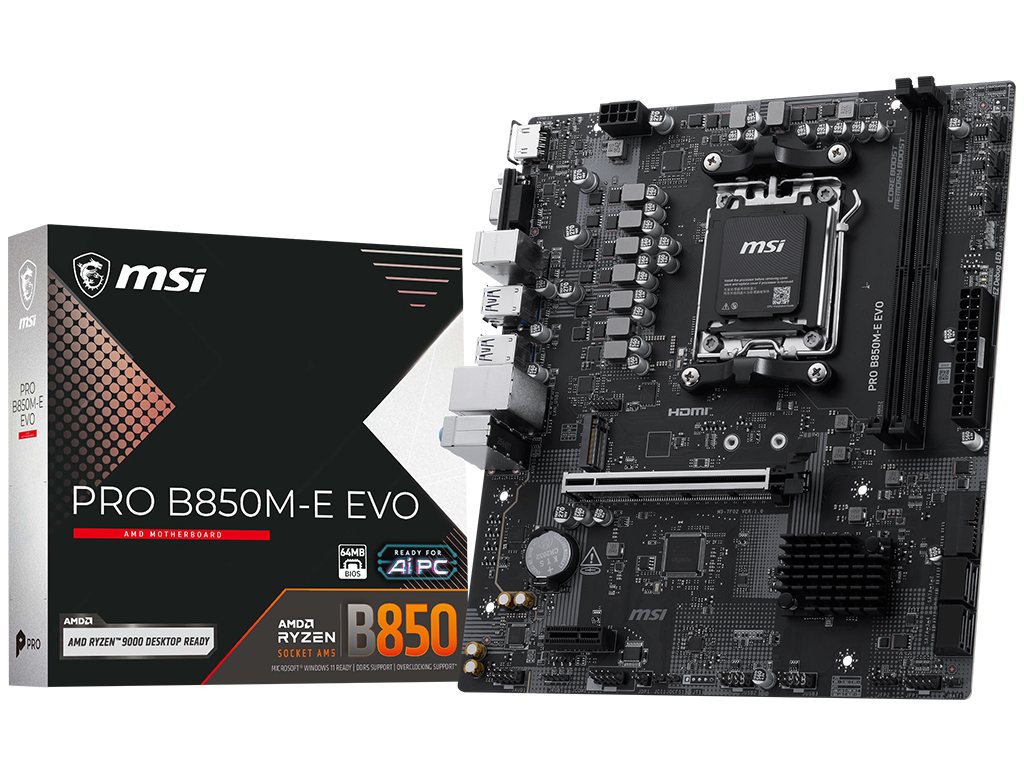

PRO B850M-E EVO

PRO B850M-E EVO is engineered with many exclusive features of MSI, PCIe 5.0 slot, Gen 5 M.2, DDR5 meomry, 2.5G LAN, EZ PCIe Clip II, and 64MB BIOS ROM, ready for the AMD Ryzen 9000 series processors.

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
Ultra Performance: Direct 6+2+1 Power System with P-PAK, an 8-pin CPU power connector, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
EZ DIY: EZ PCIe Clip II
Lightning Fast Experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

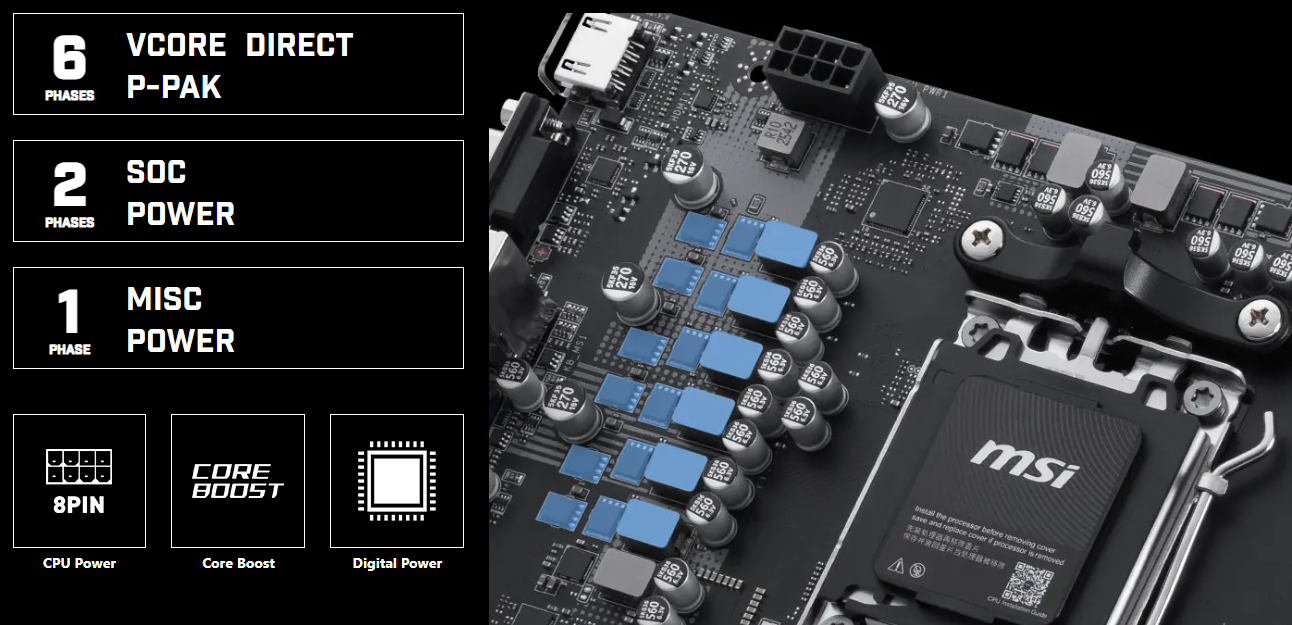

Direct 6-Phase Power

Unleash and sustain the maximum performance with a VRM design built with a total of 6+2+1 digital power phases. With an 8-pin power connector, PRO B850M-E EVO is ready for the challenge of heavy-loading tasks.

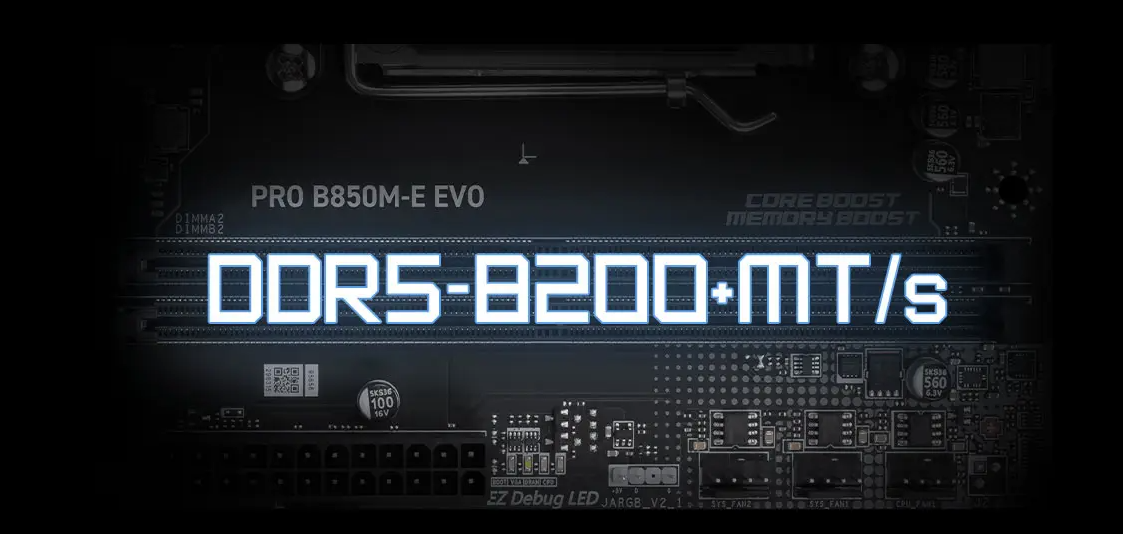

DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, PRO B850M-E EVO is ready to deliver the world class memory performance.

FROZR DESIGN

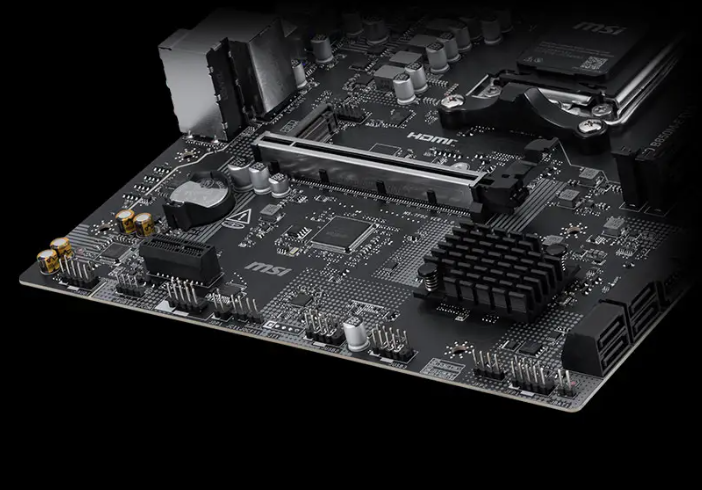

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

TRILINK

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

Audio

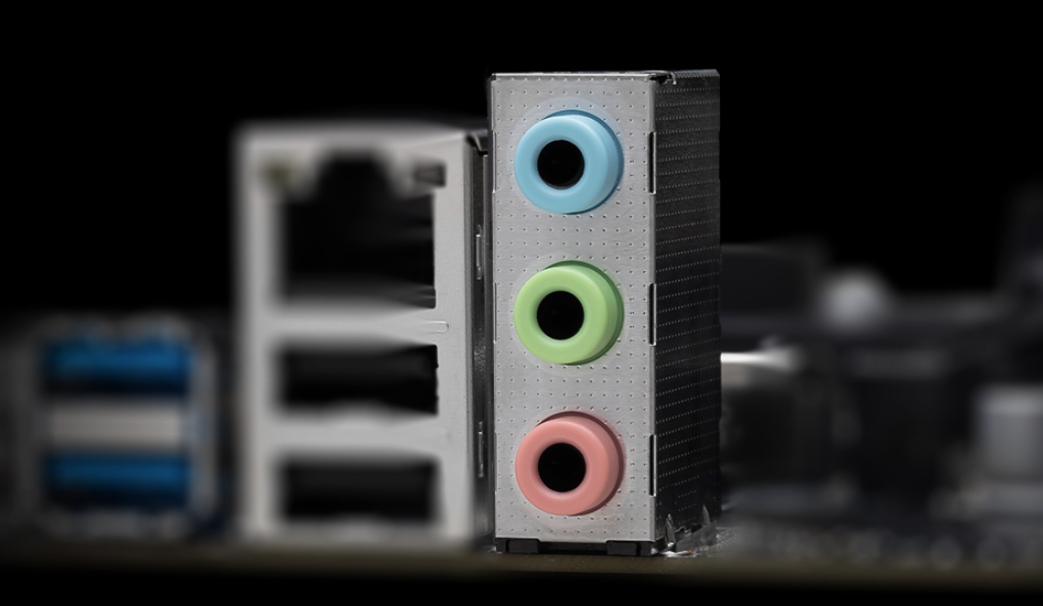

ISOLATED ANALOGY STRUCTURE

To provide clear voice, MSI develops a unique structure Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.

BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING

When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO technology and PCIe 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen 9000, 8000, and 7000 Series processors.

Chipset	AMD B850

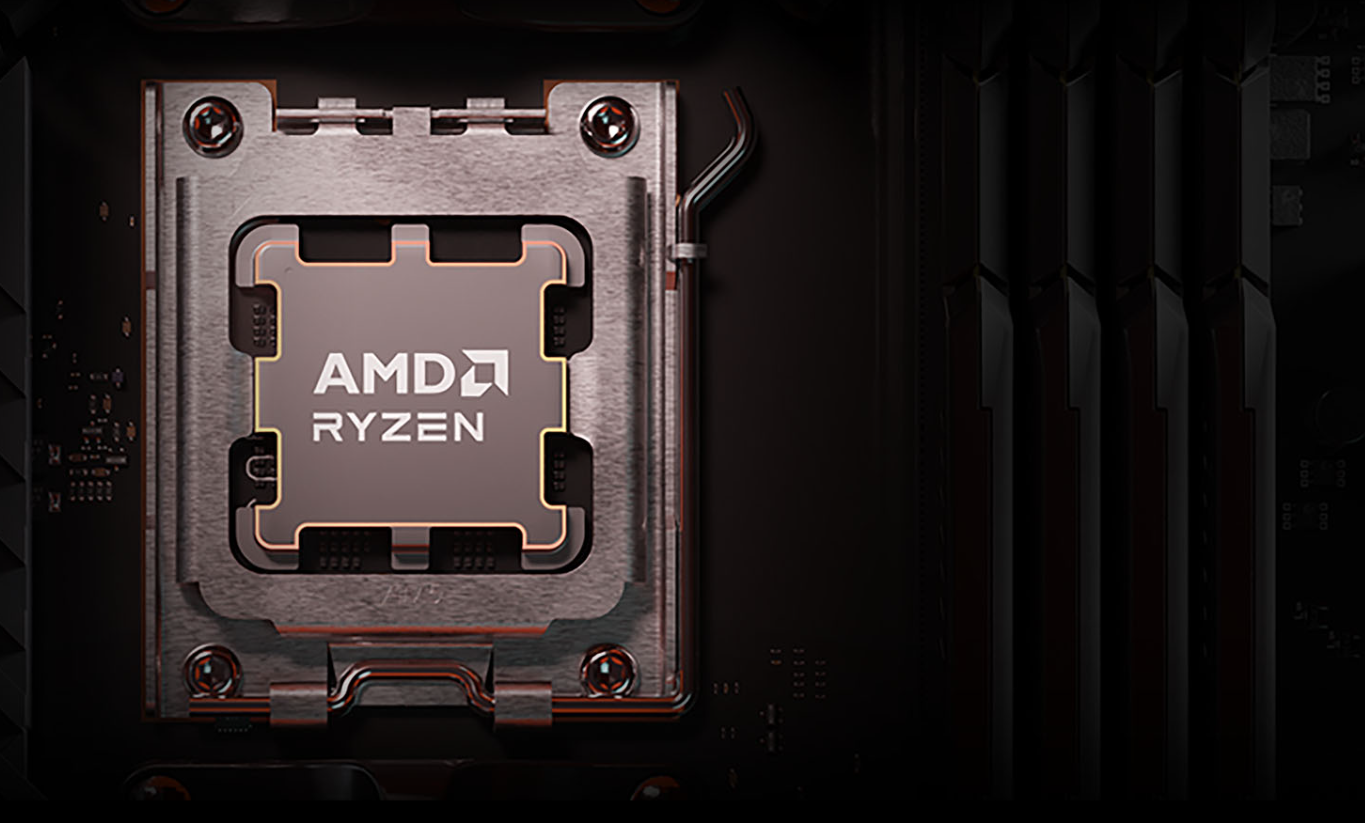

CPU SUPPORT	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 8000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only** CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI Support HDMI 2.1 port with HDR, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
Audio	Realtek ALC897 7.1-Channel High Definition Audio
Storage	1x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
LAN	Realtek® 8125 2.5G LAN
Internal I/O	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports

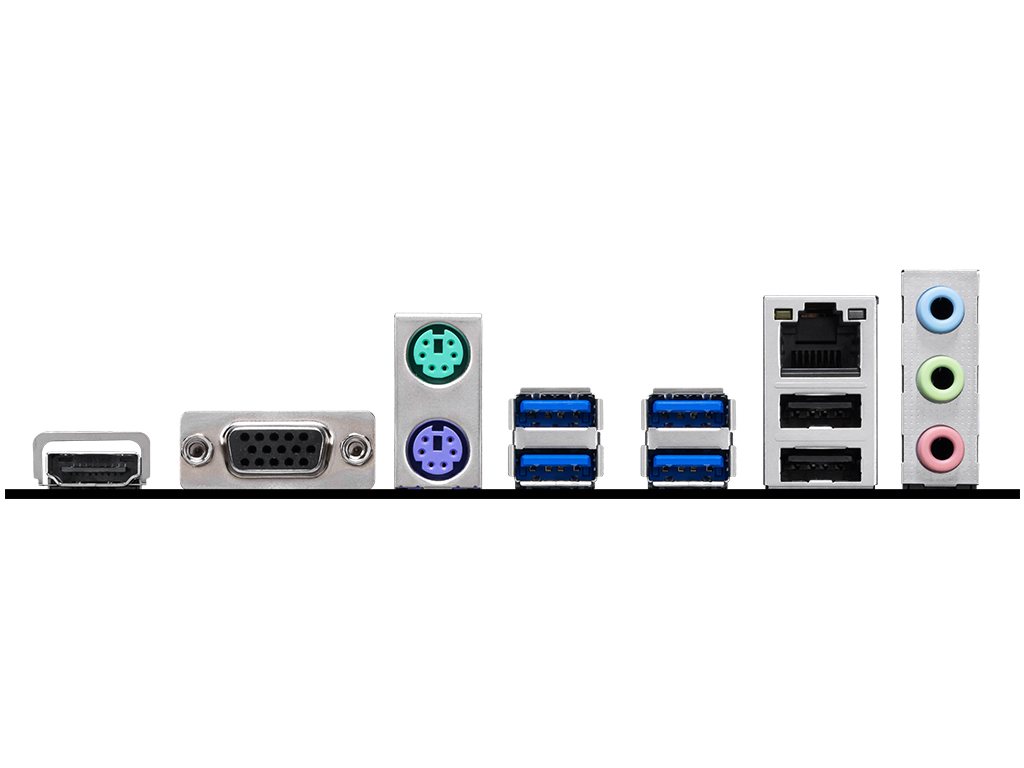

BACK PANEL PORTS	1x HDMI™ 1x VGA 1x Keyboard / Mouse 4x USB 5Gbps Type-A 1x 2.5G LAN 3x Audio Connectors 2x USB 2.0
OPERATING SYSTEM	Support for Windows 11 64-bit
PCB Dimension	mATX 243.84mm x 215mm

Τεχνικά Χαρακτηριστικά

Κατασκευαστής	MSI
Μοντέλο	PRO B850M-E EVO
Part Number	PRO B850M-E EVO
Κατηγορία	Μητρικές Κάρτες
Socket	AM5
Chipset	AMD B850
Μέγεθος μητρικής	Micro ATX (243.84mm x 215mm)
Τύπος Μνήμης	DDR5
Αριθμός Dimm	2
Expansion Slots	1x PCIe x16 (1x PCIe 5.0 x16) 1x PCIe x1 (1x PCIe 3.0 x1)
Αποθήκευση	4x SATA 1x M.2
Έξοδοι Γραφικών	1x HDMI v2.1 1x VGA
Πρόσθετα Χαρακτηριστικά	LED Control USB (4x USB 3.2 Gen 1, 2x USB 2.0) LAN - Realtek 8125 2.5G M.2 Slot
Εγγύηση	3 Έτη
