MSI PRO X670-P WiFi
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
Άτοκες Δόσεις

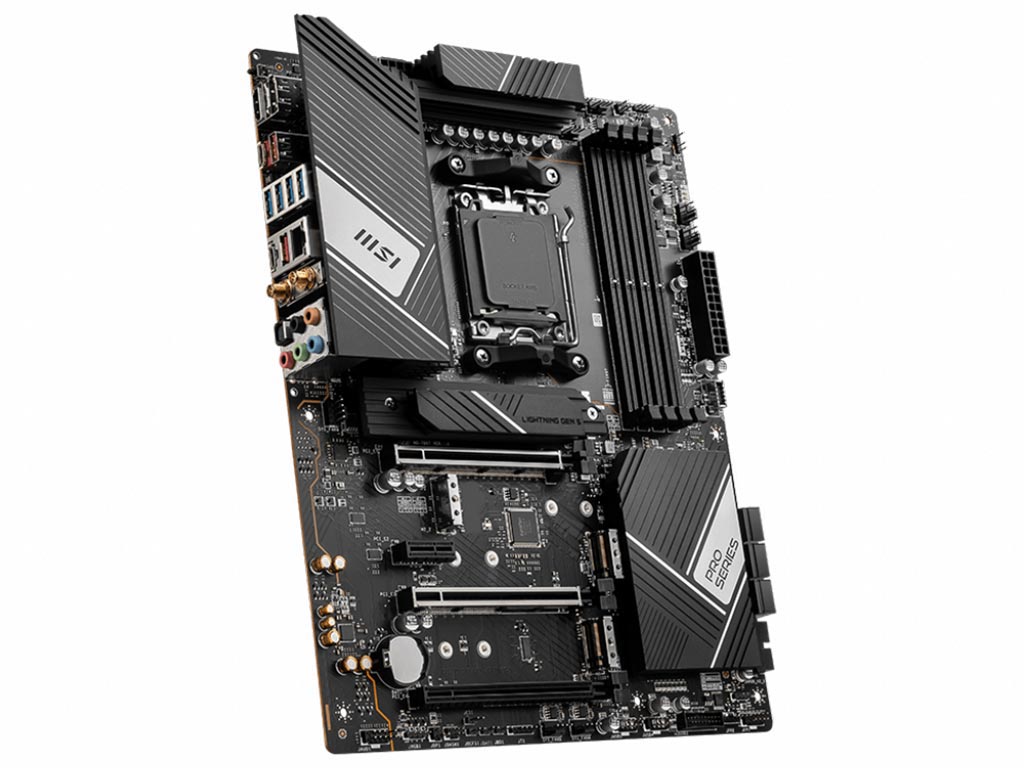

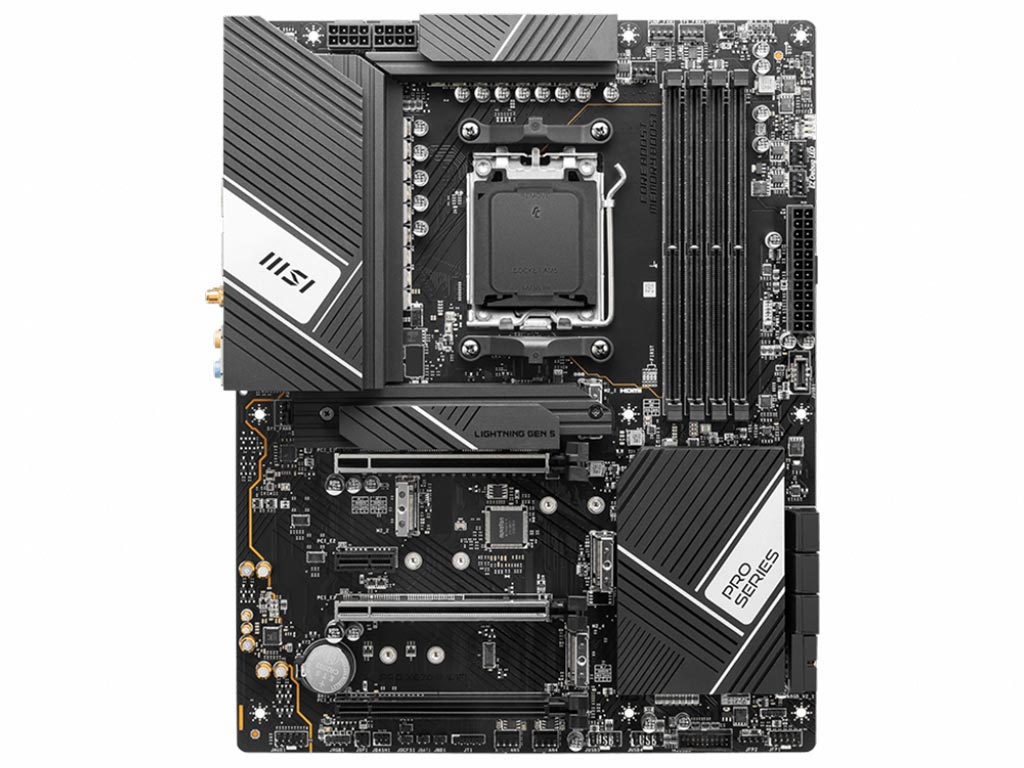

PRO X670-P WIFI
PRO X670-P WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory
- Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and Double-sided M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
HARDWARE

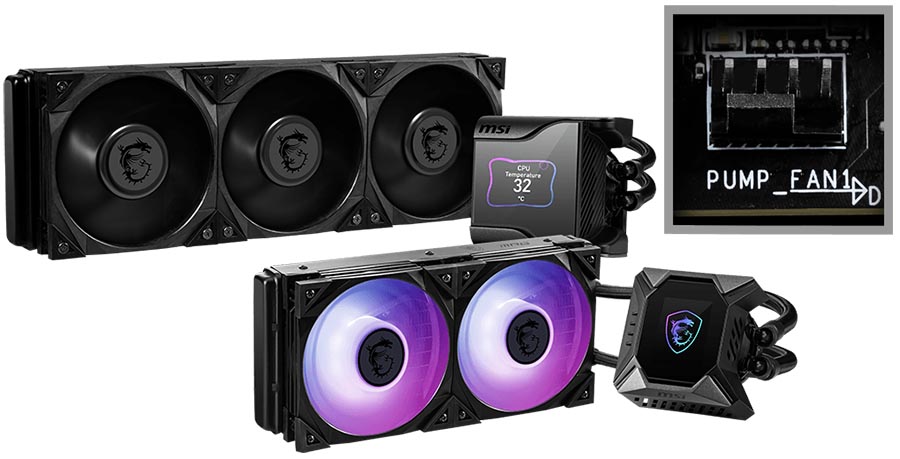

OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
PERFORMANCE
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, PRO X670-P WIFI is ready to deliver the world class memory performance.
CONNECTIVITY
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
CHIPSET | AMD X670 |
---|---|
CPU SUPPORT | Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 |
MEMORY | 4x DDR5, Maximum Memory Capacity 128GB |
ONBOARD GRAPHICS | 1x HDMI™ Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz* 1x Display Port Supports DP1.4, maximum resolution of 4K 60Hz* 1x Type-C Display port Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
EXPANSION SLOT | 3x PCI-E x16 slot Supports x16/x4/x2 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From CPU) PCI_E4 PCIe 4.0 supports up to x2 (From Chipset) |
STORAGE | 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/ 2280 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/ 2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/ 2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/ 2260 devices 6x SATA 6G port |
RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices* Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices *SATA_A1 & SATA_A2 do not support RAID function. |
LAN | Realtek® RTL8125BG 2.5G LAN |
WIRELESS / BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. ** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11. |
USB | 4x USB 2.0 ports (Front) 4x USB 3.2 Gen1 Type A ports (Rear) 4x USB 3.2 Gen1 Type A ports (Front) 2x USB 3.2 Gen2 Type A ports (Rear) 1x USB 3.2 Gen2 Type C ports (Rear) 1x USB 3.2 Gen2 Type C ports (Front) 1x USB 3.2 Gen2x2 Type C ports (Rear) |
AUDIO | Realtek® ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
INTERNAL I/O | 1x Power Connector (ATX_PWR) 2x Power Connector (CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector (JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
LED FEATURE | 4x EZ Debug LED |
BACK PANEL PORTS |
DisplayPort USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-C Display port) USB 3.2 Gen 2x2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) S/PDIF-OUT |
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
PCB DIMENSION | ATX 243.84mm x 304.8mm |
Κατασκευαστής | MSI |
Μοντέλο | PRO X670-P WiFi |
Part Number | 911-7D67-001 |
Κατηγορία | Μητρικές Κάρτες |
Socket | AM5 |
Chipset | AMD X670 |
Μέγεθος μητρικής | ATX (243.84 x 304.8mm) |
Τύπος Μνήμης | DDR5 |
Αριθμός Dimm | 4 |
Expansion Slots | 3x PCIe x16 (1x PCIe 4.0 x16, 1x PCIe 4.0 x4, 1x PCIe 4.0 x2) 1x PCIe x1 PCIe 3.0 |
Αποθήκευση | 6x SATA 4x M.2 |
Έξοδοι Γραφικών | 1x HDMI v2.1 2x DisplayPort v1.4 (1x DP, 1x Type-C DP Alt mode) |
Πρόσθετα Χαρακτηριστικά | LED Control Wi-Fi AMD Wi-Fi 6E Bluetooth v5.2 USB Type-C M.2 Slot |
Εγγύηση | 3 Έτη |
