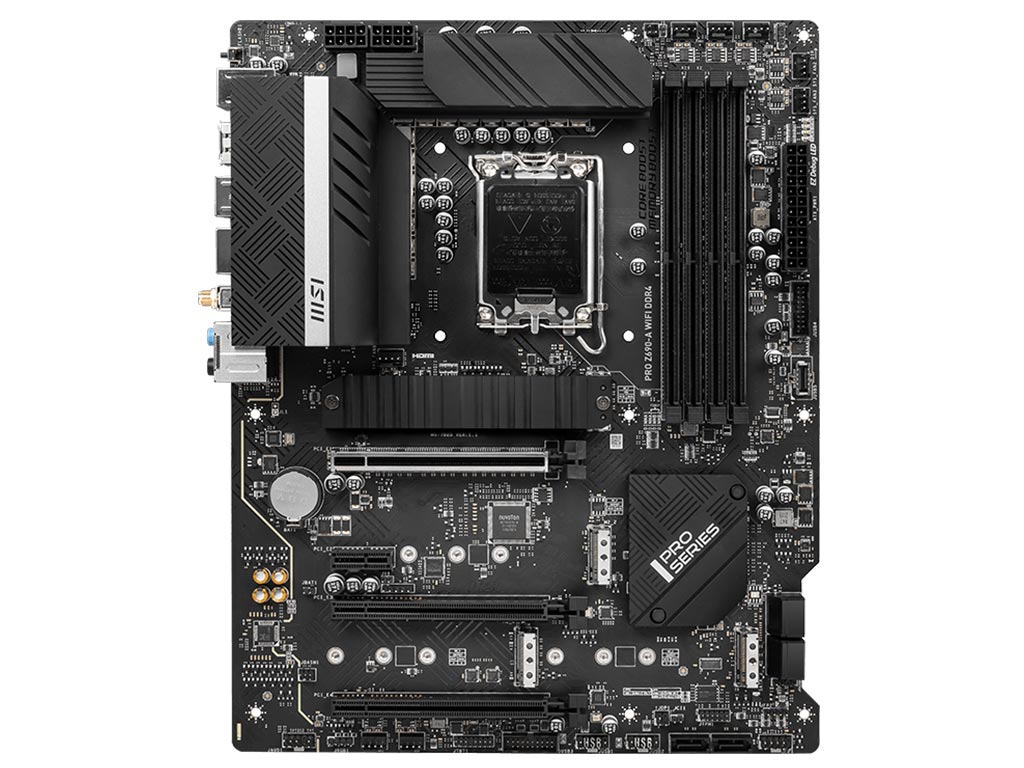

MSI PRO Z690-A WiFi DDR4

Μικρή διαθεσιμότητα
210,90 €
Χωρίς ΦΠΑ: 170,08 €
Πληροφορίες
Κωδικός Msystems: 001-54720
Part Number: 911-7D25-008
Εγγύηση: 3 Έτη

Παρακαλώ συμπληρώστε τον ΤΚ σας
Παρακαλώ επιλέξτε νομό
Παρακαλώ επιλέξτε πόλη

Με πιστωτική κάρτα
109,02 € / δόση = 218,05
73,01 € / δόση = 219,04
55,00 € / δόση = 220,01
44,20 € / δόση = 220,98
37,00 € / δόση = 221,97
31,85 € / δόση = 222,96
27,99 € / δόση = 223,95
24,99 € / δόση = 224,95
22,59 € / δόση = 225,94
20,63 € / δόση = 226,95
19,00 € / δόση = 227,96
17,61 € / δόση = 228,97
16,43 € / δόση = 229,99
15,40 € / δόση = 231,00
14,50 € / δόση = 232,03
13,71 € / δόση = 233,07
13,01 € / δόση = 234,10
12,38 € / δόση = 235,13
11,81 € / δόση = 236,19
11,30 € / δόση = 237,22
10,83 € / δόση = 238,27
10,41 € / δόση = 239,33
10,02 € / δόση = 240,38
9,66 € / δόση = 241,46
9,33 € / δόση = 242,51
9,02 € / δόση = 243,59
8,74 € / δόση = 244,67
8,47 € / δόση = 245,76
8,23 € / δόση = 246,84
8,00 € / δόση = 247,93
7,78 € / δόση = 249,03
7,58 € / δόση = 250,13
7,39 € / δόση = 251,22
7,21 € / δόση = 252,34
7,04 € / δόση = 253,46
Χρηματοδότηση μέσω τράπεζας
6 έως και 48 δόσεις
Facebook Twitter Email
Περιγραφή

PRO Z690-A WIFI DDR4

  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 5200+(OC) MHz
  • Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2
  • Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • Audio Boost: Reward your ears with studio grade sound quality
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire™



USER FRIENDLY DESIGN

MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.

CONNECTIVITY

The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.

EXPERIENCE MORE

MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.

Processor

Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

Processor socket LGA1700

Please go to intel.com for compatibility information

Chipset

Intel® Z690 Chipset

Memory

4x DDR4 memory slots, support up to 128GB

Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)

Max overclocking frequency:

1DPC 1R Max speed up to 5200+ MHz
1DPC 2R Max speed up to 4800+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

Please refer www.msi.com for more information on compatible memory

Expansion Slot

3x PCIe x16 slots

PCI_E1 (from CPU)
Supports up to PCIe 5.0 x16

PCI_E3 & PCI_E4 (from Z690 chipset)
Supports up to PCIe 3.0 x4& 3.0 x1

1x PCIe 3.0 x1 slot (from Z690 chipset)

Onboard Graphics

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz

1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

Available only on processors featuring integrated graphics.

Graphics specifications may vary depending on the CPU installed.

Multi-GPU

Supports AMD® CrossFire Technology

Storage

6x SATA 6Gb/s ports (from Z690 chipset)
4x M.2 slots (Key M)

M2_1 slot (from CPU)

  • Supports up to PCIe 4.0 x4
  • Supports 2242/ 2260/ 2280/ 22110 storage devices

M2_2 slot (from Z690 chipset)

  • Support up to PCIe 4.0 x4
  • Supports 2242/ 2260/ 2280 storage devices

M2_3 slot (from Z690 chipset)

  • Support up to PCIe 3.0 x4
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices

M2_4 slot (from Z690 chipset)

  • Support up to PCIe 4.0x4
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices

Intel® Optane™ Memory Ready for M.2 slots that are from Z690 Chipset

Support Intel® Smart Response Technology for Intel Core™ processors

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

USB

Intel® Z690 Chipset

1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB connectors)
4x USB 2.0 Type-A ports on the back panel

USB 2.0 Hubs GL850G
4x USB 2.0 ports are available through the internal USB connectors

Audio

Realtek®ALC897 Codec

7.1-Channel High Definition Audio

LAN

1x Intel® I225-V 2.5Gbps LAN controller

WIRELESS LAN & BLUETOOTH®

Intel® Wi-Fi 6

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.2

Internal connectors

1x 24-pin ATX main power connector

2x 8-pin ATX 12V power connector

6x SATA 6Gb/s connectors

4x M.2 slots (M-Key)

1x USB 3.2 Gen 2 10Gbps Type-C port

2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

6x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x Clear CMOS jumper

1x TPM module connector

1x Tuning controller connector

1x TBT connector (Supports RTD3)

LED Feature

1x 4-pin RGB LED connector

2x 3-pin RAINBOW LED connectors

4x EZ Debug LED

Back panel ports

Keyboard / Mouse

DisplayPort

USB 2.0

LAN port

WIFI / Bluetooth

Audio connector

Flash BIOS Button

USB 2.0

HDMI

USB 3.2 Gen 1 5Gbps Type-A

USB 3.2 Gen 2x2 20Gbps Type-C

USB 3.2 Gen 2 10Gbps Type-A

Dimensions

ATX Form Factor

12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Mounting

9 mounting holes

Operating System

Support for Windows® 11 64-bit, Windows® 10 64-bit

Τεχνικά Χαρακτηριστικά
ΚατασκευαστήςMSI
ΜοντέλοPRO Z690-A WiFi DDR4
Part Number911-7D25-008
ΚατηγορίαΜητρικές Κάρτες
Socket1700
ChipsetIntel Z690
Μέγεθος μητρικήςATX (30.5 cm x 24.4 cm)
Τύπος ΜνήμηςDDR4
Αριθμός Dimm4
Expansion Slots3x PCIe x16 (1x PCie 5.0 x16, 1x PCie 3.0 x4, 1x PCie 3.0 x1)
1x PCIe x1 (PCIe 3.0)
AMD CrossFireX
Αποθήκευση6x SATA
4x M.2
Έξοδοι Γραφικών1x HDMI (v2.1)
1x DisplayPort (v1.4)
Πρόσθετα ΧαρακτηριστικάLED Control
Wi-Fi Intel® Wi-Fi 6
Bluetooth (v5.2)
USB Type-C
M.2 Slot
Εγγύηση3 Έτη
