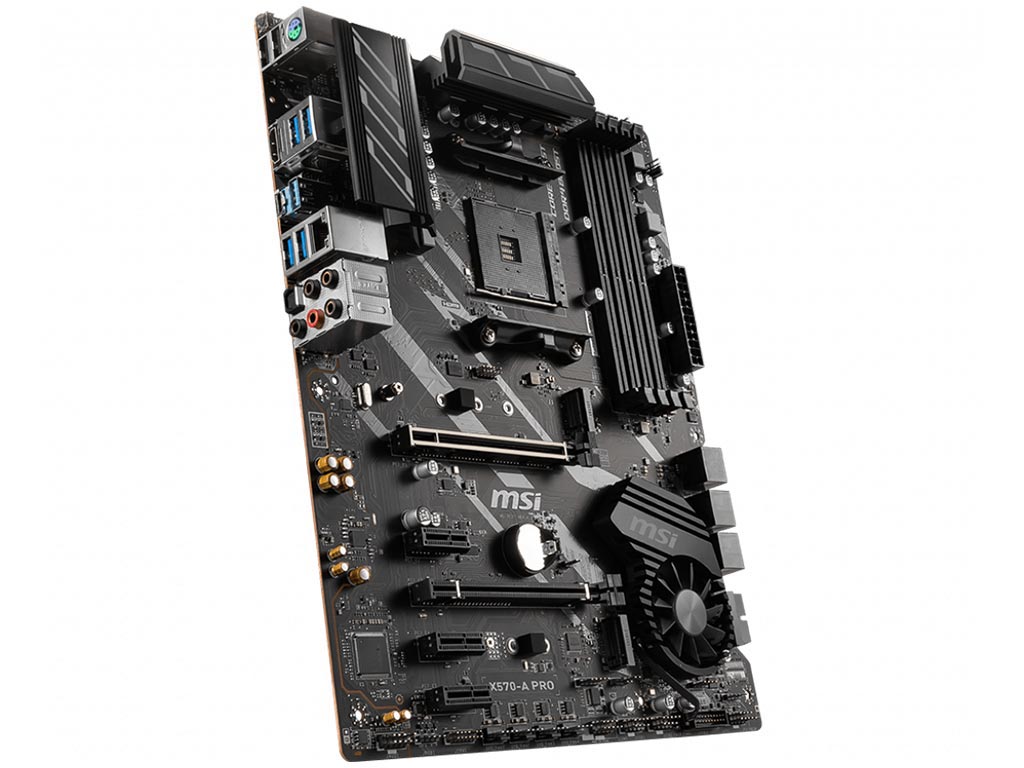

MSI X570-A Pro
![MSI X570-A Pro [911-7C37-020] Εικόνα 1](https://static.msystems.gr/photos/big_photos/43433.jpg)
![MSI X570-A Pro [911-7C37-020] Εικόνα 2](https://static.msystems.gr/photos/big_photos/43433.1.jpg)
![MSI X570-A Pro [911-7C37-020] Εικόνα 3](https://static.msystems.gr/photos/big_photos/43433.2.jpg)
![MSI X570-A Pro [911-7C37-020] Εικόνα 4](https://static.msystems.gr/photos/big_photos/43433.3.jpg)
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
Άτοκες Δόσεις
Buy Now - Pay Later
X570-A PRO
Inspired from architectural design, with Lightning Gen 4 PCIe and M.2 solution, Frozr Heatsink, Core Boost, DDR4 Boost, Audio Boost 4, USB 3.2 Gen2 connector
- Supports AMD Ryzen™ 5000 Series/ 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket
- Supports 4 DIMMs, Dual Channel Memory DDR4, up to 4400+(OC) MHz
- Lightning Gen 4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed and performance.
- Frozr Heatsink Design : Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.
- Set Core Power Free: Core Boost, 8+4 pin CPU power connectors, DDR4 Boost
- Audio Boost 4: Reward your ears with studio grade sound quality.
- Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
- AMD Turbo USB 3.2 Gen2: Powered by AMD USB 3.2 Gen2 controller, ensures an uninterrupted connection with more stability and fastest USB speeds

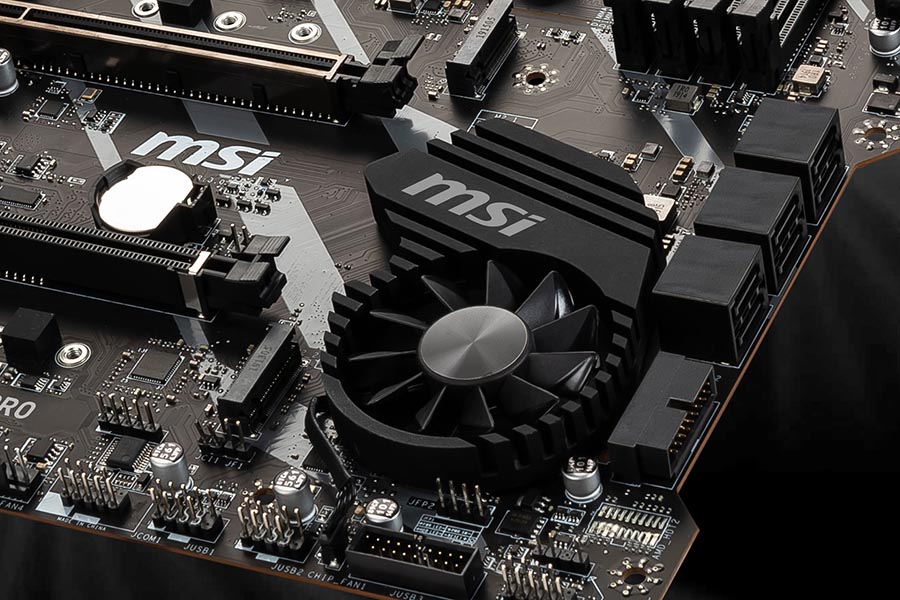

DIY FRIENDLY
MSI motherboards been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want.
Performance optimization design
MSI motherboards provide a better solution for e-sports players. CPU, memory and USB transfer speed optimization are all ready.
.jpg)
IN-STUDIO ADVANTAGE
MSI motherboards are built with enhanced audio and advanced LAN networking capabilities that turn any gaming experience into an immerse one.
EXHILARATING AND INSPIRING
Each MSI motherboard is built based on the specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes.

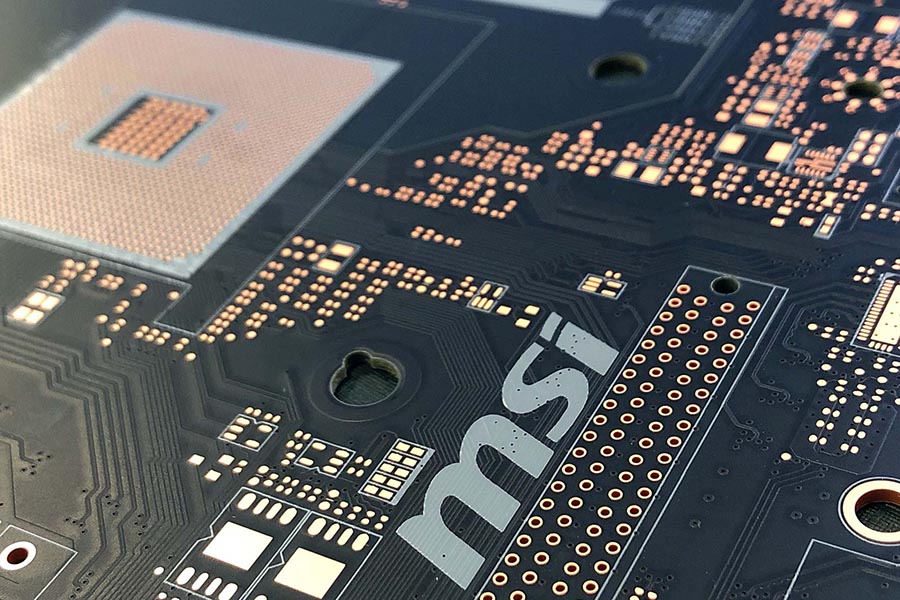

LOYAL COMRADE
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of components, and developed products for reliability even under extreme environmental conditions.
| Processor |
Supports AMD Ryzen™ 5000 Series/ 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket |
| Chipset |
AMD® X570 Chipset |
| Memory |
4 DDR4 memory slots, support up to 128GB (depending on the processor) 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory Please refer to Compatibility for more information on compatible memory |
| Slots |
1 x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode) 3 x PCIe 3.0 x1 slots PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot. The speeds may vary for different devices |
| Onboard Graphics |
1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @24Hz Only support when using Ryzen™ 4000 G-Series, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Processors Maximum shared memory of 2048 MB |
| Multi-GPU |
Supports 2-Way AMD® CrossFire™ Technology |
| Storage |
AMD® X570 Chipset 4x SATA 6Gb/s ports(SATA3-SATA6) 2 x M.2 slot (Key M) M2_1 slot (from AMD® Processor) M2_2 slot (from AMD® X570 Chipset) ASMedia ASM1061 2x SATA 6Gb/s ports (SATA1, SATA2) |
| RAID |
AMD® X570 Chipset Supports RAID 0, RAID 1 and RAID 10 |
| USB |
AMD® X570 Chipset 6 x USB 3.2 Gen 1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen 1 connectors) AMD® Processor 2 x USB 3.2 Gen 2 (3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) ports (1x Type-A & 1x Type-C) on the back panel |
| Audio |
Realtek® ALC1220 Codec 7.1-Channel High Definition Audio |
| LAN |
1 x Realtek® 8111H Gigabit LAN Controller |
| Internal connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Serial port connector 1 x Clear CMOS jumper 1 x Chassis Intrusion connector 2 x 4-pin RGB LED connectors 2 x 3-pin RAINBOW LED connectors 4 x EZ Debug LEDs |
| Back panel ports |
Keyboard / Mouse USB 3.2 Gen1 Type-A LAN Port HD Audio Connectors Flash BIOS Button USB 2.0 Ports HDMI Port USB 3.2 Gen2 Ports (Type-A + C) USB 3.2 Gen1 Type-A Ports Optical S/PDIF out |
| Dimensions |
12 in. x 9.6 in. (30.4 cm x 24.3 cm) ATX Form Factor |
| Mounting |
9 mounting holes |
| Operating System |
Support for Windows® 10 64-bit |
| Κατασκευαστής | MSI |
| Μοντέλο | X570-A Pro |
| Part Number | 911-7C37-020 |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | AM4 |
| Chipset | AMD X570 |
| Μέγεθος μητρικής | ATX (30.4 cm x 24.3 cm) |
| Τύπος Μνήμης | DDR4 |
| Αριθμός Dimm | 4 |
| Expansion Slots | 2x PCIe x16 (1x PCIe 4.0 x16, 1x PCIe 4.0 x4) 3x PCIe x1 (PCIe 3.0) AMD CrossFireX |
| Αποθήκευση | 6x SATA 2x M.2 |
| Έξοδοι Γραφικών | 1x HDMI (v1.4) |
| Πρόσθετα Χαρακτηριστικά | LED Control USB Type-C |
| Εγγύηση | 3 Έτη |
