MSI X870 GAMING PLUS WiFi
![MSI X870 GAMING PLUS WiFi [X870 GAMING PLUS WIFI] Εικόνα 1](https://static.msystems.gr/photos/big_photos/52027.jpg)
![MSI X870 GAMING PLUS WiFi [X870 GAMING PLUS WIFI] Εικόνα 2](https://static.msystems.gr/photos/big_photos/52027.1.jpg)
![MSI X870 GAMING PLUS WiFi [X870 GAMING PLUS WIFI] Εικόνα 3](https://static.msystems.gr/photos/big_photos/52027.2.jpg)
![MSI X870 GAMING PLUS WiFi [X870 GAMING PLUS WIFI] Εικόνα 4](https://static.msystems.gr/photos/big_photos/52027.3.jpg)
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
Άτοκες Δόσεις
4 άτοκες δόσεις με tbi bank
Πλήρωσε την πρώτη δόση τώρα, με τη χρεωστική σου κάρτα, και το υπόλοιπο ποσό σε 3 ακόμη άτοκες δόσεις κάθε 30 ημέρες, εύκολα και χωρίς άγχος!

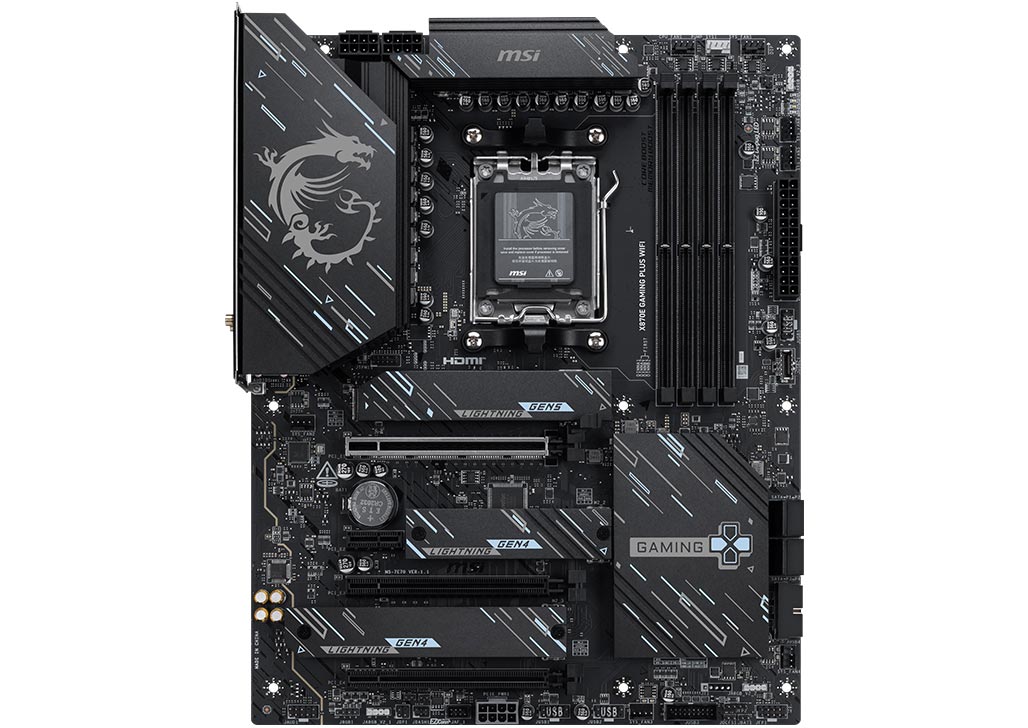

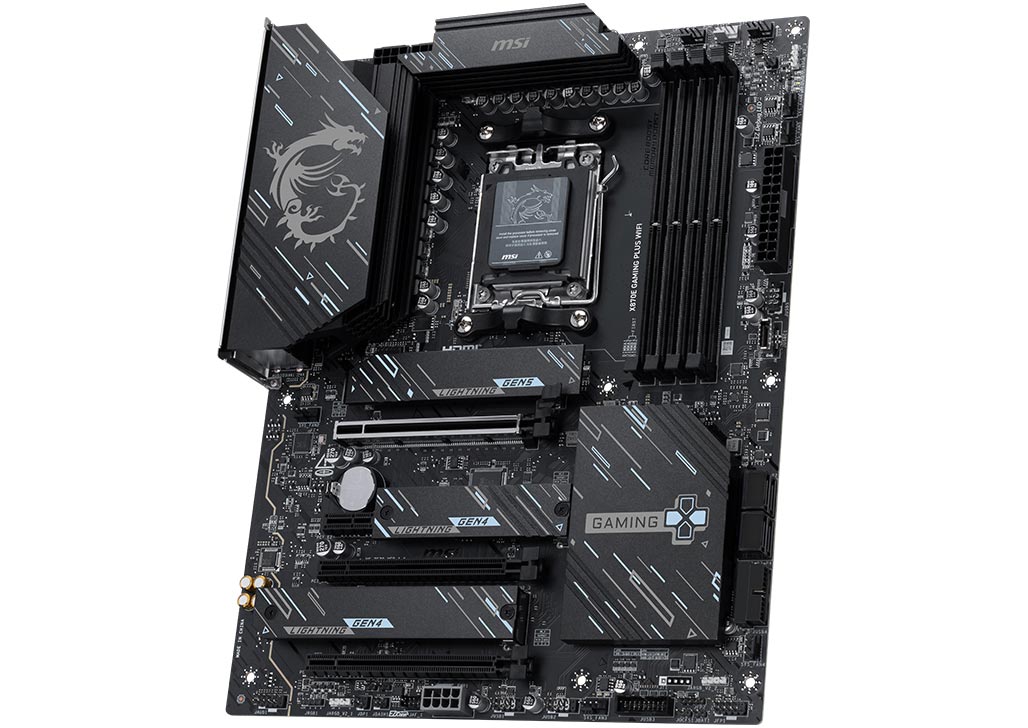

X870 GAMING PLUS WiFi
X870 GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Wi-Fi 7 and 5G LAN, high-speed USB4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of AMD Ryzen™ 9000 series processors.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost : Reward your ears with studio-grade sound quality for the most immersive gaming experience

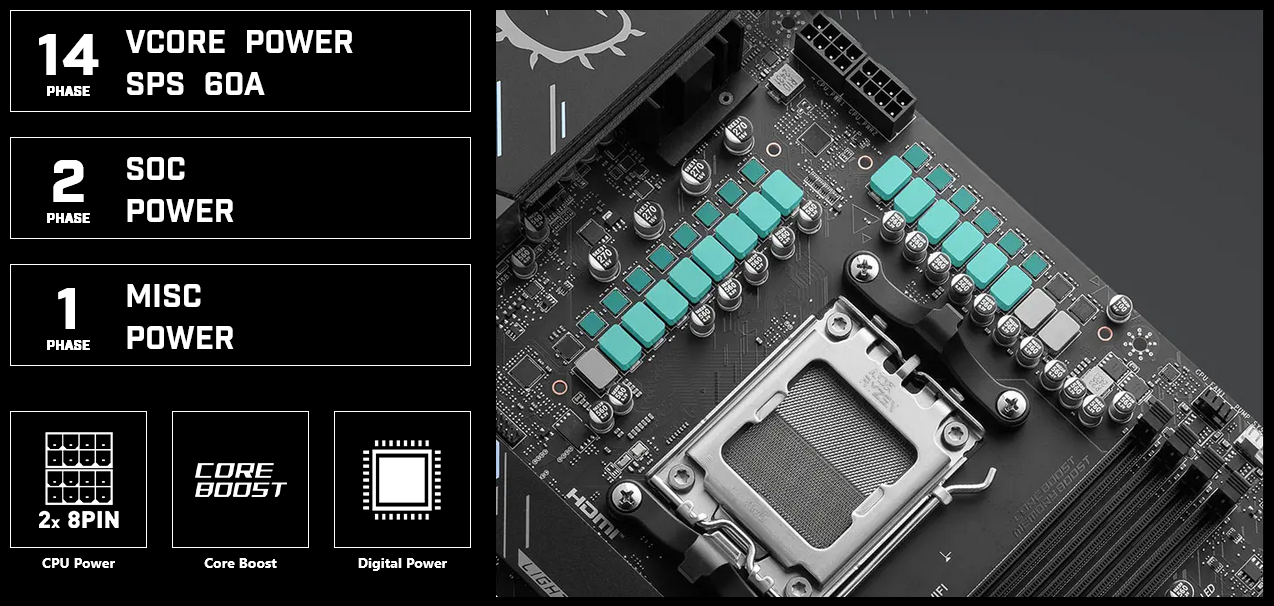

14+2+1 DRPS POWER DESIGN
Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 60A Smart Power Stage, X870 GAMING PLUS WIFI is ready for the challenge of high-end processors.
.png)

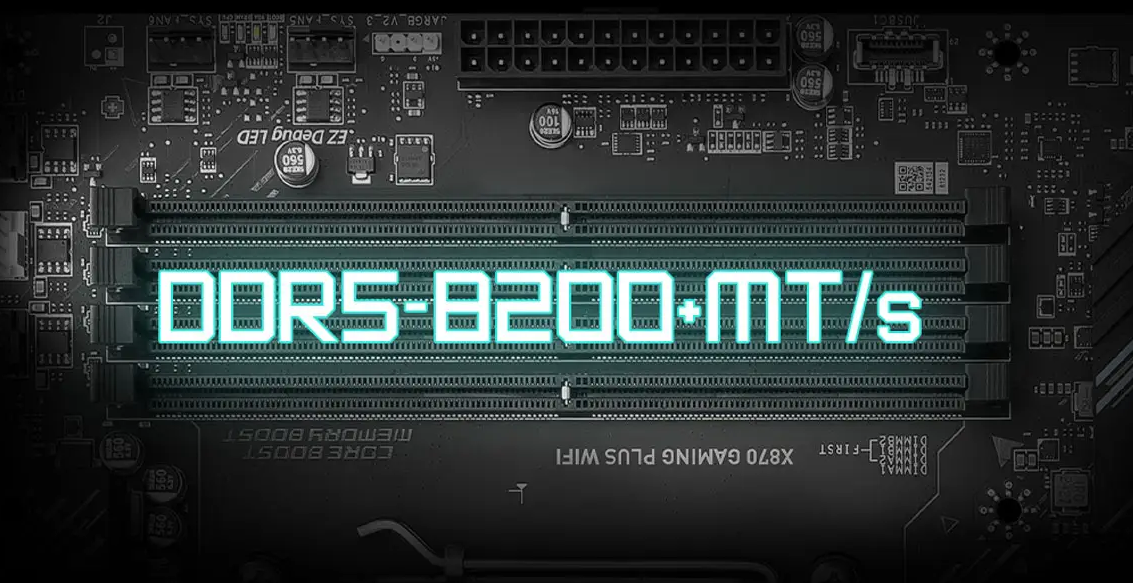

DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, X870 GAMING PLUS WIFI is ready to deliver the world-class memory performance.
.png)

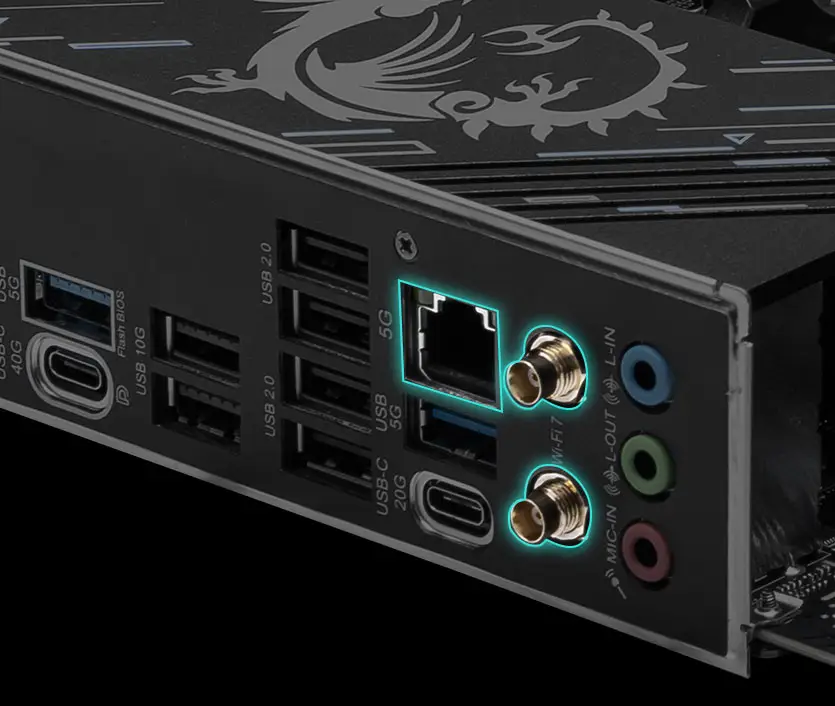

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
.png)

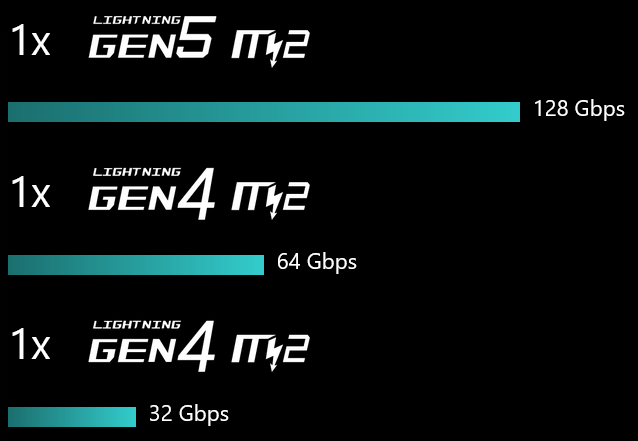

FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
.png)
.png)

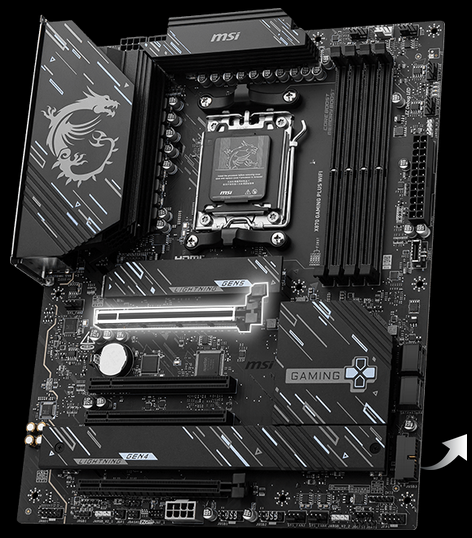

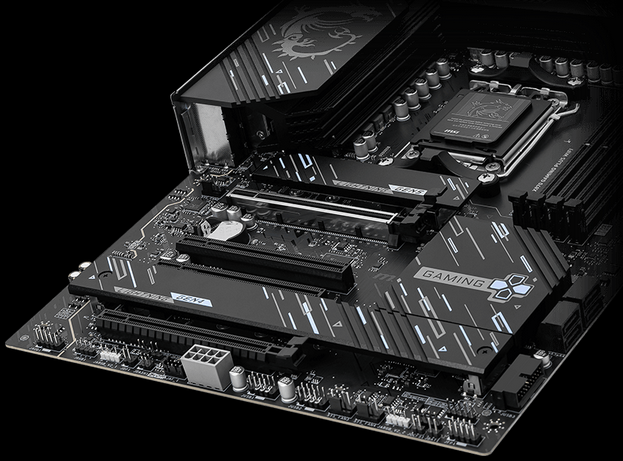

LIGHTNING GEN 5 PCI-E WITH STEEL ARMOR
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
.png)

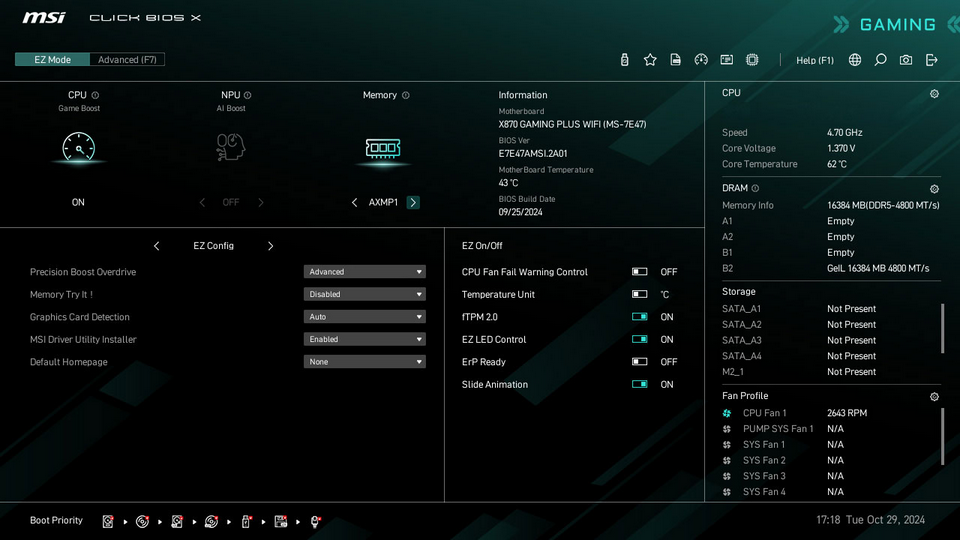

CLICK BIOS X
MSI’s newly designed CLICK BIOS X offers an aesthetically pleasing and user-friendly experience. The new design ensures that users of all experience levels can quickly access and adjust system configurations with ease.
.png)
| Chipset | AMD X870 |
|---|---|
| CPU SUPPORT | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory |
4x DDR5 UDIMM, Maximum Memory Capacity 256GB Supports AMD POR Speed and JEDEC Speed * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. |
| Onboard Graphics | 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) * PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot. |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| Storage |
3x M.2 M2_1 slot *Please refer to the manual for M.2 SSD heatsink restrictions. |
| RAID |
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices *SATA_A1~A4 do not support RAID function. |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear) |
| LAN | Realtek® 8126VB 5G LAN |
| WIRELESS / BLUETOOTH |
Wi-Fi 7 Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. |
| Internal I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |

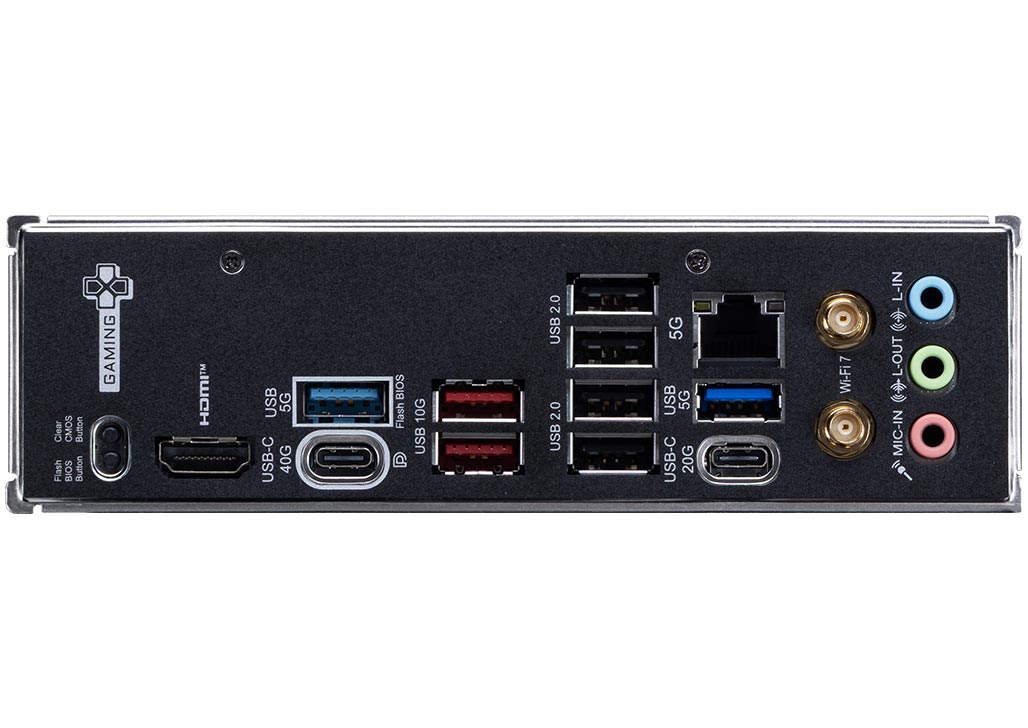

| BACK PANEL PORTS |
|
| LED FEATURE | 4x EZ Debug LED |
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
| PCB Dimension | ATX 243.84mmx304.8mm |
| Κατασκευαστής | MSI |
| Μοντέλο | X870 GAMING PLUS WiFi |
| Part Number | X870 GAMING PLUS WIFI |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | AM5 |
| Chipset | AMD X870 |
| Μέγεθος μητρικής | ATX (243.84mm x 304.8mm) |
| Τύπος Μνήμης | DDR5 |
| Expansion Slots | 4x PCIe x16 (1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 2x PCIe 3.0 x1) |
| Αποθήκευση | 4x SATA 3x M.2 |
| Έξοδοι Γραφικών | 1x USB Type-C (USB4®, DisplayPort 1.4) 1x HDMI v2.1 |
| Πρόσθετα Χαρακτηριστικά | LED Control Wi-Fi - Wi-Fi 7 (Wireless module pre-installed in the M.2 (Key-E) slot) 6GHz, 320MHz Bluetooth v5.4 USB - 2x USB 3.2 Gen 2, 2x USB 3.2 Gen 1, 4x USB 2.0 LAN - Realtek® 8126VB 5G LAN USB Type-C - 1x USB 4, 1x USB 3.2 Gen 2 M.2 Slot |
| Εγγύηση | 3 Έτη |
