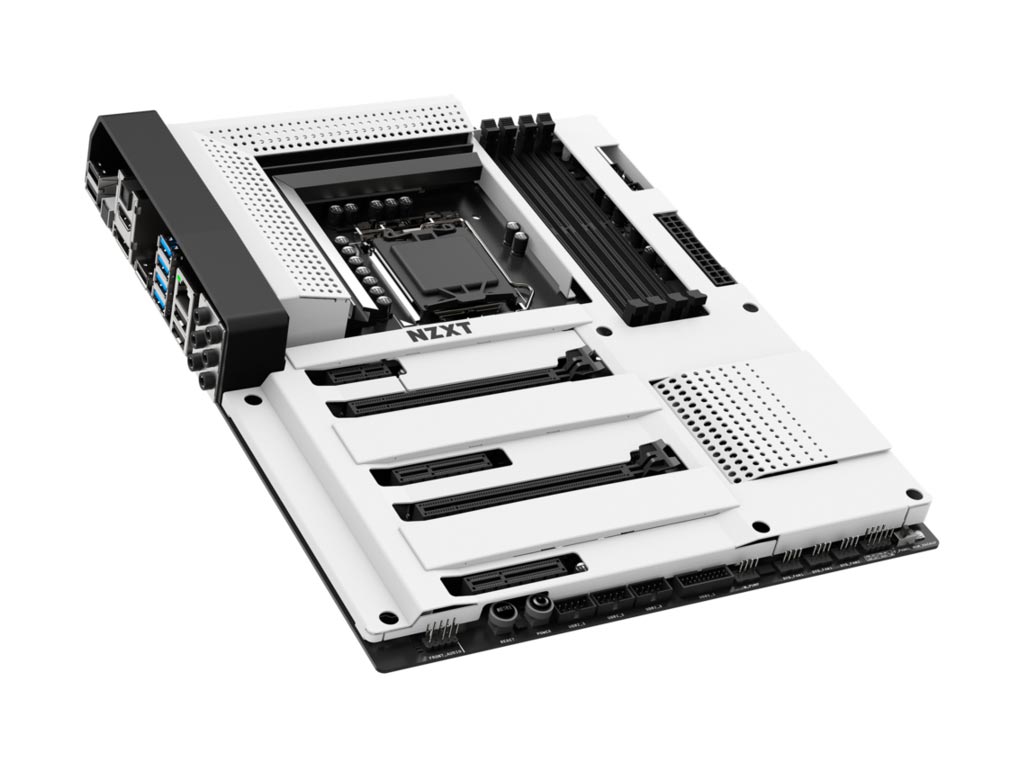

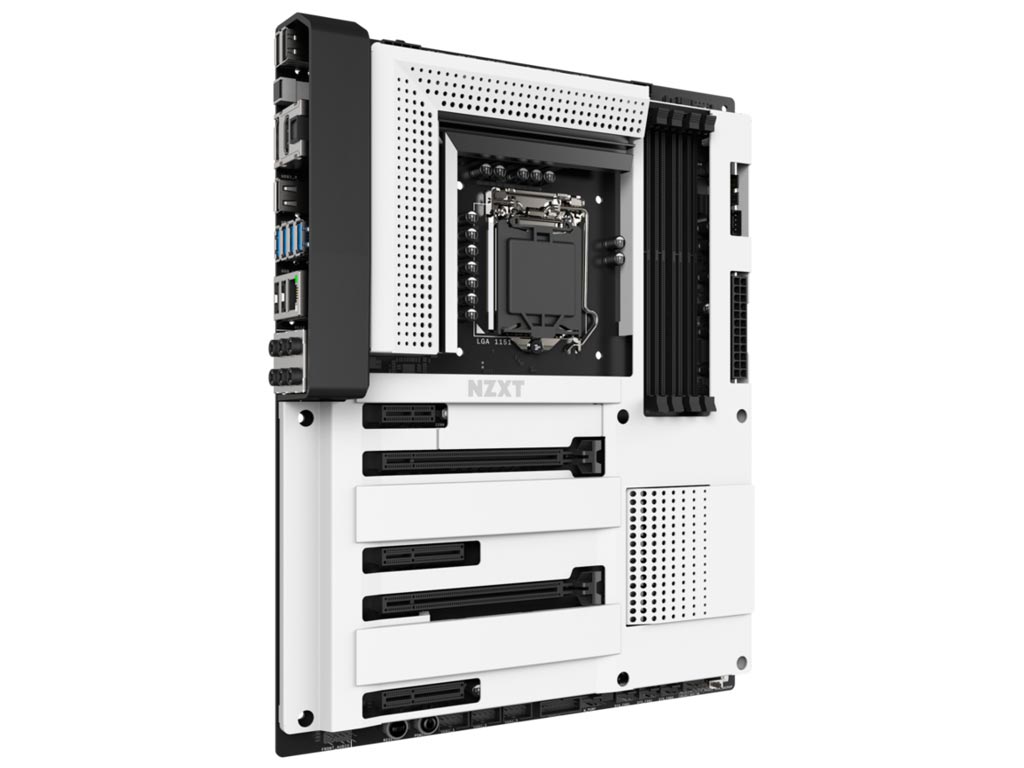

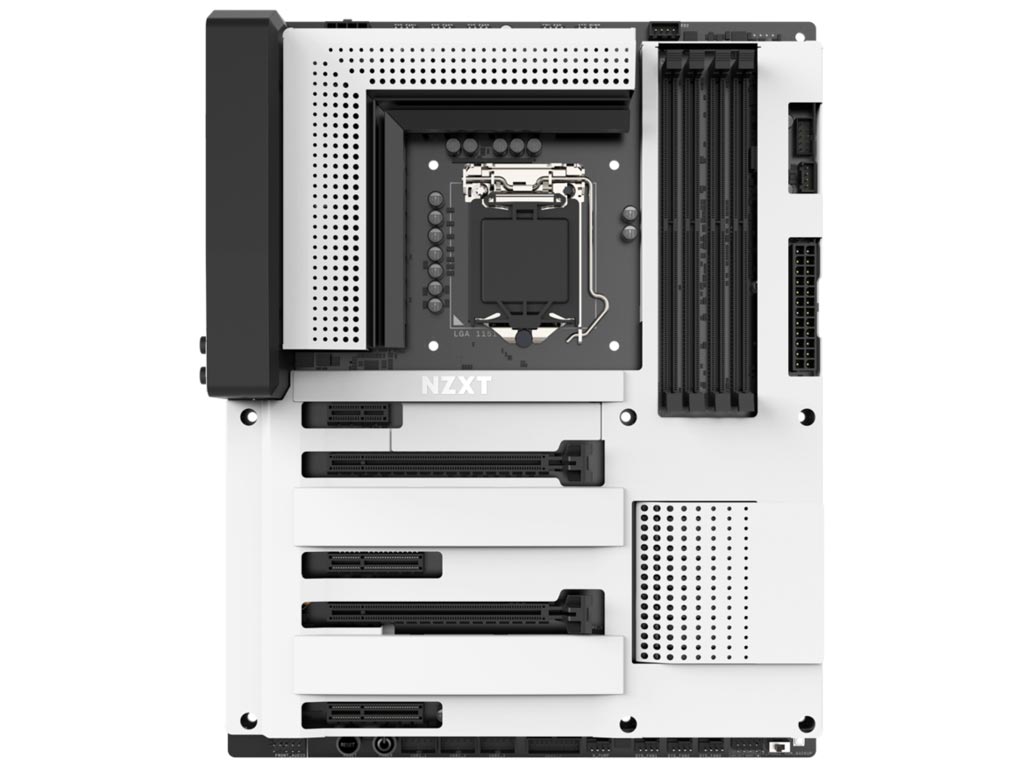

NZXT N7 Z370 Gaming Motherboard - White
![NZXT N7 Z370 Gaming Motherboard - White [N7-Z37XT-W1] Εικόνα 1](https://static.msystems.gr/photos/big_photos/25139.jpg)
![NZXT N7 Z370 Gaming Motherboard - White [N7-Z37XT-W1] Εικόνα 2](https://static.msystems.gr/photos/big_photos/25139.1.jpg)
![NZXT N7 Z370 Gaming Motherboard - White [N7-Z37XT-W1] Εικόνα 3](https://static.msystems.gr/photos/big_photos/25139.2.jpg)
![NZXT N7 Z370 Gaming Motherboard - White [N7-Z37XT-W1] Εικόνα 4](https://static.msystems.gr/photos/big_photos/25139.3.jpg)
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
Άτοκες Δόσεις
Buy Now - Pay Later
| CPU & Socket | LGA socket 1151 for Intel® 8th Generation Core™ i7/ Core™ i5/ Core™ i3 Processors Support Intel 14nm CPU Support Intel Turbo Boost Technology 2.0 |
| Chipset | Intel® Z370 |
| Memory | 4 x DIMM, Max. 64GB, DDR4 • 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666(O.C.)/ 2400(O.C.)/ 2133 MHz Non-ECC, Un-buffered Memory • Dual-channel memory architecture • Support Intel® Extreme Memory Profile (XMP) |
| Multi-GPU Support | • Supports NVIDIA® 2-Way SLI™ Technology • Supports AMD 2-Way CrossFireX™ Technology |
| Integrated Graphics | Multi-VGA output support: HDMI/DisplayPort 1.2 ports • DisplayPort with max. resolution of 4096x2304@60Hz • HDMI™ with max. resolution of 4096x2160@24Hz • Maximum shared memory of 1024MB |
| LAN | Intel® I219-V Gigabit LAN |
| Expansion Slots | • 2x PCIe 3.0 x16 (x16 or dual x8) • 2x PCIe 3.0 x4 • 1x PCIe 3.0 x1 |
| Audio | Realtek® ALC1220 Codec w/ Nichicon Gold Capacitors 7.1-Channel High Definition Audio, 32-bit / 192KHz DAC |
| Rear I/O | • 5x USB 2.0 ports • 4x USB 3.1 Gen 1 ports • 1x DisplayPort 1.2 • 1x HDMI™ 1.4b • 1x Clear CMOS button • 1x LAN (RJ45) port • 1x Optical S/PDIF Out port • 1x 7.1-Channel Audio jacks |
| Internal I/O | • 1x 24-pin EATX power connector • 1x 8-pin ATX 12V power connector • 1x 4-pin CPU_FAN connector • 1x 4-pin AIO_PUMP connector • 1x 4-pin W_PUMP connector • 6x 4-pin SYS_FAN connectors (Up to 6W per channel) • 3x USB 2.0 header (Up to 6 USB 2.0 ports) • 2x USB 3.1 Gen1 header (Up to 4 USB 3.1 Gen 1 ports) • 4x SATA 6Gb/s connectors • 1x M.2 Socket 3 with M Key, (PCIe 3.0 x4 & SATA mode) • 1x M.2 Socket 3 with M Key, (PCIe 3.0 x4 mode only) • 2x RGB LED connectors • 1x Noise detection module • 1x Front panel audio connector • 1x Power button • 1x Reset button • 1x ROM backup button • 1x Dual BIOS switch |
| Included Accessories | • 1x User’s manual • 1x I/O shield • 4x SATA data cables • 1x NZXT SLI bridge • 2x LED strips • 2x 500mm LED connection cable • 2x 300mm LED extension cable • Mounting screws |
| Operating System | Microsoft® Windows® 10 (64-bit) |
| Form Factor | ATX |
| Dimensions | 305 x 244 x 43mm |
| Certifications | FCC, CE, WHQL, ErP/EuP Ready |
| Warranty | 4 Years |
| Storage | Intel® Z370 Express Chipset • 1x M.2 type 2242/2260/2280 (PCIe 3.0 x4 & SATA mode) • 1x M.2 type 2242/2260/2280 (PCIe 3.0 x4 mode only) • 4x SATA 6Gb/s ports Support RAID 0/1/5/10 Supports Intel® Smart Response Technology Intel® Rapid Storage Technology 15 Intel® Optane Memory Ready |
Leveraging more than 12 years of experience as professional PC builders, we’ve designed the N7 motherboard around Intel’s Z370 chipset and delivered everything you need to build a powerful, stunning gaming PC.
All the essentials are included, along with a built-in digital fan controller and integrated RGB lighting channels. The all-metal motherboard cover perfectly matches the color and finish of your case, creating a visually seamless backdrop for your components. Using CAM, you can take full control over your system’s lighting, cooling, and performance.
You can’t build a quieter, better-looking system as easily as you can with the new N7.
CAM-powered features simplify setup and control of RGB lighting and fans
HUE+ digital RGB lighting control: advanced lighting with numerous presets and custom modes
GRID+ digital fan control: convenient fan profiles within CAM for nine independent fan channels
Clean customization: all-metal cover available in black and white, and heatsink covers available in a glossy blue, red, or purple finish to color coordinate any build
Efficient layout ensures straightforward and optimal setup with easy upgradeability
Adaptive Noise Reduction optimizes cooling and noise balance for best gaming comfort
Designed with Intel® Z370 Express Chipset
Compatible with Intel® 8th Generation Core™ i7, Core™ i5, and Core™ i3 processors
Intel® Optane™ Memory Ready with two M.2 connectors
Multi-GPU support with NVIDIA® SLI™ and AMD CrossFireX™ Technology
Supports memory overclocking speeds of up to 3866+ MHz and Intel® XMP 2.0
7.1 channel high-definition audio with Nichicon gold capacitors
15 digital power-phase design using Infineon ICs ensures clean and reliable power for your CPU, memory, and PCH chipset
| Κατασκευαστής | NZXT |
| Μοντέλο | N7 Z370 Gaming Motherboard - White |
| Part Number | N7-Z37XT-W1 |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | 1151 |
| Chipset | Intel Z370 |
| Μέγεθος μητρικής | ATX |
| Τύπος Μνήμης | DDR4 |
| Αριθμός Dimm | 4 |
| Expansion Slots | 1x PCIe x16 1x PCIe x8 2x PCIe x4 1x PCIe x1 AMD CrossFireX Nvidia SLI |
| Αποθήκευση | 4x SATA 2x M.2 |
| Έξοδοι Γραφικών | 1x HDMI 1x DisplayPort |
| Πρόσθετα Χαρακτηριστικά | Fan Controller LED Control M.2 Slot |
| Εγγύηση | 4 Έτη, DOA 7 Ημέρες |
