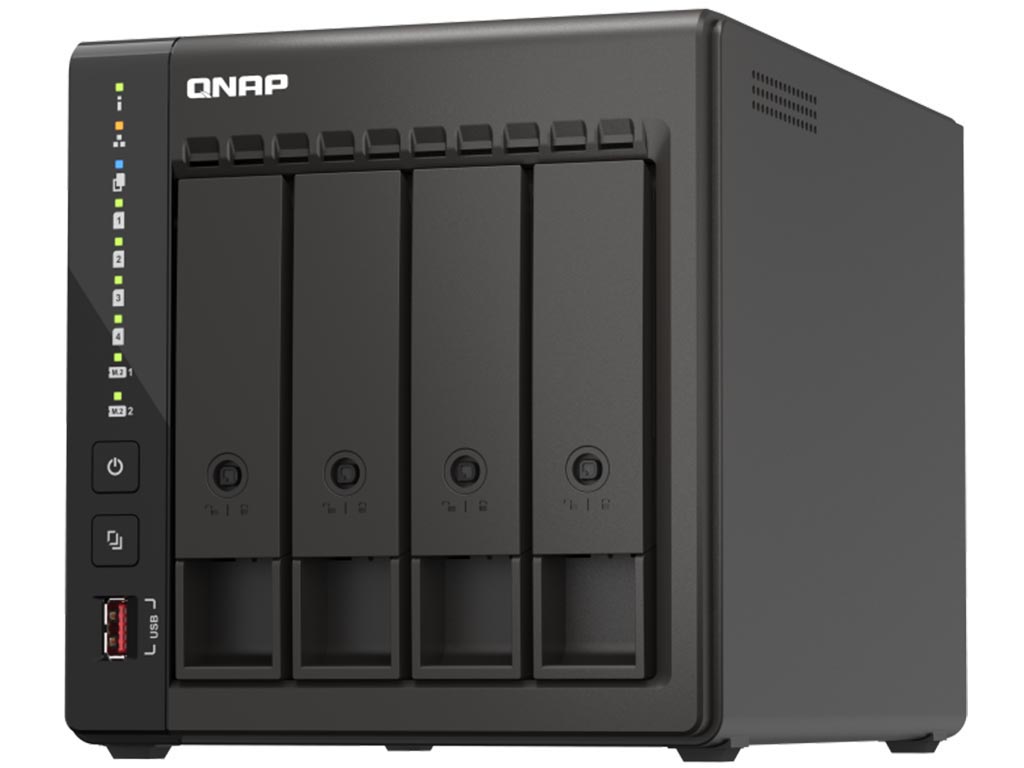

QNAP TS-453E-8G (4-Bay NAS)
Χωρίς ΦΠΑ: 725,73 €
Πληροφορίες
Δόσεις
Άτοκες Δόσεις
Δόσεις χωρίς πιστωτική
TS-453E
The TS-453E features 2.5GbE connectivity, 8GB RAM, and M.2 slots for NVMe SSD caching to deliver high performance for applications such as surveillance systems, virtual machines, file servers or backup servers. Dual HDMI outputs also provide direct multimedia playback and robust surveillance monitoring. QNAP will provide long-term availability and support for the TS-453E, providing a great choice for businesses requiring matching NAS models deployed in multiple locations.
Dual 2.5GbE ports
2.5 times faster network speed with existing CAT5e cables; supports port trunking to deliver up to 5Gbps.
Dual M.2 2280 PCIe slots
Attain greater NAS performance by installing M.2 2280 NVMe PCIe SSDs (sold separately) or Edge TPU.
8GB RAM onboard
System performance and multitasking is optimized with 8GB RAM.
Long-term model
The TS-453E will be available and supported by QNAP for an extended period, up to 2029.
Dual HDMI output
The dual-screen extension can be used for surveillance or 4K high-resolution video playback.
Expand storage capacity
Supports USB expansion enclosures.
| Software Specifications | |
| Operating System |
QTS 5.0.1 |
| Supported Client Operating Systems |
Apple Mac OS 10.10 or later Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux IBM AIX 7, Solaris 10 or later UNIX Microsoft Windows 7, 8, 10 and 11 Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, and 2019 |
| Supported Browsers |
Apple Safari (latest version) Google Chrome (latest version) Microsoft Edge (latest version) Mozilla Firefox (latest version) |
| Supported Languages |
Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish |
| Storage Pool |
Yes |
| SED Storage Pool |
Yes |
| Maximum Pool size |
308 TB |
| Maximum number of storage pool |
128 |
| Volume Type |
Thick, Thin, Static |
| Maximum volume size |
250 TB Note: At least 4 GB RAM is required. |
| Maximum number of volume |
128 |
| Maximum shared folder size |
250 TB |
| Maximum number of shared folder |
512 |
| JBOD Expansion |
Yes |
| VJBOD / VJBOD Cloud |
Yes |
| iSCSI Service |
Yes |
| Fibre Channel Service |
Yes |
| LUN Type |
Thick, Thin |
| File-based iSCSI LUN |
Yes |
| Block-based iSCSI LUN |
Yes |
| Maximum LUN size |
250 TB Note: At least 4 GB RAM is required. |
| Maximum number of targets LUN |
128 |
| LUN feature |
LUN Mapping (LUN can be moved between iSCSI and FC) LUN Masking WWPN Aliases Import/Export FC Port Group FC Port Binding Multipath IO (MPIO) Online LUN capacity expansion LUN snapshot LUN snapshot replication and clone |
| Auto Tiering |
Yes Requires minimum 2GB memory. |
| RAID Type |
8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10 2-bay: JBOD, Single, RAID 0, 1 |
| RAID Group |
Yes To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected. |
| RAID Level Migration |
Yes |
| RAID Expansion (by adding Disk) |
Yes |
| RAID Expansion (by replacing bigger Disks) |
Yes |
| Storage Pool Expansion (by adding RAID Group) |
Yes |
| RAID Hot Spare |
Global, Local |
| RAID Sync/Rebuild/Scrubbing |
Yes |
| Internal drive |
EXT4 |
| External drive |
EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model) Note: To use exFat in certain models you must purchase an exFAT driver license from License Center. |
| Disk, Enclosure Locate |
Yes |
| Disk S.M.A.R.T. Scan |
Yes |
| Disk S.M.A.R.T. Data Migration |
Yes |
| Ironwolf Health Management |
Yes |
| Secure Erase |
Yes |
| SSD Trim |
Yes |
| SSD Life Estimation |
Yes |
| Disk Roaming |
Yes |
| Disk Standby |
Yes |
| Volume Snapshot |
Yes |
| LUN Snapshot |
Yes |
| Minimum Snapshot Interval |
5 minutes |
| Snapshot Retention Policy |
Yes |
| Self-serve Snapshot Recovery |
Yes |
| Application Consisted Snapshot |
Yes |
| Snapshot Full Clone |
Yes |
| Snapshot Replica / Vault |
Yes |
| SSD read-only Cache |
Yes |
| SSD read-write cache |
Yes |
| SSD write-only cache |
Yes |
| SSD Cache RAID |
0, 1, 5, 6, 10 |
| SSD profiling tool |
Yes |
| External Device Management |
Yes |
| Mount Smart Phone (MTP) |
Yes |
| External RAID Device (QNAP so on) Management (External Device Mode) |
Yes |
| External RAID Device (QNAP so on) Management (NAS Mode) |
Yes |
| File Server |
File sharing across Windows, Mac, and Linux/ UNIX Microsoft networking (CIFS/ SMB) Apple networking (AFP) NFS version 3/4 services |
| FTP Server |
QuFTP FTP, SFTP and TFTP protocols FTP over SSL/TLS (explicit FTPS) FXP support |
| Maximum FTP connection |
1024 |
| File Station (Web) |
Yes |
| Object Storage |
Yes |
| Local user account |
4,096 |
| Local group account |
512 |
| Domain user/group account |
200,000 |
| Domain Security |
Yes |
| Domain Controller |
Yes |
| Shared folder permission |
Yes |
| Advanced folder permission |
Yes, (AFP, CIFS/ SMB, FTP, and File Station) |
| Windows ACL |
Yes, (CIFS/ SMB) |
| User quota |
Yes |
| Group quota |
Yes |
| Folder quota |
Yes, (Snapshot shared folder) |
| Home folder |
Yes |
| Resource Monitor |
Yes |
| SNMP |
V2, V3 |
| Network recycle bin |
Recover files deleted using AFP, CIFS/SMB, and File Station Automatic cleanup and file type filter |
| System Log & Notification Center |
Log recording: 3,000 event per second |
| Smart Fan |
Yes |
| Schedule on/off |
Yes |
| Internet protocol |
IPv4, IPv6 |
| Virtual Switch |
Yes |
| Port trunking |
Yes, (7 modes) |
| VLAN |
Yes |
| DHCP Server |
Yes |
| DDNS (Dynamic Domain Name Service) |
Yes |
| Network access protection with auto-blocking |
SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP |
| Security Counselor |
Yes |
| Malware Remover |
Yes |
| AES 256-bit Volume Encryption validated by FIPS 140-2 CAVP |
Yes |
| 2-step verification |
Yes |
| Allow/Deny List |
Yes |
| Access Protection |
Yes |
| Service binding |
Yes |
| Firewall |
Yes |
| vSphere Web Client Plug-in |
Yes |
| VMware vSphere VAAI for iSCSI |
Yes |
| VMware vSphere VAAI for NAS |
Yes |
| Windows ODX |
Yes |
| Windows/ VMware Snapshot Agent |
Yes |
| HTTP/ HTTPS Connections |
TLS 1.0/ 1.1/ 1.2/ 1.3 |
| Supports WebDAV Connection |
Yes |
| Supports Virtual Hosts |
32 |
| Qsync |
Yes Note: At least 1 GB RAM is required. |
| [Qsync] Management Mode |
User customization, Central |
| [Qsync] Qsync client supported platforms |
Windows, macOS, Ubuntu, Android, and iOS |
| [Qsync] Maximum number of version control |
64 |
| HybridMount |
Yes Note: At least 1 GB RAM is required. |
| [HybridMount] File Cloud Gateway |
Concurrent Connections = 20 Upload & 20 Download |
| [HybridMount] Network Drive Mount |
Yes |
| [HybridMount] Free cloud gateway sessions |
2 |
| HBS (Hybrid Backup Sync) |
Yes Note: At least 1 GB RAM is required. |
| [HBS (Hybrid Backup Sync)] NAS to NAS backup |
Yes |
| [HBS (Hybrid Backup Sync)] Cloud Backup |
Yes |
| [HBS (Hybrid Backup Sync)] Cloud Sync |
Yes |
| [HBS (Hybrid Backup Sync)] 2-way and Active Sync |
Yes |
| [HBS (Hybrid Backup Sync)] Backup Deduplication |
Yes |
| [HBS (Hybrid Backup Sync)] Apple Time Machine Backup |
Yes |
| [HBS (Hybrid Backup Sync)] External drive backup |
Yes |
| [HBS (Hybrid Backup Sync)] Maximum number of backup job |
400 |
| Hyper Data Protector |
Yes |
| Boxafe |
Yes Note: At least 4 GB RAM is required. |
| [Boxafe] Office 365 Backup |
Yes |
| [Boxafe] Google Workspace Backup |
Yes |
| [Boxafe] Full-text search |
Yes |
| Qsirch |
Yes Note: This feature is supported by all QNAP NAS devices with at least 2 GB of memory |
| [Qsirch] Previews |
Photos, music, videos, PDFs, Gmail, and others |
| [Qsirch] Integrate Mac Finder |
Yes |
| [Qsirch] Advanced picture search |
Yes |
| [Qsirch] Search filters |
Yes |
| QuMagie |
Yes Note: At least 1 GB RAM is required. |
| [QuMagie] Browse photos |
Yes |
| [QuMagie] Virtual and smart albums |
Yes |
| [QuMagie] AI-assisted photo management |
People, things, places, and others |
| Antivirus (free) |
Yes |
| McAfee (License) |
Yes |
| QVPN Service |
Yes Note: At least 1 GB RAM is required. |
| [QVPN Service] Remote Access |
PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt (QNAP proprietary) |
| [QVPN Service] Supportedd utility and mobile app |
Windows, macOS, iOS, and Android |
| [QVPN Service] Supported maximum clients |
100 |
| HD Station |
Yes |
| LDAP Server |
Yes |
| RADIUS |
Yes |
| SQL server |
Yes |
| License Center |
Yes |
| Multimedia Console |
Yes |
| Photo Station |
Yes |
| Music Station |
Yes |
| Video Station |
Yes |
| Download Station |
Yes |
| Notes Station |
Yes |
| Qfiling |
Yes |
| Media Streaming add-on |
Yes |
| QmailAgent |
Yes |
| QuWAN |
Yes |
| DA Driver Analyzer |
Yes |
| Q'center |
Yes Note: The application is available in the App Center and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V). |
| Q'center Server |
Yes |
| Q'center Agent |
Yes |
| Connect to Q'center |
Yes |
| Virtualization Station |
Yes Note: At least 4 GB RAM is required. |
| [Virtualization Station] Supports Virtual machine instances |
Windows, Linux, Unix, and Android |
| [Virtualization Station] VM importing, exporting, cloning, snapshot capturing, backup, and restoration |
All function is Fine. |
| [Virtualization Station] Virtual switches |
Can create a virtual switch |
| [Virtualization Station] GPU pass-through |
Not support GPU |
| [Virtualization Station] Suggested number of virtual machine instances |
4 The actual number of virtual machine instances may vary by the memory installed on NAS (e.g. 1 VM= 1 thread for 1 vCPU and 1GB memory). Please expend memory if needed. |
| Container Station |
Yes Note: At least 1 GB RAM is required. |
| [Container Station] Supported type |
LXC/LXD and Docker Note: LXD has been supported after Container Station 2.4 |
| [Container Station] Docker Hub Registry |
Yes |
| [Container Station] Container importing and exporting |
Yes |
| [Container Station] Console mode |
Yes |
| Linux Station |
Yes Notification: At least 4 GB RAM is required. |
| [Linux Station] Supports Ubuntu versions |
18.04, and 20.04 |
| Linux Station Center |
Yes |
| QVR Pro |
Yes Note: At least 4 GB RAM is required. |
| [QVR Pro] Recording Technique |
Index database based |
| [QVR Pro] License Type |
Perpetual |
| [QVR Pro] User-defined trigger events |
Yes |
| [QVR Pro] Metadata |
Yes |
| [QVR Pro] QVR Pro Client (Desktop) |
Windows, macOS, and QNAP HybridDesk Station |
| [QVR Pro] QVR Pro Client (Mobile) |
Android and iOS |
| [QVR Pro] Recording camera streams |
H.264 |
| [QVR Pro] Free built-in camera channels |
8 |
| QVR Elite |
Yes Note: At least 1 GB RAM is required. |
| [QVR Elite] Recording Technique |
Standard MP4 file based |
| [QVR Elite] License Type |
Subscription-based |
| [QVR Elite] User-defined trigger events |
Yes |
| [QVR Elite] QVR Pro Client (Desktop) |
Windows, macOS, and QNAP HybridDesk Station |
| [QVR Elite] QVR Pro Client (Mobile) |
Android and iOS |
| [QVR Elite] Recording camera streams |
H.264 |
| [QVR Elite] Free built-in camera channels |
2 |
| QVR Pro Client |
Yes |
| [QVR Pro Client] Dynamic View Layout |
Yes |
| [QVR Pro Client] Windows |
Yes |
| [QVR Pro Client] Mac |
Yes |
| [QVR Pro Client] HybridDesktop |
Yes |
| [QVR Pro Client] iOS |
Yes |
| [QVR Pro Client] Android |
Yes |
| QVR Center |
Yes Note: At least 4 GB RAM is required. |
| [QVR Center] Log management |
Yes |
| [QVR Center] Central monitoring across multiple servers |
Yes |
| QVR Guard |
Yes Note: At least 4 GB RAM is required. |
| [QVR Guard] Failover design |
Yes |
| [QVR Guard] Viewing task details |
Yes |
| [QVR Guard] Automatic switch between Standby and Takeover modes |
Yes |
| QVR Human |
Yes |
| QVR Face |
Yes |
| QVR DoorAccess |
Yes |
| Κατασκευαστής | QNAP |
| Μοντέλο | TS-453E-8G (4-Bay NAS) |
| Part Number | TS-453E-8G |
| Κατηγορία | NAS Chassis |
| Αριθμός Δίσκων | 4x 2.5"/3.5" 2x M.2 2280 NVMe SSD Gen 3 x2 |
| Υποστήριξη RAID | Basic RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 JBOD |
| Rackmount | Tower |
| Θύρες Ethernet | 2x 2.5 Gbps |
| Συνδέσεις | 2x USB 2.0 2x USB 3.2 type A Gen 2 |
| Μνήμη RAM | 8GB on board (non-expandable) |
| Πρόσθετα Χαρακτηριστικά | Υποστήριξη iSCSI (Maximum LUN size: 256) |
| Λοιπά στοιχεία | CPU: Intel® Celeron® J6412 4-core/4-thread processor, burst up to 2.6 GHz Flash Memory: 4GB (Dual boot OS protection) Hot-swappable: Yes Dimensions (HxWxD): 177 × 180 × 235 mm Weight (Net): 3 kg Operating Temperature: 0 - 40 °C (32°F - 104°F) Power Supply Unit: 90W adapter, 100-240V Power Consumption (HDD Sleep Mode): 15.78 W Power Consumption (Operating Mode, Typical): 33.88 W Box Contents TS-453E Ethernet cable x 1 Power cord x 1 AC Adapter Flat head screw (for M.2 SSD) x 2 Flat head screw (for 3.5" HDD) x 16 Flat head screw (for 2.5" HDD) x 12 Quick installation guide (QIG) Drive tray keys x 2 |
| Εγγύηση | 2 Έτη |
